large capacity china drum filter for metal industry
Our vacuum drum filter can be used for many mineral grinding,such as gold ore,copper ore,iron ore and zinc ore and so on. When you find xinhai , you find the best mining machinery manufacturers. What you need is what we do.
Vacuum Drum Filter —Introduction
A vacuum filter is a device for separating liquids from solids for dewatering purposes. Vacuum ceramic filters are widely used in the beneficiation of ore concentrates, including iron ores, gold, copper, nickel, zinc, and lead.
Vacuum Drum Filter — Features
Disc vacuum filter runs smoothly, easy to operate, has reliable mechanical properties, and has large production capacity .
Disc vacuum filter can change spindle speed to meet the different needs.
Vacuum Drum Filter — Application
Disc vacuum filter can be used for floating and dewatering in clean coal and fine materials like tailings, and it can be also used in metallurgy, chemical, petroleum, sewage treatment, and other aspects of the solid-liquid separation.
Vacuum Drum Filter — Working principle
Filter plate immersed in the pulp while in operation produces a surface absorption of filter cake, with the action of capillarity and integrated with vacuum pressure. Filtrate enters distributing valve and drainage tank through filter plate. Filter cake comes out from slime hopper receiving spray washing. Continuous dehydration for filter cake is conducted with the action of high vacuum force. Scraper will automatically discharge materials once entering the vacuum-free condition. filter cake falls into the tank by the pressure from the wind and scraper.
Vacuum Drum Filter — parameter
Diameter of filter disc(mm) | 2100 | 3100 | |||||||||||
Filter area(m2) | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 48 | 60 | 72 | 84 | 96 | |
Number of filter discs(piece) | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 4 | 5 | 6 | 7 | 8 | |
Number of filter fans of each disc(piece) | 20 | ||||||||||||
Motor power of main shaft(KW) | 2.2 | 3 | 4 | 5.5 | 7.5 | ||||||||
Motor power of agitaiton(KW) | 3 | 4 | 5.5 | 7.5 | 11 | ||||||||
Unloading method | Reverse wind | ||||||||||||
Outside measure-ment | Length(mm) | 2535 | 2920 | 3315 | 3705 | 4095 | 4485 | 4875 | 4235 | 4735 | 5235 | 5735 | 6235 |
Width(mm) | 2480 | 4205 | |||||||||||
Hight(mm) | 2690 | 3700 | |||||||||||
Capacity(t/min.h) | 0.6-0.85 |
Xinhai mining was established in 1993.And was the pioneer of China beneficiation industry.Our company could provide mining machine more than 600,and have the most equipment in China.At present,Xinhai business includes Mineral Processing EPC,Wear-Resistant Rubber,LFC Machinery,and Mining Investment.
this is our factory and our office building.

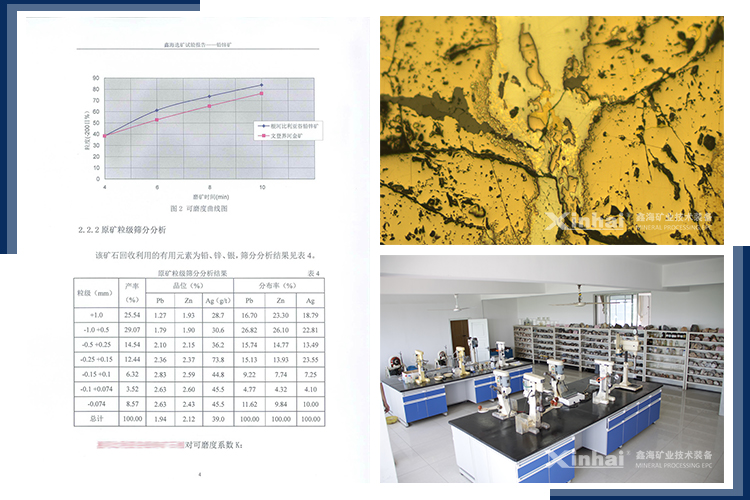

this is our laboratory and laboratory data.
Our customers come from all over the world, such as Xinhai EPC project ,Africa Mail 800t/d gold; Xinhai Transformation Project, Indonesia PT.NEM Gold Mine as so on. We have a lot of successful cases in America, Russia and Africa .Also we have Zimbabwe Office,Sudan Office and Indonesia Office. We will give you the best service.
this is our project in Africa.
Q:Hi, are you mining machinery manufacturer?A:Yes, we can also provide amples test, mine design, equipment manufacture, after-sale service, etc.
Q:which country have your products been exported?
A:Many country, such as India, Ethiopia and so on. And our company has agencies in Zimbabwe, Sudan and Tanzania.
Q:Can you do mineral processing test?
A:Yes, not only can do it in your country, also can back to our company
How To Contact Us?
You can tell us the kind of ore that you want to process and the capacity that you need. We will give you the most suitable models.
