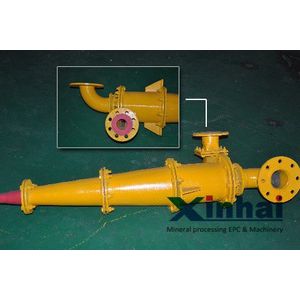

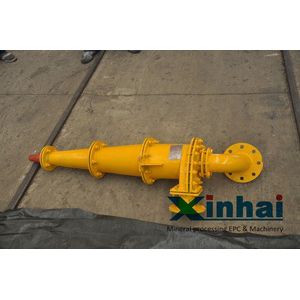

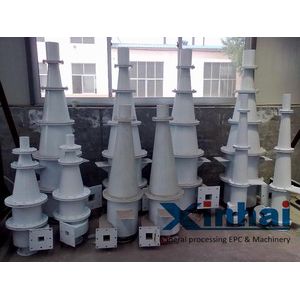

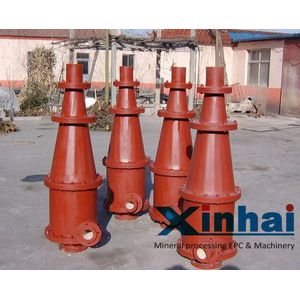

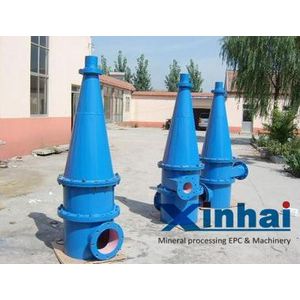

Xinhai Cyclone Separator Price , Gold Washer Mineral Separator Hydrocyclone

You can give us your requirement,then we will give you a perfect project.

Technical Feature

  • New
  • hydrocyclone
  • depend on the model
  • Shandong, China (Mainland)
  • Xinhai
  • XCIII
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$1~500

PRIMARY PARAMETERS

Condition
New
Type
hydrocyclone
Production Capacity
depend on the model
Place of Origin
Shandong, China (Mainland)
Brand Name
Xinhai
Model Number
XCIII
Voltage
depend on the model
Power(W)
depend on the model
Dimension(L*W*H)
depend on the model
Weight
depend on the model
Certification
ISO 9001, CE
Warranty
one year
After-sales Service Provided
Engineers available to service machinery overseas
after sale service
whole using life
installation
technical guidance
price
negotiable

DETAIL DESCRIPTION

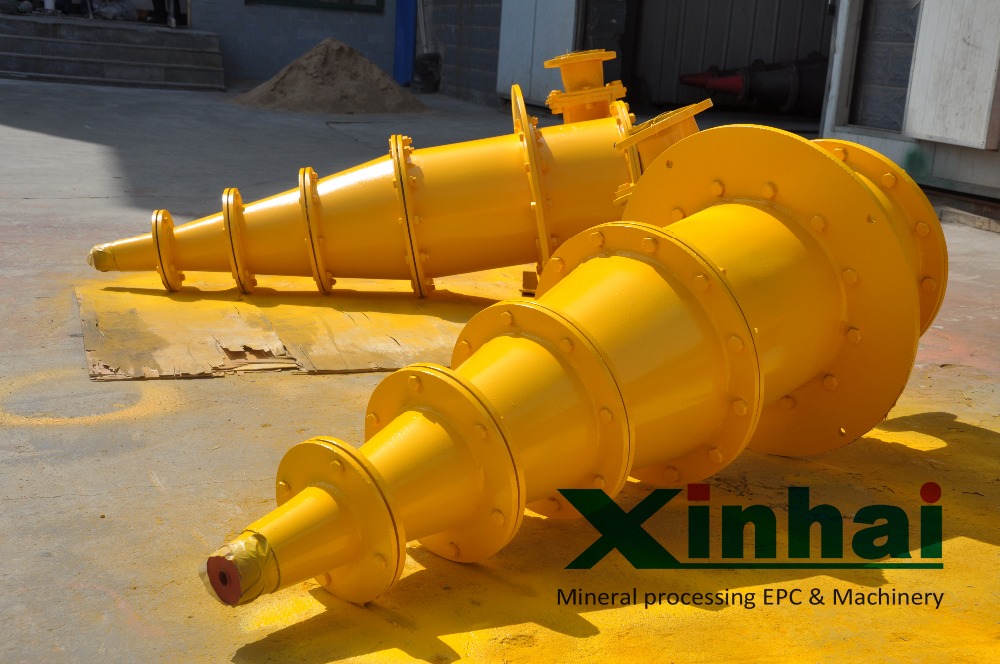

Xinhai Cyclone Separator Price ,  Gold Washer Mineral Separator Hydrocyclone

Our Hydrocyclone has been sold to all over the world.You can give us your requirement,then we will give you a perfect project.

Product Advantages

Cyclone Separator Price —Product advantages

1.Steady performance

2.High automaticity

3.Safe and reliable

4.Easy operation

5.Consistent overflow concentration; overflow seldom spills

Product Feature

Cyclone Separator Price — Product feature

With controlling siphon device and fishtail device, the concentration of underflow can be adjuste

When the feeding quantity, the feeding concentration and the feeding pressure vary within a certain scopes, the fishtail device can accordingly vary, so the concentration keeps consistent.

Overflow is well controlled.

Product Application

Cyclone Separator Price —Product application

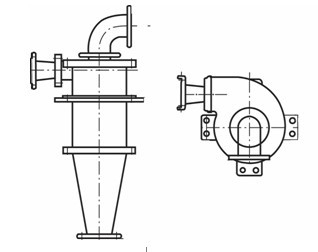

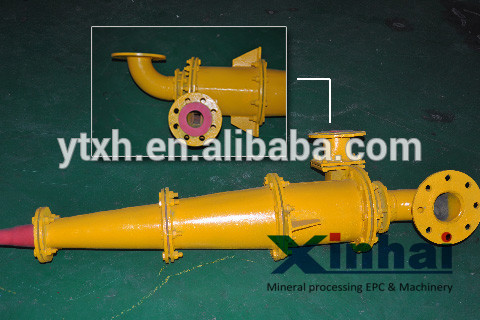

XCⅢ hydraulic cyclone, developed by Xinhai company, can reach the advanced world level. There are a specifically designed fishtail device near sediment opening and a specifically designed siphon device above overflow box. These two devices add unrivaled advantage to our product-----higher underflow concentration and lower overflow concentration are accomplishable. Take silica sand industry for example, the overflow concentration can be reduced as low as water while underflow concentration can be 85%. When the feeding quantity, the feeding concentration and the feeding pressure vary within a certain scopes, the fishtail device can accordingly vary, so the concentration keeps consistent.

Working principle

Cyclone Separator Price — Product principle

The hydraulic cyclone, a common classifier, is designed according to the centrifugation and sedimentation theory. When the two-phase or three-phase mixed liquor is fed into hydraulic cyclone through feeding opening, the mixed liquor can form a three-dimensional and oval and strong rotating and tangent cyclone. Considering that there is a particle size difference between fine and coarse ores, the majority of coarse ores precipitates to bottom in a spiral trajectory by the action of centrifugal force, centripetal force, buoyancy and fluid resistance, etc, and then is discharged. Fine ores form a cyclone, move up and then overflow through the overflow outlet.

Technology parameter

Cyclone Separator Price — Technology parameter

Specification

Processing

Capacity

(m/h)

Classification particle

Size

(mm)

Overflow

Opening

Diameter

(mm)

Sediment opening diameter

(mm)

Feeding pressure
(MPa)

50

2-3.5

10-74

11-18

4-12

0.1-0.3

75

3.7-6.6

20-74

15-20

6-12

0.08-0.25

100

5.8-9

35-75

30-40

8-18

0.06-0.15

125

12.6-19

35-75

38-60

8-20

0.06-0.15

150

15-24

35-75

38-60

8-22

0.06-0.15

225

27.7-43

40-100

57-85

16-38

0.06-0.15

250

32-53

40-100

65-90

16-40

0.06-0.15

300

45-70

45-110

65-120

25-50

0.06-0.15

380

76-120

50-110

94-152

30-72

0.06-0.15

455

128-203

60-120

114-178

50-140

0.06-0.15

500

136-215

60-120

144-180

50-140

0.06-0.15

600

206-325

65-140

178-254

82-140

0.06-0.15



Xinhai Group

Xinhai mining was established in 1993.And was the pioneer of China beneficiation industry.Our company could provide mining machine more than 600,and have the most equipment in China.At present,Xinhai business includes Mineral Processing EPC,Wear-Resistant Rubber,LFC Machinery,and Mining Investment.

this is our factory and our office building.

this is our laboratory and laboratory data.

Our customers come from all over the world, such as Xinhai EPC project ,Africa Mail 800t/d gold; Xinhai Transformation Project, Indonesia PT.NEM Gold Mine as so on. We have a lot of successful cases in America, Russia and Africa .Also we have Zimbabwe Office,Sudan Office and Indonesia Office. We will give you the best service.

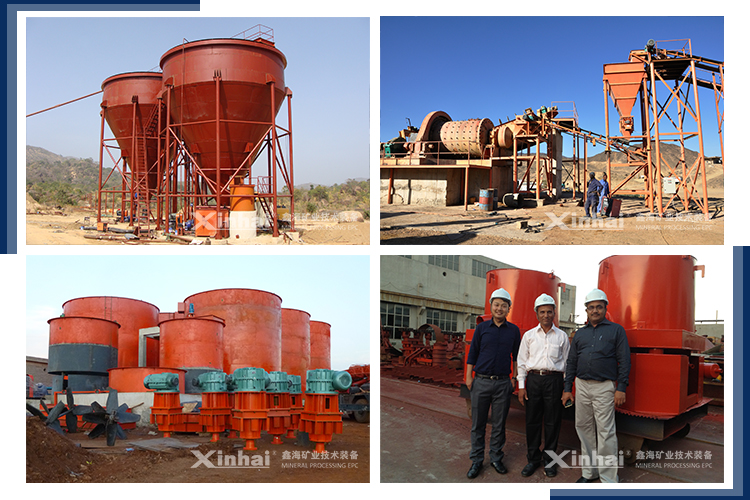

this is our project in Africa.

Q:Hi, are you mining machinery manufacturer?

A:Yes, we can also provide amples test, mine design, equipment manufacture, after-sale service, etc.

Q:which country have your products been exported?

A:Many country, such as India, Ethiopia and so on. And our company has agencies in Zimbabwe, Sudan and Tanzania.

Q:Can you do mineral processing test?

A:Yes, not only can do it in your country, also can back to our company
