ISO 9001 & CE Certified Hydrocyclone Filter / Hidrociclon

1 The 3-dimension snail-shaped feeding structure makes it possible to feed minerals in circumferential and axial directions.

Technical Feature

  • New
  • hydrocyclone
  • depends on the type
  • Shandong, China (Mainland)
  • Xinhai
  • XC I, XCII, XCIII, XC IV
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$200~60

PRIMARY PARAMETERS

Condition
New
Type
hydrocyclone
Production Capacity
depends on the type
Place of Origin
Shandong, China (Mainland)
Brand Name
Xinhai
Model Number
XC I, XCII, XCIII, XC IV
Voltage
380V
Power(W)
depends on the type
Dimension(L*W*H)
depends on the type
Weight
various
Certification
ISO 9001, CE
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
Gold hydrocyclone price
negotiable
installation
technical guidance
after sale service
the whole using life

DETAIL DESCRIPTION

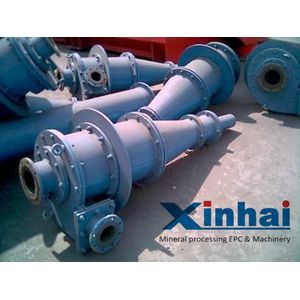

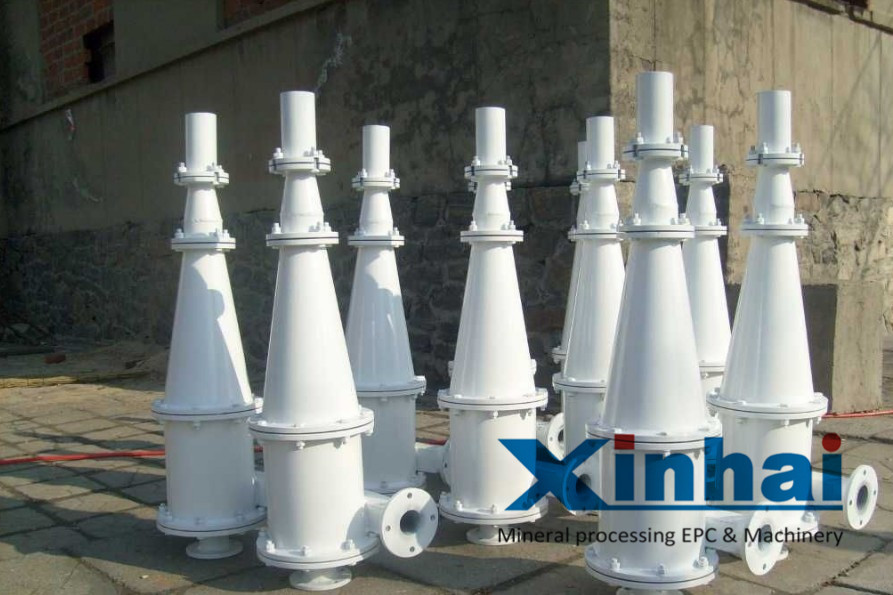

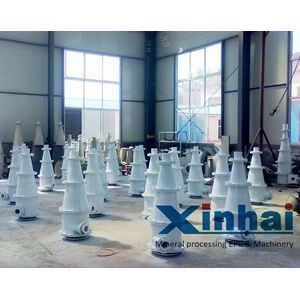

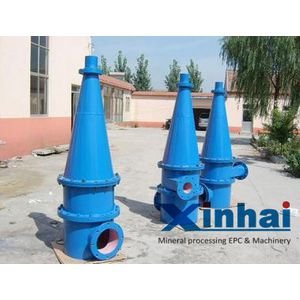

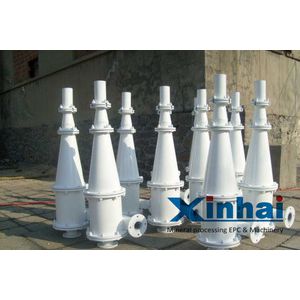

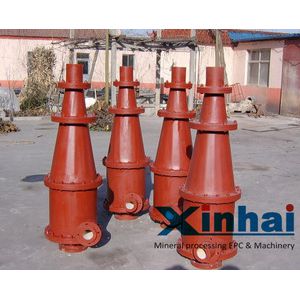

Hydrocyclone Separator, Hydrocyclone Filter ,Hidrociclon

Advantages

Hidrociclon —Product advantages

1.Simple structure; light and nimble; no moving part

2.Low maintenance charge; easy to attach and detach; save floor space; low construction expense

3.Large processing capacity

4.The classification particle size can reach 10μm



Technical Parameters

Hidrociclon —Parameter

Specification

Processing capacity

 (m3/h)

Classifying particle

size

(mm)

Overflow opening

Diameter

(mm)

Sediment

 opening

diameter
(mm)

Feeding

 pressure
(MPa)

150

10-23

25-74

30-50

8-22

0.060-0.15

200

17-38

28-80

40-65

16-32

0.060-0.15

250

24-53

30-82

65-100

16-40

0.060-0.15

300

40-100

36-90

65-120

20-40

0.060-0.15

350

56-118

40-100

80-120

30-70

0.060-0.15

400

74-157

42-105

90-135

30-70

0.060-0.15

450

90-192

44-110

100-150

30-70

0.060-0.15

500

128-300

50-115

130-220

35-100

0.060-0.15

550

155-368

52-120

140-240

35-100

0.060-0.15

610

200-468

57-125

160-260

65-110

0.060-0.15

660

237-524

60-130

180-280

80-150

0.060-0.15

710

285-580

63-135

200-280

120-160

0.060-0.15

Product Feature

Hidrociclon —Feature

1 The 3-dimension snail-shaped feeding structure makes it possible to feed minerals in circumferential and axial directions. This design can tremendously improve classification efficiency in three ways------first of all, after entering the hydraulic cyclone, minerals avert from being disturbed by turbulent flows occurring near overflow pipes; secondly, the speed of coarse ore cyclone is accelerated towards underflow outlet; thirdly, minerals avoid swift rotating.

2 The square pipe-type feeding model enables ores to get closer to the inner wall of hydraulic cyclone, which contributes to the lightest abrasion of feeding ores and the strongest divergent forces of ores. Consequently, abrasion of feeding box is reduced to the lowest level.

3 The unique adjustment device of wedge-shaped feeding opening can quickly adjust the feeding size, so classification efficiency is hugely raised.

4 The wedge-shaped adjusting valve constitutes a replaceable part for the inlet pipe, so there is no need to change the whole liner of hydraulic cyclone.

5 The premium abrasion performance of liner made from Xinhai abrasion-resistant rubber can considerably reduce using cost, and maintain the inner dimension and shape of hydraulic cyclone, so the stable classification efficiency is achievable.

6 Our company can also provide molding abrasion-resistant rubber liner and cold bonding abrasion-resistant rubber liner, the service life of which is extraordinarily long.

7 The appropriative software helps to choose the right mode accurately and quickly.

Application

Hidrociclon —Application

Xinhai XC I hydraulic cyclone, which is manufactured by Xinhai mining machinery Co. Ltd via CFD (computational fluid dynamics ) model and 3-D analysis model, is able to catch up and transcend the world advanced level. It is perfectly applicable to classification and dehydration. XC I hydraulic cyclone is provided in three versions: 10°,15°,20°

Xinhai Group

Xinhai mining was established in 1993.And was the pioneer of China beneficiation industry.Our company could provide mining machine more than 600,and have the most equipment in China.At present,Xinhai business includes Mineral Processing EPC,Wear-Resistant Rubber,LFC Machinery,and Mining Investment.

Q:Hi, are you mining machinery manufacturer?

A:Yes, we can also provide amples test, mine design, equipment manufacture, after-sale service, etc.

Q:which country have your products been exported?

A:Many country, such as India, Ethiopia and so on. And our company has agencies in Zimbabwe, Sudan and Tanzania.

Q:Can you do mineral processing test?

A:Yes, not only can do it in your country, also can back to our company
