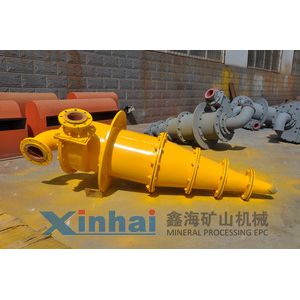

China Supplier Sale More High Quality Hydrocyclone

The way of involute feeding through the inlet branch reduces the turbulence of the burst emanative flow when materials entry, makes a smooth movement of liquid inside cyclone, therefore gives a sharp classification.

Technical Feature

  • New
  • Hydrocyclone
  • 35~130
  • Shandong, China (Mainland)
  • Xinhai
  • XH
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$6~999

PRIMARY PARAMETERS

Condition
New
Type
Hydrocyclone
Production Capacity
35~130
Place of Origin
Shandong, China (Mainland)
Brand Name
Xinhai
Model Number
XH
Voltage
380V
Power(W)
depend on the model
Dimension(L*W*H)
depend on the model
Weight
depend on the model
Certification
ISO 9001, CE
Warranty
one year
After-sales Service Provided
Engineers available to service machinery overseas
after sale service
whole using life
installation
technical guidance
price
negotiable
Name
Hydrocyclone
Application
Ore
Product name
Hydrocyclone Machinery
Usage
hydrocyclone dewatering
Capacity
1-100 Tons / Hour
Keywords
hydrocyclone sand separator
Material
Stainless Steel

DETAIL DESCRIPTION

China Supplier Sale More High Quality Hydrocyclone

Introduction

Hydrocyclone —Product Introduction

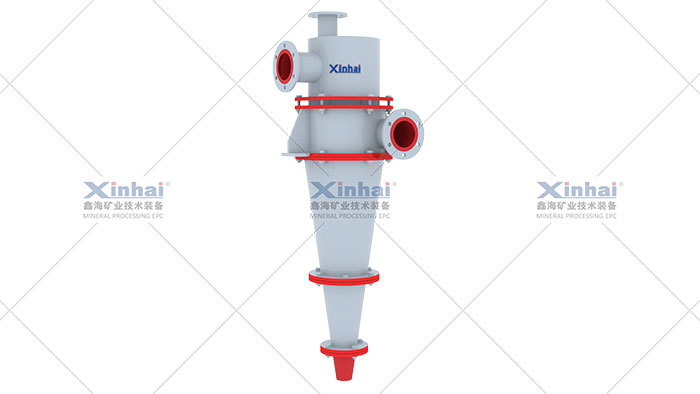

A cyclone with involute feeding



Product Improvement

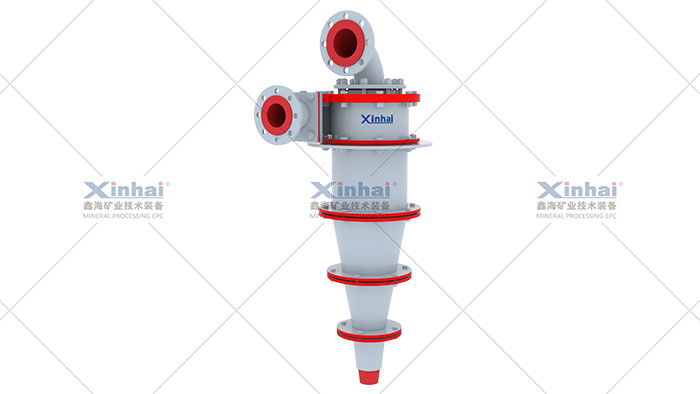

Hydrocyclone — Product Improvement

Unique involute feeding eliminating the disturbance, reduces wear and improves the classification efficiency



Advantages

Hydrocyclone  — Advantages

The way of involute feeding through the inlet branch reduces the turbulence of the burst emanative flow when materials entry, makes a smooth movement of liquid inside cyclone, therefore gives a sharp classification.

China Supplier Sale More High Quality Hydrocyclone :

The rational length proportion of column and cone and reasonable insert depth of vortex finder
Wear – resistant rubber as liners prolongs the service life by 2-4 times





Working Feature

Hydrocyclone — Product Features

China Supplier Sale More High Quality Hydrocyclone  :

Xinhai hydrocyclone with unique structure design adopts the composite structure of multi section type column body. It changes the height of column according to the need. If the height increased, overflow fineness increase up to about 10 μ m diameter. Each diameter has unique cylinder length and cone angle, which can achieve the maximum tangential velocity at the minimum total cyclone length, so as to increase centrifugal force and improve the classification efficiency.



Work Principle

Hydrocyclone — Work Principle

China Supplier Sale More High Quality Hydrocyclone  :

The working principle of Xinhai hydrocyclone is centrifugal sedimentation, when two phases (or three phases) mixed liquid is fed into hydrocyclone by a certain pressure liquid and produces strong three-dimensional-elliptic rotational movement. Due to the different density of particles, the centrifugal force, the centripetal buoyancy and drag force is different. So most coarse particles (or heavy phase) are discharged from cyclone underflow outlet, and the fine particles (or light phase) from the overflow tube, so as to achieve separation.
Working modes of Xinhai hydrocyclone includes classification, condensation, dehydration, desliming, sand removing sand, washing, ultrafine classification etc.



Technical Parameters

Hydrocyclone — Technical Parameters

Specification

Capacity
(m3 /h)

Separation Particle Size
(μm)

Diameter of Overflow Outlet
(mm)

Diameter of Spigot
(mm)

Inlet Pressure
(MPa)

150

10-23

25-74

30-50

8-22

0.060-0.15

200

17-38

28-80

40-65

16-32

0.060-0.15

250

24-53

30-82

65-100

16-40

0.060-0.15

300

40-100

36-90

65-120

20-40

0.060-0.15

350

56-118

40-100

80-120

30-70

0.060-0.15

375

74-157

42-105

90-135

30-70

0.060-0.15

450

90-192

44-110

100-150

30-70

0.060-0.15

500

128-300

50-115

130-220

35-100

0.060-0.15

610

200-468

57-125

160-260

65-110

0.060-0.15

660

237-524

60-130

180-280

80-150

0.060-0.15

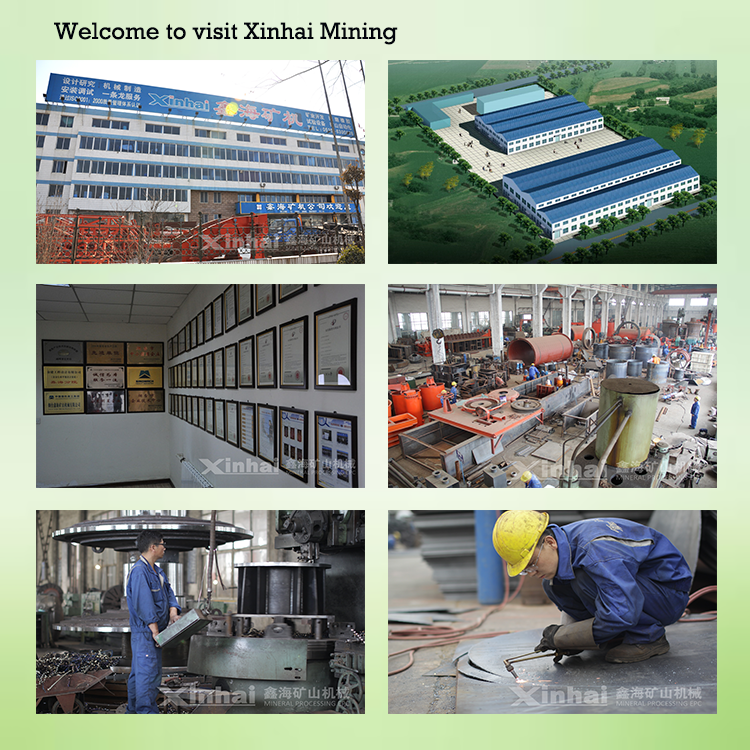

About Xinhai

Group Introduction

Xinhai Group founded in 1993 has grown into the industry group involving mineral processing, wearable rubber, mining investment and LFC Machinery after twenty years development. We have been always committed to providing customers with professional, perfect, efficient equipment and solutions. The whole solution we provide for you with the core of reliable & efficient mineral processing schemes and environmental-protection & energy-saving tailings dry stacking, makes us stand up in every EPC bid.
