high efficiency cyclone for mining,cyclone desander for sale

Choose Xinhai means you will enjoy reliable and efficient service to save an enormous amount of time and cost.

What you need is what we do.

---------Xinhaimining

cyclone desander — Advantages

Unique involute feeding eliminating the disturbance, reduces wear and improves the classification efficiency

The way of involute feeding through the inlet branch reduces the turbulence of the burst emanative flow when materials entry, makes a smooth movement of liquid inside cyclone, therefore gives a sharp classification.

The rational length proportion of column and cone and reasonable insert depth of vortex finder
Wear – resistant rubber as liners prolongs the service life by 2-4 times

cyclone desander — Product Features

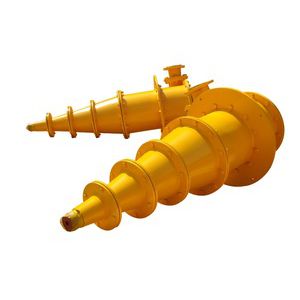

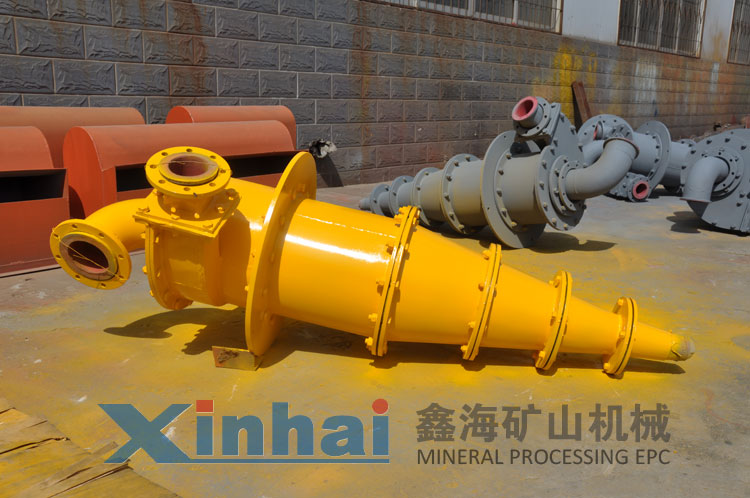

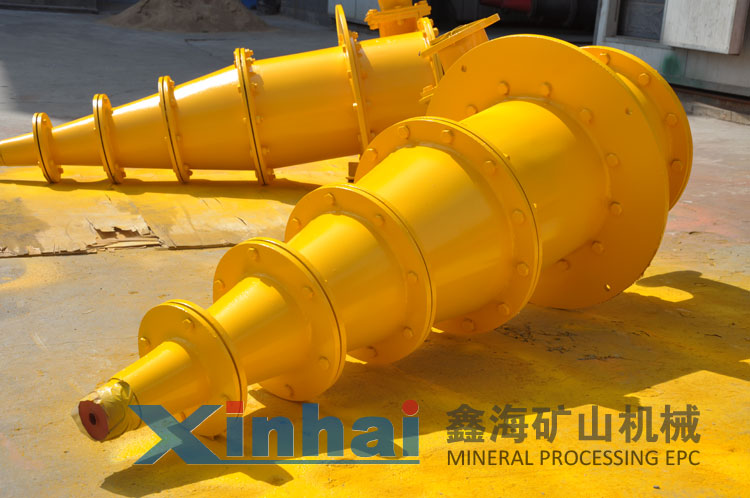

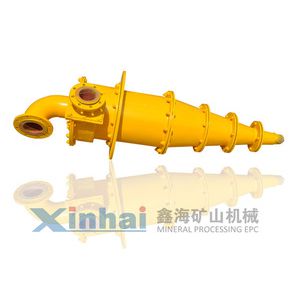

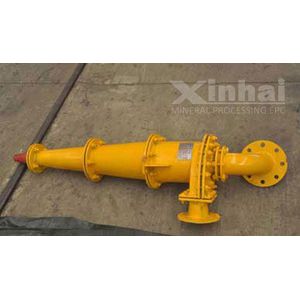

Xinhai hydrocyclone with unique structure design adopts the composite structure of multi section type column body. It changes the height of column according to the need. If the height increased, overflow fineness increase up to about 10 μ m diameter. Each diameter has unique cylinder length and cone angle, which can achieve the maximum tangential velocity at the minimum total cyclone length, so as to increase centrifugal force and improve the classification efficiency.

cyclone desander — Work Principle

The working principle of Xinhai hydrocyclone is centrifugal sedimentation, when two phases (or three phases) mixed liquid is fed into hydrocyclone by a certain pressure liquid and produces strong three-dimensional-elliptic rotational movement. Due to the different density of particles, the centrifugal force, the centripetal buoyancy and drag force is different. So most coarse particles (or heavy phase) are discharged from cyclone underflow outlet, and the fine particles (or light phase) from the overflow tube, so as to achieve separation.
Working modes of Xinhai hydrocyclone includes classification, condensation, dehydration, desliming, sand removing sand, washing, ultrafine classification etc.
