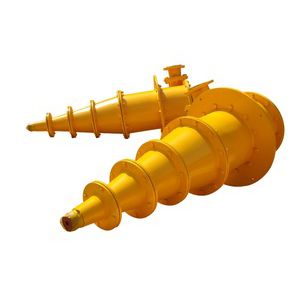

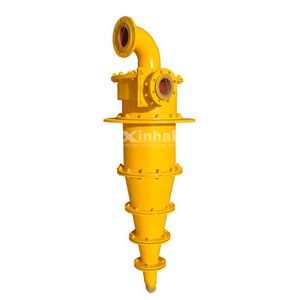

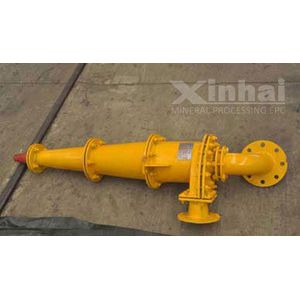

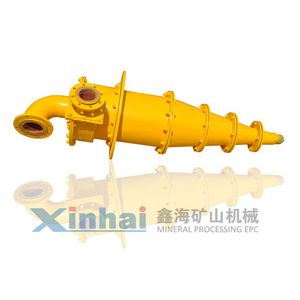

cyclone desander made in china

Choose Xinhai means you will enjoy reliable and efficient service to save an enormous amount of time and cost.

Technical Feature

  • New
  • Hydrocyclone
  • 35~130
  • Shandong, China (Mainland)
  • Xinhai
  • XH
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$1~300

PRIMARY PARAMETERS

Condition
New
Type
Hydrocyclone
Production Capacity
35~130
Place of Origin
Shandong, China (Mainland)
Brand Name
Xinhai
Model Number
XH
Voltage
380V
Power(W)
depend on the model
Dimension(L*W*H)
depend on the model
Weight
depend on the model
Certification
ISO 9001, CE
Warranty
one year
After-sales Service Provided
Engineers available to service machinery overseas
after sale service
whole using life
installation
technical guidance
price
negotiable
Name
cyclone desander

DETAIL DESCRIPTION

cyclone desander made in china

Choose Xinhai means you will enjoy reliable and efficient service to save an enormous amount of time and cost.

What you need is what we do.

---------Xinhaimining

Advantages

cyclone desander — Advantages

Unique involute feeding eliminating the disturbance, reduces wear and improves the classification efficiency

The way of involute feeding through the inlet branch reduces the turbulence of the burst emanative flow when materials entry, makes a smooth movement of liquid inside cyclone, therefore gives a sharp classification.

The rational length proportion of column and cone and reasonable insert depth of vortex finder
Wear – resistant rubber as liners prolongs the service life by 2-4 times

Product Feature

cyclone desander — Product Features

Xinhai hydrocyclone with unique structure design adopts the composite structure of multi section type column body. It changes the height of column according to the need. If the height increased, overflow fineness increase up to about 10 μ m diameter. Each diameter has unique cylinder length and cone angle, which can achieve the maximum tangential velocity at the minimum total cyclone length, so as to increase centrifugal force and improve the classification efficiency.

Working Principle

cyclone desander — Work Principle

The working principle of Xinhai hydrocyclone is centrifugal sedimentation, when two phases (or three phases) mixed liquid is fed into hydrocyclone by a certain pressure liquid and produces strong three-dimensional-elliptic rotational movement. Due to the different density of particles, the centrifugal force, the centripetal buoyancy and drag force is different. So most coarse particles (or heavy phase) are discharged from cyclone underflow outlet, and the fine particles (or light phase) from the overflow tube, so as to achieve separation.
Working modes of Xinhai hydrocyclone includes classification, condensation, dehydration, desliming, sand removing sand, washing, ultrafine classification etc.

Technical Parameters

cyclone desander — Technical Parameters

Specification

Capacity
(m3 /h)

Separation Particle Size
(μm)

Diameter of Overflow Outlet
(mm)

Diameter of Spigot
(mm)

Inlet Pressure
(MPa)

150

10-23

25-74

30-50

8-22

0.060-0.15

200

17-38

28-80

40-65

16-32

0.060-0.15

250

24-53

30-82

65-100

16-40

0.060-0.15

300

40-100

36-90

65-120

20-40

0.060-0.15

350

56-118

40-100

80-120

30-70

0.060-0.15

375

74-157

42-105

90-135

30-70

0.060-0.15

450

90-192

44-110

100-150

30-70

0.060-0.15

500

128-300

50-115

130-220

35-100

0.060-0.15

610

200-468

57-125

160-260

65-110

0.060-0.15

660

237-524

60-130

180-280

80-150

0.060-0.15

About xinhai

Xinhai mining was established in 1993.And was the pioneer of China beneficiation industry.Our company could provide mining machine more than 600,and have the most equipment in China.At present,Xinhai business includes Mineral Processing EPC,Wear-Resistant Rubber,LFC Machinery,and Mining Investment.

our factory and our office building



our laboratory and laboratory data

Case

Our customers come from all over the world, such as Xinhai EPC project ,Africa Mail 800t/d gold; Xinhai Transformation Project, Indonesia PT.NEM Gold Mine as so on. We have a lot of successful cases in America, Russia and Africa .Also we have Zimbabwe Office,Sudan Office and Indonesia Office. We will give you the best service.

our project in Africa

FAQ

Q:Hi, are you mining machinery manufacturer?

A:Yes, we can also provide amples test, mine design, equipment manufacture, after-sale service, etc.

Q:which country have your products been exported?

A:Many country, such as India, Ethiopia and so on. And our company has agencies in Zimbabwe, Sudan and Tanzania.

Q:Can you do mineral processing test?

A:Yes, not only can do it in your country, also can back to our company
