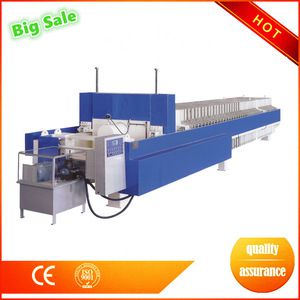

high temperature resistant filter press , filter press for dewatering gold silver copper ore

Chamber filter press takes filter cloth as the medium to separate solid and liquid.

Technical Feature

  • New
  • Automatic
  • 98%
  • Shandong, China (Mainland)
  • Xinhai
  • KZG
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$10~699

PRIMARY PARAMETERS

Condition
New
Automatic Grade
Automatic
Production Capacity
98%
Place of Origin
Shandong, China (Mainland)
Brand Name
Xinhai
Model Number
KZG
Voltage
380V /Customized
Power(W)
2.2- 11 KW
Weight
23.22- 68.02 ton
Dimension(L*W*H)
1500X1500X90 mm- 2000X2000X95 mm
Certification
ISO 9001, CE
Warranty
One Year
After-sales Service Provided
Engineers available to service machinery overseas
Name
filter press
Filter Area
20- 1000 m2
Application
Ore
Service
mineral processing test, mine design

DETAIL DESCRIPTION

high temperature resistant filter press , filter press for dewatering gold silver copper ore

We have Big Sale activities recently.

Welcome to contact us for details!



1) We answer your consultations about mine election plant for free.

2) We ensure your mine election plants up to the standards.

3) We eternally provide mine election plant services.





                                                                                    ------Xinhai Mining



Introduction

filter press Introduction

The Introduction of filter press:
A dewatering equipment relying on pressure of slurry pump including chamber press filter and plate press filter
Filtering Area: 20- 1000 m2



Product Improvement

filter press Improvement

The Product Improvement of filter press:
Plastic steel filtering plate, resistance to high temperature and pressure, durable, programmable control, automatic operation



Advantages

filter press Advantages

The Advantages of filter press:
Stable performance, high automation, safe and reliable, convenient operation, backwashing operation.




Work Principle

filter press Working Principle

The Working Principle of filter press:

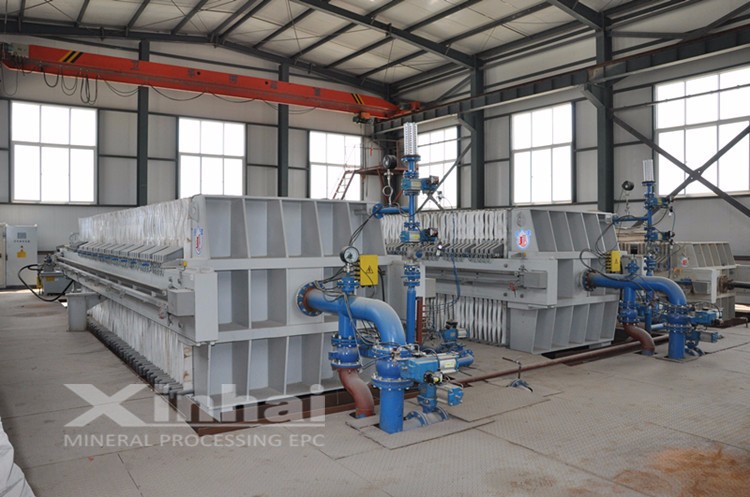

Chamber filter press takes filter cloth as the medium to separate solid and liquid. It is a separating machine with wide rang of particle size. The filter cloth spreads in a filter board surface, it is supported by the swelling groove of filter board, when the filter board is clamped, filter cloth turns to sealing materials, and the cavity between every two filter board forms a separated filter room. During the filter processing, the materials come through the central opening into filter room, the filtrate flow by the feeding pressure, flow out of the filter board after converged. Chamber filter press can be divided into two types according to filtrate discharging ways: open channel flow and under channel flow.





Plate and frame press filter separates solid from the liquid in filter form. It is a separating machine with wide rang of particle size. Materials come through the filter room that made up of filter board and filter frame,under the pressure of feeding materials, the filtrate flow through the medium that made up of filter board and filter frame-fiber gap of the filter cloth, arriving at the pattern surface, flow out of the filter board after converged. The solid that left in the filter frame forms filter cake. Plate and frame filter can be divided into two types according to filtrate discharging ways: open channel flow and under channel flow.

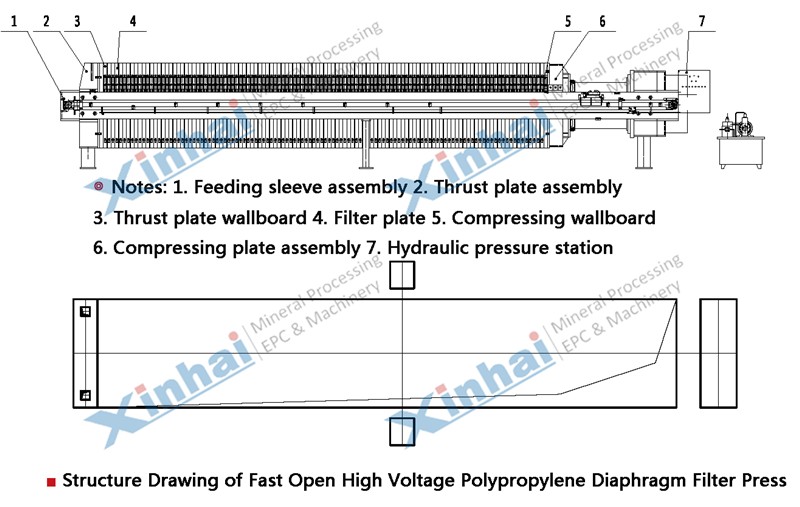

Product Structure

filter press Structure

The Structure of of filter press:
The filtering mechanism consists of filter plate, filter frame, filter cloth and squeezing diaphragm. The two sides of the filter plate is coated by cloth. When squeezing diaphragm need to configure, filter plate consists of diaphragm plate and side plate. Chamber press filter as the left chart shown, plate filter as right chart shown



The Application of of filter press:
1. Widely used in pharmaceutical, chemical industry, metallurgy, standard parts, non-standard screws, dyes, food, brewing, ceramics, oil refining, sewage treatment and other environmental protection industry.

2. Application of mining membrane filter press: concentrate filtering, tailings dry stacking, the product particle size reaches -500 mesh

3. Application of mining membrane filter press:Powder ore dewatering such as gold, silver, copper, iron, zinc and so on; treatment of tailings dam



Technical Parameters

filter press Technical parameters

The Technical Parameters of filter press:

There are many other types of technical paramenters, which are depended on our different models. Please contact us to get it.

Model

Filter
Area
(m2)

Number of Filter Chamber

Spec. of Membrane Filter Plate (mm)

Filter Cake Thickness (mm)

Volume of Filter Chamber (m3)

Filter
Pressure
(MPa)

Overall Dimension (mm)

Capacity
(t/h)

Weight
(kg)

KZG100/1500-U

100

26

1500X1500X90

45

2.15

0.5~1.6

8240X3145X2865

12

23220

KZG150/1500-U

150

38

3.17

9820X3145X2865

18

27150

KZG200/1500-U

200

52

4.37

11610X3145X2865

24

31350

KZG250/1500-U

250

64

5.39

13210X3145X2865

30

35150

KZG150/1600-U

150

34

1600X1600X85

40

2.96

0.5~1.6

9360X3240X2965

18

28250

KZG200/1600-U

200

46

4

10910X3240X2965

24

32850

KZG250/1600-U

250

58

5.04

12460X3240X2965

30

37050

KZG300/1600-U

300

70

6.09

14040X3240X2965

36

40060



FAQ:

Q: Are you mining machinery manufacturer?

A: Yes, we can also provide amples test, mine election plants design, equipment manufacture, after-sale service, etc.

Q: Which country have your products been exported to?

A: Many countries around the world, such as India, Ethiopia, Sudan, Iran, Russia and so on. And our company has agencies in Zimbabwe, Sudan and Tanzania.

Q: Can your company help the customers design the project in mining processing?

A: Yes, our professional group can design perfect projects for our customers.

Q: Can you do mineral processing test?

A: Yes, not only can do it in your country, also can back to our company.
