DETAIL DESCRIPTION

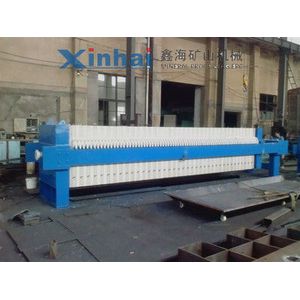

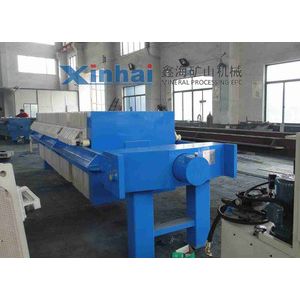

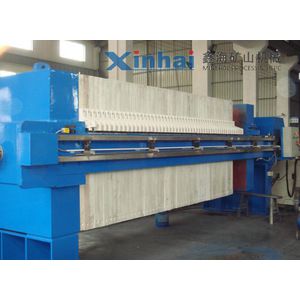

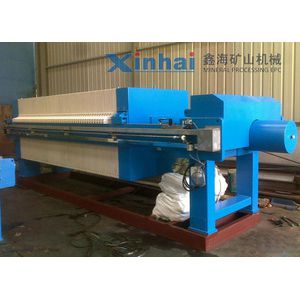

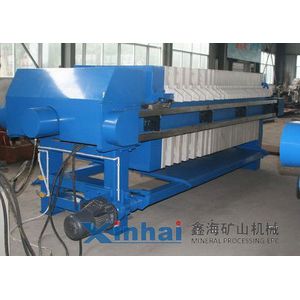

Relying On Pressure Of Slurry Pump Filter Press Machine



Product Introduction

Slurry Pump Filter Press Machine — Product Introduction

A dewatering equipment relying on pressure of slurry pump including chamber press filter and plate press filter
Filtering Area:20~1000m2

Product Improvement

Slurry Pump Filter Press Machine — Product Improvement

Plastic steel filtering plate, resistance to high temperature and pressure, durable, programmable control, automatic operation

Advantages

Slurry Pump Filter Press Machine — Advantages

Stable performance, high automation, safe and reliable, convenient operation, backwashing operation.

Work Principle

Slurry Pump Filter Press Machine — Work Principle

Chamber filter press takes filter cloth as the medium to separate solid and liquid. It is a separating machine with wide rang of particle size. The filter cloth spreads in a filter board surface, it is supported by the swelling groove of filter board, when the filter board is clamped, filter cloth turns to sealing materials, and the cavity between every two filter board forms a separated filter room. During the filter processing, the materials come through the central opening into filter room, the filtrate flow by the feeding pressure, flow out of the filter board after converged. Chamber filter press can be divided into two types according to filtrate discharging ways: open channel flow and under channel flow.

plate and frame press filter separates solid from the liquid in filter form. It is a separating machine with wide rang of particle size. Materials come through the filter room that made up of filter board and filter frame,under the pressure of feeding materials, the filtrate flow through the medium that made up of filter board and filter frame-fiber gap of the filter cloth, arriving at the pattern surface, flow out of the filter board after converged. The solid that left in the filter frame forms filter cake. Plate and frame filter can be divided into two types according to filtrate discharging ways: open channel flow and under channel flow.
Product Structure

Slurry Pump Filter Press Machine — Product Structure

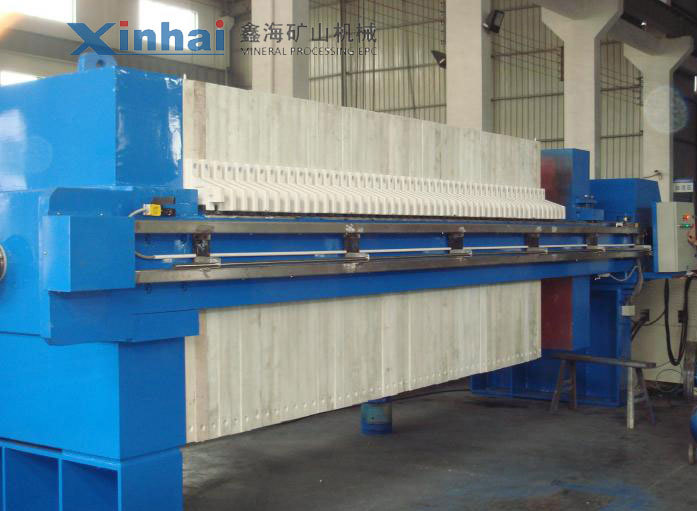

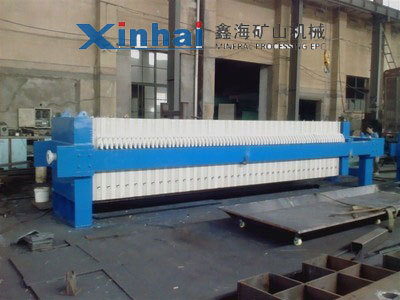

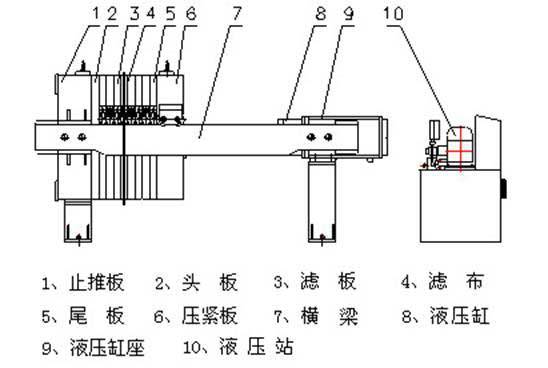

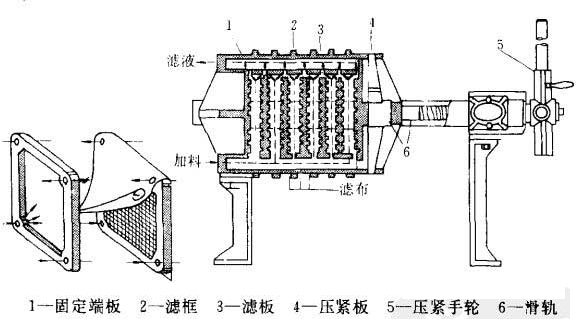

The filtering mechanism consists of filter plate, filter frame, filter cloth and squeezing diaphragm. The two sides of the filter plate is coated by cloth. When squeezing diaphragm need to configure, filter plate consists of diaphragm plate and side plate. Chamber press filter as the left chart shown, plate filter as right chart shown

Widely used in pharmaceutical, chemical industry, metallurgy, standard parts, non-standard screws, dyes, food, brewing, ceramics, oil refining, sewage treatment and other environmental protection industry.
Application of chamber press filter: concentrate filtering, tailings dry stacking, the product particle size reaches -500 mesh
Application of plate press filter:Powder ore dewatering such as gold, silver, copper, iron, zinc and so on; treatment of tailings dam
Technical Parameters

Slurry Pump Filter Press Machine — Technical Parameters

Model

Filter Area (m2)

Number of Filter Chamber

Spec. of Filter Plate (mm)

Filter Cake Thickness (mm)

Volume of Filter Chamber (m3)

Filter Pressure (MPa)

Overall Dimension (mm)

Motor Power
(kW)

Weight (kg)

XmaZ 20/800U

20

20

800X800X60

30

0.287

0.5-1.6

3500X1350X1160

2.2

2750

XmaZ 30/800U

30

30

800X800X60

30

0.453

0.5-1.6

4110X1350X1160

2.2

3130

XmaZ 40/800U

40

40

800X800X60

30

0.605

0.5-1.6

4720X1350X1160

2.2

3420

XmaZ 50/800U

50

50

800X800X60

30

0.756

0.5-1.6

5330X1350X1160

2.2

3700

XmaZ 60/800U

60

60

800X800X60

30

0.907

0.5-1.6

5940X1350X1160

2.2

4110

XmaZ 70/800U

70

70

800X800X60

30

1.059

0.5-1.6

6550X1350X1160

2.2

4400

XmaZ 80/800U

80

80

800X800X60

30

1.21

0.5-1.6

7160X1350X1160

2.2

4740

XmaZ 40/900U

40

32

900X900X60

30

0.59

0.5-1.6

4230X1480X1280

2.2

4500

XmaZ 50/900U

50

40

900X900X60

30

0.75

0.5-1.6

4720X1480X1280

2.2

4800

XmaZ 60/900U

60

47

900X900X60

30

0.88

0.5-1.6

5150X1480X1280

2.2

5100

XmaZ 70/900U

70

63

900X900X60

30

1.19

0.5-1.6

6120X1480X1280

2.2

5700

XmaZ 60/1000U

60

38

1000X1000X60

30

0.9

0.5-1.6

5450X1560X1360

2.2

7080

XmaZ 80/1000U

80

50

1000X1000X60

30

1.19

0.5-1.6

6180X1560X1360

2.2

7830

XmaZ 100/1000U

100

62

1000X1000X60

30

1.48

0.5-1.6

6910X1560X1360

2.2

8680

XmaZ 120/1000U

120

75

1000X1000X60

30

1.8

0.5-1.6

7710X1560X1360

2.2

9250

XmaZ 125/1250U

120

46

1250X1250X65

32

1.9

0.5-1.6

6500X1770X1620

4

10900

XmaZ 150/1250U

150

58

1250X1250X65

32

2.41

0.5-1.6

7290X1770X1620

4

11800

XmaZ 180/1250U

180

69

1250X1250X65

32

2.88

0.5-1.6

8020X1770X1620

4

12700

XmaZ 200/1250U

200

77

1250X1250X65

32

3.22

0.5-1.6

8550X1770X1620

4

13300

XmaZ 220/1250U

220

84

1250X1250X65

32

3.51

0.5-1.6

9010X1770X1620

4

13900

XmaZ 250/1250U

250

95

1250X1250X65

32

3.98

0.5-1.6

9740X1770X1620

4

14800

XmaZ 300/1500U

300

77

1500X1500X70

32

4.76

0.5-1.6

10040X2400X1800

5.5

26500

XmaZ 320/1500U

320

83

1500X1500X70

32

5.14

0.5-1.6

10460X2400X1800

5.5

27190

XmaZ 340/1500U

340

88

1500X1500X70

32

5.45

0.5-1.6

10820X2400X1800

5.5

27880

XmaZ 350/1500U

350

90

1500X1500X70

32

5.58

0.5-1.6

10960X2400X1800

5.5

28230

XmaZ 380/1500U

380

98

1500X1500X70

32

6.08

0.5-1.6

11530X2400X1800

5.5

29260

XmaZ 400/1500U

400

103

1500X1500X70

32

6.39

0.5-1.6

11880X2400X1800

5.5

29950

XmaZ 450/1500U

450

116

1500X1500X70

32

7.21

0.5-1.6

12810X2400X1800

5.5

31670

XmaZ 500/1500U

500

128

1500X1500X70

32

7.96

0.5-1.6

13660X2400X1800

5.5

33390

XmaZ 560/2000U

560

80

2000X2000X83

40

11.16

0.5-1.6

10600X2900X2450

11

56500

XmaZ 600/2000U

600

86

2000X2000X83

40

12.01

0.5-1.6

12110X2900X2450

11

58000

XmaZ 630/2000U

630

90

2000X2000X83

40

12.58

0.5-1.6

12440X2900X2450

11

59000

XmaZ 670/2000U

670

96

2000X2000X83

40

13.43

0.5-1.6

12950X2900X2450

11

60500

XmaZ 710/2000U

710

101

2000X2000X83

40

14.13

0.5-1.6

13370X2900X2450

11

62000

XmaZ 750/2000U

750

107

2000X2000X83

40

14.98

0.5-1.6

13870X2900X2450

11

63300

XmaZ 800/2000U

800

114

2000X2000X83

40

15.97

0.5-1.6

14460X 2900X 2450

11

65200

XmaZ 850/2000U

850

121

2000X2000X83

40

16.96

0.5-1.6

15050X2900X2450

11

67000

XmaZ 900/2000U

900

128

2000X2000X83

40

17.95

0.5-1.6

15640X2900X2450

11

69000

XmaZ 950/2000U

950

135

2000X2000X83

40

18.94

0.5-1.6

16220X2900X2450

11

70600

XmaZ 1000/2000U

1000

142

2000X2000X83

40

19.92

0.5-1.6

16810X2900X2450

11

72300

XmaZ 1060/2000U

1060

151

2000X2000X83

40

21.2

0.5-1.6

17570X2900X2450

11

74500

XmaZ 1120/2000U

1120

159

2000X2000X83

40

22.33

0.5-1.6

18240X2900X2450

11

76800

XmaZ 1180/2000U

1180

168

2000X2000X83

40

23.61

0.5-1.6

19000 X 2900 X 2450

11
