PRIMARY PARAMETERS

Condition

New

Automatic Grade

Semi-Automatic

Production Capacity

depend on the model

Place of Origin

Shandong, China (Mainland)

Brand Name

Xinhai

Model Number

XMAZ

Voltage

380V

Power(W)

2.2kw~11kw

Weight

2750~79000

Dimension(L*W*H)

depend on the model

Certification

ISO 9001, CE

Warranty

one year

After-sales Service Provided

Engineers available to service machinery overseas

after sale service

whole using life

installation

technical guidance

price

negotiable

Filtering Area

20~1000m2

DETAIL DESCRIPTION

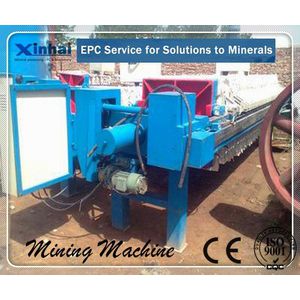

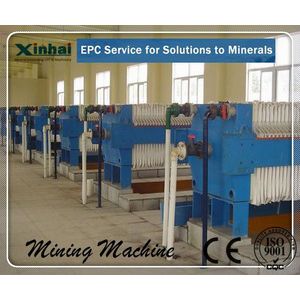

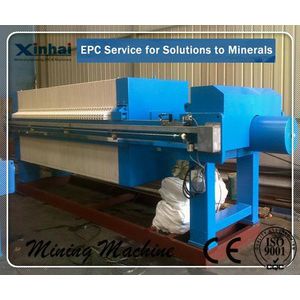

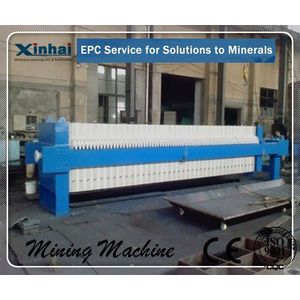

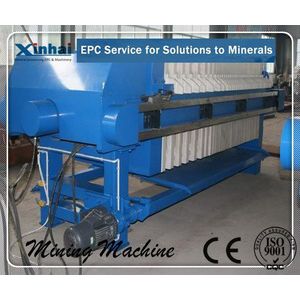

XMAZ High - Pressure Squeezing Ceramic Filter , Filter Press Equipment

Introduction

Press Filter—Product Introduction

A dewatering equipment relying on pressure of slurry pump including chamber press filter and plate press filter

Product Improvement

Press Filter—Product Improvement

Plastic steel filtering plate, resistance to high temperature and pressure, durable, programmable control, automatic operation

Advantages

Press Filter—Advantages

Stable performance, high automation, safe and reliable, convenient operation, backwashing operation.

Work Principle

Press Filter—Work Principle

Chamber filter press takes filter cloth as the medium to separate solid and liquid. It is a separating machine with wide rang of particle size. The filter cloth spreads in a filter board surface, it is supported by the swelling groove of filter board, when the filter board is clamped, filter cloth turns to sealing materials, and the cavity between every two filter board forms a separated filter room. During the filter processing, the materials come through the central opening into filter room, the filtrate flow by the feeding pressure, flow out of the filter board after converged. Chamber filter press can be divided into two types according to filtrate discharging ways: open channel flow and under channel flow.
plate and frame press filter separates solid from the liquid in filter form. It is a separating machine with wide rang of particle size. Materials come through the filter room that made up of filter board and filter frame,under the pressure of feeding materials, the filtrate flow through the medium that made up of filter board and filter frame-fiber gap of the filter cloth, arriving at the pattern surface, flow out of the filter board after converged. The solid that left in the filter frame forms filter cake. Plate and frame filter can be divided into two types according to filtrate discharging ways: open channel flow and under channel flow.

Product Structure

Press Filter—Product Structure

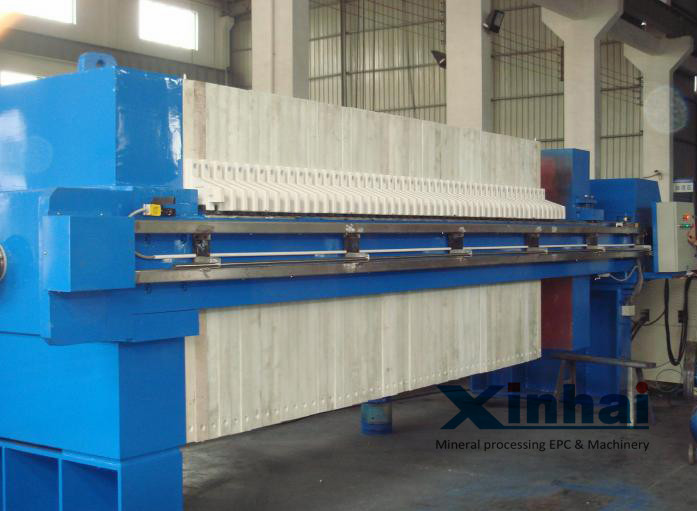

The filtering mechanism consists of filter plate, filter frame, filter cloth and squeezing diaphragm. The two sides of the filter plate is coated by cloth. When squeezing diaphragm need to configure, filter plate consists of diaphragm plate and side plate. Chamber press filter as the left chart shown, plate filter as right chart shown

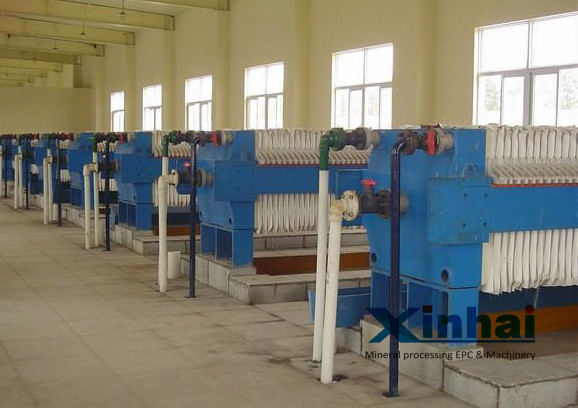

Widely used in pharmaceutical, chemical industry, metallurgy, standard parts, non-standard screws, dyes, food, brewing, ceramics, oil refining, sewage treatment and other environmental protection industry.
Application of chamber press filter: concentrate filtering, tailings dry stacking, the product particle size reaches -500 mesh
Application of plate press filter:Powder ore dewatering such as gold, silver, copper, iron, zinc and so on; treatment of tailings dam

Technical Parameters

Press Filter—Technical Parameters

Model	Filter Area (m²)	Number of Filter Chamber	Spec. of Filter Plate (mm)	Filter Cake Thickness (mm)	Volume of Filter Chamber (m³)	Filter Pressure (MPa)	Overall Dimension (mm)	Motor Power (kW)	Weight (kg)
X^m_aZ 20/800U	20	20	800X800X60	30	0.287	0.5-1.6	3500X1350X1160	2.2	2750
X^m_aZ 30/800U	30	30	800X800X60	30	0.453	0.5-1.6	4110X1350X1160	2.2	3130
X^m_aZ 40/800U	40	40	800X800X60	30	0.605	0.5-1.6	4720X1350X1160	2.2	3420
X^m_aZ 50/800U	50	50	800X800X60	30	0.756	0.5-1.6	5330X1350X1160	2.2	3700
X^m_aZ 60/800U	60	60	800X800X60	30	0.907	0.5-1.6	5940X1350X1160	2.2	4110
X^m_aZ 70/800U	70	70	800X800X60	30	1.059	0.5-1.6	6550X1350X1160	2.2	4400
X^m_aZ 80/800U	80	80	800X800X60	30	1.21	0.5-1.6	7160X1350X1160	2.2	4740
X^m_aZ 40/900U	40	32	900X900X60	30	0.59	0.5-1.6	4230X1480X1280	2.2	4500
X^m_aZ 50/900U	50	40	900X900X60	30	0.75	0.5-1.6	4720X1480X1280	2.2	4800
X^m_aZ 60/900U	60	47	900X900X60	30	0.88	0.5-1.6	5150X1480X1280	2.2	5100
X^m_aZ 70/900U	70	63	900X900X60	30	1.19	0.5-1.6	6120X1480X1280	2.2	5700
X^m_aZ 60/1000U	60	38	1000X1000X60	30	0.9	0.5-1.6	5450X1560X1360	2.2	7080
X^m_aZ 80/1000U	80	50	1000X1000X60	30	1.19	0.5-1.6	6180X1560X1360	2.2	7830
X^m_aZ 100/1000U	100	62	1000X1000X60	30	1.48	0.5-1.6	6910X1560X1360	2.2	8680
X^m_aZ 120/1000U	120	75	1000X1000X60	30	1.8	0.5-1.6	7710X1560X1360	2.2	9250
X^m_aZ 125/1250U	120	46	1250X1250X65	32	1.9	0.5-1.6	6500X1770X1620	4	10900
X^m_aZ 150/1250U	150	58	1250X1250X65	32	2.41	0.5-1.6	7290X1770X1620	4	11800
X^m_aZ 180/1250U	180	69	1250X1250X65	32	2.88	0.5-1.6	8020X1770X1620	4	12700
X^m_aZ 200/1250U	200	77	1250X1250X65	32	3.22	0.5-1.6	8550X1770X1620	4	13300
X^m_aZ 220/1250U	220	84	1250X1250X65	32	3.51	0.5-1.6	9010X1770X1620	4	13900
X^m_aZ 250/1250U	250	95	1250X1250X65	32	3.98	0.5-1.6	9740X1770X1620	4	14800
X^m_aZ 300/1500U	300	77	1500X1500X70	32	4.76	0.5-1.6	10040X2400X1800	5.5	26500
X^m_aZ 320/1500U	320	83	1500X1500X70	32	5.14	0.5-1.6	10460X2400X1800	5.5	27190
X^m_aZ 340/1500U	340	88	1500X1500X70	32	5.45	0.5-1.6	10820X2400X1800	5.5	27880
X^m_aZ 350/1500U	350	90	1500X1500X70	32	5.58	0.5-1.6	10960X2400X1800	5.5	28230
X^m_aZ 380/1500U	380	98	1500X1500X70	32	6.08	0.5-1.6	11530X2400X1800	5.5	29260
X^m_aZ 400/1500U	400	103	1500X1500X70	32	6.39	0.5-1.6	11880X2400X1800	5.5	29950
X^m_aZ 450/1500U	450	116	1500X1500X70	32	7.21	0.5-1.6	12810X2400X1800	5.5	31670
X^m_aZ 500/1500U	500	128	1500X1500X70	32	7.96	0.5-1.6	13660X2400X1800	5.5	33390
X^m_aZ 560/2000U	560	80	2000X2000X83	40	11.16	0.5-1.6	10600X2900X2450	11	56500
X^m_aZ 600/2000U	600	86	2000X2000X83	40	12.01	0.5-1.6	12110X2900X2450	11	58000
X^m_aZ 630/2000U	630	90	2000X2000X83	40	12.58	0.5-1.6	12440X2900X2450	11	59000
X^m_aZ 670/2000U	670	96	2000X2000X83	40	13.43	0.5-1.6	12950X2900X2450	11	60500
X^m_aZ 710/2000U	710	101	2000X2000X83	40	14.13	0.5-1.6	13370X2900X2450	11	62000
X^m_aZ 750/2000U	750	107	2000X2000X83	40	14.98	0.5-1.6	13870X2900X2450	11	63300
X^m_aZ 800/2000U	800	114	2000X2000X83	40	15.97	0.5-1.6	14460X 2900X 2450	11	65200
X^m_aZ 850/2000U	850	121	2000X2000X83	40	16.96	0.5-1.6	15050X2900X2450	11	67000
X^m_aZ 900/2000U	900	128	2000X2000X83	40	17.95	0.5-1.6	15640X2900X2450	11	69000
X^m_aZ 950/2000U	950	135	2000X2000X83	40	18.94	0.5-1.6	16220X2900X2450	11	70600
X^m_aZ 1000/2000U	1000	142	2000X2000X83	40	19.92	0.5-1.6	16810X2900X2450	11	72300
X^m_aZ 1060/2000U	1060	151	2000X2000X83	40	21.2	0.5-1.6	17570X2900X2450	11	74500
X^m_aZ 1120/2000U	1120	159	2000X2000X83	40	22.33	0.5-1.6	18240X2900X2450	11	76800
X^m_aZ 1180/2000U	1180	168	2000X2000X83	40	23.61	0.5-1.6	19000 X 2900 X 2450	11	79000
