Weihai Haiwang Hydro Cyclone Desander/Hydrocyclone Machine To Find Gold

Mixture density of components in the rotary flow field under the action of moving along the axial down at the same time, outward along the radial direction, reach the pyramidal segment movement down the wall, and the bottom LiuKou eduction, forming the vo

Technical Feature

  • New
  • Gravity Separator
  • High
  • Shandong, China (Mainland)
  • Haiwang
  • FX series
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$10~40

PRIMARY PARAMETERS

Condition
New
Type
Gravity Separator
Production Capacity
High
Place of Origin
Shandong, China (Mainland)
Brand Name
Haiwang
Model Number
FX series
Voltage
380V
Power(W)
denpand on the model
Dimension(L*W*H)
Size
Weight
denpand on the model
Certification
ISO9001
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Installation
Technical Guidance
Application
ore,gold,copper,water ,oil,etc
Usage
Mining Separatoion
type
Hydrocyclone

DETAIL DESCRIPTION

Weihai Haiwang  Hydro Cyclone Desander/Hydrocyclone Machine To Find Gold

Product Description

The basic principle of Hydrocyclone Hydro Cyclone Desander  is will have a certain density difference of liquid - liquid, liquid - solid, liquid, gas and other two phase or multiphase mixture under the action of centrifugal force to separate.Cut mixture at a certain pressure to enter the cyclone, high-speed rotating flow field in a cylindrical cavity.Mixture density of components in the rotary flow field under the action of moving along the axial down at the same time, outward along the radial direction, reach the pyramidal segment movement down the wall, and the bottom LiuKou eduction, forming the vortex flow field; Density small components to the center axis direction, and form a upward movement in the center of the axis of the vortex, and then by the overflow mouth, so that to reach the purpose of two-phase separation.





Specifications and Technical Parameters



Specification

Diameter

Inlet Pressure

Capacity

Cut Size



(mm)

(MPa)

(m3/h)

(pm)

FX840

840

0.04-0.15

500-900

74-350

FX710

710

0.04-0.15

400-550

74-250

FX660

660

0.04-0.15

260-450

74-220

FX610

610

0.04-0.15

200-300

74-200

FX500

500

0.04-0.2

140-240

74-200

FX400

400

0.06-0.2

100-170

74-150

FX350

350

0.06-0.2

70-160

50-150

FX300

300

0.06-0.2

45-90

50-150

FX250

250

0.06-0.3

40-80

40-100

FX200

200

0.06-0.3

25-40

40-100

FX150

150

0.08-0.3

14-35

20-74

FX125

125

0.1-0.3

8-20

25-50

FX100

100

0.1-0.3

8-20

20-50

FX75

75

0.1-0.4

4-10

10-40

FX50

50

0.1-0.4

2-5

7-40

FX25

25

0.1-0.6

0.3-1

5-20

FX10

10

0.1-0.6

0.05-0.1

1-5

stucture and feature







1. Classification for section I closed circuit grinding

2. Classification for section II closed circuit grinding

3. Regrinding for fine mine classification

4. Mud-removing before selection and after selection

5. Dam and backfill for gangue

Our Advantage

We have been fully devoted to development and manufacturing of cyclones for nearly 30 years. Compared with other companies, we only focus on R&D and manufacturing of cyclones.Through long-term efforts, we have become the most professional and largest manufacturer of cyclones in Asia-pacific region. Besides, we kee p investing in R&D of new cyclones. Also invest more in services. Therefore our cyclone arebetter no matter in innovation, quality and services.



Packaging & Shipping

About Our Company

Haiwang Technology was founded in 1989 which is located in Weihai,China. Haiwang is the leading supplier of mining machinery and mineral processing EPC. We have the capability and qualification of mineral processing engineering consultation, mineral processing test, mine plant design, equipment manufacturing, installation and commissioning, production capacity and indication achieved. We the capability of one-stop mineral processing EPC service and can provide complete sets of equipments and technical services for ferrous and non-ferrous metal mine, non-metal mine, coal, power station environmental protection, chemical and fertilizer etc. At present Haiwang has hundreds of successful engineering projects in domestic and international market, also has rich mine design experiences and wins customer’s trust and good comments with reliable quality and excellent performance.



Exhibitions

We often attend international mining processing exhibitions and conferences to deliver better services.



America

EXPONOR CHILE in Antofagasta,Chile

EXTEMIN in Arequipa,Peru

EXPOMINAS MEXICO in Acapulco,Mexico



Asia&Russia

Mining World in Moscow, Russia

UGOL ROSSII & MINING in Novokuznetsk, Russia

Mining World in Alma-Ata, Kazakhstan

Mining Week in Karaganda, Kazakhstan

Iron and Steel Summit in Chhattisgarh,India



Note:Other exhibitions and conferences information will be updated according to customers’ demand.





Certifications

With experiences of exporting to over 30 foreign countries, our manufacturing capability has already reached to international standard. Additionally, we have passed ISO9001:2008 and other authentications. What’s more, we are also familiar with requirements from different countries. Our customers think highly of our products and services.


Related Products

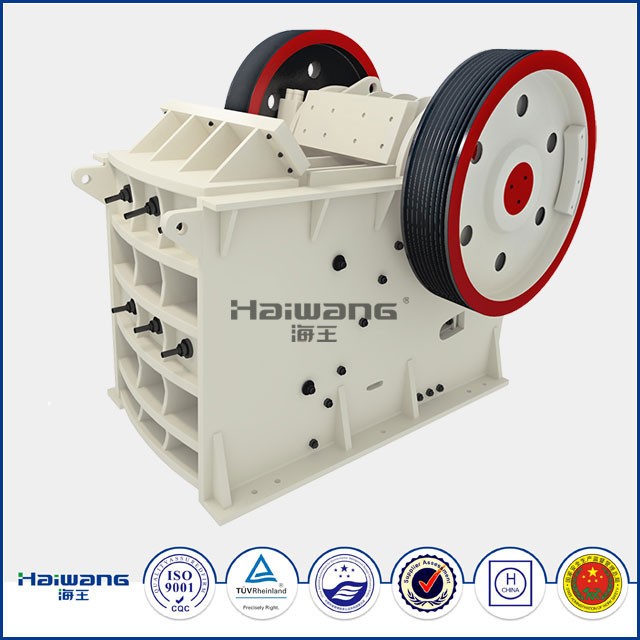

               cyclone                                          sipral chut                            crusher
