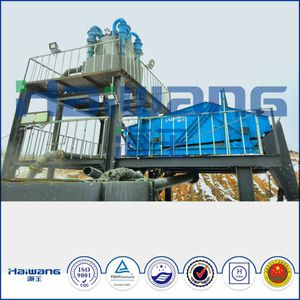

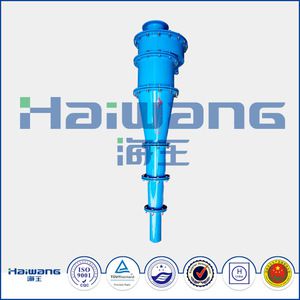

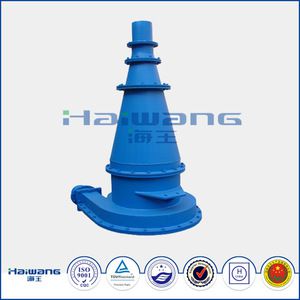

Haiwang FX350 Efficient Filtering Screen Cyclone Desander Hydro-Cyclone Slurry Mud Separation

Hydrocyclone is a high efficiency separating device that utilizes centrifugal force to separate two-phase fluid.

Technical Feature

  • New
  • Centrifugal Classifier
  • 98%
  • Shandong, China (Mainland)
  • Haiwang
  • FX350
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$100~20

PRIMARY PARAMETERS

Condition
New
Type
Centrifugal Classifier
Production Capacity
98%
Place of Origin
Shandong, China (Mainland)
Brand Name
Haiwang
Model Number
FX350
Voltage
220V/380V
Power(W)
1.1kw
Dimension(L*W*H)
7000*2000*3000 Mm
Weight
750kg
Certification
ISO9001
Warranty
1year excluding spare parts
After-sales Service Provided
Engineers available to service machinery overseas
Product name
Filtering Screen Cyclone Desander Hydro-Cyclone Slurry Mud Separation
Brand
HaiWang
Diameter (mm)
350
Maximum Feeding Size (mm)
6
Feed Concentration Range9 (g/L)
50-150
Inlet pressure Range (MPa)
0.10-0.20
Capacity (m3/h)
70-120
Cut size (mm)
0.06-0.16
Application
Ore, Copper, Gold, Water, Oil
Keywords
Filtering Screen Cyclone Desander Hydro-Cyclone Slurry Mud Separation

DETAIL DESCRIPTION

Our Product

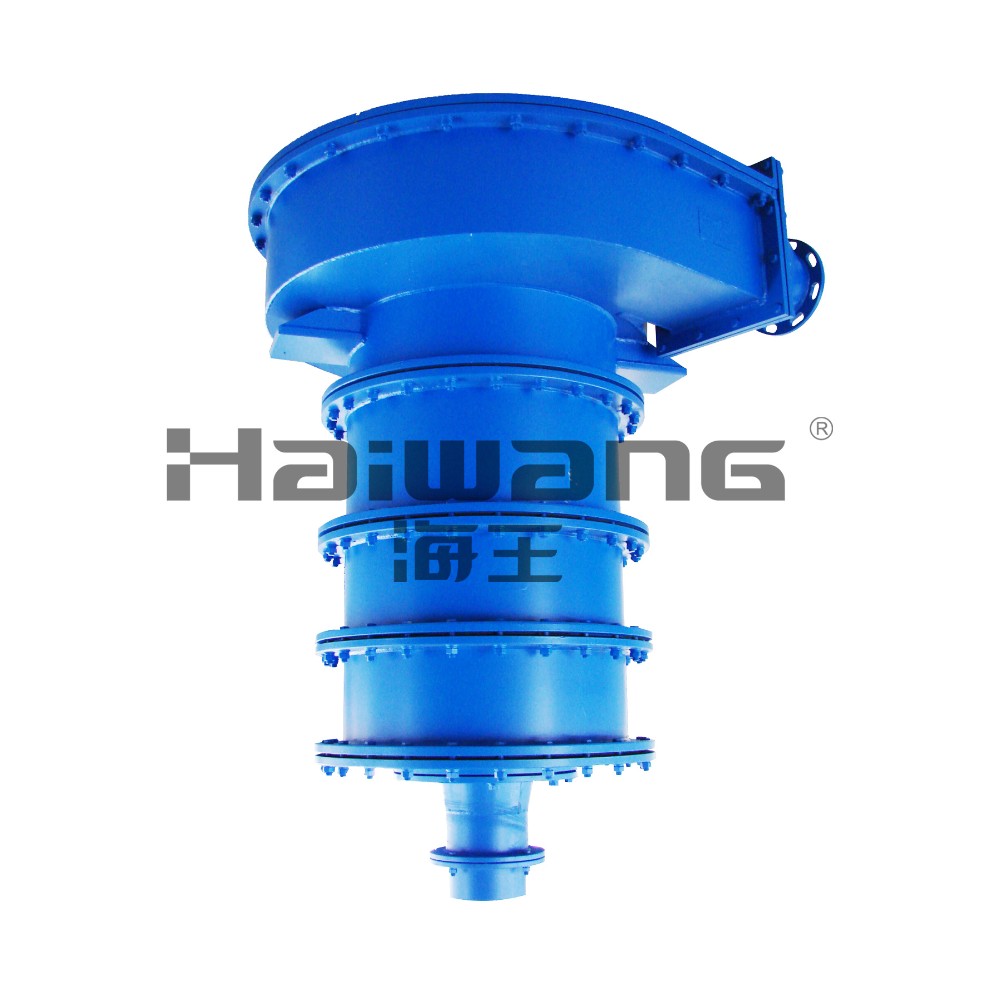

  Haiwang FX350 Efficient Filtering Screen Cyclone Desander




                              Hydro-Cyclone Slurry Mud Separation

1. Brief introduction of Filtering Screen Cyclone Desander :

Hydrocyclone is a high efficiency separating device that utilizes centrifugal force to separate two-phase fluid.

Filtering Screen Cyclone Desander Hydro-Cyclone Slurry Mud Separation :

Specification
Diameter (mm)
Maximum Feeding Size9 (mm)
Feed Concentration Range9 (g/L)
Inlet pressure Range (MPa)
Capacity (m3/h)
Cut size (mm)
FX150
150
1.5
50-150
0.10-0.30
15-25
0.04-0.10
FX200
200
2
50-150
0.10-0.30
20-35
0.04-0.10
FX250
250
3
50-150
0.10-0.30
30-60
0.04-0.12
FX300
300
5
50-150
0.10-0.20
50-80
0.04-0.12
FX350
350
6
50-150
0.10-0.20
70-120
0.06-0.16
FX380
380
6
50-150
0.10-0.20
100-160
0.06-0.16
FX450
450
10
50-150
0.08-0.20
160-220
0.10-0.20
FX500
500
10
50-150
0.08-0.20
180-250
0.10-0.20
FX610
610
12
50-150
0.08-015
200-300
0.10-0.20
FX660
660
16
50-150
0.08-0.15
250-400
0.15-0.25
FX710
710
16
50-150
0.08-0.15
350-500
0.15-0.25
FX750
750
18
50-150
0.08-0.15
450-600
0.15-0.25
FX800
800
20
50-150
0.08-0.15
600-800
0.20-0.30
FX850
850
22
50-150
0.06-0.15
650-900
0.20-0.30
FX900
900
22
50-150
0.06-0.15
700-1000
0.20-0.30
FX1000
1000
25
50-150
0.06-0.15
800-1100
0.20-0.40
FX1100
1100
25
50-150
0.06-0.15
900-1200
0.20-0.40
FX1250
1250
28
50-150
0.06-0.15
1000-1300
0.20-0.40

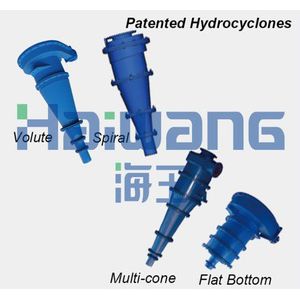

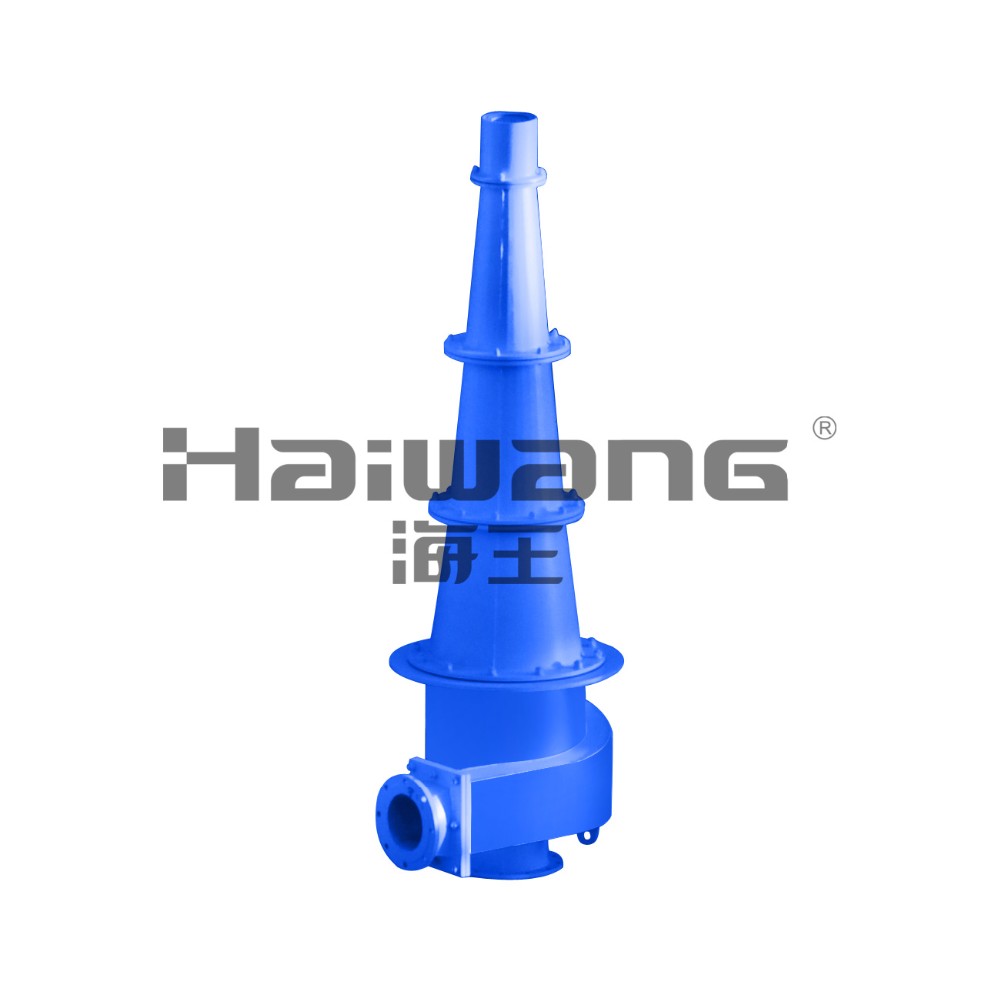

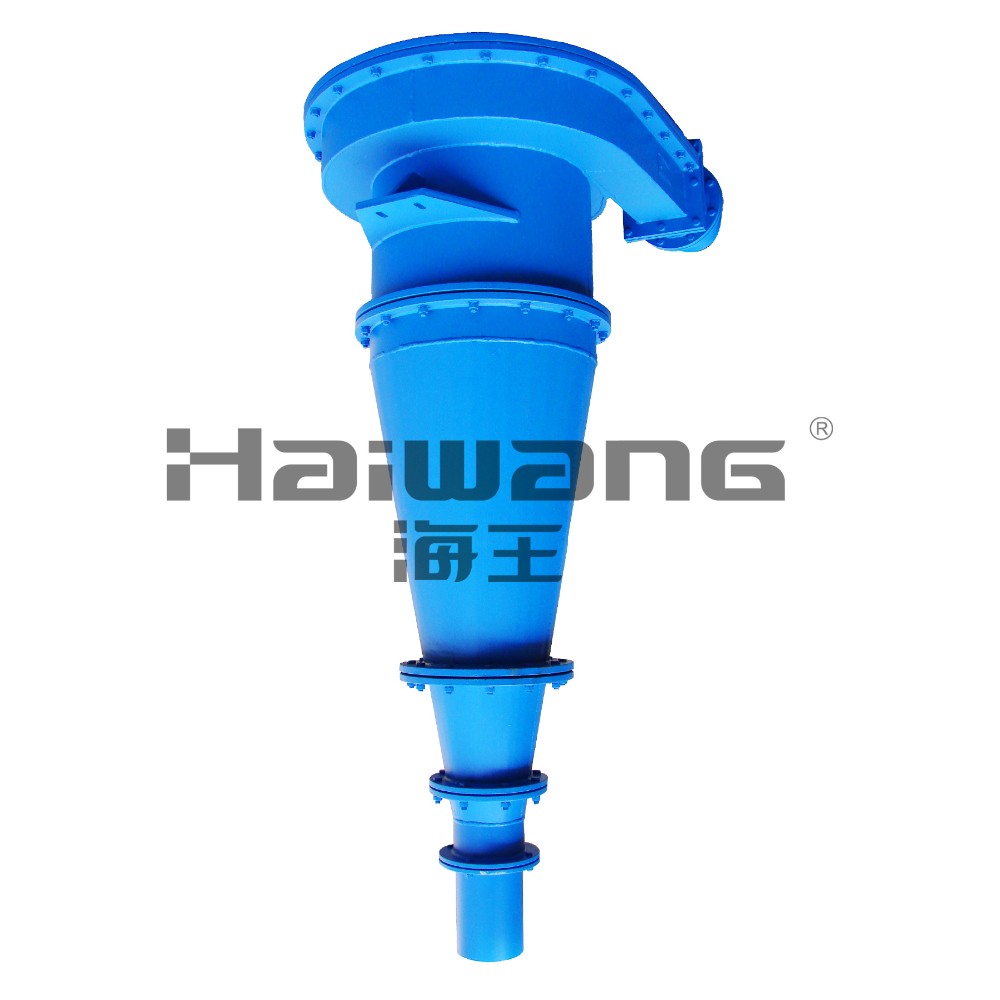

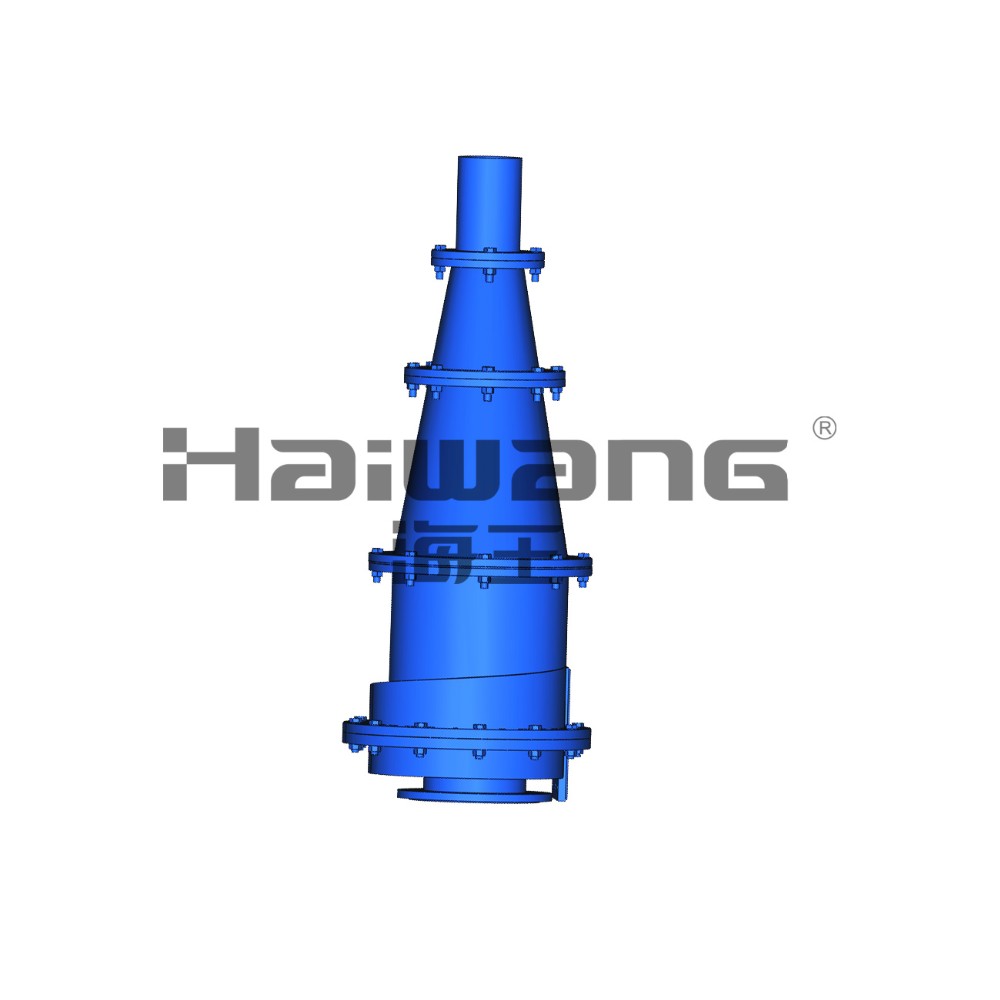

Patented Hydrocyclones :

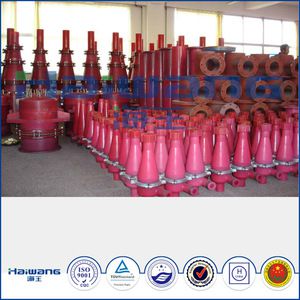

Hydrocyclone on exhibition :


2. Advantages of Filtering Screen Cyclone Desander :

(1)Serialization, large-scale, specifications: FX150 - FX1250 (mm), cut size: 4 microns - 400 microns.
2)Various wear-resisting materials: High alumina ceramic, polyurethane, ceramic composite materials. We can produce suitable hydrocyclone according to client’s demand or working condition
(3)Personalized structure design: We own multifarious patent structure and advanced   technology at    abroad  and domestic.

3. Application of Filtering Screen Cyclone Desander :


Hydrocyclone has been widely applied in classification, thickening, dewatering, desliming, separation, washing and other processes in ferrous and non-ferrous metal mines, non-metal mines, chemical mines, and it also has been widely applied in coal slime classification, thickening, dewatering, desliming and other processes.

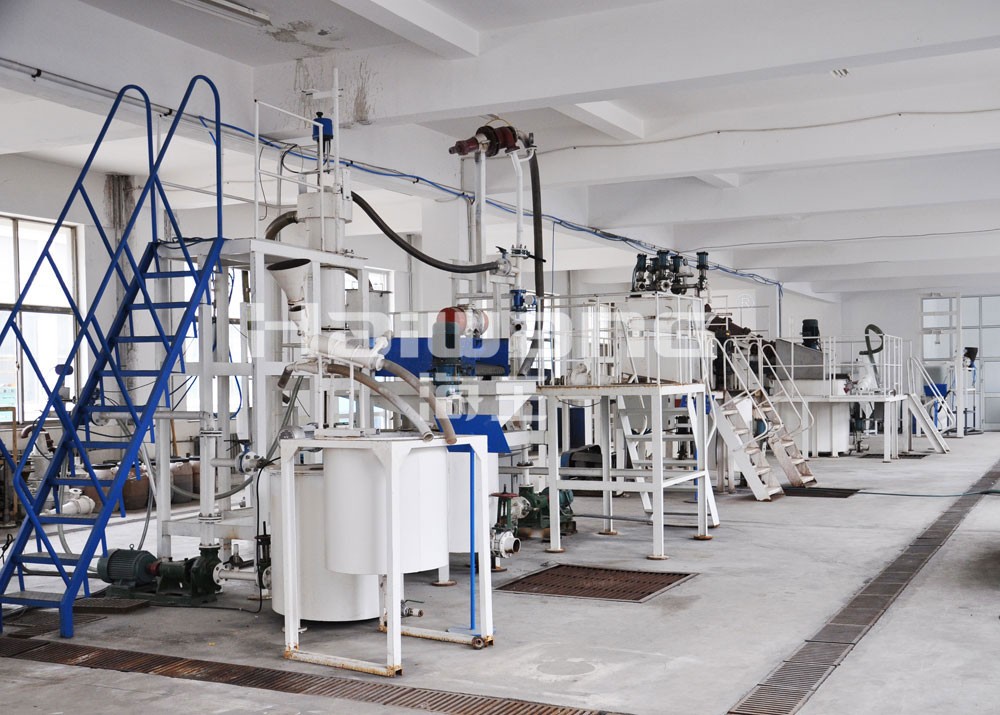

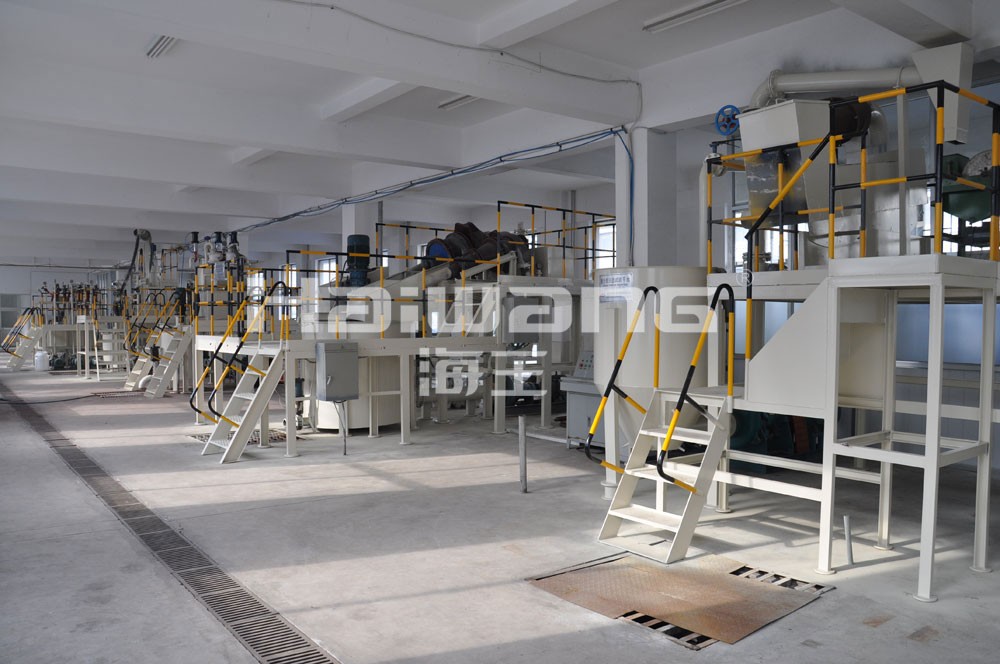

                      Hydrocyclone for chemical mines

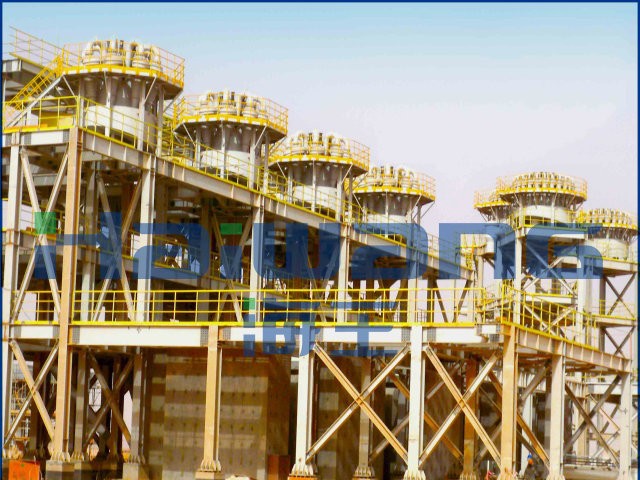

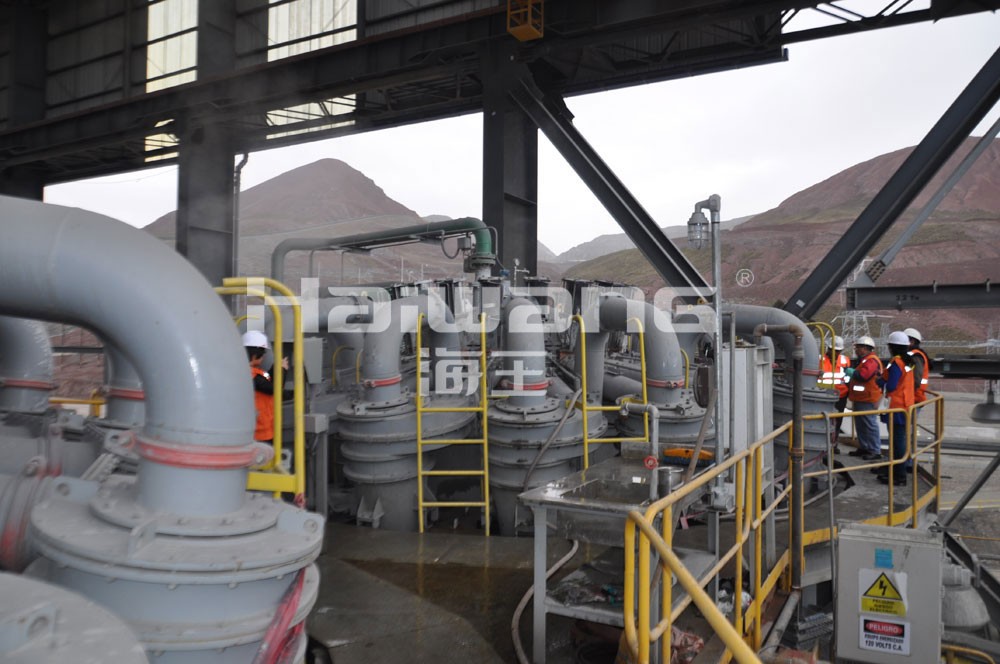

                           Hydrocyclone for metal mines

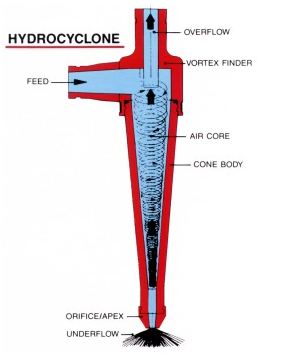

4.Working Principle of Filtering Screen Cyclone Desander :


Slurry is introduced under pressure through the tangential or involute entry (depending on feeding way of the inlet head) into the hydrocyclone body. Under centrifugal force, large particles will move downwards along outer swirling flow and be discharged through apex as underflow while fine particles will move upwards through inner swirling flow and be discharged from vortex finder as over flow.

Our Service

1.Localized Service

Worldwide offices and agents provide localized sales and technical service.

2.Professional technical service
Professional technical team provide optimum solutions and early stage laboratory tests.

3.Perfect after sales service
Assembly, commissioning, training services by professional engineer.

4.Prompt Delivery
Good production capacity and spare parts stock realize fast delivery.

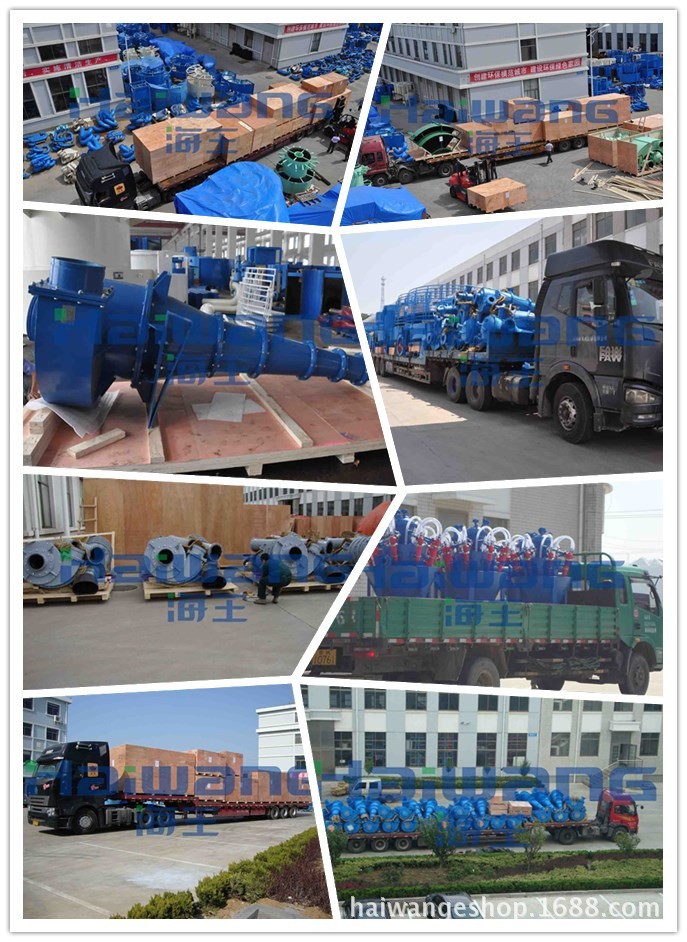

Our Packing
Packing Details
Filtering Screen Cyclone Desander Hydro-Cyclone Slurry Mud Separation  will packing with Standard export container or as required.



 Delivery Time



Within 5-25 days after Filtering Screen Cyclone Desander Hydro-Cyclone Slurry Mud Separation confirmed.
Our Company

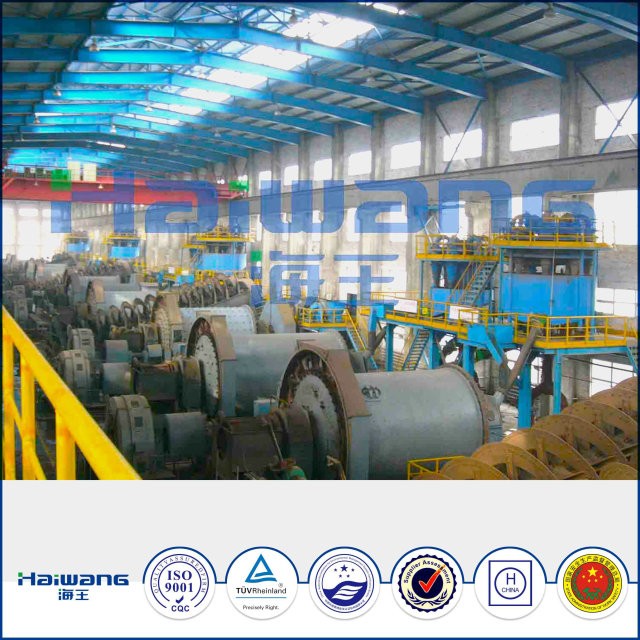

Haiwang Technology was founded in 1989 which is located in Weihai,China.


Haiwang is the leading supplier of mining machinery and mineral processing EPC.

Haiwang has been committed to meet international standards, and has sales and technical service network all over China and set up agencies in more than ten countries,such as Russia, Australia, Peru, Chile, and India,etc.

Our aim is to let mineral processing plant feel our professional,convenient and reliable services,we hope to communicate and cooperate with friends at home and abroad to seek common development and prosperity.
