Haiwang 12 Stage Hydro-Cyclone For Starch Production Line

We are factory specializing in the manufacture and export of mining machinery, have profuse designs with series quality grade, and expressly, our price is very competitive because we are manufacture.

Technical Feature

  • New
  • Centrifugal Classifier
  • 98%
  • Shandong, China (Mainland)
  • Haiwang
  • FX100
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$1~20

PRIMARY PARAMETERS

Condition
New
Type
Centrifugal Classifier
Production Capacity
98%
Place of Origin
Shandong, China (Mainland)
Brand Name
Haiwang
Model Number
FX100
Voltage
220V/380V
Power(W)
1.1kw
Dimension(L*W*H)
7000*2000*3000 Mm
Weight
750kg
Certification
ISO9001
Warranty
1year excluding spare parts
After-sales Service Provided
Engineers available to service machinery overseas
Product name
Haiwang 12 Stage Hydro-Cyclone For Starch Production Line
Brand
HaiWang
Diameter (mm)
100
Maximum Feeding Size (mm)
1
Feed Concentration Range9 (g/L)
50-150
Inlet pressure Range (MPa)
0.10-0.30
Capacity (m3/h)
8-16
particle separation(um)
20-50
Application
Ore, Copper, Gold, Water, Oil
Keywords
Hydro-Cyclone For Starch Production Line

DETAIL DESCRIPTION

Our Product

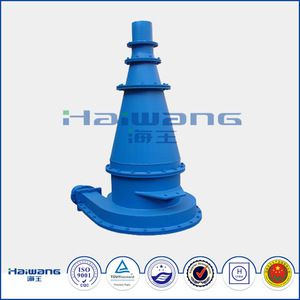

Haiwang 12 Stage Hydro-Cyclone For Starch Production Line


We are factory specializing in the manufacture and export of mining machinery, have profuse designs with series quality grade, and expressly, our price is very competitive because we are manufacture.

1. Introduction of Hydro-Cyclone For Starch Production Line :


Hydrocyclones is also called cyclone separator.Hydrocyclones include hydrocyclone desander(10 in. cone) and hydrocyclone desilter(4 in. cone),which used to separate sand and silt from the drilling fluid.

A hydrocyclone has two exits on the axis: the smaller on the bottom (underflow or reject) and larger at the top (overflow or accept). The underflow is generally the denser or thicker fraction, while the overflow is the lighter or more fluid fraction. Centrifugal pump is used to pump the drilling fluids from mud tank into the set of hydrocyclones.


 Hydrocyclone :

Specification
Diameter (mm)
Maximum Feeding Size  (mm)
Feed Concentration Range (g/L)
Inlet pressure Range (MPa)
Capacity (m3/h)
Cut size (mm)
FX150
150
1.5
50-150
0.10-0.30
15-25
0.04-0.10
FX200
200
2
50-150
0.10-0.30
20-35
0.04-0.10
FX250
250
3
50-150
0.10-0.30
30-60
0.04-0.12
FX300
300
5
50-150
0.10-0.20
50-80
0.04-0.12
FX350
350
6
50-150
0.10-0.20
70-120
0.06-0.16
FX380
380
6
50-150
0.10-0.20
100-160
0.06-0.16
FX450
450
10
50-150
0.08-0.20
160-220
0.10-0.20
FX500
500
10
50-150
0.08-0.20
180-250
0.10-0.20
FX610
610
12
50-150
0.08-015
200-300
0.10-0.20
FX660
660
16
50-150
0.08-0.15
250-400
0.15-0.25
FX710
710
16
50-150
0.08-0.15
350-500
0.15-0.25
FX900
900
22
50-150
0.06-0.15
700-1000
0.20-0.30
FX1000
1000
25
50-150
0.06-0.15
800-1100
0.20-0.40
FX1100
1100
25
50-150
0.06-0.15
900-1200
0.20-0.40
FX1250
1250
28
50-150
0.06-0.15
1000-1300
0.20-0.40

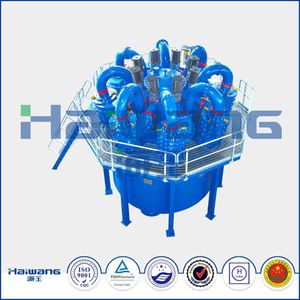

Patented Hydrocyclones :

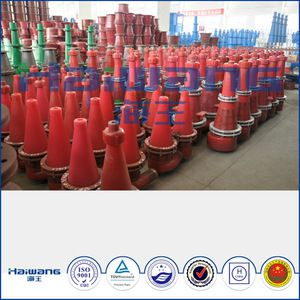

Hydrocyclone Separator on exhibition :


2. Advantages of Hydro-Cyclone For Starch Production Line :

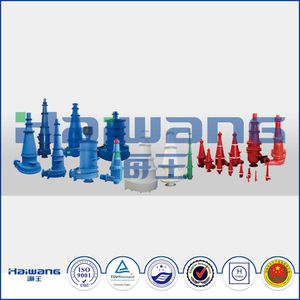

(1)Serialization, large-scale, specifications: FX150 - FX1250 (mm), cut size: 4 microns - 400 microns.
2)Various wear-resisting materials: High alumina ceramic, polyurethane, ceramic composite materials. We can produce suitable hydrocyclone according to client’s demand or working condition
(3)Personalized structure design: We own multifarious patent structure and advanced   technology at    abroad  and domestic.

3. Application of Hydro-Cyclone For Starch Production Line :


Hydrocyclone has been widely applied in classification, thickening, dewatering, desliming, separation, washing and other processes in ferrous and non-ferrous metal mines, non-metal mines, chemical mines, and it also has been widely applied in coal slime classification, thickening, dewatering, desliming and other processes.


                      Hydrocyclone for power plant

                           Hydrocyclone for metal mines


4.Working Principle oHydro-Cyclone For Starch Production Line :

Slurry is introduced under pressure through the tangential or involute entry (depending on feeding way of the inlet head) into the hydrocyclone body. Under centrifugal force, large particles will move downwards along outer swirling flow and be discharged through apex as underflow while fine particles will move upwards through inner swirling flow and be discharged from vortex finder as over flow.

Our Service

1.Localized Service

Worldwide offices and agents provide localized sales and technical service.

2.Professional technical service
Professional technical team provide optimum solutions and early stage laboratory tests.

3.Perfect after sales service
Assembly, commissioning, training services by professional engineer.

4.Prompt Delivery
Good production capacity and spare parts stock realize fast delivery.

Our Packing
Packing Details
Hydro-Cyclone For Starch Production Line will packing with Standard export container or as required.



 Delivery Time



Within 5-25 days after Hydro-Cyclone For Starch Production Line order confirmed.
