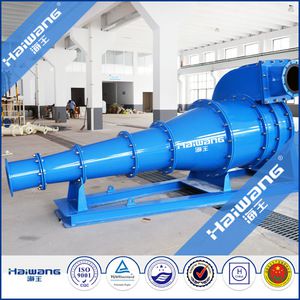

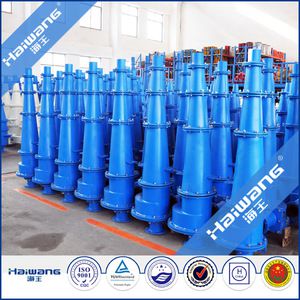

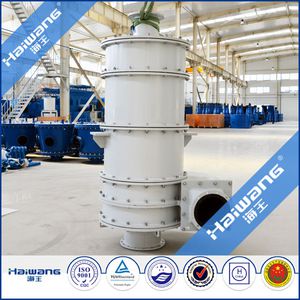

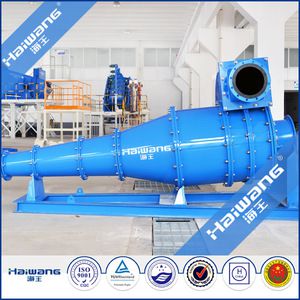

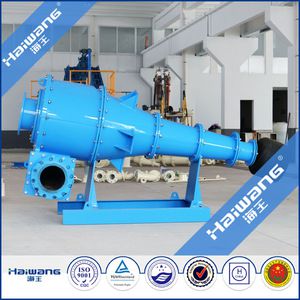

Haiwang Mining Industrial Hydraulic Water Sand Desander Polyurethane Ceramic Hydro Cyclone

The leading manufacturer of mining machinery in China since 1989 and is one of the largest cyclone manufacturers and suppliers in the Asian-Pacific region.

Technical Feature

  • New
  • Hydrocyclone
  • 10-400tons
  • Shandong, China (Mainland)
  • Haiwang
  • FX 350
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$1~200

PRIMARY PARAMETERS

Condition
New
Type
Hydrocyclone
Production Capacity
10-400tons
Place of Origin
Shandong, China (Mainland)
Brand Name
Haiwang
Model Number
FX 350
Voltage
220V/380V
Power(W)
1.1kw
Dimension(L*W*H)
7000*2000*3000 Mm
Weight
750kg
Certification
ISO9001&GOST
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Name
Hydraulic Water Sand Desander Polyurethane Ceramic Hydro Cyclone
product name
Hydraulic Water Sand Desander Polyurethane Ceramic Hydro Cyclone
keyword
Polyurethane Ceramic Hydro Cyclone
Lining inside
PU, Rubber, Alumina Ceramic,KM material
Max. feeding size
Mesh Size *2.5
Feeding size
10mm
Inlet pressure
0.04-0.6
Recovery rate
95-98%
Application
ore,copper,gold,water,oil,etc
whatsapp
+86-18763140706

DETAIL DESCRIPTION

 Haiwang Mining Industrial Hydraulic Water Sand Desander Polyurethane Ceramic Hydro Cyclone

Product Description

Haiwang Mining Industrial Hydraulic Water Sand Desander Polyurethane Ceramic Hydro Cyclone

 Weihai Haiwang Technology Co.,Ltd. The leading manufacturer of mining machinery in China since 1989 and is one of the largest cyclone manufacturers and suppliers in the Asian-Pacific region.





1. Brief introduction of Haiwang Mining Industrial Hydraulic Water Sand Desander Polyurethane Ceramic Hydro Cyclone

Hydrocyclones is also called cyclone separator.Hydrocyclones include hydrocyclone desander(10 in. cone) and hydrocyclone desilter(4 in. cone),which used to separate sand and silt from the drilling fluid.

A hydrocyclone has two exits on the axis: the smaller on the bottom (underflow or reject) and larger at the top (overflow or accept). The underflow is generally the denser or thicker fraction, while the overflow is the lighter or more fluid fraction. Centrifugal pump is used to pump the drilling fluids from mud tank into the set of hydrocyclones.





Patented Hydrocyclones :





volute feeding pre-classifing hydrocyclone                muti-cone hydrocyclone







       spiral feeding hydrocyclone                         flat bottom hydrocyclone



2. Advantages of Haiwang Mining Industrial Hydraulic Water Sand Desander Polyurethane Ceramic Hydro Cyclone
(1)Serialization, large-scale, specifications: FX150 - FX1250 (mm), cut size: 4 microns - 400 microns.
(2)Various wear-resisting materials: High alumina ceramic, polyurethane, ceramic composite materials. We can produce suitable hydrocyclone according to client’s demand or working condition
(3)Personalized structure design: We own multifarious patent structure and advanced technology at abroad and domestic.
3. Application of Haiwang Mining Industrial Hydraulic Water Sand Desander Polyurethane Ceramic Hydro Cyclone

China Mining Hydrocyclone Separator Unit , Gravity Separator , Mine Hydrocyclone has been widely applied in classification, thickening, dewatering, desliming, separation, washing and other processes in ferrous and non-ferrous metal mines, non-metal mines, chemical mines, and it also has been widely applied in coal slime classification, thickening, dewatering, desliming and other processes.





     Hydrocyclone for metal mines                                 Hydrocyclone for chemical mines





   Hydrocyclone For Saudi Phosphate                       New material(min diameter 10mm)



4.Working Principle of Haiwang Mining Industrial Hydraulic Water Sand Desander Polyurethane Ceramic Hydro Cyclone
Slurry is introduced under pressure through the tangential or involute entry (depending on feeding way of the inlet head) into the hydrocyclone body. Under centrifugal force, large particles will move downwards along outer swirling flow and be discharged through apex as underflow while fine particles will move upwards through inner swirling flow and be discharged from vortex finder as over flow.



Technical Parameters
SpecificationsDiameter(mm)Inlet Pressure(MPa)Capacity(m3/h)Cut Size(μm)
FX8408400.04-0.15500-90074-350
FX7107100.04-0.15400-55074-250
FX 6606600.04-0.15160-45074-220
FX6106100.04-0.15200-30074-200
FX5005000.04-0.2140-24074-200
FX4004000.04-0.2100-17074-150
FX3503500.04-0.2V70-16050-150
FX3003000.04-0.245-9050-150
FX2502500.04-0.340-8040-100
FX2002000.04-0.325-4040-100
FX1501500.04-0.314-3520-74
FX1251250.04-0.38-2020-50
FX1001000.04-0.38-2020-50
FX75750.1-0.44-1010-40
FX50500.1-0.42-57-40
FX25250.1-0.60.3-15-20
FX10100.1-0.60.05-0.11-5



 Slurry is introduced under pressure through inlet in tangential or involute direction (depending on feeding way of the inlet head) into the hydrocyclone. Under centrifugal force, large particles will move downwards along outer swirling flow and be discharged through apex as underflow while fine particles will move upwards through inner swirling flow and be discharged from vortex finder as overflow.

Benefits

5. Benifits of Haiwang Mining Industrial Hydraulic Water Sand Desander Polyurethane Ceramic Hydro Cyclone
1. Compact and simple structure
2. No moving parts
3. Low investment and running cost
4. Easy to install and simple to operate
5. High efficiency
6. High erosion resistance



cyclone unit is combined with other equipment to form classification group, which can improve the machine processing capacity by more than 15%, and multi function screen in combination equipment can automatically return coarse particles in overflow to the mill.



Overseas Project



If any new inquiry of Filtration Equipment ,Mineral Processing EPC, Mining Machine, Hydrocyclone, Heavy Medium Cyclone, High Frequency Linear vibrating Screen , We have been a professional mineral processing equipment manufacturer in China for almost 30 years. We are very glad to help you.



The world largest iron mine
CITIC Pacific Sino Iron
The world largest phosphorite mine
Saudi Arabia Ma’aden Phosphorite Mine
The world largest single line copper mine
Peru Toromocho Copper Mine
Asia largest iron mine
Sijiaying Iron Mine of Hebei Iron & Steel Group
Asia largest nickel mine
Jinchuan Nickel Concentrator
Asia largest molybdenum mine
 Baihualing Mine



Haiwang Technology Group was founded in 1989 which is located in Weihai,China. Haiwang is the leading supplier of mining equipment and service total solution. We have the capability and qualification of engineering consultation, mineral processing test, mine design, equipment supply, installation and commissioning, personnel training, production and standard achieved. We have comprehensive strength of one-stop EPC service and can provide all kinds of complete sets of equipment and technical services for ferrous and non-ferrous metal mine, non-metal mine, coal, electric power environmental protection, chemical and fertilizer etc. industry.





Exhibitions :



America



Asia&Russia

India

EXPONOR CHILE in Antofagasta,ChileMining World in Moscow, RussiaMining Week in Karaganda, Kazakhstan
EXTEMIN in Arequipa,PeruUGOL ROSSII & MINING in Novokuznetsk, RussiaIron and Steel Summit in Chhattisgarh,India
EXPOMINAS MEXICO in Acapulco,MexicoMining World in Alma-Ata, Kazakhstan



Our Services

Localized Service
Worldwide offices and agents provide localized sales and technical service.

Professional technical service
Professional technical team provide optimum solutions and early stage laboratory tests.

Perfect after sales service

Prompt Delivery



1. Unique advantage
Kinds of Products, long services and wide applications
2. superiority
Stong Technical strength and service capability
3. dominant position
High Machining and warehousing capacity
4. dominant position
Unique Wear resistant materials
5. dominant position
Excellent Domestic and international project reference









Packaging & Shipping



Different Packaging:
1.packed by Fumigation free plywood
2.Load container, Spear Parts in wooden case.

3.Platform Container

4.open top container

Transportation:
1. By sea Freight;
2. shipping company:MSK/MSC/APL/EMC/WANHAI/KLINE
 We will give a notice before the arrival of the goods



Pre-Sales Service
  • Inquiry and Design the solution.
  • Guide to build the foundation .
  •  View our Factory.
After-Sales Service
  • Training how to instal the machine, training how to use the machine.
  • Engineers available to service machinery overseas.
Company Information









Successful Projects :
We have taken 70% domestic market share in mineral processing field and successfully applied in over 30 countries for different types of ores.
1.The world largest iron mine :CITIC Pacific Sino Iron

2.The world largest phosphorite mine :Saudi Arabia Ma’aden Phosphorite Mine

3.The world largest single line copper mine:
Peru Toromocho Copper Mine
4.Asia largest iron mine :
Sijiaying Iron Mine of Hebei Iron & Steel Group
5.Asia largest nickel mine :
Jinchuan Nickel Concentrator
6.Asia largest molybdenum mine :
Baihualing Mine
