New Design Hydrocyclone Separator for Mining(FX610)
Hydrocyclone separator widely applied to concentrating various powder of mines, non-ferrous and ferrous metal, chemical, phamaceutical, ceramic, industry and etc.
It main operation in the concentration process:
1. Classification for section I closed circuit grinding
2. Classification for section II closed circuit grinding
3. Regrinding for fine mine classification
4. Mud-removing before selection and after selection
5. Dam and backfill for gangue
In closed circuit grinding system, hydrocyclone separator' s high classification efficiency (about 80%) wins users' popularity

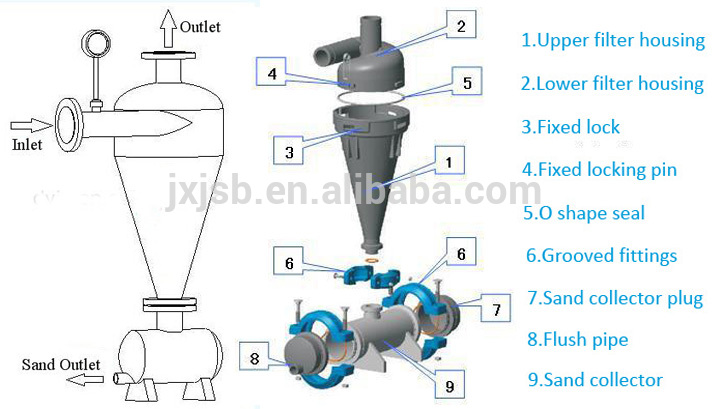

A typical hydrocyclone separator of this series is consists filter housing, fixed lock, pin, seal, plug pipe, sand collector as the picture show
Take sand as a example to illustrate the hydrocyclone separator working operation. The sand mixed water come to the hydrocyclone seperator by the inlet, the hydrocyclone seperator keep turn around and around under the force of the electric motor. The liquid in hydrocyclone seperator screw up. At last, the water and lighter ore or something else overflow through the outlet and the heavier sand sink down and discharged from the sand outlet.
Specification of hydrocyclone separator of this series
Model(FX) | overflow size(mm) | Max feeder(mm) | Capacity m2/h | separating range (um) |
710 | 240,260,280 | 16 | 400-550 | 74-250 |
660 | 180,200,200,220,240 | 16 | 250-360 | 74-220 |
610 | 160,180,200,220 | 12 | 200-260 | 74-200 |
500 | 130,140,150,160,180,220 | 10 | 140-220 | 74-200 74-200 74-150 |
350 | 80,90,105,115,120 | 6 | 60-105 | 50-150 50-150 50-120 |
300 | 55,65,80,100,120 | 5 | 45-90 | 50-120 50-150 50-150 |
250 | 60,75,80,100,120 | 3 | 40-65 | 40-100 40-100 30-100 |
200 | 40,50,55,60 | 2 | 25-40 | 40-100 10-100 |
Hot selling gravity separation equipments
