2014 Most Popular Mining Machine Gravity Mineral Separating Shaking Table

Gravity mineral separating shaking table is one of the main equipments of gravity concentration.

Technical Feature

  • Jiangxi, China (Mainland)
  • gravity mineral separating shaking table -jinshibao
  • gravity mineral separating shaking table-6-S model
  • New
  • Engineers available to service machinery overseas
  • fix with water to work
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$2~2

PRIMARY PARAMETERS

Place of Origin
Jiangxi, China (Mainland)
Brand Name
gravity mineral separating shaking table -jinshibao
Model Number
gravity mineral separating shaking table-6-S model
Condition
New
After-sales Service Provided
Engineers available to service machinery overseas
Application
fix with water to work
Models available
LS4500, LY3000, LY2100, and LY1100
Deck type
Coarse ore deck, fine sand deck, slime ore deck
Suitable ore
Gold, Silver, Tin, Tantalum, Titanium, Tungsten, Iron
Capacity
0.5-2T/H for one unit
Certificate
IS09000,CE certificate
Sample testing
supply in our factory
After sales
supply
Installation
supply the technical or video
Warranty
1 year excluding spare parts

DETAIL DESCRIPTION

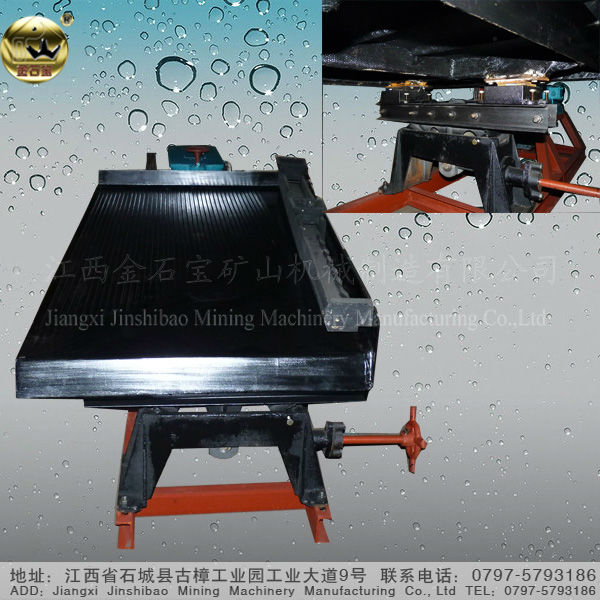

 Gravity mineral separating shaking table From Jinshibao Company







Product Description







I. Application of gravity mineral separating shaking table



 Gravity mineral separating shaking table is one of the main equipments of gravity concentration. Gravity Concentration Equipment is not only widely applied on separating tungsten, the tin, the tantalum niobium and other rare metals and the noble metal ore. Also widely used in separation for Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum, etc. The shaker effective recycling granularity scope is 2-0.037 millimeters.



II. Working principle of gravity mineral separating shaking table

The working principle of gravity mineral separating shaking table is to use the combined action of the specific gravity difference of sorted minerals, alternating movement of bed surface, and transverse oblique water flow and riffle (or notch groove), to allow loose layering of ores on the bed surface and fan-shaped zoning. Then different products can be produced.



III. Features of  gravity mineral separating shaking table



The characteristics of gravity mineral separating shaking table are high enrichment ratio, high efficiency of beneficiation, easy operation and convenient stroke adjustment. Changing the horizontal slope and stroke length, it can still maintain bed running in balance. Spring is placed in the box, so its structure is compact. Also it can eventually get the concentrates and tailings.



l High recovery ratio



2 High concentration ratio



3 Easy installation



4 Simple operation



5 Deck constructed of fiber glass



6 Three different decks to choose



7 Long working life



8 Adjustable stroke length



Decks: gravity mineral separating shaking table have three distinct deck designs available. The course ore deck is designed for recovering particles size from 0.5 mm to 2 mm; the fine sand deck is designed for recovering fine particles in the range of 0.074 mm to 0.5 mm; the slime deck is designed for recovering super extremely fine particles in the range of 0.05 mm to 0.074 mm.

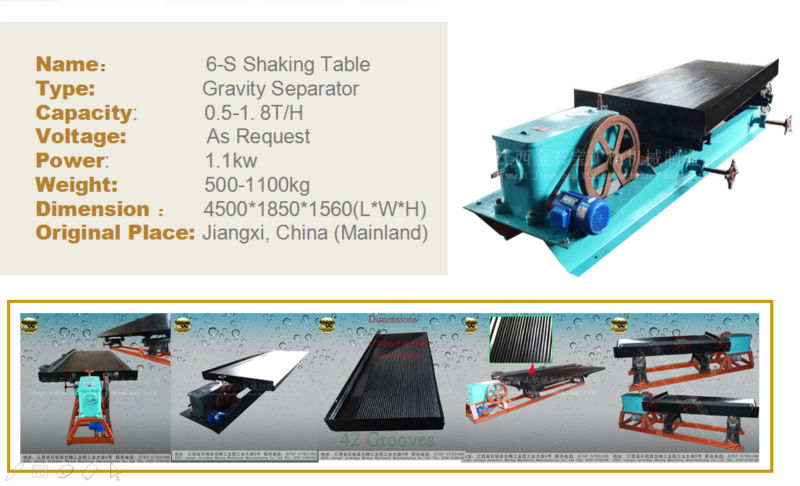

  V. Technical parameter of  gravity mineral separating shaking table

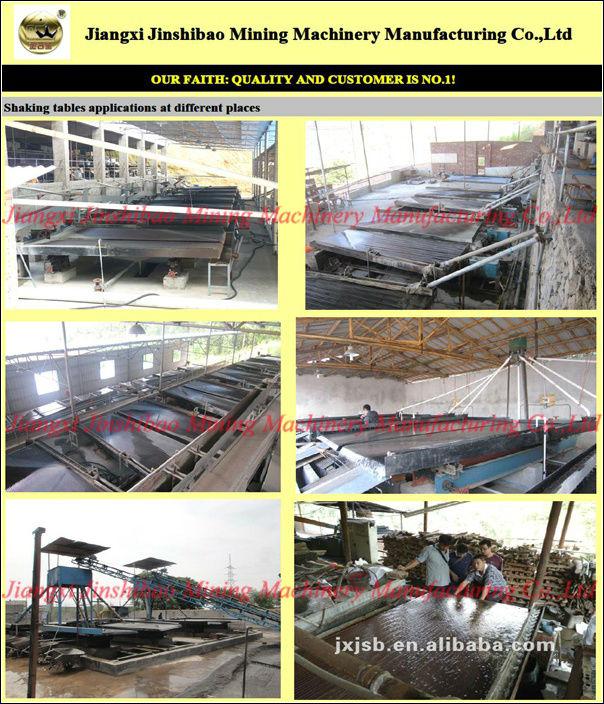

The working mining site for gravity mineral separating shaking table

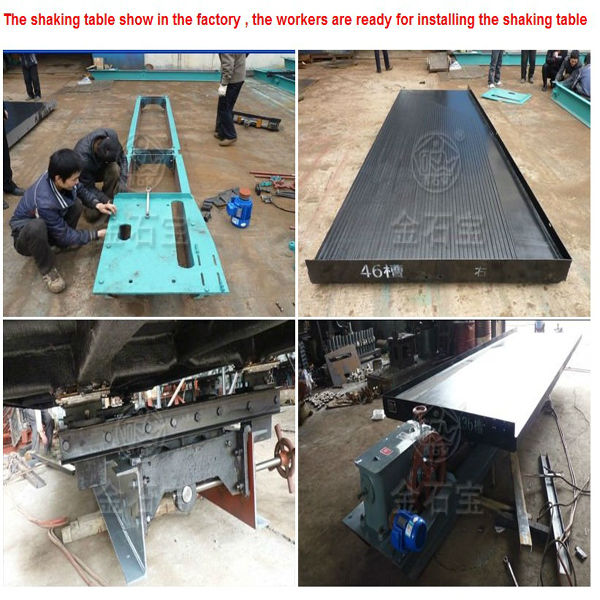

Installing the gravity mineral separating shaking table

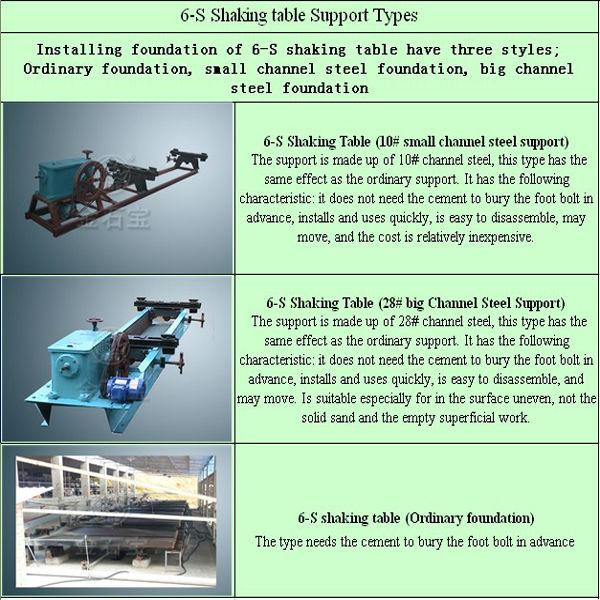

Three supports types  of gravity mineral separating shaking table





The small channel steel support  of  gravity mineral separating shaking table

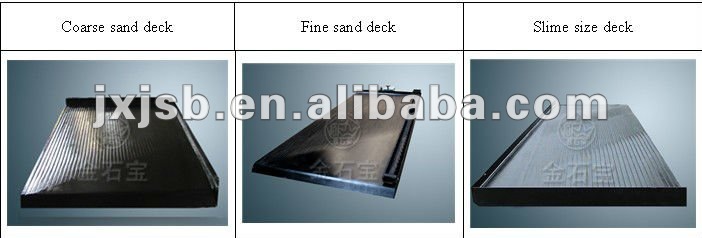

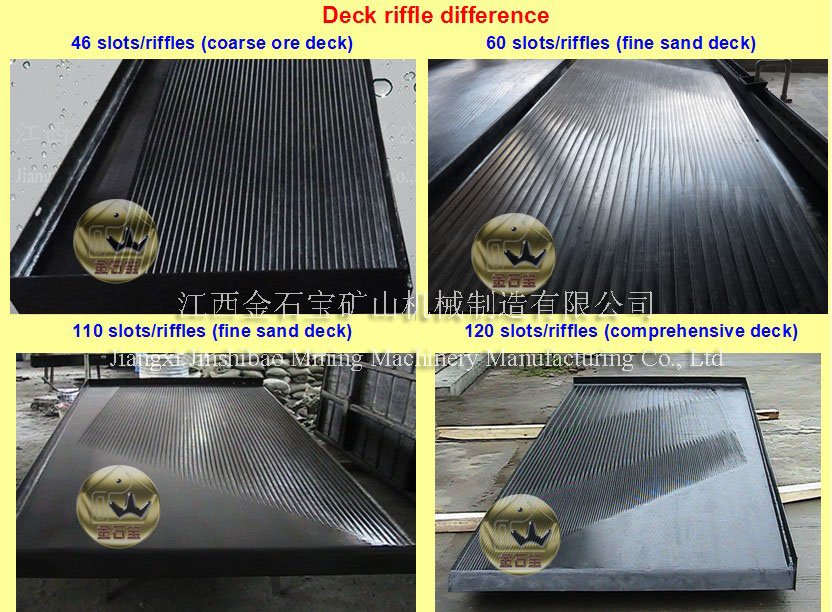

Different type deck for gravity mineral separating shaking table

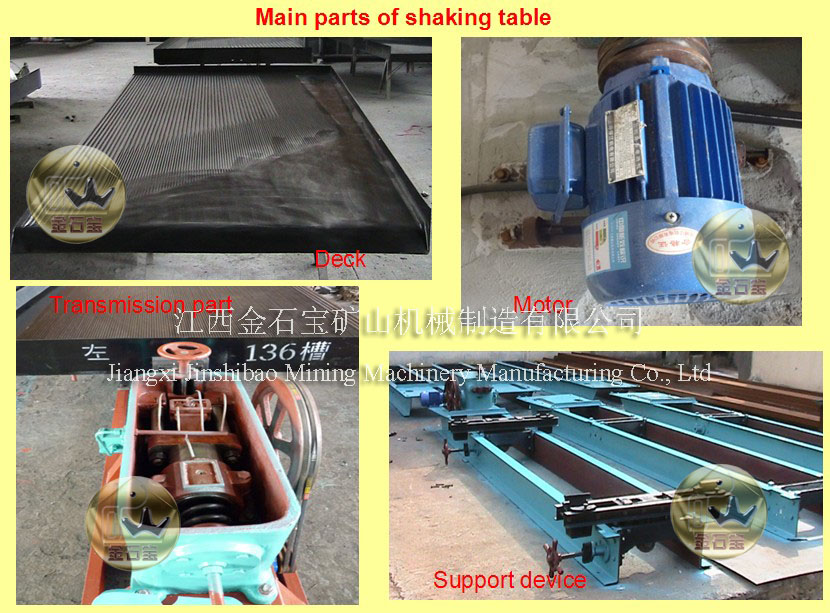

Main part for gravity mineral separating shaking table







Shipping line for  gravity mineral separating shaking table

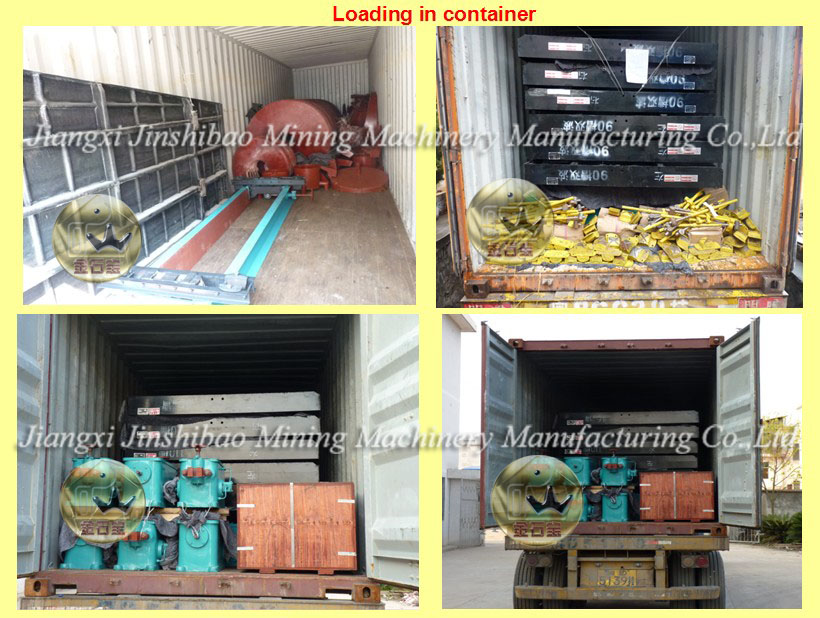

Packaging & Shipping






Our Services








Company Information






FAQ



1. We are factory (NOT Dealer)



All machinery from Jiangxi Jinshibao Mining Machinery Manufactory are made by ourselves, No trade company make



Commission(many trade companies do not produce the machinery),the lower price with the same goods, good quality, after service can be assured (after service of trade companies will get help from factory).



So please buy from factory.



2. We will do our best to satisfy every customer's needs



Producing high-quality and reliable machines is our first priority, because we know that our success depends entirely on the satisfaction of our customers. We never give-up quality to save cost.



3. Training & service



Training is FREE to every customer. Whenever you need us, for installation, maintenance, or proper use of our company machines, we will be right there for you. In addition, we provide one-year warrantee to make sure your machine runs consistently. We always keep certain inventory level of spare parts, which means the replacements can be shipped to you right away.



4. If you are new for this business, I will help you



Many thanks for your trust; we can provide you with the pre-services of design scheme for complete production lines, spot inspection and operator training according to your demands and the conditions of applied spot, we can help you choose the right equipments, drilling rig, Loader, trucks, excavators and so on





5. We will recommend a suitable type for you and send you a best quotation
