Environmentally Friendly Rotary Vacuum Filter Machine

Rotary vacuum filter is applicable to geological, metallurgical, building material, mining and other industries for mineral dewatering after flotation, gravity concentration, magnetic separation and other operations in tests on mineral separability and se

Technical Feature

  • Jiangxi, China (Mainland)
  • Jinshibao Rotary Vacuum Filter
  • ZL and DL type Rotary Vacuum Filter
  • New
  • Engineers available to service machinery overseas
  • Chemical Industry , Research department
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$0~0

PRIMARY PARAMETERS

Place of Origin
Jiangxi, China (Mainland)
Brand Name
Jinshibao Rotary Vacuum Filter
Model Number
ZL and DL type Rotary Vacuum Filter
Condition
New
After-sales Service Provided
Engineers available to service machinery overseas
Application
Chemical Industry , Research department
Feeding size
<0.5mm Rotary Vacuum Filter
Capacity
4.2L Rotary Vacuum Filter
Vacuum Pressure
80-91.2kpa Rotary Vacuum Filter
Filtering time
5-10 minutes Rotary Vacuum Filter
Power consumption
1.5kw Rotary Vacuum Filter
Color
Customer's Request Rotary Vacuum Filter
Density
10%-30% Rotary Vacuum Filter
Installation
Engineer Guide
Usage
Mineral

DETAIL DESCRIPTION

Environmentally Friendly Rotary Vacuum Filter Machine



Product application



Rotary vacuum filter is applicable to geological, metallurgical, building material, mining and other industries for mineral dewatering after flotation, gravity concentration, magnetic separation and other operations in tests on mineral separability and separation of solid-liquid in sample testing. It mainly comprises vacuum pump, moisture air filter, vacuum negative pressure tank and two filter trays with automatic drainage device to be provided to separate solids from liquids.





Features



<< solid-liquid separation, simple structure, operation



<< convenient maintenance, filtering effects of high adaptability



<<  filter and concentration of minerals lower pulp filtration



<< the effect is most remarkable





Structure



The Rotary vacuum filter that is including of filter disk , electromagnetic valve, hydraulic control assembly and vacuum negative pressure jar, automatic drain valve, water-separating gas filter, vacuum pump, motor



Specifications



ModelZL-260/200DL-5C

Filter disk diameter

mm

260 and 240240 and 120

Pulp density

L

4.2 and 3.63.6 and 0.64

Slurry particle size

mm

<0.5<0.5
Filtering sample weightlarge size <500g, small size <100g

Filtering time

minutes

5-10 for normal materials

Motor power

kw

1.5

Overall dimension

mm

800*580*1140

Weight

kg

110







Details image

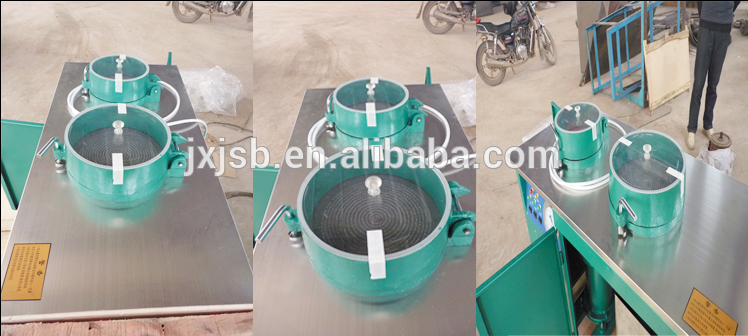

Two different size Rotary vacuum filter diameter picture

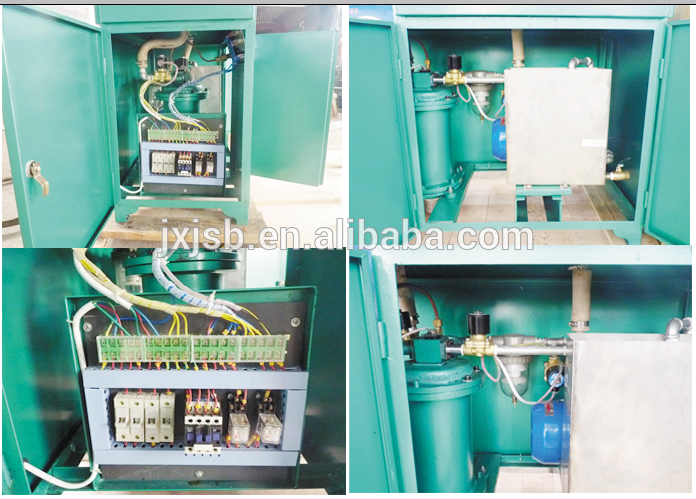

Rotary vacuum filter inside photos

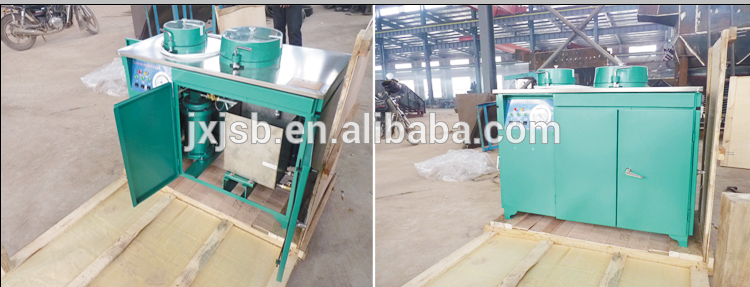

Rotary vacuum filter Appearance photos







We could follow customer request to make the Rotary vacuum filter , that sinle chamber , double chambers . Welcome to ask me any questions if you have .





Packaging & Shipping



Rotary vacuum filter packing



LCL way : sea-worthy packing , plywood box package



FCL way : ship together with other mining machines ,including the shaking table , gold concentrator , jig separators.
