Water Cyclone Separator, Mining Use Hydro Cyclone

Metal mine hydrocyclone widely applied in mine-chosen technique in various metal mines.

Technical Feature

  • New
  • hydro cyclone
  • 10-200 t/h
  • Jiangxi, China (Mainland)
  • Jinshibao Hydro Cyclone
  • FX Hydro Cyclone
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$20~500

PRIMARY PARAMETERS

Condition
New
Type
hydro cyclone
Production Capacity
10-200 t/h
Place of Origin
Jiangxi, China (Mainland)
Brand Name
Jinshibao Hydro Cyclone
Model Number
FX Hydro Cyclone
Voltage
0 power
Power(W)
0 power
Dimension(L*W*H)
Based on the model
Weight
Based on the model
Certification
CE; ISO9001
Warranty
One year guarantee excluding spare parts, 1 year excluding wearing parts
After-sales Service Provided
Engineers available to service machinery overseas
Color
As customer's request
Name
Hydro Cyclone
Material
Polyurethane for Hydro Cyclone
spare parts
supply for Hydro Cyclone
Function
Classifying and Overflow
Hydrocyclone types
Supply single and group types desanding equipment
Ore testing
Available
Mining flow sheet design
Supply
After sales
Lifelong

DETAIL DESCRIPTION

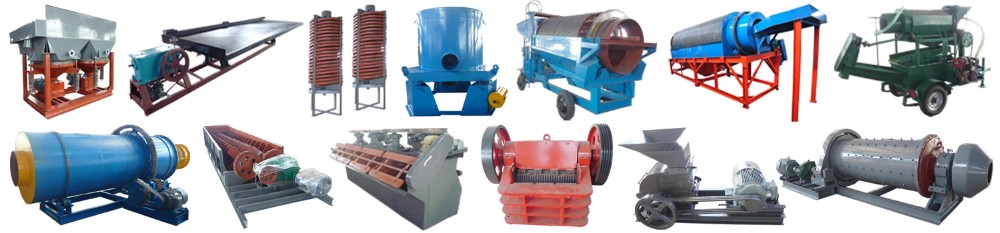

Main Products

Jigger machine                                                                  Shaking table

Spiral separator                                                                 Centrifugal concentrator

Mobile trommel                                                                   Fixed trommel

Small trommel                                                                     Trommel scrubber

Log washer                                                                         Flotation machine

Jaw crusher                                                                         Hammer mill

Ball mill



Please click the above items for more details!



Water Cyclone Separator, Mining Use Hydro Cyclone



Product Description



Metal mine hydrocyclone widely applied in mine-chosen technique in various metal mines. It mainly shows in the following works:



1. Classification for section I closed circuit grinding

2. Classification for section II closed circuit grinding

3. Regrinding for fine mine classification

4. Mud-removing before selection and after selection

5. Dam and backfill for gangue

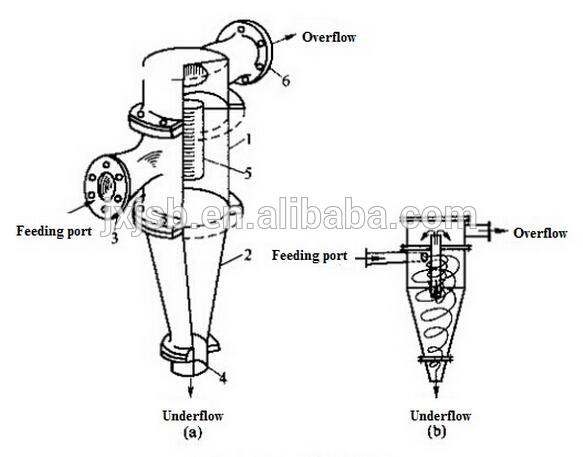

Structure of Hydro Cyclone



  1. Cylinder   2. Cone   3. Feeding pipe   4. Underflow port   5.Overflow pipe   6. Overflow pipe port

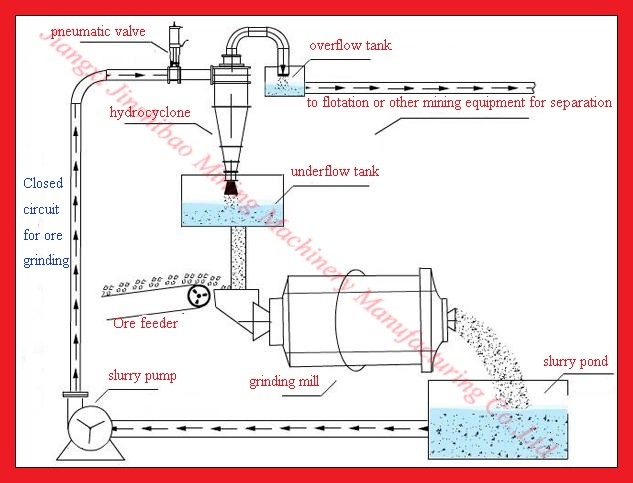

Working principle of Hydro Cyclone



Feed the material from feeding pipe , under certifugal and gravity force the material will be rotating in high speed , the heavy product will through the underflow port to discharge , the light product will through the overflow port to discharge





Material available of Hydro Cyclone



<< Polyurethane



<< Low carbon steel shell, polyurethane inner liner



<< Low carbon steel shell, ceramics inner liner



<< Low carbon steel shell, TG-NM compound materials inner liner

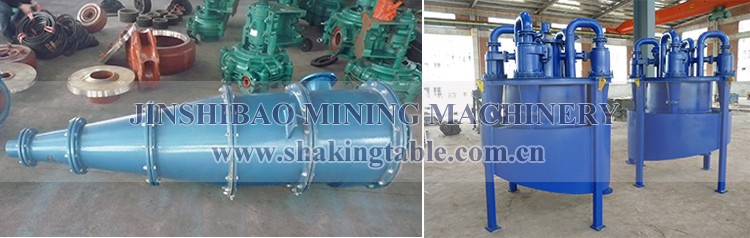

Types available of Hydro Cyclone



                              Single type hydrocyclone                                         Group type hydrocyclone



Technical specifications of Hydro Cyclone



Model

Canister Interior

Diameter
(mm)

Cone

Angle
(o)


Overfall

Pipe Dia.
(mm)


Bottom

Exit Dia.
(mm)


Max.
Feeding
size
(mm)

Feeding

Pressure
(Mpa)

Processing

Capacity
(m3/h)

Classification
Granularity
(um)



Weight
(Kg)


FX500

500

20

130~200

35~100

10

0.03~0.3

140~220

74~200

495

15

74~150

540

FX350

350

20

80~120

30~70

6

0.04~0.3

60~100

50~150

182

15

50~120

230

FX300

300

20

65~115

20~50

5

0.04~0.3

45~85

50~150

108

15

40~100

169

FX250

250

20

60~100

16~45

3

0.06~0.35

40~60

40~100

72

15

40~100

77

10

30~100

83

FX200

200

20

40~65

16~32

2

0.06~0.35

25~40

40~100

60

15

30~100

64

10

30~100

69

FX150

150

20

30~45

8~22

1.5

0.06~0.35

11~20

30~74

20

15

30~74

22

8

30~74

60

FX125

125

17

25~40

8~18

1

0.06~0.35

8~15

20~100

10

8

20~74

12

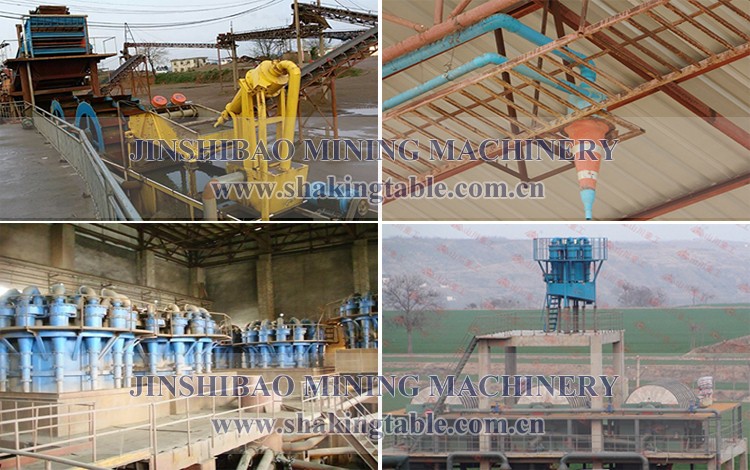

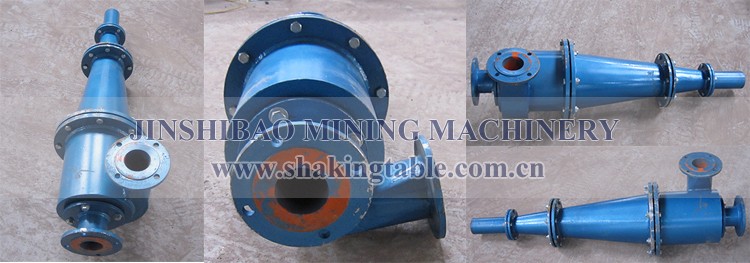

Detail Images





 Hydro Cyclone Hydro Cyclone Hydro Cyclone Hydro Cyclone



 Hydro Cyclone Hydro Cyclone Hydro Cyclone Hydro Cyclone

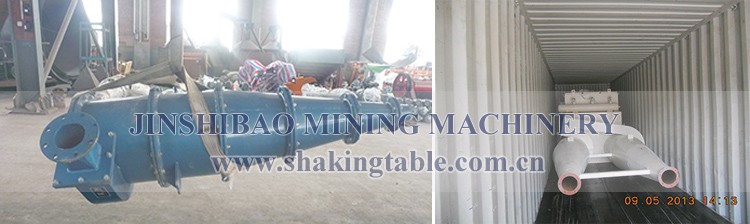

Packaging & Shipping







 Hydro Cyclone Hydro Cyclone Hydro Cyclone Hydro Cyclone

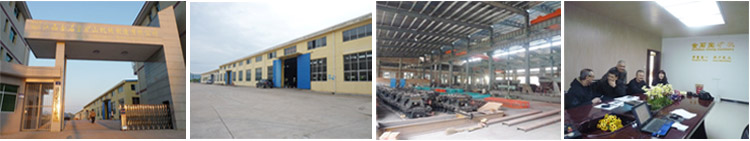

Company Information

Jiangxi Jinshibao Mining Machinery Manufacturing Co., Ltd has specialized in the mining equipment manufacturing for 25 years.



Shaking Table is one of our flagship products. The place we locate, Shicheng County, is the home of Shaking Table in China. Based on this, we grow up stronger and stronger.



25 Year-experienced skill ensure our product a stable structure and better performance. Among so many products from us, Shaking Table is the most popular one and enjoy a really good reputation and feedback from our customers from all over the world.



                      ISO9001:2008                                     CE                                           TUV

Pre-Sales Service



 * Inquiry and consulting support.



 * Sample testing support.



 * View our Factory.



 After-Sales Service



 * Training how to instal the machine, training how to use the machine.



 * Engineers available to service machinery overseas.



FAQ

1. Are you a trade company or a manufacturer?

A: We are an ISO9001:2008 and CE verified manufacturer specialized in various kinds of mining equipment as well as mining technology. OEM & ODM service are available.



2. What is your delivery time?

A: The delivery time is about 7-20 days after receipt of payment.



3. What is the payment terms?

A: The payment term is 45% payment in advance, 55% balance before shipment.



4. Why choose you as supplier?



A: 1). High quality & most competitive price



         We are a factory who could provide the lowest price to you.



         We are top 3 and with more than 20 years experiences in mining equipment.



    2). Fast delivery--Goods will be shipped within 7 - 30 days based on order quantity.



    3). Best service--Overseas customers can enjoy 24/7 after-sale service and dispatching service



    4). 3D & CAD flow chart design
