Hot Sale Water Cyclone Desander for Ore Mining

is widely applied in mine-chosen technique in various metal mines.

Technical Feature

  • New
  • hydro cyclone
  • 10-200 t/h cyclone desander
  • Jiangxi, China (Mainland)
  • Jinshibao cyclone desander
  • FX cyclone desander
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$20~500

PRIMARY PARAMETERS

Condition
New
Type
hydro cyclone
Production Capacity
10-200 t/h cyclone desander
Place of Origin
Jiangxi, China (Mainland)
Brand Name
Jinshibao cyclone desander
Model Number
FX cyclone desander
Voltage
Customized for cyclone desander
Power(W)
Customized for cyclone desander
Dimension(L*W*H)
Based on the model
Weight
Based on the model
Certification
CE; SGS; TUV;ISO9001
Warranty
One year guarantee excluding spare parts, 1 year excluding wearing parts
After-sales Service Provided
Engineers available to service machinery overseas
Color
As customer's request
Name
Cyclone desander
Material
Polyurethane for cyclone desander
spare parts
supply for cyclone desander
Function
Classifying and Overflow
Hydrocyclone types
Supply single and group types cyclone desander
Ore testing
Available
Mining flow sheet design
Supply
After sales
Lifelong

DETAIL DESCRIPTION

Hot Sale Water Cyclone Desander for Ore Mining





Description of cyclone desander



Metal Mine Hydrocyclone, also called cyclone desander, is widely applied in mine-chosen technique in various metal mines.



It mainly shows in the following works:



1. Classification for section I closed circuit grinding

2. Classification for section II closed circuit grinding

3. Regrinding for fine mine classification

4. Mud-removing before selection and after selection

5. Dam and backfill for gangue



In closed circuit grinding system, the cyclone desander features high classification efficiency and fine overfall fineness under high mine concentration. Classification efficiency is higher for 5-10% than common screw grader. It benefits for enhancing grader utilizing coefficient. Choose proper specification and mode concentration. This is precondition of getting the most optimized work condition.



Applicaiton of cyclone desander



The cyclone desander is mainly applied to the process of second paragraph grinding, coarse or concentrate re-grinding and the closed-circuit composed by mechanical grading machine, its grading operation is according to the particle size. The device has features of simple structure, long service life, large disposal capability, small land covering and no driving power consumption. It is a high efficient grading and de-sliming equipment of fine -particle material. It is widely used in concentrator of nonferrous and ferrous, chemical, pharmaceutical, ceramics and other industries.



Cyclone desander working principle



A typical cyclone desander consists of a conically shaped vessel, open at its apex, or underflow, joined to a cylindrical section, which has a tangential feed inlet. The top of the cylindrical section is closed with a plate through which passes an axially mounted overflow pipe. The feedis introduced under the pressure through  the tangential entry which imparts swirling motion to the pulp. This generates a vortex in the cyclone. The light granules will be pulled out by a pump through the overflow pipe, while the heavy particles will be discharged with the pulp through the underflow discharge.





Technical parameters of cyclone desander



                                                    modelFX-125FX-150FX-250FX-300FX-350
Overflow size
(mm)
15-25025-25025-25025-25025-250
Processing capacity
(m 2 /h)
2.4-1.54.8-546.5-61.224-6024-90
Permitting overflow pressure
(kg/cm 2 )
0.3-30.3-30.3-30.3-30.3-3



Cyclone
structural
parameters
Diameter
(mm)
Φ 125Φ 150Φ 250Φ 300Φ 350
Cone angle20°20°20°20°20°
Cylinder height
  (mm)
110200170235180
Overflow tube length (mm),107130163210215
Feed port area
  (mm ² )
25× 1040× 1050× 2075× 2080× 35
De-silting pipeline diameter
(mm)
15-3015355025
Outline size
  (length × width × height)
320× 260
× 648
594× 380
× 899
540× 475
× 1172
575× 550
× 1444
575× 690
× 1510
weight
(kg)
8085210240280

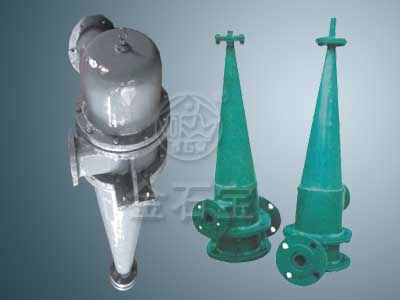

Products show of cyclone desander

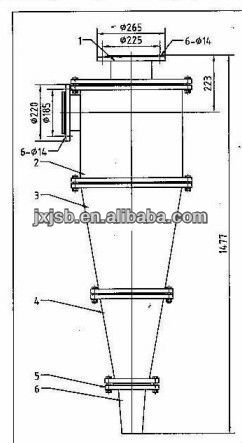

Diagram of cyclone desander

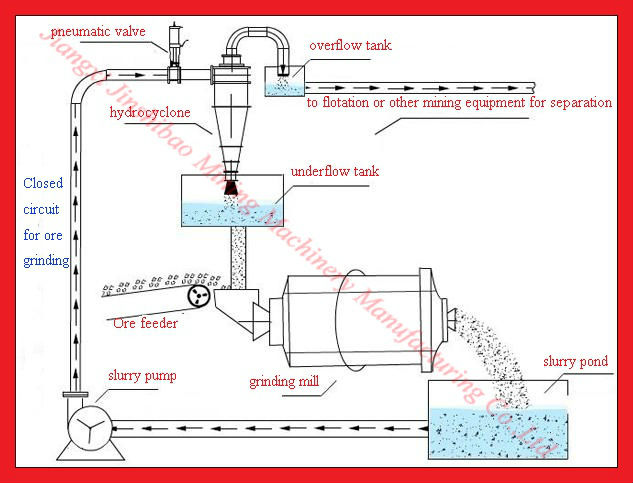

A schematic diagram of closed grinding circuit by appling the cyclone desander







Trade terms of cyclone desander







Qualifications and certifications of Jinshibao company







Other equipments which may be used together with cyclone desander

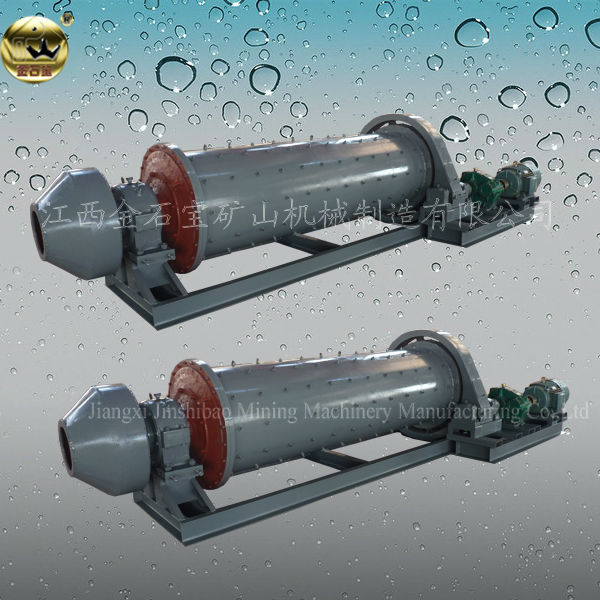

900*2400 ball mill

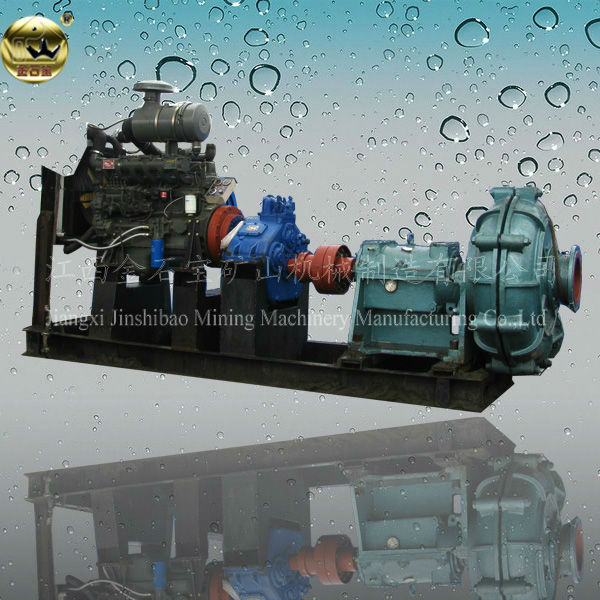

Slurry pump with diesel engine

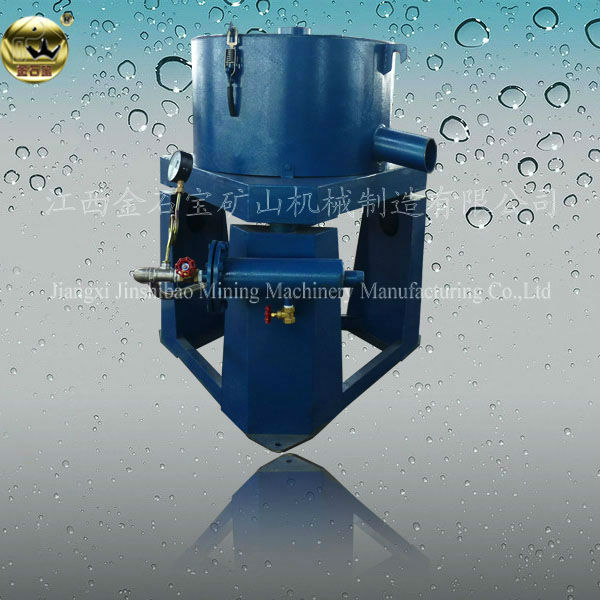

 Centrifugal concentrator







If you are interested in any of our products, please contact me:
