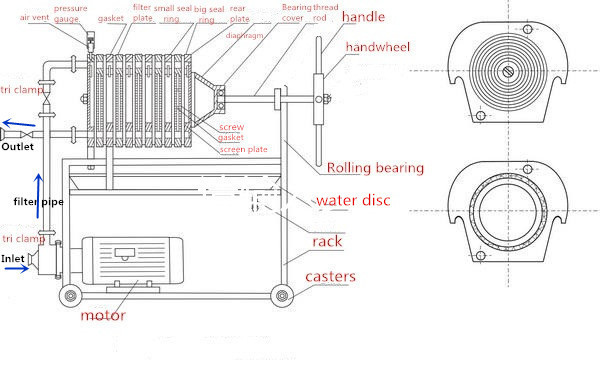

Product principle:
Centrifugal pump material into each airtight filter chamber filter press, under the effect of pressure, the filtrate
through filter layer and the filter cloth, filter cloth mouth eduction of produced liquid, filter residue left box
filter cake formation, so as to achieve the goal of solid-liquid separation.
Product parameter:
Model | NO.Of Layer | Filter area(m2) | Filter size(mm) | Filter membrane size(um) | Filter pressure(Mpa) | Water flow(T/h) | Motor power(Kw) |
WBG-100 | 10 | 0.078 | Φ100 | 0.8 | 0.15 | 0.8 | 0.55 |
WBG-150 | 10 | 0.170 | Φ150 | 0.8 | 0.15 | 1.5 | 0.75 |
WBG-200 | 10 | 0.314 | Φ200 | 0.8 | 0.15 | 2.0 | 1.1 |
WBG-300 | 10 | 0.700 | Φ300 | 0.8 | 0.15 | 4.0 | 1.1 |
WBG-400 | 10 | 1.250 | Φ400 | 0.8 | 0.15 | 6.0 | 1.1 |
WBG-400 | 16 | 2.000 | Φ400 | 0.8 | 0.15 | 9.0 | 1.5 |
WBG-400 | 20 | 2.500 | Φ400 | 0.8 | 0.2 | 10.0 | 1.5 |
WBG-400 | 32 | 4.000 | Φ400 | 0.8 | 0.3 | 13.0 | 2.2 |
WBG-500 | 12 | 2.000 | Φ500 | 0.8 | 0.3 | 8 | 1.5 |
WBG-500 | 16 | 3.000 | Φ500 | 0.8 | 0.3 | 13 | 2.2 |
WBG-500 | 22 | 4.000 | Φ500 | 0.8 | 0.3 | 16 | 2.2 |
WBG-500 | 26 | 5.000 | Φ500 | 0.8 | 0.3 | 20 | 3.0 |
Note: need to large flow plate and frame filter can be customized production, grundfos pump to an explosion-proof motor and pump the difference. |
