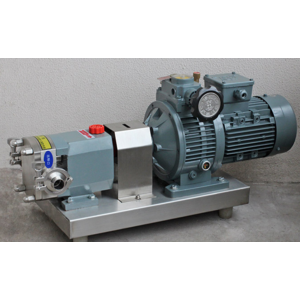

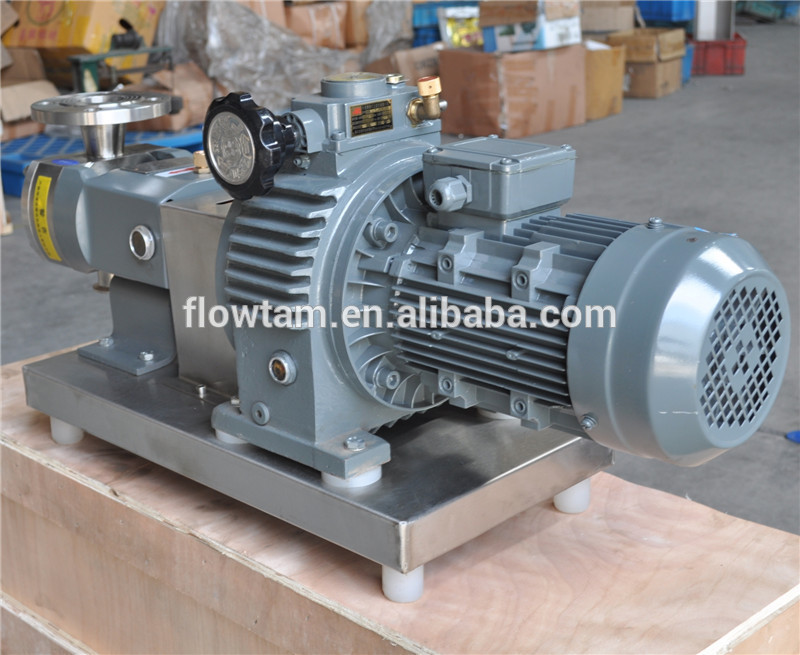

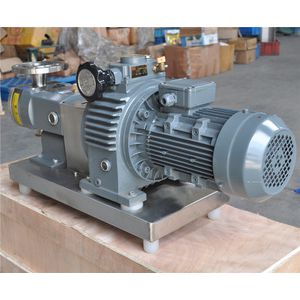

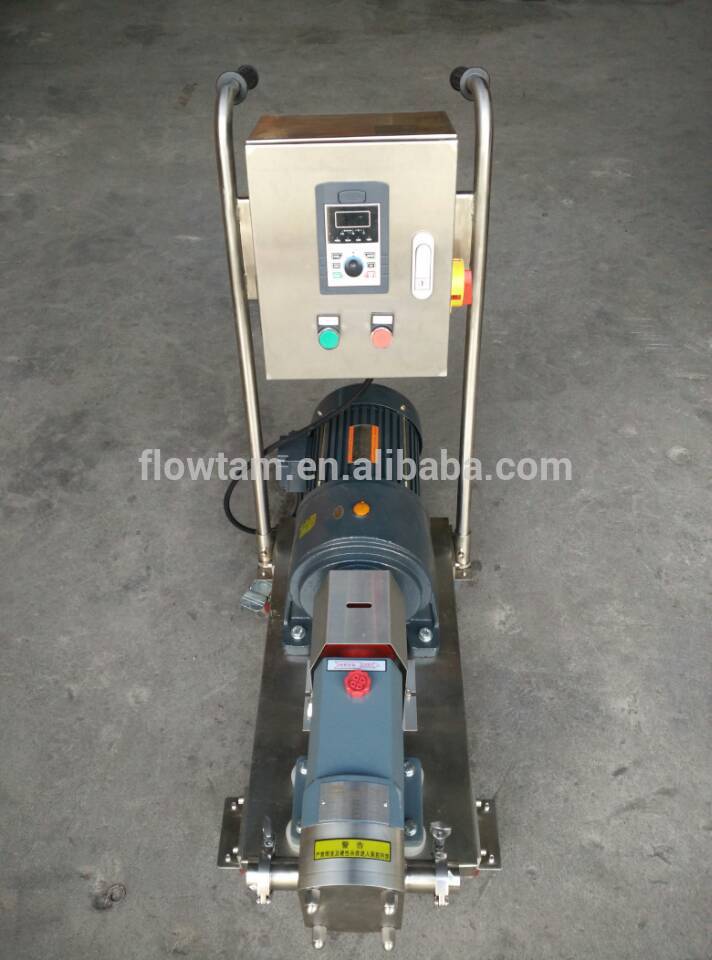

10m3/h sanitary stainless steel starch rotor pump
Details
| Product Name | stainless steel starch rotor pump |
| Description | Designed according to 3A standard, widely used for transfer viscous media in food-processing,beverage, cosemtics,chemical and pharmaceutical industries |

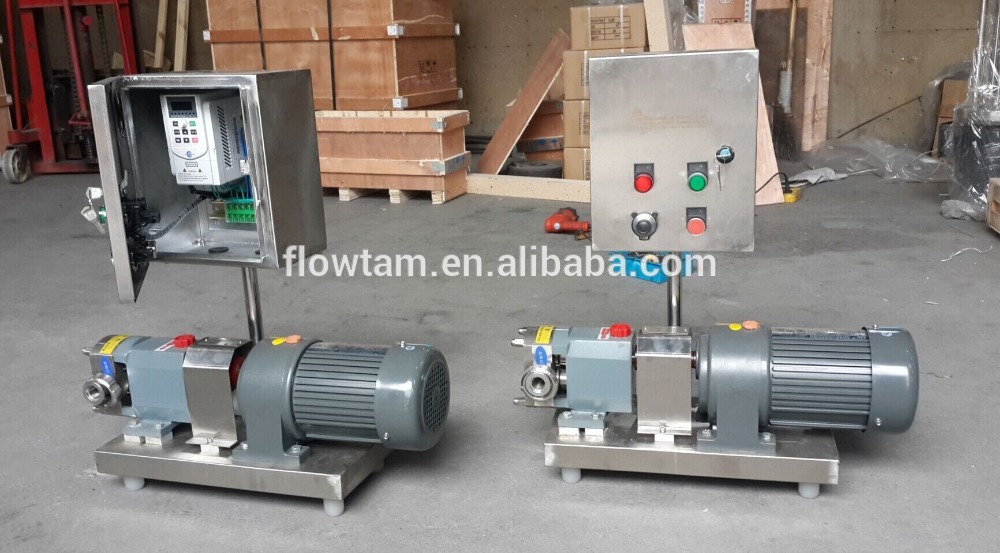

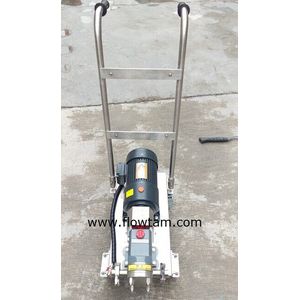

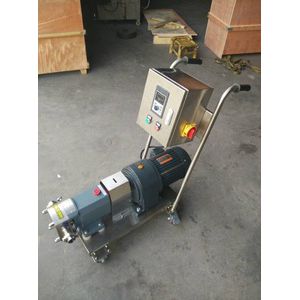

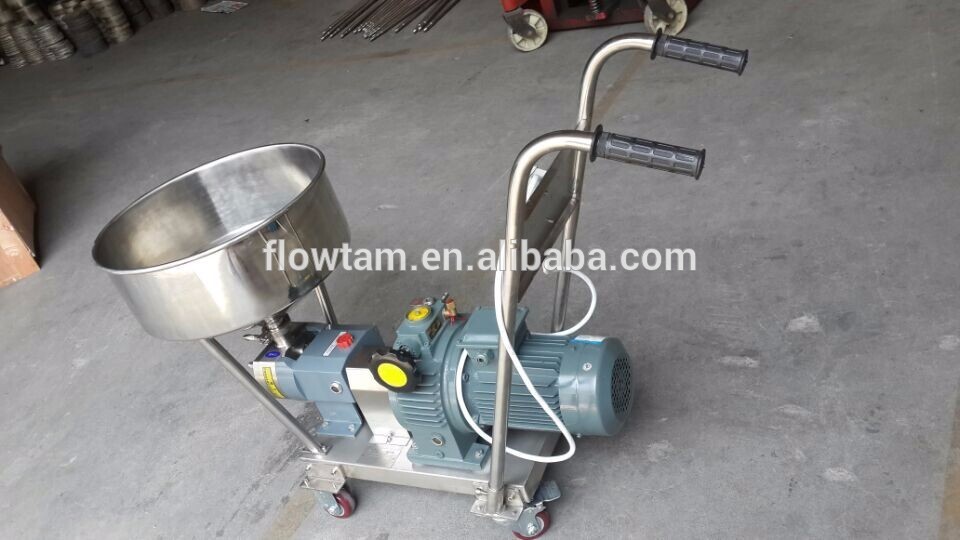

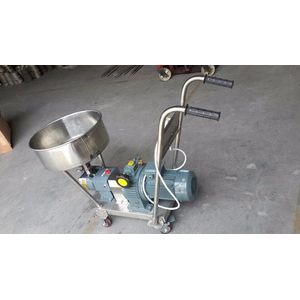

| Construction | Pump head,pump chamber,rotors,coupling,motor,seat,trolley,VFD etc. |
| Material | SS304/SS316L/1.4301/1.4404 |
| Seal Ring | Fluorine Rubber,EPDM,PTFE,Silicone(Standard, FDA approval) |
| Mechnical Seal | SIC,Hard alloy,graphite |
| Max. Flow | 80m3/h /352 GPM |
| Pressure | 6bar/87PSI |
| Working temperature | 120 C / 248 F |
| Process | Medium viscosity,small particle |
| Speed | 0-500rpm/200-500rpm/500rpm/1000rpm |

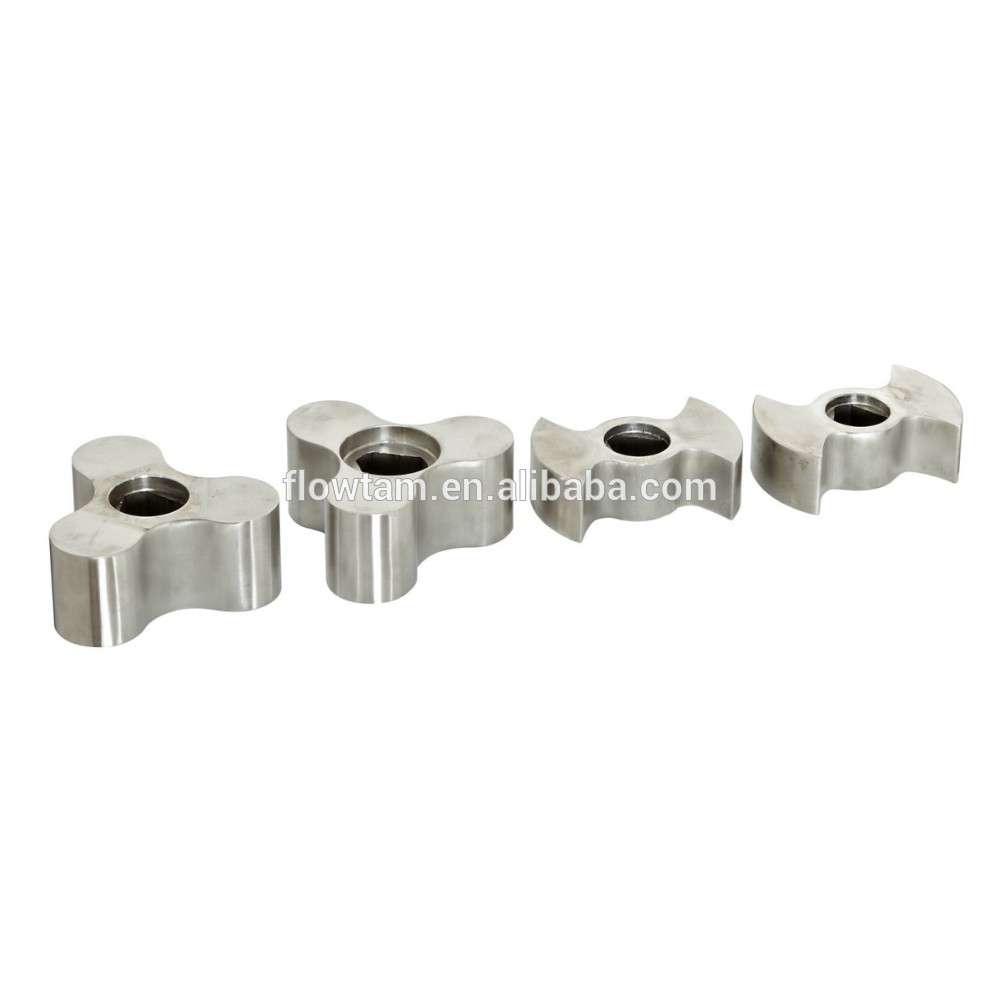

| Rotor Type | 2-leaves, 3-leaves, butterfly, signal butterfly,tri-lobe |
| Motor power | 0.55kw-22kw |
| Voltage | 110v/220v/240v/380v/415v/460v (50/60hz) |
| Motor | SIEMENS,ABB,Domestic |
| Surface treatment | Inner polished and Sandblast outside |
| Availably connection | Clamp, Thread, Butt weld, Flange |
| Availably standard | DIN, SMS, 3A, RJT, ISO/IDF |
| Application scope | Dairy, food, beverage, pharmacy, cosmetic, etc |
| Packaging Details | Plywood case or customerized. Or as per the request of customers |
| Delivery details | Within 18 days after receiving T/T down payment,special customized need negotiation. |
Packaging & Shipping
Technical Parameters
| Model | Capacity/per centume rotate(L) | Speed(rpm) | Flow(L/H) | Power(KW) |
| BLS-3 | 3 | 200-500 | 300-800 | 0.55 |
| BLS-6 | 6 | 200-500 | 650-1600 | 0.75 |
| BLS-8 | 8 | 200-500 | 850-2160 | 1.5 |
| BLS-12 | 12 | 200-500 | 1300-3200 | 2.2 |
| BLS-20 | 20 | 200-500 | 2100-5400 | 3 |
| BLS-30 | 30 | 200-400 | 3200-6400 | 4 |
| BLS-36 | 36 | 200-400 | 3800-7600 | 4 |
| BLS-52 | 52 | 200-400 | 5600-11000 | 5.5 |
| BLS-66 | 66 | 200-400 | 7100-14000 | 7.5 |
| BLS-78 | 78 | 200-400 | 9000-18000 | 7.5 |
| BLS-100 | 100 | 200-400 | 11000-22000 | 11 |
| BLS-135 | 135 | 200-400 | 15000-30000 | 15 |
| BLS-160 | 160 | 200-400 | 17000-34000 | 18.5 |
| BLS-200 | 200 | 200-400 | 21600-43000 | 22 |
