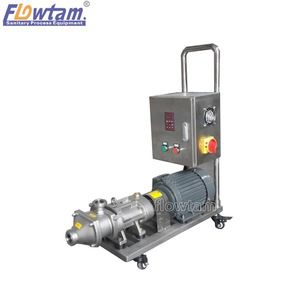

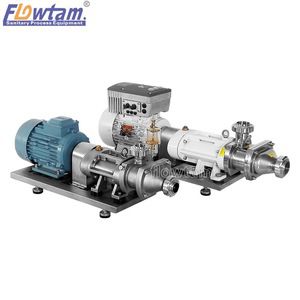

Stainless steel double mechanical seal twin screw pump for food
Details
| Product Name | Twin screw pump/double screw pump |
| Description | Designed according to 3A standard, widely used for transfer viscous media in the food-processing,beverage, cosemtics,chemical,ink&paint and pharmaceutical industries |
| Construction | Pump head,pump chamber, two screw rotors, coupling,motor, seat, trolley,VFD etc. Continuous operating-pipeline installation,circulation with vessel. |
| Material | SS304/SS316L/1.4301/1.4404 |
| Seal Ring | FluorineRubber,EPDM,PTFE,Silicone(Standard,FDAapproval) |
| Mechnical Seal | SIC,Hard alloy,graphite |
| Flow | 3-80 m3/h |
| Pressure | Up to 2.5Mpa/25bar,related to viscosity |
| Working temperature | 250 C / 482 F |
| Process | viscosity up to 2000000CPS,kinds of fluid&solid&gas |
| Speed | Constand speed and variable speed; Range: 0-1500rpm |

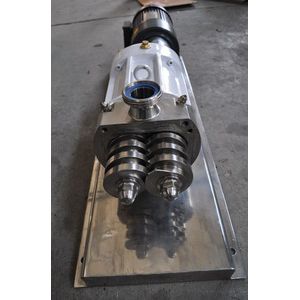

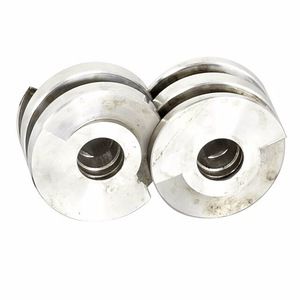

| Rotor type | screw rotor |
| Feature | Highperformance.Canrundryandempty. Nonosiy,nopluse,andnodamagetoproduct;Easycleanandassemble; |
| Motor power | 1.5kw-30 kw |
| Voltage | 110v/220v/240v/380v/415v/460v (50/60hz) |
| Motor | ABB SIEMENTS. |
| Surface treatment | Inner polished and Sandblast outside |
| Availably connection | Clamp, Thread, Butt weld, Flange |
| Availably standard | DIN, SMS, 3A, RJT, ISO/IDF |
| Application scope | Dairy, food, beverage, pharmacy, cosmetic, etc |
| Packaging Details | Plywood case or customerized. Or as per the request of customers |
| Delivery details | Usually within 20 days after receiving T/T down payment,special customized need negotiation. |
Technology
| Modle | Material | Flow(T/H) | Power(kw) | In/outlet | Spees(RPM) | Pressure (Mpa) |
| FSL-03-15 | 304/316L | 0-3 | 1.5 | 1.5" | 0-1480 | 0-0.5 |
| FSL-05-22 | 304/316L | 0-5 | 2.2 | 2" | 0-1 | |
| FSL-10-40 | 304/316L | 0-10 | 4 | 2.5“ | 0-1.5 | |
| FSL-15-55 | 304/316L | 0-15 | 5.5 | 3” | 0-2.5 | |
| FSL-20-75 | 304/316L | 0-20 | 7.5 | 3“ | 0-2.5 | |
| FSL-40-15 | 304/316L | 0-40 | 15 | 3.5” | 0-2.5 | |
| FSL-80-22 | 304/316L | 0-80 | 22 | 3.5“ | 0-2.5 |
Company Info
Supply Mixing tank,Reactor tank,fermentation tank,Inline homogenizer,High shear emulsifier mixer,Colloid mill,Jacket cooking kettle,Rotor pump,screw pump,emulsion pump,transfer pump etc.
Widely used in many fields, such as dairy, beer, food, pharmacy, beverage, cosmetic etc.,exported to America, Europe, the Middle East
