Food grade double screw pump for mashed potatoes/conveying water coal slury

Pump head,pump chamber, two screw rotors, coupling,motor, seat, trolley,VFD etc.

Technical Feature

  • Zhejiang, China (Mainland)
  • Flowtam
  • FSL
  • Mixed Flow Pump
  • Screw Pump
  • Water, different industries
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$10~500

PRIMARY PARAMETERS

Place of Origin
Zhejiang, China (Mainland)
Brand Name
Flowtam
Model Number
FSL
Theory
Mixed Flow Pump
Structure
Screw Pump
Usage
Water, different industries
Power
Electric, 1.5-15kw
Standard or Nonstandard
Standard
Fuel
electric
Pressure
High Pressure
Application
double screw pump
Name
double screw pump
Material
SS304/SS316L
Voltage
220V/380V
Application scope
dairy,food,beverage,pharmacy,cosmetic
Speed
100-3000rpm
Flow
3-30T/h
Connection
Clamp,thread,welded,flange
Warranty
1 Year

DETAIL DESCRIPTION

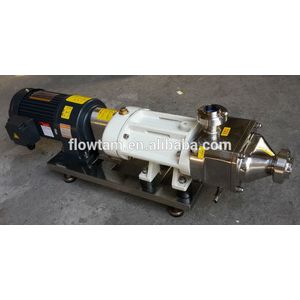

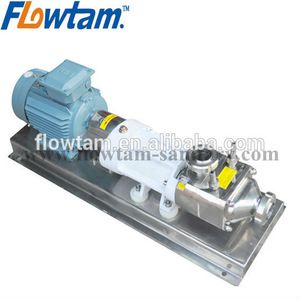

Product Details:Twin screw pump





Product NameTwin screw pump/double screw pump
DescriptionDesigned according to 3A standard, widely used for transfer viscous media in the food-processing,beverage, cosemtics,chemical,ink&paint and pharmaceutical industries
ConstructionPump head,pump chamber, two screw rotors, coupling,motor, seat, trolley,VFD etc. Continuous operating-pipeline installation,circulation with vessel.
MaterialSS304/SS316L/1.4301/1.4404
Seal RingFluorineRubber,EPDM,PTFE,Silicone(Standard,FDAapproval)
Mechnical SealSIC,Hard alloy,graphite
Flow3-80 m3/h
PressureUp to 2.5Mpa/25bar,related to viscosity
Working temperature250 C / 482 F
Processviscosity up to 2000000CPS,kinds of fluid&solid&gas
SpeedConstand speed and variable speed; Range: 0-1500rpm

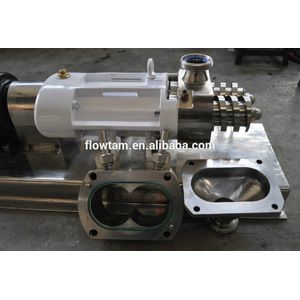

Rotor typescrew rotor
Feature

Highperformance.Canrundryandempty.

Nonosiy,nopluse,andnodamagetoproduct;Easycleanandassemble;

Motor power1.5kw-30 kw
Voltage110v/220v/240v/380v/415v/460v (50/60hz)
MotorABB SIEMENTS.
Surface treatmentInner polished and Sandblast outside
Availably connectionClamp, Thread, Butt weld, Flange
Availably standardDIN, SMS, 3A, RJT, ISO/IDF
Application scopeDairy, food, beverage, pharmacy, cosmetic, etc
Packaging DetailsPlywood case or customerized. Or as per the request of customers
Delivery detailsUsually within 20 days after receiving T/T down payment,special customized need negotiation.



 Product Advantages

1.Pumping and cleaning processes with one pump.

2.Low shearing to the pumped fluid, gentle handling.

3.Minimal maintenance, reduction in cleaning pumps and pipes.

4.Save space through this 2 in 1 technology.

5.Abrasion-free and safe to run dry(option).

6.Extremely favorable cost effectiveness.


.jpg

Welcome to contact us for more details

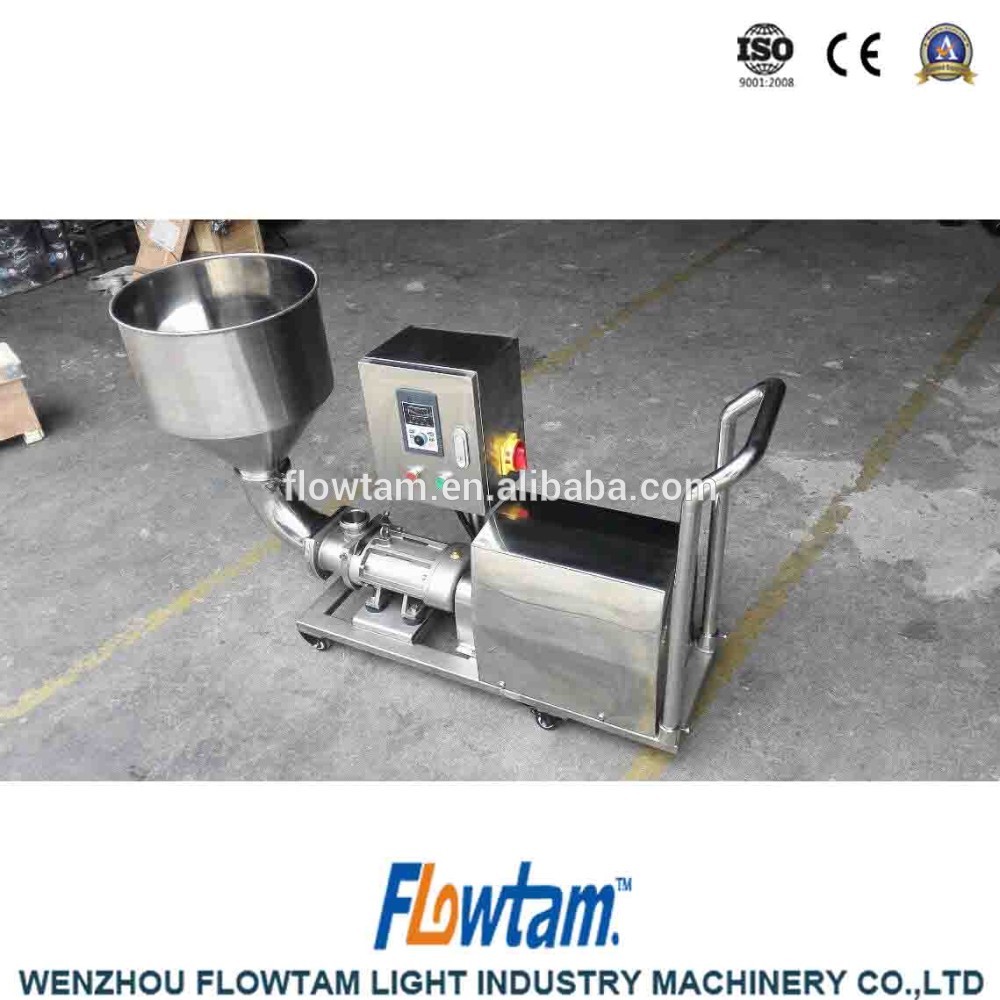

 Product Images:  Twin Screw pump

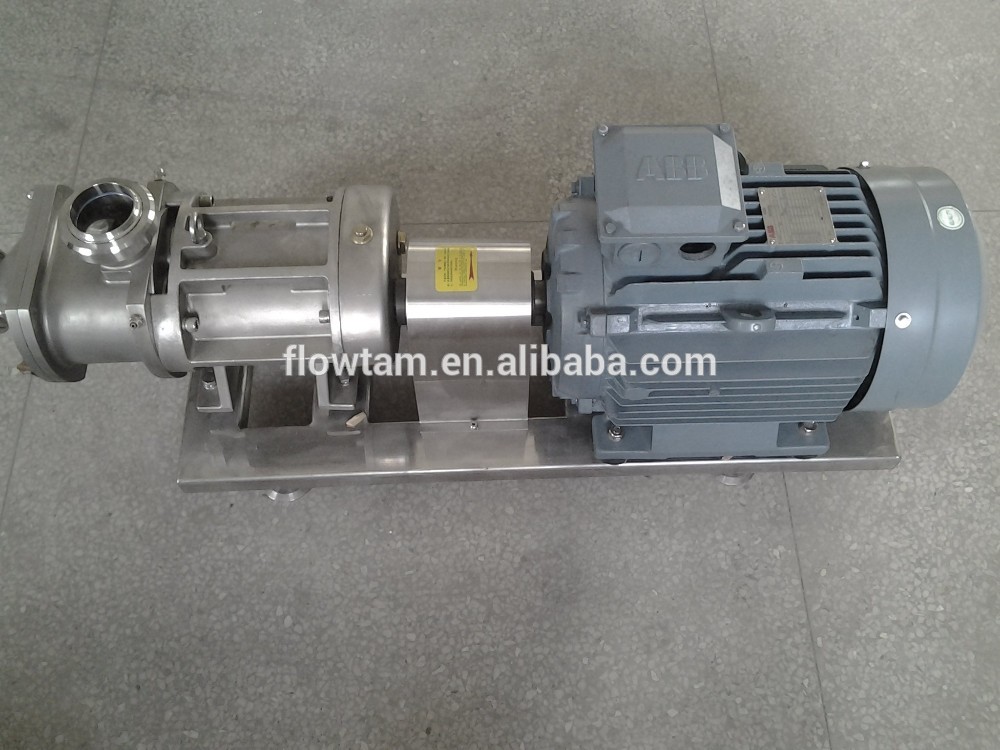

FSL20-75 (23)
Packaging & Shipping
Company Information and Pictures:
Wenzou Flowtam Light Industry Machinery Co., Ltd. established in 1995, located in Binhai Industrial Zone, Wenzhou City. Our main products including blending tank, stainless steel parts and components for all industries. Flowtam products could applied in food, beverage, pharmacy, chemical, cosmetic industries etc. We now export our goods to United States, Australia, Newzealand and Japan etc.
valveIMG_4699_
Certificata:
HTB1NhP7OFXXXXaaXpXXq6xXFXXX5.jpg_350x350HTB1c7aDJVXXXXbpXpXXq6xXFXXXX.jpg_350x350
Our Services

1. The machines' quality that we sold will be guaranteed for 1 year.

2. Provide you life-long maintenance.

3. Within 24 hours we will send service technicians to the your site.

4. Under normal circumstances, the company will be equipped with conventional spare replacement parts to meet your   requirements at any time.
