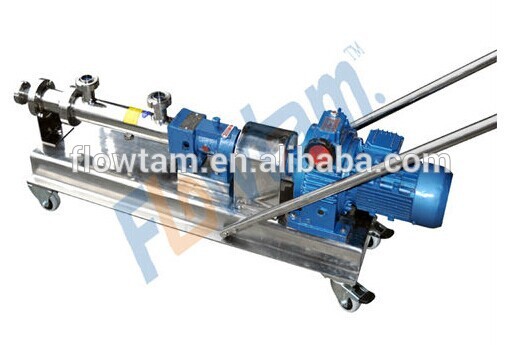

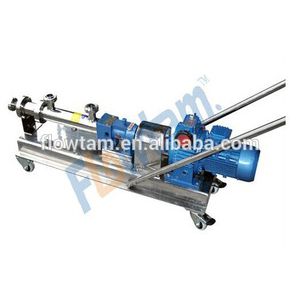

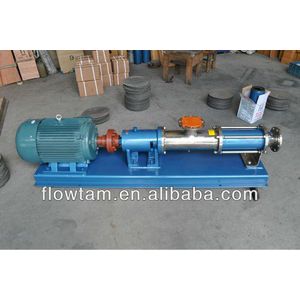

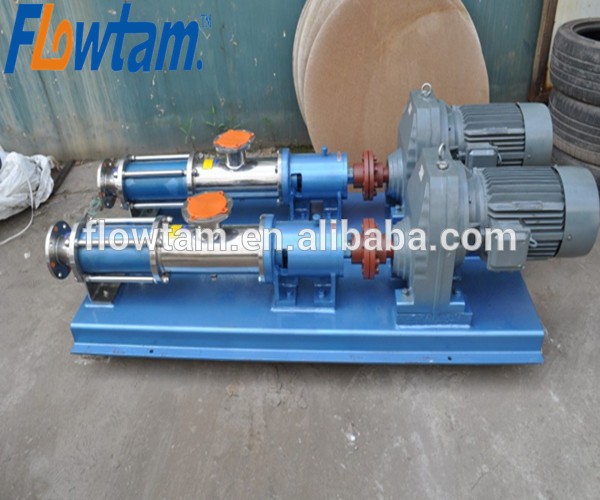

stainless steel screw pump stator rotor with hopper
stainless steel food grade pump Description
Screw pump is also called progressive cavity pump, Is widely used in delivery of high viscosity products such as chocolate, syrup and jams etc. Our screw pump is made form high purity stainless steel, And with no dead corner design, Very easy to clean, We have two type of screw pump, : Single screw pump and twin screw pump. Our new designed twin screw pump is CE approved,
| Product Name | Screw pump/single screw pump/mono screw pump/positive cavity pump |
| Description | Widely used for transfer viscous media in the food-processing,beverage,cosemtics,chemical, ink&paint and pharmaceutical etc. |
| Construction | Pump head,pump chamber,screw rotors,butyronitrile stator,coupling,motor, seat,trolley,etc. Continuous operating pipeline installation,circulation with vessel. |
| Material | SS304/SS316L/1.4301/1.4404 |
| Seal Ring | Fluorine Rubber,EPDM,PTFE,Silicone(Standard, FDA approval) |
| Mechnical Seal | SIC,Hard alloy,graphite |
| Stator | Default-butyronitrile; Customize-rubber,EPDM,fluorine rubber |
| Flow | 0.5-60 m3/h |
| Pressure | one screw 6bar, two sets screw 12bar |
| Working temperature | -20 ~180 C |
| Process | viscosity up to 3000000mpas,kinds of fluid |
| Speed | Constand speed and variable speed; 720/960/1400rpm |
| Motor power | 0.37kw- 15kw |
| Voltage | 110v/220v/240v/380v/415v/460v (50/60hz) |
| Motor | Domestic brand,ABB SIEMENTS. |
| Surface treatment | Inner polished and Sandblast outside |
| Availably connection | Clamp, Thread, Butt weld, Flange |
| Availably standard | DIN, SMS, 3A, RJT, ISO/IDF |

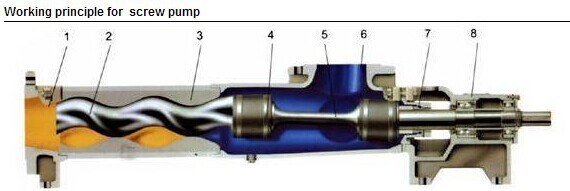

working principle for screw pump

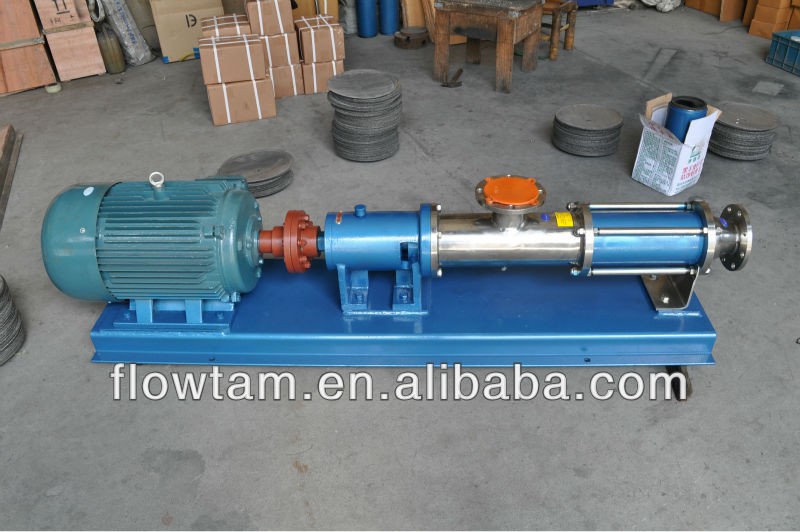

1. G series screw pump(slurry pump, mono screw pumps) are progressive cavity pumps with the merits of compact structure, stable flow, easy maintain, small pressure fluctuation and strong self-priming ability.
2. Pump has metal lined with rubber stator, which is made of various elastic material, such as NBR rubber, silicon rubber.
3. It could transfer high viscosity fluid and material with hard suspended solid/fiber as well, like lime slurry, cement mortar, thick ferment slurry and other pasty liquid.
4. Pump could be equipped with ordinary motor, gear box motor, electric magnetic speed adjustable motor, CVT motor, frequency inverter motor according to customers's requirements.
5. Widely used in construction field, chemical industry, foodstuff, petroleum industry, environmental protection, sewage treatment.
stainless steel food grade pump models
Just let us know your output(Ton/Hour), And you delivery condition~
We will recommend the right pump for you !~
Technical Parameter
| Model | Caliber | Speed(rmp) | Flow( m³/h ) | Power(kw) |
| G10-1 | 20 | 1400 | 0.5 | 0.37 |
| G15-1 | 25 | 960 | 1 | 0.55 |
| G20-1 | 32 | 960 | 1.5 | 0.75 |
| G25-1 | 32 | 960 | 2 | 1.1 |
| G30-1 | 40 | 960 | 3 | 1.5 |
| G35-1 | 50 | 960 | 5 | 2.2 |
| G40-1 | 50 | 960 | 7 | 3 |
| G40-2 | 50 | 720 | 5.5 | 2.2 |
| G45-1 | 50 | 960 | 9 | 4 |
| G45-2 | 50 | 720 | 7 | 3 |
| G50-1 | 65 | 960 | 13 | 5.5 |
| G50-2 | 65 | 720 | 10 | 4 |
| G55-1 | 65 | 960 | 18 | 7.5 |
| G55-2 | 65 | 720 | 13 | 5.5 |
| G65-1 | 80 | 720 | 30 | 11 |
| G86-1 | 100 | 720 | 60 | 15 |

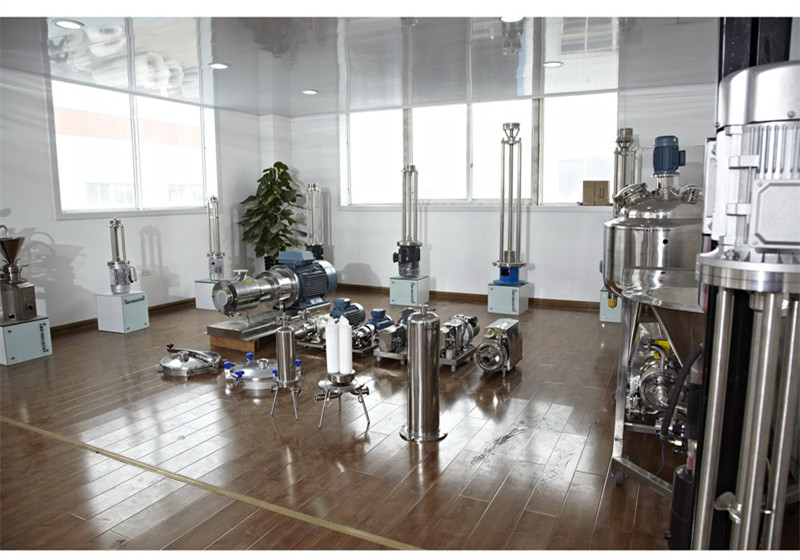

Wenzhou Flowtam Machiney CO.,LTD
is a leading China manufacturer and exporter of all kind of mixing equipment.

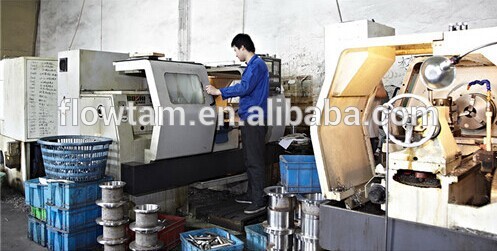

Flowtam has first class processing equipment and a number of excellent teams services mixing equipment industry for many years.
Flowtam’s employees generally have excellent technology, rich application experience,
can provide customers from equipment selection to the whole process of production services.
1. The machines' quality that we sold will be guaranteed for 1 year.
2. Provide you life-long maintenance.
3. Within 24 hours we will send service technicians to the your site.
4. Under normal circumstances, the company will be equipped with conventional spare replacement parts to meet your requirements at any time.
