The various types Sewage rotary trommel drum screen filter

are integrated machines consisting of a drum screen, screw conveyor and compactor.

Technical Feature

  • Hebei, China (Mainland)
  • UBO
  • rotary drum filter
  • Requirement
  • 0.2-6mm or customized
  • 2x4,3x5,4x8
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$0~0

PRIMARY PARAMETERS

Place of Origin
Hebei, China (Mainland)
Brand Name
UBO
Model Number
rotary drum filter
Wire parameter
Requirement
Slot Size
0.2-6mm or customized
Rod Size
2x4,3x5,4x8
Wire Size
1.5*2mm,2.2*3.5,3*5,4*6
Water Flow Rate
15-80m3/hr
Drum Speed
4-6r/min
Material
Stainless steel 304/316/316L
Application
Waste Water Treatment
HS code
8421299090
Service
OEM, Designation

DETAIL DESCRIPTION

Product Description

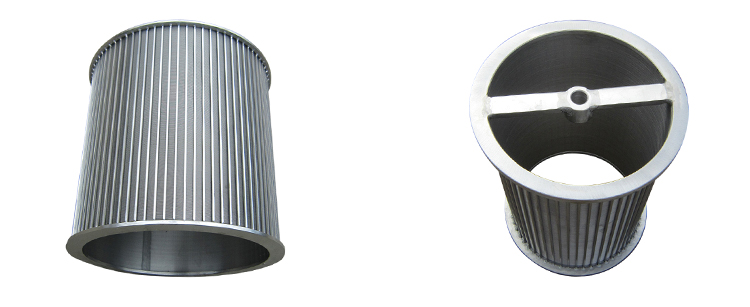

The various types Sewage rotary trommel drum screen filter


The various types Sewage rotary trommel drum screen filter are integrated machines consisting of a drum screen, screw conveyor and compactor. Effluent enters the screen drum and solids are captured. When the drum rotates the solids fall into the spiral conveyor. The spiral feeds the screenings into a compactor where they are compressed and disposed. Screen water continues downstream. The rotating screen drum ensures screen does not blind. Filtration rates of between 1 - 7 mm are available, alongside flow rates of up to 7600 m3/h.

Advantages of the various types Sewage rotary trommel drum screen filter
  • High quality and reliability at low cost
  • Protection of downstream plant and drains
  • Easily installed onto an existing or new treatment works
  • Improved Health & Safety with optional continuous bagging
  • Non-clogging even with fibrous materials
  • Reduced disposal costs because of the screenings press
  • High solids capture
  • Enclosed drum screen
Applications of the various types Sewage rotary trommel drum screen filter
  • Process liquor or fluid screening
  • Municipal waste water treatment works
  • Industrial effluent discharges
  • MBR Membrane pre-screening
  • Commercial outlet discharges
  • Storm flows
  • Sea outfall discharges
Specifications

Material

SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc

OD Range

19mm-2000mm

ID Range

13mm-1981mm

Length Range

Up to 6000 mm

Slot Range

20 micron to 3000 micron (Tolerance:+-5 micron)

Wedge Wire

0.5x1.5

0.75x1.5

1x2

1.5*2

2x3

2*4

3*5

Support Rod

1.5x2.5

2x3

1.5x2.5

2x3

1.5x2.5

2x3

1.8*2.5

2x3

2x3

2x4

3x5

3x6

3x10

4x7

2x4

3x5

3x6

3x10

4x7

5x6

3x5

3x6

3x10

4x7

5x6

5x8

End Finishing

Flange, Metal Ring, Cross Connector, closed, etc

Note

Customized According To Requirement
