Water treatment curve soanda sieve bend screen

Stainless Steel Wedge V Wire Curve Screen Panel is a screen surface for the arc to open away from wet fine screening equipment.

Technical Feature

Hebei, China (Mainland)

UBO

Stainless Steel Wedge V Wire Curve Screen Panel-170519

No overseas service provided

bright surface

SS wedge wire screen arc screen panel

Send Standard Inquiry

Add Inquiry List

$0~0

PRIMARY PARAMETERS

Place of Origin

Hebei, China (Mainland)

Brand Name

UBO

Model Number

Stainless Steel Wedge V Wire Curve Screen Panel-170519

After-sales Service Provided

No overseas service provided

Color

bright surface

Product name

SS wedge wire screen arc screen panel

Application

Food

Shape

Square Shape

Mesh count

2-635 Mesh

Other name

wedge wire sieve bend screen

Feature

Heat Resistance

Material

Stainless Steel

Name

304 wedge wire arc screen panel

Type

Pressure Filter

DETAIL DESCRIPTION

Product Description

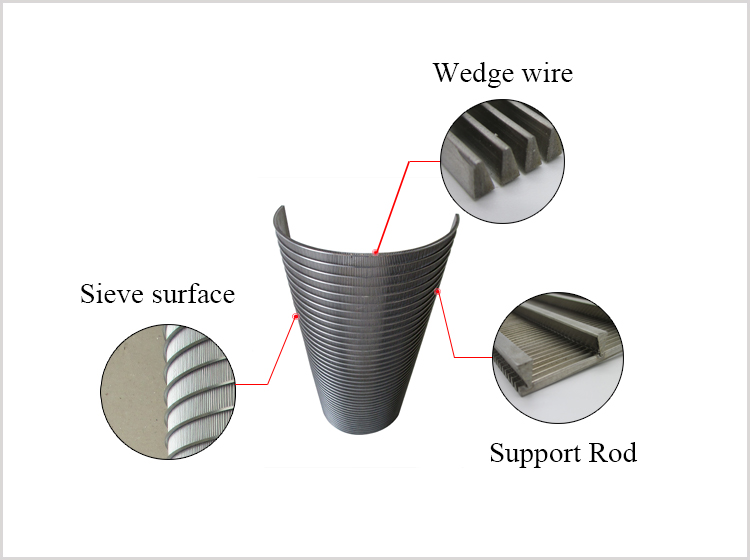

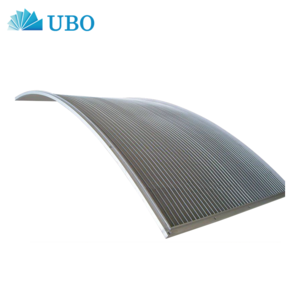

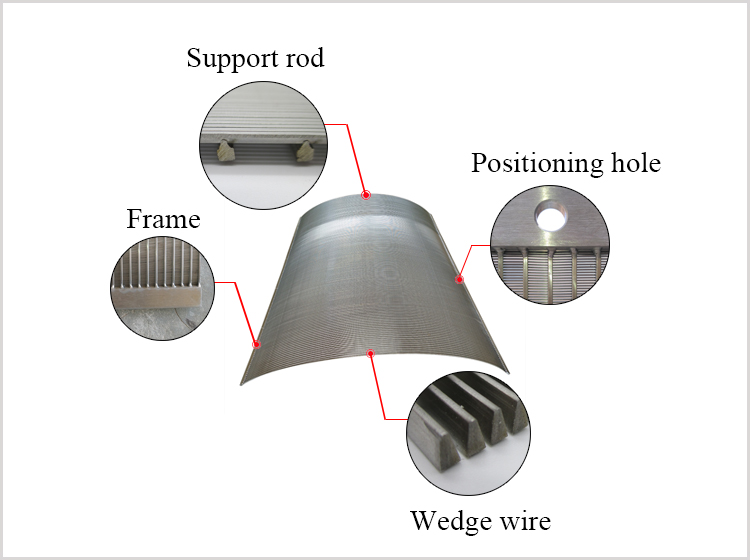

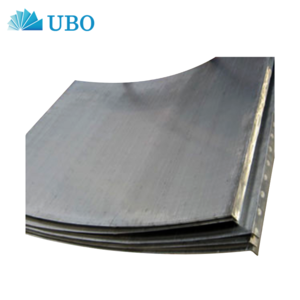

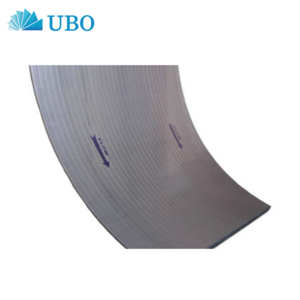

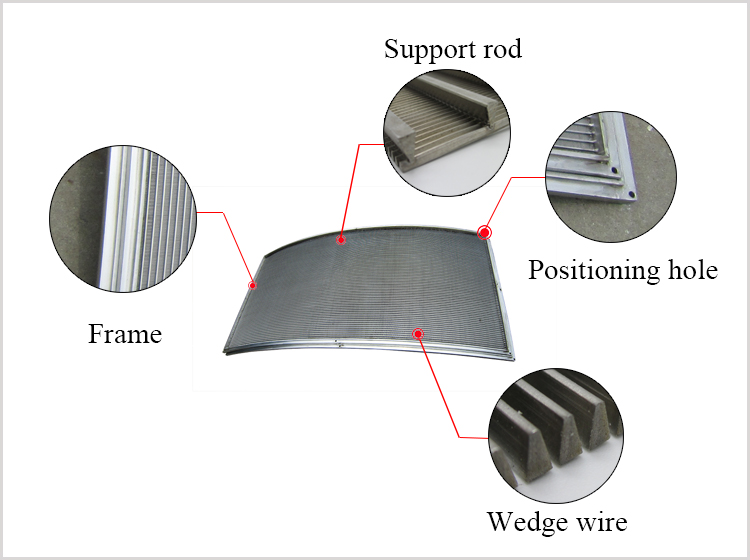

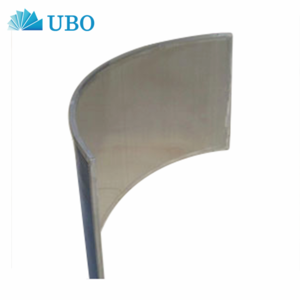

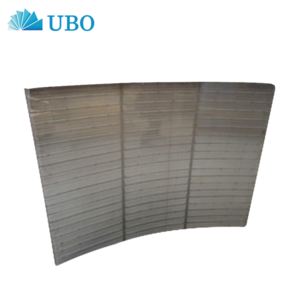

Stainless Steel Wedge V Wire Curve Screen Panel

Stainless Steel Wedge V Wire Curve Screen Panel is a screen surface for the arc to open away from wet fine screening equipment. According to the different feeding methods are divided into gravity and pressure arc curved sieve screen. Artesian curved screen is a small curvature, low pressure, low-speed feeding curved screen, thanks to a certain height difference of the feed material screening and to the mouth, along the arc tangent in the direction screen surface for gravity feed. Pressure is a sweeping curved screen, high-pressure, high-speed feeding curved screen, which is the use of sand pump nozzle into the raw material to the slurry under the action of the material at high speed along the curved screen surface tangent to the direction of the pressure feedstock.

Features

Compact construction, heat resistant, rust-resistant, good mechanism performance, long working life, wear-resistant;
Well-proportioned screen aperture, not prone to jam, increase quality and efficiency of refined powder;
Proper construction, saving time and strength during installation and replacement, i.e. reducing time for installation, examination and maintenance, decreasing labor strength.

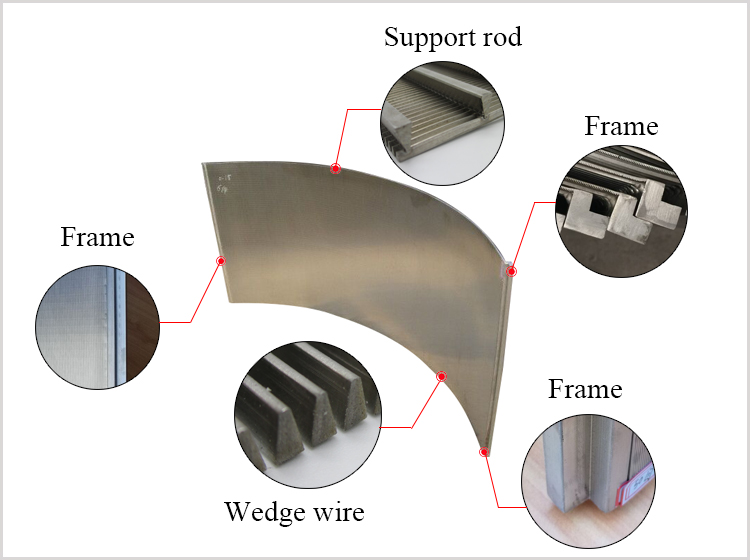

Specifications


Material	SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc
Length Range	Up to 6000mm
Width Range	Up to 6000mm
Slot Range	20 micron to 3000 micron (Tolerance:+-5 micron)
Wedge Wire	0.5x1.5	0.75x1.5	1x2	1.5x2.5	2x3	2x4	3x5
Support Rod	1.5x2.5 2x3	1.5x2.5 2x3	1.5*2.5 2x3	2x3	3*5	3x5	3x5 46 58
Angle	90°,120°,140°,150°,160° etc.
Arc height	10mm,15mm,20mm,50mm or depend on you size of screen panel.
Frame	No frame or ” L” type frame, ordinary frame, 5*10mm frame etc, according to your request.
Note	Customized according to requirement

Application

Related Products

For more products,you could also visit www.ubowedgewire.com

Packaging & Shipping

Business Card

Products From Supplier

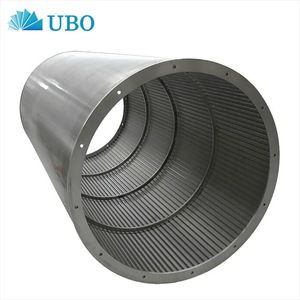

Stainless steel wedge wire screen aquaculture rotary drum vacuum filter for Koi Pond
