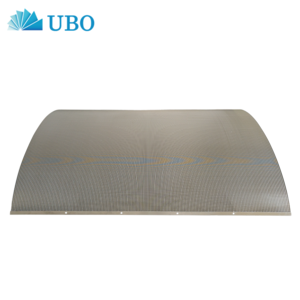

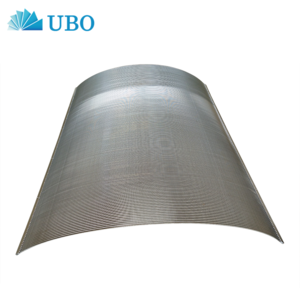

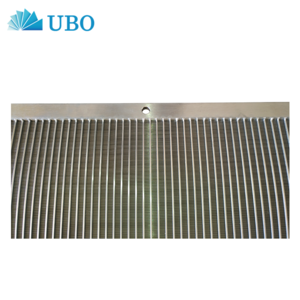

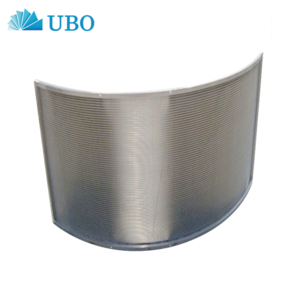

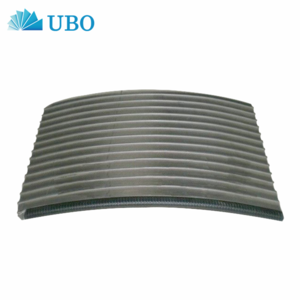

Different Slot Wedge Wire Screen For Water Treatment

Different Slot Wedge Wire Screens are made from V shaped profile wire, with an unique welding process, offering great strength, precision, long service life and a wide range of applications in the field of process, engineering such as sugar juice filtrati

Technical Feature

  • Hebei, China (Mainland)
  • UBO
  • Different Slot Wedge Wire Screen For Water Treatment-170227
  • No overseas service provided
  • bright surface
  • SS wedge wire screen arc screen panel
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$0~0

PRIMARY PARAMETERS

Place of Origin
Hebei, China (Mainland)
Brand Name
UBO
Model Number
Different Slot Wedge Wire Screen For Water Treatment-170227
After-sales Service Provided
No overseas service provided
Color
bright surface
Product name
SS wedge wire screen arc screen panel
Application
Food
Shape
Square Shape
Mesh count
2-635 Mesh
Other name
wedge wire sieve bend screen
Feature
Heat Resistance
Material
Stainless Steel
Name
304 wedge wire arc screen panel
Type
Pressure Filter

DETAIL DESCRIPTION

Product Description

Different Slot Wedge Wire Screen For Water Treatment

Different Slot Wedge Wire Screens are made from V shaped profile wire, with an unique welding process, offering great strength, precision, long service life and a wide range of applications in the field of process, engineering such as sugar juice filtration, waste water treatment, crude oil and natural gas production and vessel internals solving problems of solid / liquid and solid / gas separation, filtration of oils, greases, paints, food products, water, fuels, liquid cooling agents, chemicals etc.

Features

Compact construction, heat resistant, rust-resistant, good mechanism performance, long working life, wear-resistant;
Well-proportioned screen aperture, not prone to jam, increase quality and efficiency of refined powder;
Proper construction, saving time and strength during installation and replacement, i.e. reducing time for installation, examination and maintenance, decreasing labor strength.

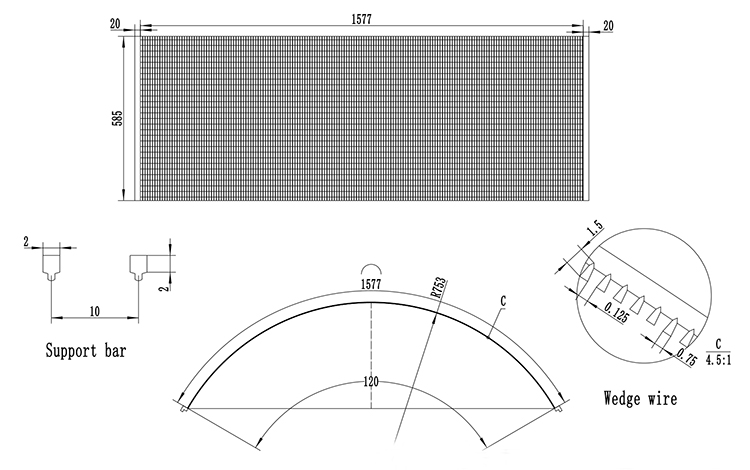

Specifications


Material

SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc

Length Range

Up to 6000mm

Width Range

Up to 6000mm

Slot Range

20 micron to 3000 micron (Tolerance:+-5 micron)

Wedge Wire

0.5x1.5

0.75x1.5

1x2

1.5x2.5

2x3

2x4

3x5

Support Rod

1.5x2.5

2x3

1.5x2.5

2x3

1.5*2.5

2x3

2x3

3*5

3x5

3x5

4*6

5*8

Angle

90°,120°,140°,150°,160° etc.

Arc height

10mm,15mm,20mm,50mm or depend on you size of screen panel.

Frame

No frame or  L type frame, ordinary frame, 5*10mm frame etc, according to your request.

Note

Customized according to requirement

Application
