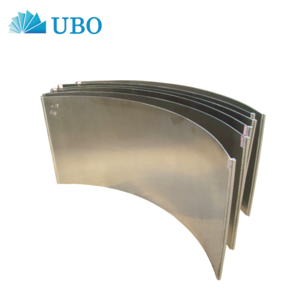

Wedge v wire parabolic curve bend screen panel for filtration

Wedge  v wire curve screen panel for filtration is a screen surface for the arc to open away from wet fine screening equipment.

Technical Feature

  • Hebei, China (Mainland)
  • UBO
  • Wedge v wire curve screen panel-170316
  • No overseas service provided
  • bright surface
  • SS wedge wire screen arc screen panel
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$0~0

PRIMARY PARAMETERS

Place of Origin
Hebei, China (Mainland)
Brand Name
UBO
Model Number
Wedge v wire curve screen panel-170316
After-sales Service Provided
No overseas service provided
Color
bright surface
Product name
SS wedge wire screen arc screen panel
Application
Food
Shape
Square Shape
Mesh count
2-635 Mesh
Other name
wedge wire sieve bend screen
Feature
Heat Resistance
Material
Stainless Steel
Name
304 wedge wire arc screen panel
Type
Pressure Filter

DETAIL DESCRIPTION

Product Description

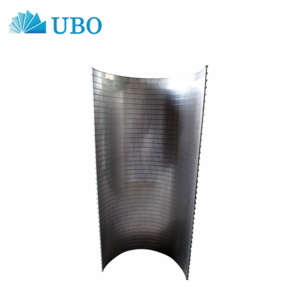

Wedge  v wire curve screen panel for filtration

   Wedge  v wire curve screen panel for filtration is a screen surface for the arc to open away from wet fine screening equipment. According to the different feeding methods are divided into gravity and pressure arc curved sieve screen. Artesian curved screen is a small curvature, low pressure, low-speed feeding curved screen, thanks to a certain height difference of the feed material screening and to the mouth, along the arc tangent in the direction screen surface for gravity feed. Pressure is a sweeping curved screen, high-pressure, high-speed feeding curved screen, which is the use of sand pump nozzle into the raw material to the slurry under the action of the material at high speed along the curved screen surface tangent to the direction of the pressure feedstock.



Features

Compact construction, heat resistant, rust-resistant, good mechanism performance, long working life, wear-resistant;
Well-proportioned screen aperture, not prone to jam, increase quality and efficiency of refined powder;
Proper construction, saving time and strength during installation and replacement, i.e. reducing time for installation, examination and maintenance, decreasing labor strength.

Specifications



Material

SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc

Length Range

Up to 6000mm

Width Range

Up to 6000mm

Slot Range

20 micron to 3000 micron (Tolerance:+-5 micron)

Wedge Wire

0.5x1.5

0.75x1.5

1x2

1.5x2.5

2x3

2x4

3x5

Support Rod

1.5x2.5

2x3

1.5x2.5

2x3

1.5*2.5

2x3

2x3

3*5

3x5

3x5

4*6

5*8

Angle

90°,120°,140°,150°,160° etc.

Arc height

10mm,15mm,20mm,50mm or depend on you size of screen panel.

Frame

No frame or ” L” type frame, ordinary frame, 5*10mm frame etc, according to your request.

Note

Customized according to requirement

Application

Related Products



For more products,you could also visit www.ubowedgewire.com



Packaging & Shipping

FAQ

 • 1.IS YOUBIOU (UBO) Factory or Trading Company?



YOUBIOU (UBO )Group has our own factory. professional on wedge wire and filters production and export for more than 10 years.



 • 2.HOW ABOUT THE MOQ?



MOQ according to different product, sometimes MOQ decided by customer.



 • 3.Cou You supply the sample?



We could offer the sample for free charge but the cost of freight is extra.



 • 4. What payment term do you accept?



T/T ,L/C at sight, Western Union, and other mainstream payment term.



 • 5. How about the delivery time?



Usually within 3-15days after receiving the deposit;



 • 6.Where is your Market?



We have been exporting to more than 120 different countries and regions all over the world.



 • 7.How About your sales service?



Market promotion support and best after sales service will be offered to every customer, and help them get more new customers and orders.
