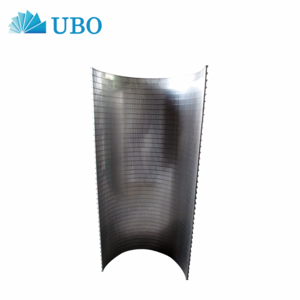

SS Wedge Wire Static Sieve Bend Screen For Water and Effluent Treatment
Features
Compact construction, heat resistant, rust-resistant, good mechanism performance, long working life, wear-resistant;
Well-proportioned screen aperture, not prone to jam, increase quality and efficiency of refined powder;
Proper construction, saving time and strength during installation and replacement, i.e. reducing time for installation, examination and maintenance, decreasing labor strength.
 | |||||||
Material | SS304, SS304L, SS316, SS316L, SS321, Duplex, Hastelloy, etc | ||||||
Length Range | Up to 6000mm | ||||||
Width Range | Up to 6000mm | ||||||
Slot Range | 20 micron to 3000 micron (Tolerance:+-5 micron) | ||||||
Wedge Wire | 0.5x1.5 | 0.75x1.5 | 1x2 | 1.5x2.5 | 2x3 | 2x4 | 3x5 |
Support Rod | 1.5x2.5 2x3 | 1.5x2.5 2x3 | 1.5*2.5 2x3 | 3*5 | 3x5 | 3x5 4*6 5*8 | |
Angle | 90°,120°,140°,150°,160° etc. | ||||||
Arc height | 10mm,15mm,20mm,50mm or depend on you size of screen panel. | ||||||
Frame | No frame or ” L” type frame, ordinary frame, 5*10mm frame etc, according to your request. | ||||||
Note | Customized according to requirement |
