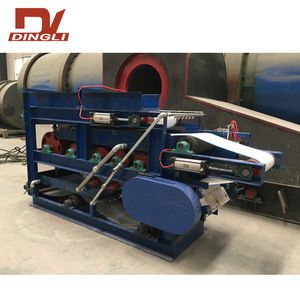

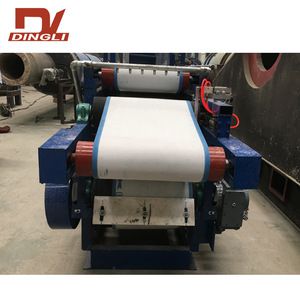

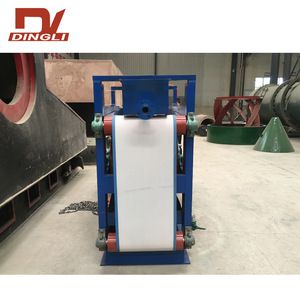

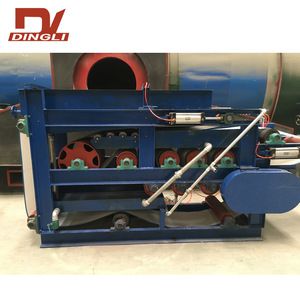

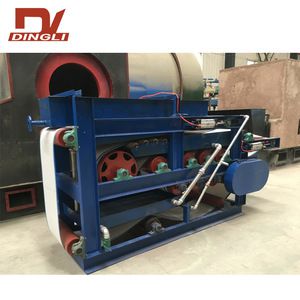

6m3/h Smallest Sludge Dewatering Machine Belt Filter Press for sale

The structure design of the belt press dehydrator has advanced the technical level of the international counterparts.

Technical Feature

  • New
  • Automatic
  • High Efficiency
  • Henan, China (Mainland)
  • Dingli
  • DLBP50
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$0~2

PRIMARY PARAMETERS

Condition
New
Automatic Grade
Automatic
Production Capacity
High Efficiency
Place of Origin
Henan, China (Mainland)
Brand Name
Dingli
Model Number
DLBP50
Voltage
380V
Power(W)
5KW
Weight
2800kg
Dimension(L*W*H)
4800*850*1500mm
Certification
CE ISO
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Name
Sludge Dewatering Machine Belt Filter Press
Description
Solid-liquid Separation Machine
Type
Belt Filter Press
Color
Customized
Material
carbon steel, stainless steel
Belt Width
500mm
Capacity
6m3/h
Raw Material
Sludge, Coco Coir, Brewer's Grain, Cassava Residue, Chicken Manure
Application
Sewage Dewatering, Food Waste Dewatering, Poultry Manure Dewatering

DETAIL DESCRIPTION

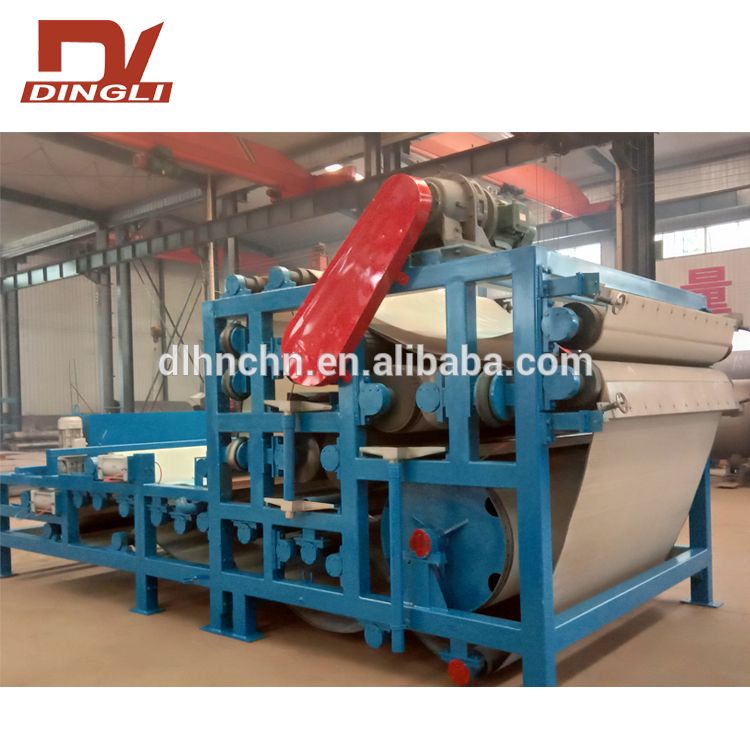

Product Description

Product Introduction

The structure design of the belt press dehydrator has advanced the technical level of the international counterparts. It effectively solves the problems of dehydration of plant wastes and slag materials, and can greatly reduce the moisture content of the materials. Especially suitable for long fiber slags, such as: cassava residue, soya residue, beer dregs, chicken manure, food waste, coco peat, palm oil residue and so on. The equipment has a high degree of automation, continuous production, large processing capacity, low moisture content of the slag cake after dehydration. Low energy consumption, low operating costs, easy operation and maintenance.

Product Application

Belt Press (press filter)Dehydrator is widely used for the dehydration of various plant wastes ,slag materials and Industrial sludge, including brewer slag, beer Residue, coco peat, palm oil residue, ceramic clay, clay, fire clay, coal slime, shrimp shells, food waste, chicken manure, beet slag,cassava residue, sweet potato residue, corn residue, bagasse, pomace, tea residue, soybean residue, household waste, coffee grounds, sludge and other materials.

Process & Principle

Working Principle

After a certain concentration of flocculant sludge concentrated in the static, dynamic mixer aftermixing the sludge tiny solid particles cemented together floc larger clumps, while separating out free water, after flocculation the sludge is fed to the filtrate concentrated gravitational dewatering belt, the free water is separated under the action of gravity, the flow state is not formed in the sludge, and then sandwiched between two upper and lower belt, after the pre-nip wedge, low Ascending area and pressing force of the high pressure zone, shear force, gradually squeeze the sludge in order to achieve the greatest degree of mud, water separation, and finally form a filter cake discharge.

Technical Parameters
Model.
DLBP50
DLBP100
DLBP150
DLBP200
DLBP250
DLBP300
Power(KW)
Main Engine
3
4
5.5
7.5
11
15
Total
5
7
10
12
18
22
Belt Width(mm)
500
1000
1500
2000
2500
3000
Capacity(m3/h)
3-6
6-11
8-16
12-23
16-28
19-33
Overall Dimension
Length(mm)
4800
5200
5600
5900
6300
6700
Width(mm)
850
1650
1900
2380
2900
3400
Height(mm)
1500
1950
2100
2150
2200
2300
Weight(KG)
2800
4500
6200
7900
9300
11000
Certifications

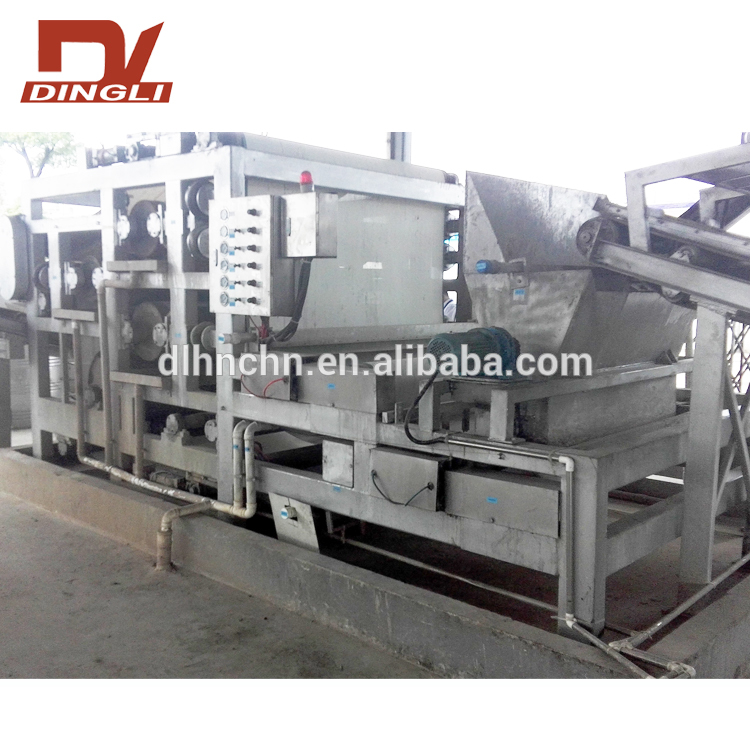

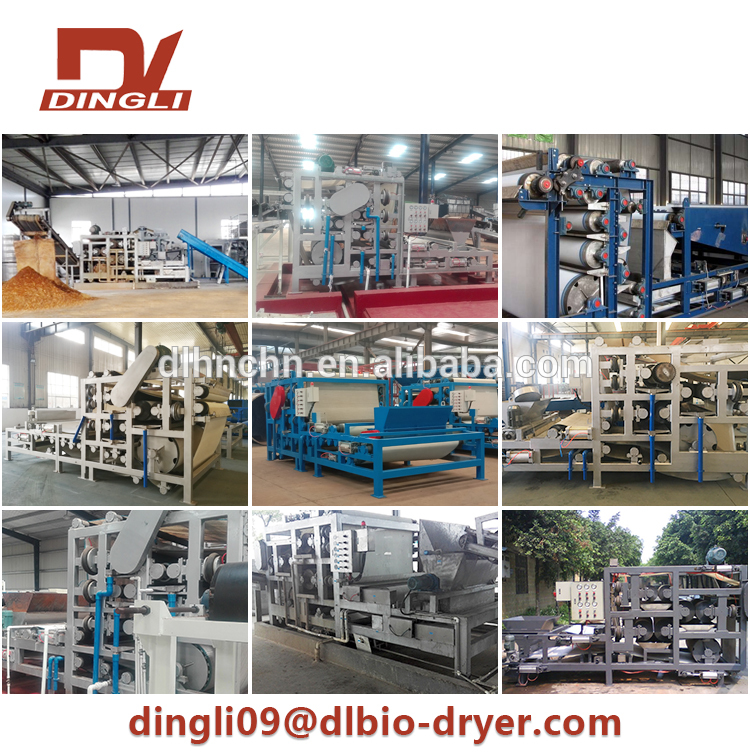

Project Cases
