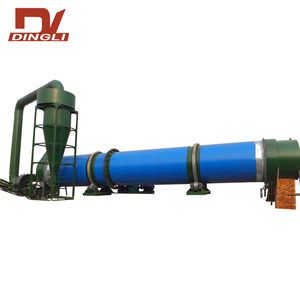

New Design Single Layer Peat Coal Roller Dryer Machine

Peat rotary dryer is special design for peat of high moisture, big viscosity, small density, low heat resistance, easy cluster and other characteristic development and market demand product.

Technical Feature

  • New
  • Rotary Drying Equipment
  • Henan, China (Mainland)
  • DINGLI
  • DLMG2818
  • 380V
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$20~30

PRIMARY PARAMETERS

Condition
New
Type
Rotary Drying Equipment
Place of Origin
Henan, China (Mainland)
Brand Name
DINGLI
Model Number
DLMG2818
Voltage
380V
Power(W)
128KW
Dimension(L*W*H)
(D)2.8*18
Weight
According to capacity customized
Certification
ISO9001
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Name
Peat Coal Roller Dryer Machine
Color
Blue or customized
Dryer Material
Steel
Early moisture (%)
25-35%
Final moisture (%)
<10%
Capacity(t/d)
1000
Drum diameter (m)
2.8
Plant Area(m2)
8*40
Raw material
Slime, Coal, Peat
Application
Solid Fuels

DETAIL DESCRIPTION

DingLi Hot Selling Products

Beer Vinasse Rotary Dryer   Coconut and Palm Dryer    Sawdust Drying Equipment  Beer Yeast Drying Machine





New Design Single Layer Peat Coal Roller Dryer Machine

Product Description

Dingli Peat Coal Roller Dryer Machine Introduction:

Product Name
Peat Coal Roller Dryer Machine
Producer
Zhengzhou Dingli New Energy Technology Co., Ltd
Model No.
DLMG2818
Voltage(V)
380
Capacity(t/d)
1000
Early Moisture (%)
25-35%
Final Moisture (%)
<10%
Total Power(KW)
210
Plant Area(m)
8m*40m
Raw Material
Slime, Coal, Peat
Application
Solid Fuels

Peat rotary dryer is special design for peat of high moisture, big viscosity, small density, low heat resistance, easy cluster and other characteristic development and market demand product. This peat drying system main included heating source, Break feed equipment,Belt feeding machine, rotary drum, discharge equipment, dust removal, belt discharging machine, induced draft fan, peat combustion , temperature control ,power operation system and system structure.

Dingli Peat Coal Roller Dryer Machine Features:

1.Peat dryer adopts patent new portfolio model, extensible ability is strong, processing capacity is big.
2. according to the the different material properties and requirements to change operation parameters, the material in the dryer cylinder body can form stable whole curtain fabric, and the heat exchange is more sufficient, uniform product moisture, high production efficiency;
3., new type Patents pulverized coal furnace thermal efficiency is 99%, less fuel consumption, low fuel consumption, low drying cost, is 3/5 of the normal rotary dryer.
4.Good material and manufacturing levels to ensure the smooth cylinder operation, resistance to overload ability, high reliability;
5.Modular design and manufacturing, high mechanization degree, convenient installation, simple operation, maintenance is convenient
6.Along the shell axial, different drying period set different copy board and broken beat clear structure, this design achieve good dry wall sticking to solve at the same time, it also can control the product granularity after being drying ,and prevent the product particle size is too large, or carefully, to ensure product quality.
7.Cylinder speed can be adjusted through the counter rotating cylinder speed adjustment and the adjustment of the dryer inlet air temperature, this dryer machine also can adapt to different forms of moisture into the feeding material properties and meet different product requirements.
8.This peat rotary dryer adopt the self-aligning roller structure and drag reduction technology, this design can reduce the wear and power consumption. This peat dryer also adopts special gear wheel structure, it can reduce the horizontal thrust equipment tilt work, effectively ensuring the service life of the dryer.

Process & Principle

Below is Peat Coal Roller Dryer Machine Drying Process:



Below is Peat Coal Roller Dryer Machine Working Priciple:

1.moisture content 35-60% peat by scattered feeder evenly into the dryer, in the process of drying, peat will pass six work space: one is the feed zone,wet peat into this area with low temperature hot air quickly evaporate moisture, the material in big Angle of copy board copy, In front of the binder will import to next work space.
2.Second is repeatedly broken beat and cleaning area, equipment design in this area have broken beat cleaning device, wet peat grabbed by grating copy board broken beat, large wet slurry after repeated broken beat, broken knead into a 20-30 mm small particles of carbon, forming curtain material status, increase the heat exchange area, improve the drying rate, cleaning device reasonably clean wall adhesion of peat, prevent peat adhesive.
3.Three is the main drying area, through two area processing wet peat has a granular loose state of the material, in this area will be raising by inclined feed plate , material will form a uniform state of material desire, and full contact with hot air to heat exchange, strong precipitation.
4.Four is pounding broken drying area, in this area peat after repeated pounding broken in this area, peat particles from 20-- 30 mm broken for 3-15mm size (as customer request), further reducing moisture content.
5.Five is strengthening drying region, through the broken small peat particles from the copy board raised area is densely populated, fully absorb hot heat, discharging water, achieved water standard, ready to discharge;
6.Six is discharging area, in order to prevent discharging dust, do not set copy plate roller in this region, the slide material rolling to the discharge port to complete the whole drying process. Peat moisture content is 10-15%, 3-15 mm granular coal or organic fertilizer.

Specifications

We can help optimize the drying process according to the property of different materials, production scale, application requirements, cost control, automation level and site condition.

Other Peat Coal Roller Dryer Machine specification:

Model
Capacity(t/d)
Early Moisture(%)
Final Moisture(%)
Total power(KW)
Area(m2)
DLMG1615
200
25-35
<10
85
7*25
DLMG1916
300
25-35
<10
109
7*25
DLMG2218
500
25-35
<10
128
8*30
DLMG2518
700
25-35
<10
143
8*30
DLMG2818
1000
25-35
<10
210
8*40
DLMG3422
1500
25-35
<10
320
10*45
DLMG4032
2000
25-35
<10
460
12*60
Except above models, we also can supply special model according to your requirements.
Our Services

Below is Dingli Group Packaging & Shipping:

Your device will be packed well in container and suit for long ocean shipping.

Below is Dingli Group service items:

Pre-sale
1. According to your needs, select right model for you;
2. According to your special requirements, design customized solution and manufacture customized products for you.
3. Welcome your visit.
Sale
1. Sign contract, pay deposit, we arrange production.
2. Product acceptance.
3. Help you formulate construction scheme.
After-sale
1. Assign engineer service for you on-site freely.
2. Install and adjust device, train how to operate.
3. After installation, leaving 1-2 technical staff to help you on-site production, untill achieve customer satisfaction.

Company Information

DingLi Group advantage:

1. Over 200 employees, 98% professional technical personnel;
2. Factory size over 3,000 square meters;
3. 305 Inventions & Patents
4. Exported over 30 countries,300 global partners;
5. Rank 3rd in China Drying Industry;
6. Customize Drying Production Line.

Below are DingLi Dryer Factory & Production Line & Sales Team Pictures:



Below are Dingli Group Honors & Certificates & Patents:

Buyer & Project Case

Dingli Dryer Production Line has exported to over 30 countries with 300 foreign partners, such as Germany, Britain, United States, Italy, Israel, Chile, Thailand, Russia, Vietnam, India, Cambodia, Indonesia, Malaysia, Thailand etc.

Below are DingLi Customers Visiting:

After reach deals, Dingli Engineer will fly to your address, install and adjust machine for you freely.
Also train you operation skills, until you are satisfied.

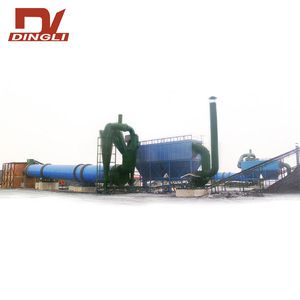

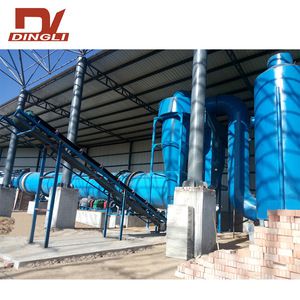

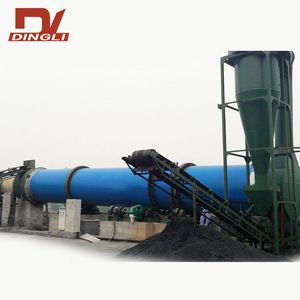

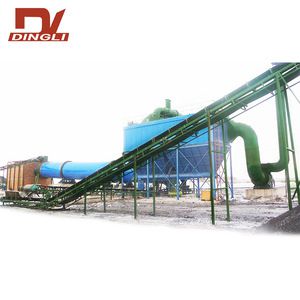

Below are installation sites of our customers:
