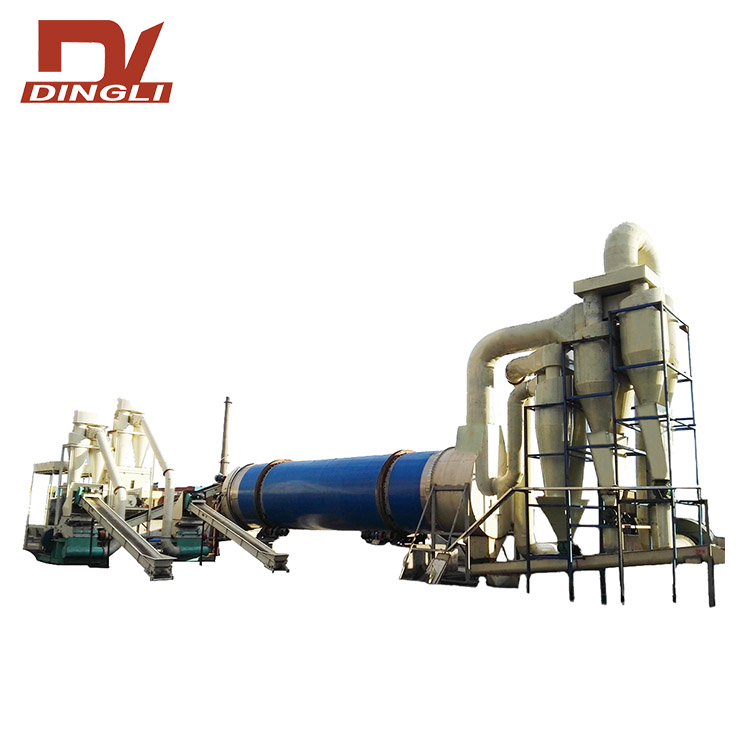

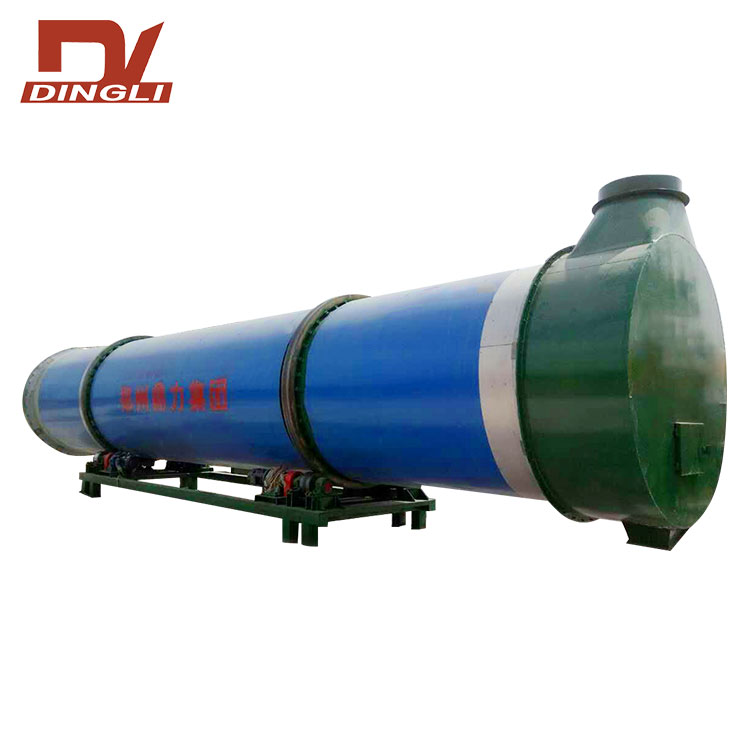

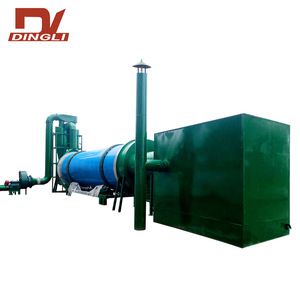

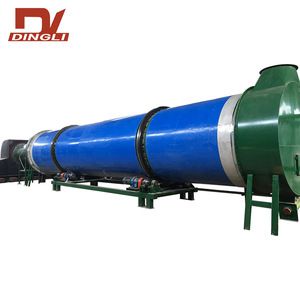

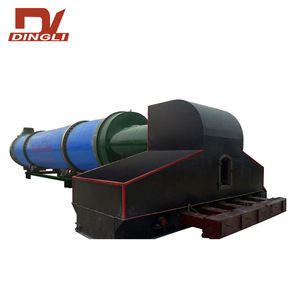

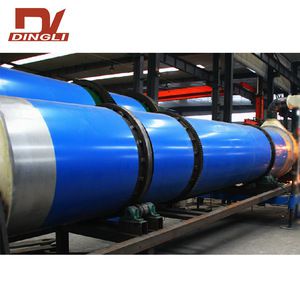

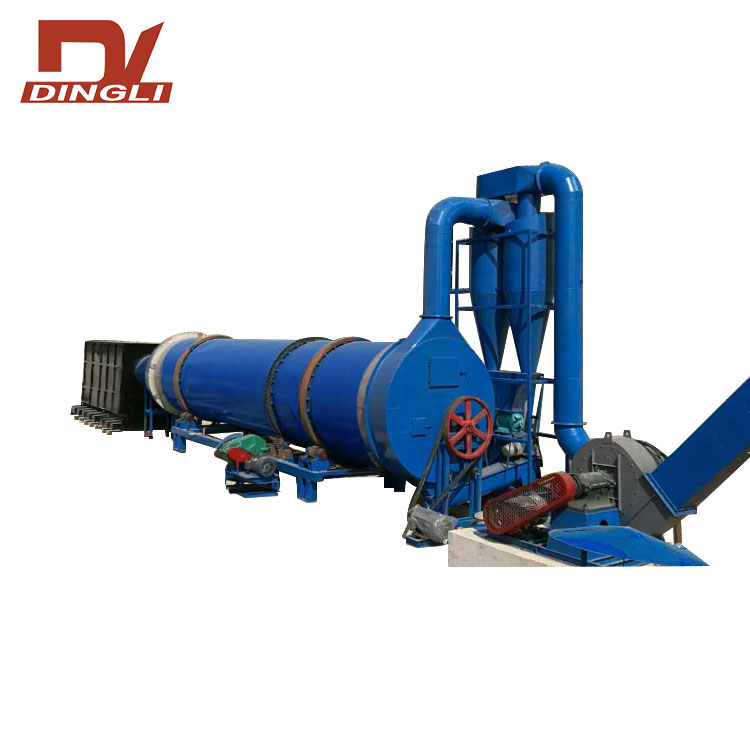

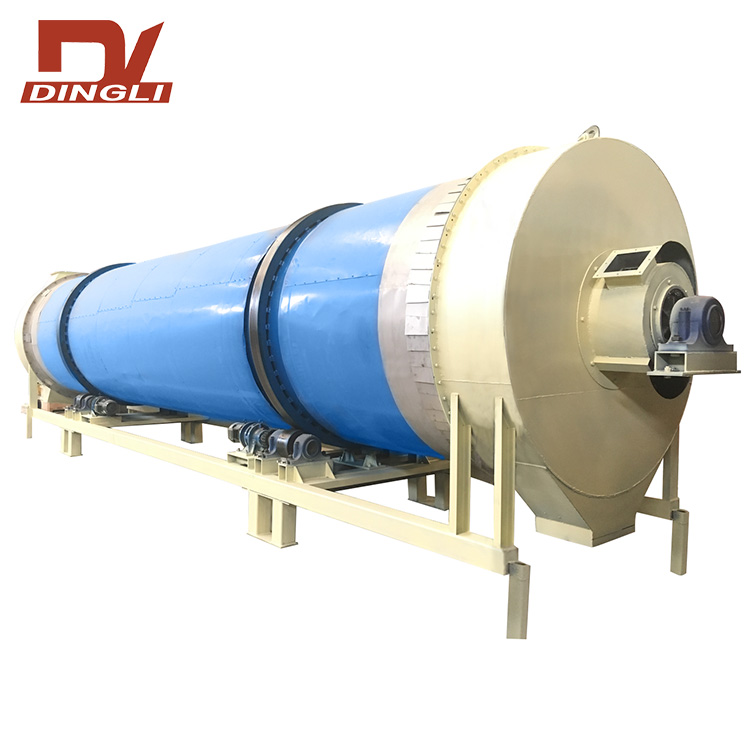

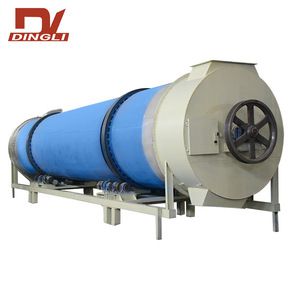

Hot Selling Low Input High Return Beer Waste Triple Pass Rotary Drum Dryer

Brewer Grains are major by-products in the beer production.

Technical Feature

  • New
  • Rotary Drying Equipment
  • Henan, China (Mainland)
  • DINGLI
  • 380V
  • 78KW
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$20~30

PRIMARY PARAMETERS

Condition
New
Type
Rotary Drying Equipment
Place of Origin
Henan, China (Mainland)
Brand Name
DINGLI
Voltage
380V
Power(W)
78KW
Dimension(L*W*H)
Customized
Weight
40T
Certification
CE ISO
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Product Name
Beer Waste Triple Pass Rotary Drum Dryer
Material
Steel
Input Capacity(t/h)
2.89
Output Capacity(t/h)
1.36
Early Moisture(%)
60u00b15%
Final Moisture(%)
15% (adjustable)
Drying Temperature (u2103)
350u00b130u2103
Raw Material
Coir Pith, Beet Residue, Coffee Grounds, Fresh Grass, Brewer's Grain
Application
Biomass Fuels, Animal Feeds
Model Number
DLSG2008/3

DETAIL DESCRIPTION

Product Description

Brewer Grains are major by-products in the beer production. However, high moisture(80-85%)brings a lot of problems on utilization and transportation. Today the best way to solve this problem is to dehydrate Brewer Grains and transfer them into composite feed, which could be effectively absorbed. Besides the nutrient in Brewer's Grains will not loss in the process of dehydration and drying.

Dingli Beer Waste Triple Pass Rotary Drum Dryer Introduction:

Product Name
Beer Waste Triple Pass Rotary Drum Dryer
Producer
Zhengzhou Dingli New Energy Technology Co., Ltd
Model No.
DLSG2008/3
Input Capacity(t/h)
2.89
Output Capacity(t/h)
1.36
Vaporization (t/h)
1.53
Early Moisture (%)
60±5%
Final Moisture (%)
15% (adjustable)
Temperature (℃)
350±30℃
Total Power(KW)
78
Total Weight(T)
40
Plant Area(m)
8m*16m
Matching Products
heat source, heat exchangers, feeding machine , rotary drum , discharging machine , circulating fan, residue cleaning systems , and power distribution cabinets.
Raw Material
Coffee Grounds, Coconut Peat, Coconut Coir, Coconut Pith, Coconut Chaff, Coir Pith, Brewer Grain, Beer Spent Grain, Beet Residue, Wet Grass, Elephant Grass, Alfalfa, Fresh Pasture, Fresh Forage, Bagasse, Sugar Cane
Application
biomass fuel, animal feeds

Dingli Beer Waste Triple Pass Rotary Drum Dryer Features:

1) PLC smart control & high automaticity. The performance of rotary dryer and moisture content of dry materials is automatically controlled in stable states.
2) High heat efficiency. The design of multiple circumferential flights combination and flow rate adjustment devices ensure the control of drying period and temperature distribution. The effect of insulation is as high as 70% and raise the heat efficiency by 20%.
3) Four wheel drive, more steady and stable.
4) Save 50% space compared with traditional dryers and reduce 50% civil investment.
5) Convenient variable frequency control systems. Customer could change the material flow rate and product moisture based on their need.
6) Environmental and safe. Modular configuration of dust collection and purification systems
7) More choice for novel air furnace with high efficiency, convenient manipulation and energy control, which could reduce 30% energy cost and 20% electric cost.

Process & Principle

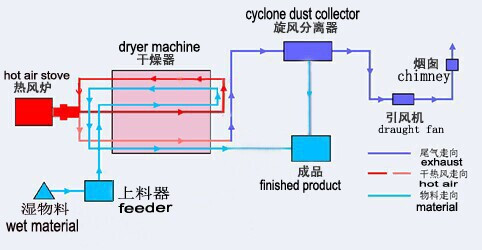

Below is Beer Waste Triple Pass Rotary Drum Dryer Drying Process:

Below is Beer Waste Triple Pass Rotary Drum Dryer Working Principle:

Specifications

Other Related Beer Waste Triple Pass Rotary Drum Dryer Specification:

We can help optimize the drying process according to the property of different materials, production scale, application requirements, cost control, automation level and site condition.

Model(DLSG)

1409

1615

2008/3

2010/3

2210/3

2510/3

2512/3

2912/3

Input Capacity(t/h)

0.85

1.60

2.89

3.68

4.02

4.95

5.84

6.75

Output Capacity(t/h)

0.40

0.75

1.36

1.73

1.89

2.33

2.75

3.18

Vaporization(t/h)

0.45

0.85

1.53

1.95

2.13

2.62

3.09

3.57

Early Moisture(%)

60±5%

Final Moisture(%)

15%(adjustable)

Drying Temperature(°C)

350±30℃

Total Power(KW)

34

45

78

90

105

125

140

155

Total Weight(T)

22

28

40

45

50

60

68

76

Plant Area(M)

5*15

6*22

8*16

8*18

8*20

10*20

10*24

10*24

Except above models, we also can supply special model according to your requirements.

Our Service

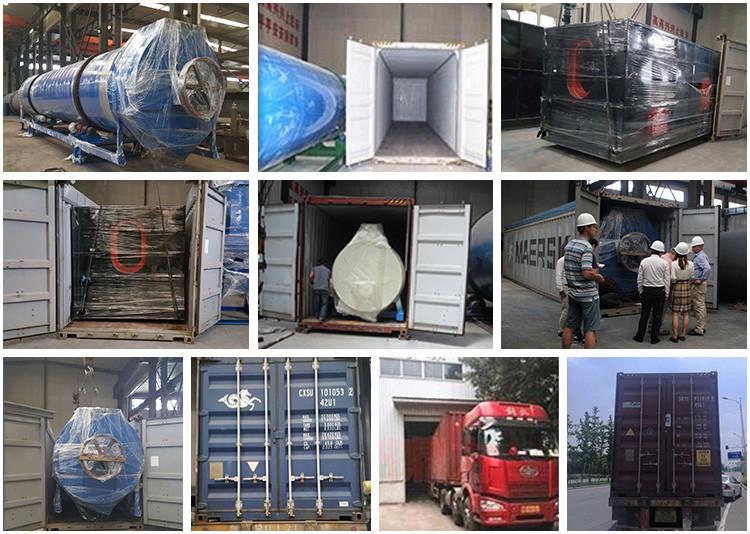

Below is Dingli Group Packaging & Shipping:

Your device will be packed well in container and suit for long ocean shipping.

Below is Dingli Group Service Items:

Pre-sale
1. According to your needs, select right model for you.
2. According to your special requirements, design customized solution and manufacture customized products for you.
3. Welcome your visit.
Sale
1. Sign contract, pay deposit, we arrange production.
2. Product acceptance.
3. Help you formulate construction scheme.
After-sale
1. Assign engineer service for you on-site freely.
2. Install and adjust device, train how to operate.
3. After installation, leaving 1-2 technical staff to help you on-site production, until achieve customer satisfaction.

Company Information
DingLi Main Products

Biomass Rotary Dryer

Coconut Fiber Coir Rotary Dryer

Biomass Carbonization Stove

Brewer Yeast Drum Dryer

Organic Fertilizer Production Line

Biomass Wood Pellet Production Line

DingLi Group Advantage:

1. Over 200 employees, 98% professional technical personnel;
2. Factory size over 3,000 square meters;
3. 305 Inventions & Patents
4. Exported over 80 countries,300 global partners;
5. Rank 3rd in China Drying Industry;
6. Customize Drying Production Line.

Below are DingLi Dryer Factory & Sales Team & Production Line Pictures:

Below are Dingli Group Honors & Certificates & Patents:

Buyer & Project Case

Below are DingLi Customers Visiting:

Dingli Dryer Production Line has exported to over 80 countries with 300 foreign partners, such as Germany, Britain, United States, Italy, Israel, Chile, Thailand, Russia, Vietnam, India, Cambodia, Indonesia, Malaysia, Thailand etc.

Below are Installation Sites of Our Customers:

After reach deals, Dingli Engineer will fly to your address, install and adjust machine for you freely.
Also train you operation skills, until you are satisfied.

FAQ

Q: What is your Business Model? Trading company or factory?

A:We are a 15 years factory, all our machinery are manufactured by ourselves, factory direct sales, product quality and after-sales service can be guarantee.

Q: Can I visit your factory?

A: Yes. Many domestic and international customers visit our factory every year. Our company is located in Zhengzhou Henan province, China, you can come here by air or train.
The nearest airport is Zhengzhou Xinzheng International Airport, and the Airport Code is CGO.
We will pick you up at airport. Welcome to visit our factory.

Q: What is the Quality of your products?

A: Dingli Group products come with best quality, and our products passed CE certification, exported to lots countries around the word, such as Australia, Malaysia, India, Italy ,Indonesia, Vietnam, Philippines, Korea, Brazil, Argentina, Russia, South Africa, etc. You can rest assured with the quality absolutely.

Q: What is the Installation of your products?

A: Dingli Group has several experienced technicians with passports ready to go for installation, when installation service is needed, the client should pay for technicians’ round way air tickets, food and lodging, most importantly to guarantee the technician's safety.

Q: How long is the Warranty of your equipment?

A: Our warranty period is one year generally.

Q: What should I provide to get the suitable quotation?

A: 1.What is the raw material for the production line?
2. What is the capacity per hour you required?
3. What is the maximum input size of the raw material?
4. What is the output size and application for the final product?
You can send inquiries from this page.Once we get your answers,we can provide you the best quotation immediately.
Remarks: The price will depend on different models.

Contact DINGLI Group

In order to introduce the most suitable machine for you, kindly inform below information in your inquiry.
1. Raw materials
2. Original moisture and final moisture
3. Input capacity, Output capacity
4. Heat source
Contact for More Details
