Intelligent Control Beans Stalk Roller Drum Dryer With Good Evaluation

bamboo shavings, wood shavings, barley straw, oat straw, wheat straw, rye, straw, rice straw, sorghum straw, corn stalks, stem drying potato vines, beans, peanut vine.

Technical Feature

  • New
  • Rotary Drying Equipment
  • Henan, China (Mainland)
  • DINGLI
  • DLSG2008/3
  • 380V
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$20~30

PRIMARY PARAMETERS

Condition
New
Type
Rotary Drying Equipment
Place of Origin
Henan, China (Mainland)
Brand Name
DINGLI
Model Number
DLSG2008/3
Voltage
380V
Power(W)
78KW
Dimension(L*W*H)
Customized
Weight
40T
Certification
ISO9001
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Name
Beans Stalk Roller Drum Dryer
Dryer Material
Steel
Color
Blue or customized
Raw Material
wood chips, sawdust, bamboo,wheat straw, rice straw,corn stalks
Early moisture(%)
40u00b15
Final moisture(%)
15% (adjustable)
Input Capacity (t/h)
5.20
Vaporization (t/h)
1.53
Drying Temperature (u2103)
280u00b130u2103
Usage
Biomass Fuels

DETAIL DESCRIPTION

DingLi Hot Selling Products

Beer Vinasse Rotary Dryer   Coconut and Palm Dryer    Sawdust Drying Equipment  Beer Yeast Drying Machine





Intelligent Control Beans Stalk Roller Drum Dryer With Good Evaluation



Product Description

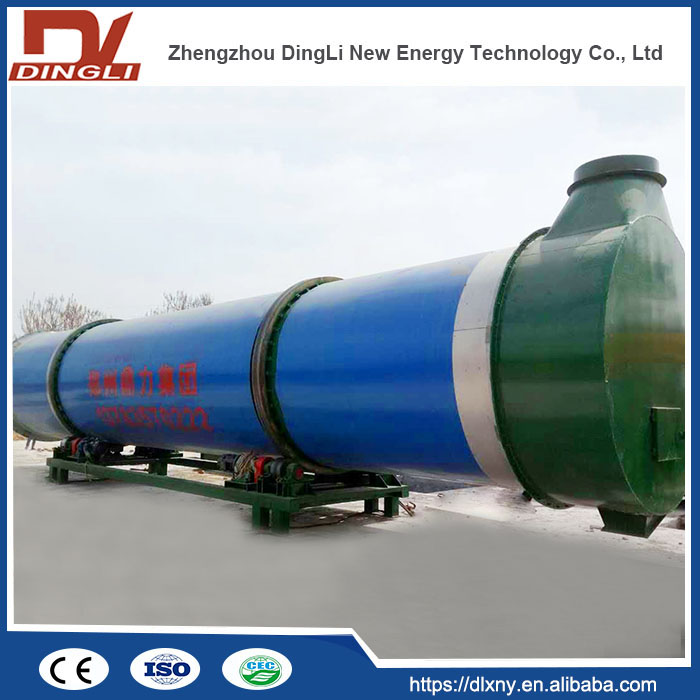

Dingli Beans Stalk Roller Drum Dryer Introduction:

Product NameBeans Stalk Roller Drum Dryer
ProducerZhengzhou Dingli New Energy Technology Co., Ltd
Model No.DLSG2008/3
TypeThree-layer
Patent numberZL200920089749.2
Voltage(v)380
Installation Power(kw)78
Input Capacity(t/h)5.20
Output Capacity(t/h)3.67
Vaporization (t/h)1.53
Early moisture (%)40±5%
Final moisture (%)

15% (adjustable)

Temperature (℃)280±30℃
Raw Materialwood chips, sawdust, bamboo shavings, wood shavings, barley straw, oat straw, wheat straw, rye, straw, rice straw, sorghum straw, corn stalks, stem drying potato vines, beans, peanut vine.
Usagebiomass fuel
Weight(t)40
Plant area(m)8m*16m
Matching Productsheat source, heat exchangers, feeding machine , rotary drum , discharging machine , circulating fan, residue cleaning systems , and power distribution cabinets.

Dingli Beans Stalk Roller Drum Dryer Features:

1)PLC smart control & high automaticity. The performance of rotary dryer and moisture content of dry materials is automatically controlled in stable states.
2)High heat efficiency. The design of multiple circumferential flights combination and flow rate adjustment devices ensure the control of drying period and temperature distribution. The effect of insulation is as high as 70% and raise the heat efficiency by 20%.
3)Four wheel drive, more steady and stable.
4)Save 50% space compared with traditional dryers and reduce 50% civil investment.
5) Convenient variable frequency control systems. Customer could change the material flow rate and product moisture based on their need.
6)Environmental and safe. Modular configuration of dust collection and purification systems
7)More choice for novel air furnace with high efficiency, convenient manipulation and energy control, which could reduce 30% energy cost and 20% electric cost.

Process & Principle

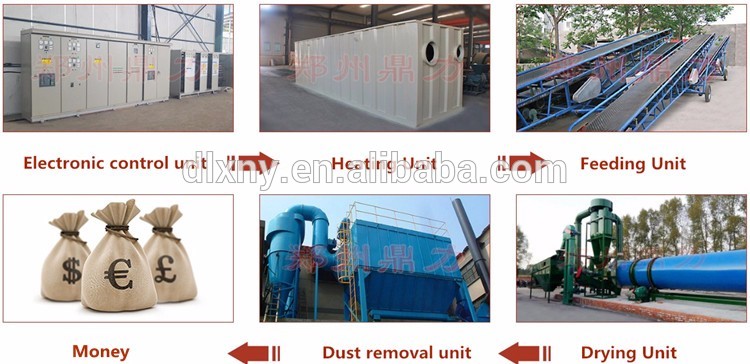

Below is Beans Stalk Roller Drum Dryer drying process:

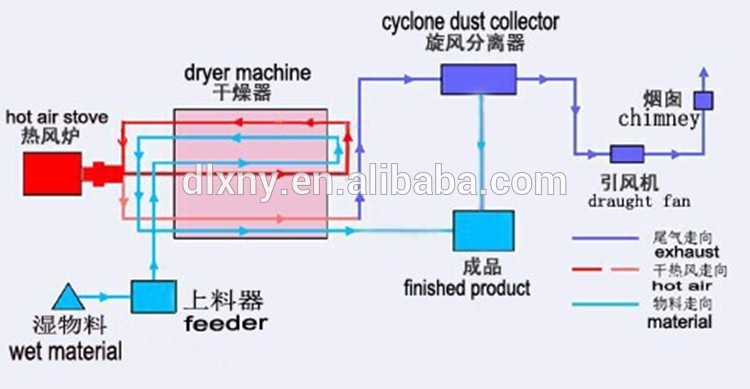

Below is Beans Stalk Roller Drum Dryer working priciple:

Specifications

We can help optimize the drying process according to the property of different materials, production scale, application requirements, cost control, automation level and site condition.

Other related Beans Stalk Roller Drum Dryer specification:

ModelDLSG1409DLSG1615DLSG2008/3DLSG2010/3DLSG2210/3DLSG2510/3DLSG2512/3DLSG2912/3

Input

Capacity (t/h)

1.532.895.206.637.248.9110.5012.14

Output

Capacity (t/h)

1.082.033.674.68 5.116.29 7.418.57
Vaporization(t/h)0.450.851.531.952.132.623.093.57
Early moisture(%)40±5%
Final moisture(%)15%(adjustable)
Drying temperature 280±30
Total power(kw)34457890105125140155
Total weight(t)222840 4550606876
Plant area(m)5m*15m6m*22m8m*16m 8m*18m8m*20m10m*20m10m*24m10m*24m
Except above models, we also can supply special model according to your requirements.
Our Services

Below is Dingli Group Packaging & Shipping:

Your device will be packed well in container and suit for long ocean shipping.

Below is Dingli Group service items:





Company Information

DingLi Group advantage:

1. Over 200 employees, 98% professional technical personnel;
2. Factory size over 3,000 square meters;
3. 305 Inventions & Patents
4. Exported over 30 countries,300 global partners;
5. Rank 3rd in China Drying Industry;
6. Customize Drying Production Line.

Below are DingLi Dryer Factory & Production Line & Sales Team Pictures:



Below are Dingli Group Honors & Certificates & Patents:



Buyer & Project Case

Dingli Dryer Production Line has exported to over 30 countries with 300 foreign partners, such as Germany, Britain, United States, Italy, Israel, Chile, Thailand, Russia, Vietnam, India, Cambodia, Indonesia, Malaysia, Thailand etc.

Below are DingLi Customers Visiting:



After reach deals, Dingli Engineer will fly to your address, install and adjust machine for you freely.
Also train you operation skills, until you are satisfied.
Below are installation sites of our customers:

FAQ




Contact DINGLI Group

Offer OEM Service

In order to introduce the most suitable machine for you, kindly inform below information in your inquiry.
1. Raw materials
2. Original moisture and final moisture
3. Input capactiry, Output capacity
4. Need crush or not
5. Direct granulating, or drying after granulating

6. Heat source

Contact for more details
Email/skype: dingli04(@)dlbio-dryer.com

Kindly Note:

Dingli brand is registered by us in drying industry.

We are the ONLY real legal DINGLI DRYER manufacturer. All the others are fake!!!
