Automatic Control Potato Starch Pulp Drying Plant with High Quality

The equipment used by the company's "mechanical dehydration + drum drying + pulse air drying " special chinese patent technology, an effective solution to the traditional dryer which can not dry cassava, potato residue problems, drying material with perfe

Technical Feature

  • New
  • Rotary Drying Equipment
  • Henan, China (Mainland)
  • DINGLI
  • DLZG1610
  • 380V
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$20~30

PRIMARY PARAMETERS

Condition
New
Type
Rotary Drying Equipment
Place of Origin
Henan, China (Mainland)
Brand Name
DINGLI
Model Number
DLZG1610
Voltage
380V
Power(W)
95KW
Dimension(L*W*H)
Customized
Weight
28.5T
Certification
ISO9001
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Name
Potato Starch Pulp Drying Plant
Dryer Material
Steel
Color
Blue or customized
Early moisture(%)
80u00b15%
Final moisture(%)
12% (adjustable)
Input Capacity(t/d)
75.8
Output Capacity(t/d)
44.6
Water Evaporation(t/h)
1.30
Raw material
Cassava Pulp, Potato Slag, Sweet Potato Dregs ,Starch Residue
For
75%-85% high-moisture materials

DETAIL DESCRIPTION

DingLi Hot Selling Products

Beer Vinasse Rotary Dryer   Coconut and Palm Dryer    Sawdust Drying Equipment  Beer Yeast Drying Machine





Automatic Control Potato Starch Pulp Drying Plant with High Quality



Product Description
Dingli Potato Starch Pulp Drying Plant Introduction:
Product NamePotato Starch Pulp Drying Plant
ProducerZhengzhou Dingli New Energy Technology Co., Ltd
Model No.DLZG1610
TypeThree layer heat transfer
Voltage(v)380
Total Installed power(kw)95
Input capacity(t/d)75.8
Output capacity(t/d)44.6
Vaporization(t/h)1.30
Early moisture(%) 80±5% (Mechanical dehydration to around 68%, and then dried)
Final moisture(%) 12%(adjustable)
Drying temperature(℃) 350-450℃
Suitable materialsCassava Pulp, Potato Slag, Sweet Potato Dregs ,Starch Residue
Applicationhigh moisture materials that MC is higher than 50%, and viscosity is relatively low
For75%-85% high-moisture materials
Weight(ton)28.5t
Plant area(m)6m*22m
Advantages compared with common dryer

1.largely increase heat transfer rate and vaporization rate;
2.vaporization capacity per hour is as much as 25-60kg/m2, which is 1-2 times of traditional rotary dryer;
3.output is raised by 50% and fuel consumption is reduced by 30%;
4.drying efficiency is raised by 40%;

5.save 40% space and civil investment and 20%equipment investment

Matching Productsheater, feeding machine, rotary drum, discharging machine, induced draft fan, unloading feeder, cyclone, odor removal equipment and power distribution cabinet

Cassava pulp, potato residue is the main by-products of the production of starch, alcohol residue, moisture content is about 80%, as for high moisture content, heavy viscosity, with the traditional drying process equipment, drying temperature is high, slag starch Gelatinization chemical reaction, dextrin clogging material particles pores, water evaporation does not come out, the particles surface turned yellowish black, "outside the coke within the soft", a serious impact on the sale of dry residue; drying temperature is low, t the moisture cannot drying below 15 % at all, dryer sticky wall, gelatinization, agglomeration, drying equipment can not do normal production,this will lead to the impaired interest of the customers.Dingli brand starch slag dryer is based on the research and development for characteristics of raw material such as cassava, potato slag, and after a few sets of dryer producing experience, which can drying all kinds of potato residue below 12% in one time. The equipment used by the company's "mechanical dehydration + drum drying + pulse air drying " special chinese patent technology, an effective solution to the traditional dryer which can not dry cassava, potato residue problems, drying material with perfect color, good quality, production line of energy saving and environmental protection ,with safe and stable operation,which praised by many new and old customers.

Dingli Potato Starch Pulp Drying Plant Features:

1. Can achieve intelligent control, one-button operation, automatic adjustment of operating parameters, the dryer is always in the best condition to run, to ensure that the drying of the material moisture uniform and stable, bright colors, nutrients remain unchanged.
2. Built-in mixing blade device will be fully stirred and broken material, material and hot temperament heat exchange fully, the equipment unit capacity increased by 50% , fuel energy consumption reduced by 30% ;
3. Equipment with less malfunction, low maintenance costs, low energy consumption;
4. Drying products are powder, water evenly, bright color, drying process does not lose the material nutrients;
5. Starch residue drying production line using a special scattering and crushing device to ensure good dryer drying effect.
6. Adopts a unique sealed insulation device, effectively reducing the heat loss of the drying system;
7. The system sealing performance is good, and with a complete dust removal device, no dust spill, the operating environment is good;
8. The entire drying system using electrical centralized control, hot air temperature with automatic adjustment, a high degree of automation, easy to operate;
9. After the drying process, it can be equipped with crushing, mixing, granulation, packing and other follow-up section to produce potato residue pellet feed products.

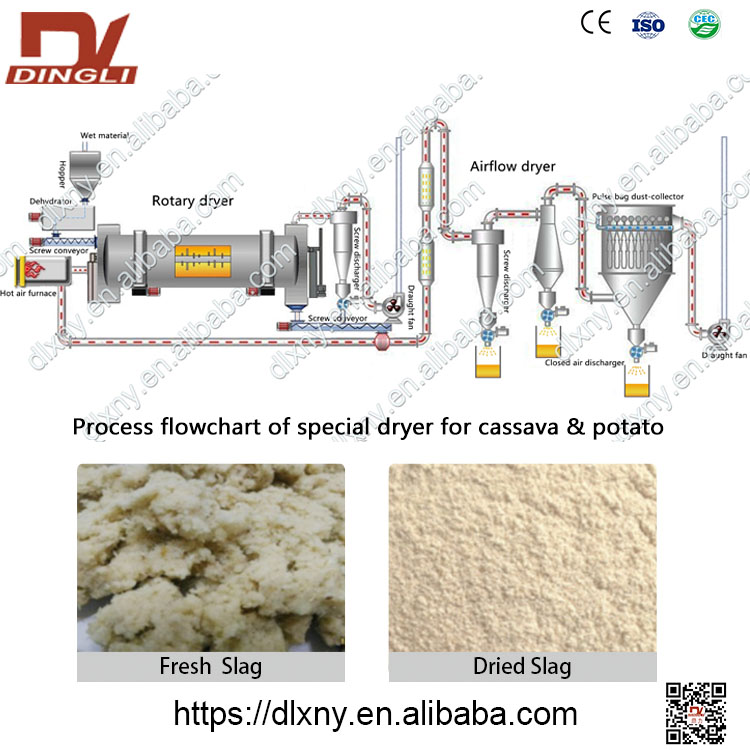

Process & Principle

Below is Potato Starch Pulp Drying Plant working priciple:





Specifications

We can help optimize the drying process according to the property of different biomass materials, production scale, application requirements, cost control, automation level and site condition.

Other related Potato Starch Pulp Drying Plant specification:

SpecificationDLZG1208DLZG1408DLZG1610DLZG2010/3DLZG2210/3DLZG2510/3DLZG2512/3DLZG2912/3
Input Capacity(t/d)43.752.575.8169186.5215.5262.2317.6
Output Capacity(t/d)25.730.944.699.4109.7126.7154.2186.8
Vaporization(t/h)0.750.91.32.93.23.74.55.45
Early moisture(%)85±5% (Mechanical dehydration to around 68%, and then dried)
Final moisture(%)12%(adjustable)
Drying temperature 350-450℃
Total power(kw)557595140170210260300
Total weight(t)252728.533.538.5456080
Plant area(m)5m*20m5m*20m6m*22m8m*25m8m*25m10m*28m10m*30m10m*30m
Except above models, we also can supply special model according to your requirements.
Our Services

Below is Dingli Group Packaging & Shipping:

Your device will be packed well in container and suit for long ocean shipping.

Below is Dingli Group service items:

Pre-sale
1. According to your needs, select right model for you;
2. According to your special requirements, design customized solution and manufacture customized products for you.
3. Welcome your visit.
Sale
1. Sign contract, pay deposit, we arrange production.
2. Product acceptance.
3. Help you formulate construction scheme.
After-sale
1. Assign engineer service for you on-site freely.
2. Install and adjust device, train how to operate.
3. After installation, leaving 1-2 technical staff to help you on-site production, untill achieve customer satisfaction.





Company Information

DingLi Group advantage:

1. Over 200 employees, 98% professional technical personnel;
2. Factory size over 3,000 square meters;
3. 305 Inventions & Patents
4. Exported over 30 countries,300 global partners;
5. Rank 3rd in China Drying Industry;
6. Customize Drying Production Line.

Below are DingLi Dryer Factory & Production Line & Sales Team Pictures:



Below are Dingli Group Honors & Certificates & Patents:

Buyer & Project Case

Dingli Dryer Production Line has exported to over 30 countries with 300 foreign partners, such as Germany, Britain, United States, Italy, Israel, Chile, Thailand, Russia, Vietnam, India, Cambodia, Indonesia, Malaysia, Thailand etc.

Below are DingLi Customers Visiting:

After reach deals, Dingli Engineer will fly to your address, install and adjust machine for you freely.
Also train you operation skills, until you are satisfied.

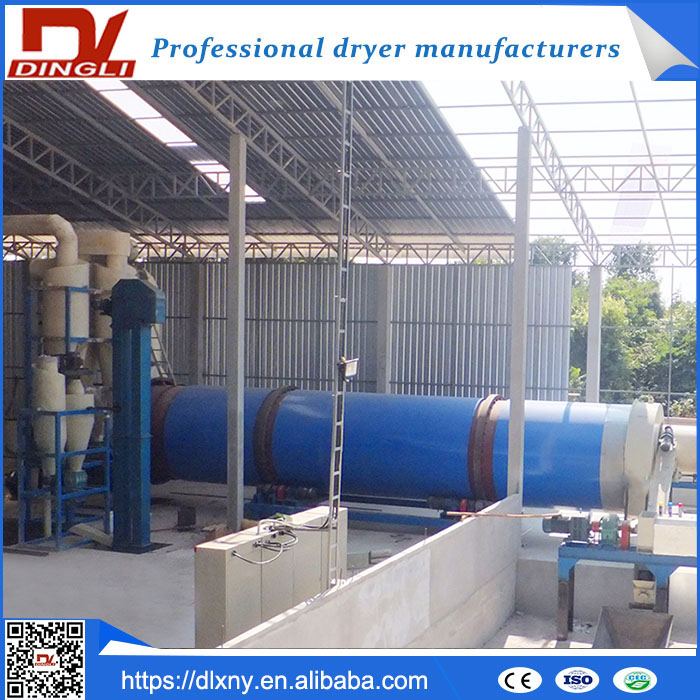

Below are installation sites of our customers:

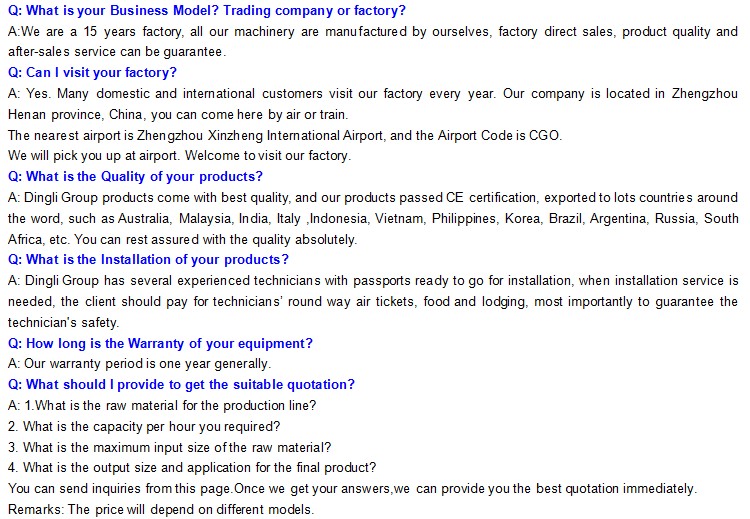

FAQ



Contact DINGLI Group

Offer OEM Service

In order to introduce the most suitable machine for you, kindly inform below information in your inquiry.
1. Raw materials
2. Original moisture and final moisture
3. Input capactiry, Output capacity
4. Need crush or not
5. Direct granulating, or drying after granulating

6. Heat source

Contact for more details
Email/skype: dingli04(@)dlbio-dryer.com

Kindly Note:

Dingli brand is registered by us in drying industry.

We are the ONLY real legal DINGLI DRYER manufacturer. All the others are fake!!!
