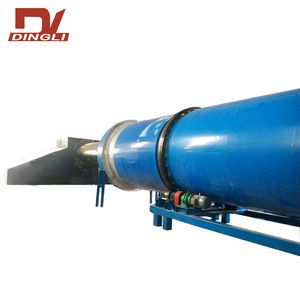

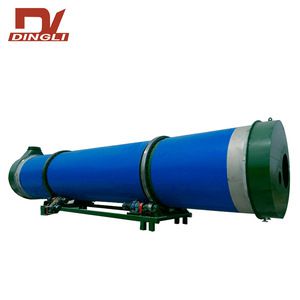

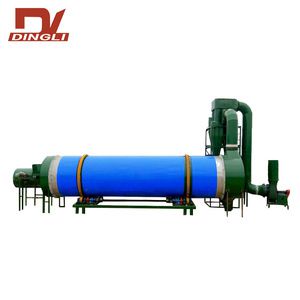

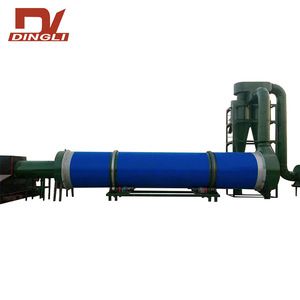

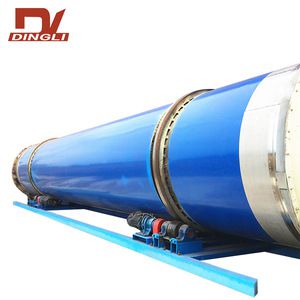

Dingli Corn Starch Residue Dryer Introduction:
| Product Name | Corn Starch Residue Dryer |
| Producer | Zhengzhou Dingli New Energy Technology Co., Ltd |
| Model No. | DLZG1610 |
| Input Capacity(t/d) | 75.8 |
| Output Capacity(t/d) | 44.6 |
| Vaporization (t/h) | 1.30 |
| Early Moisture (%) | 80±5%(Mechanical dehydration to around 68%, and then dried) |
| Final Moisture (%) | 12% (adjustable) |
| Temperature (℃) | 400±50℃ |
| Total Power(KW) | 95 |
| Total Weight(T) | 28.5 |
| Plant Area(m) | 6m*22m |
| Matching Products | heat source, heat exchangers, feeding machine , rotary drum , discharging machine , circulating fan, residue cleaning systems , and power distribution cabinets. |
| Raw Material | Cassava Pulp, Tapioca Dregs, Manihot Slag, Yuca Residue, Manioc Dregs, Potato Slag, Sweet Potato Dregs, Purple Potato Residue, Starch Residue, Cassava Starch Pulp, Potato Starch Residue, Tapioca Starch Dregs |
| Application | animal feeds |
Dingli Corn Starch Residue Dryer Application:
Starch residue is the main by-product of cassava, potato, sweet potato and other agricultural products after the production of starch, moisture content is about 80%, as for high moisture content, heavy viscosity, with the traditional drying process equipment, drying temperature is high, slag starch Gelatinization chemical reaction, dextrin clogging material particles pores, water evaporation does not come out, the particles surface turned yellowish black, "outside the coke within the soft", a serious impact on the sale of dry residue; drying temperature is low, t the moisture cannot drying below 15 % at all, dryer sticky wall, gelatinization, agglomeration, drying equipment can not do normal production,this will lead to the impaired interest of the customers.Dingli brand starch slag dryer is based on the research and development for characteristics of raw material such as cassava, potato slag, and after a few sets of dryer producing experience, which can drying all kinds of potato residue below 12% in one time. The equipment used by the company's "mechanical dehydration + drum drying + pulse air drying " special chinese patent technology, an effective solution to the traditional dryer which can not dry cassava, potato residue problems, drying material with perfect color, good quality, production line of energy saving and environmental protection ,with safe and stable operation,which praised by many new and old customers.
Dingli Corn Starch Residue Dryer Features:
1) Can achieve intelligent control, one-button operation, automatic adjustment of operating parameters, the dryer is always in the best condition to run, to ensure that the drying of the material moisture uniform and stable, bright colors, nutrients remain unchanged.
2) Built-in mixing blade device will be fully stirred and broken material, material and hot temperament heat exchange fully, the equipment unit capacity increased by 50% , fuel energy consumption reduced by 30% ;
3) Equipment with less malfunction, low maintenance costs, low energy consumption;
4) Drying products are powder, water evenly, bright color, drying process does not lose the material nutrients;
5) Starch residue drying production line using a special scattering and crushing device to ensure good dryer drying effect.
6) Adopts a unique sealed insulation device, effectively reducing the heat loss of the drying system;
7) The system sealing performance is good, and with a complete dust removal device, no dust spill, the operating environment is good;
8) The entire drying system using electrical centralized control, hot air temperature with automatic adjustment, a high degree of automation, easy to operate;
9) After the drying process, it can be equipped with crushing, mixing, granulation, packing and other follow-up section to produce potato residue pellet feed products.
Below is Corn Starch Residue Dryer Drying Process:
Below is Corn Starch Residue Dryer Working Principle:
Other Related Corn Starch Residue Dryer Specification:
We can help optimize the drying process according to the property of different materials, production scale, application requirements, cost control, automation level and site condition.
| Model(DLZG) | 1208 | 1408 | 1610 | 2010/3 | 2210/3 | 2510/3 | 2512/3 | 2912/3 |
| Input Capacity(t/d) | 43.7 | 52.5 | 75.8 | 169 | 186.5 | 215.5 | 262.2 | 317.6 |
| Output Capacity(t/d) | 25.7 | 30.9 | 44.6 | 99.4 | 109.7 | 126.7 | 154.2 | 186.8 |
| Vaporization(t/h) | 0.75 | 0.9 | 1.3 | 2.9 | 3.2 | 3.7 | 4.5 | 5.45 |
| Early Moisture(%) | 85±5% (Mechanical dehydration to around 68%, and then dried) | |||||||
| Final Moisture(%) | 12%(adjustable) | |||||||
| Drying Temperature(°C) | 400±50℃ | |||||||
| Total Power(KW) | 55 | 75 | 95 | 140 | 170 | 210 | 260 | 300 |
| Total Weight(T) | 22 | 27 | 28.5 | 33.5 | 38.5 | 45 | 60 | 80 |
| Plant Area(M) | 5*20 | 5*20 | 6*22 | 8*25 | 8*25 | 10*28 | 10*30 | 10*30 |
| Except above models, we also can supply special model according to your requirements. |
