Uniwin brand chamber filter press used for mining,chemical,ready mix plant

Filter press is one kind general equipment for liquid and solid serapation, from the filter press, we can get both dry filter cakes and the clear filtrate.

Technical Feature

  • New
  • Automatic
  • 10 CBM per batch
  • Henan, China (Mainland)
  • Uniwin
  • XMY 20/630-30U
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$3~5

PRIMARY PARAMETERS

Condition
New
Automatic Grade
Automatic
Production Capacity
10 CBM per batch
Place of Origin
Henan, China (Mainland)
Brand Name
Uniwin
Model Number
XMY 20/630-30U
Voltage
380V/415V/460V 50/60HZ
Power(W)
2.2kw
Weight
2000 kg
Dimension(L*W*H)
2940X900X1100mm
Certification
ISO9001,CE
Warranty
1 Years
After-sales Service Provided
Engineers available to service machinery overseas
Name
Chamber Filter Press
Type
Hydraulic press
Material
Q235 steel with PP filter plates
Filter area
20(m2)
Plate size
630X630 mm
Chamber volume
297 L
Plate quantity
24 pcs
Application
mining chemical filter press
Color
Blue with Orange

DETAIL DESCRIPTION

Product Description

Introduction of chamber filter press used for mining,chemical,ready mix plant:

Filter press is one kind general equipment for liquid and solid serapation, from the filter press, we can get both dry filter cakes and the clear filtrate. The filter press is widely used in pharmaceutical, chemical, pharmaceutical, metallurgy, dyes, food, ceramics, oil refineries, sewage treatment and other environmental protection industries and can get good filtering result specially in all kinds of copper,coal, gold mining industries, sewage treatment plant, tannery and leather wastewater , ready mix concrete plant etc.

Specifications of Chamber Filter Press XMY 20/630-30U
Model
XMY 20/630-30U
Filtering Area
20 m2
Plate Size
630*630 mm
Filtering capacity
8 m3 liquid per hour
Feeding pressure
6-10 bar
Dimension
2940*900*1100 mm
Weight
2000 kg

Our advantages:

1,) 18 years filter press manufacturing and cooperation with Germany filter press company makes us the best quality from every small details.
2,) We have the pure PP filter plates which can get very dry filter cakes using 10 bar feeding pressure compared with the common filter press which is only 6 bar.
3,) The technical department with long experienced engineers helps our customers choose the most suitable filter press and the professional after sales engineer make sure the filter press running well and problem will be sloved soonest if problem occurs.
Detailed Images

Machine Parts

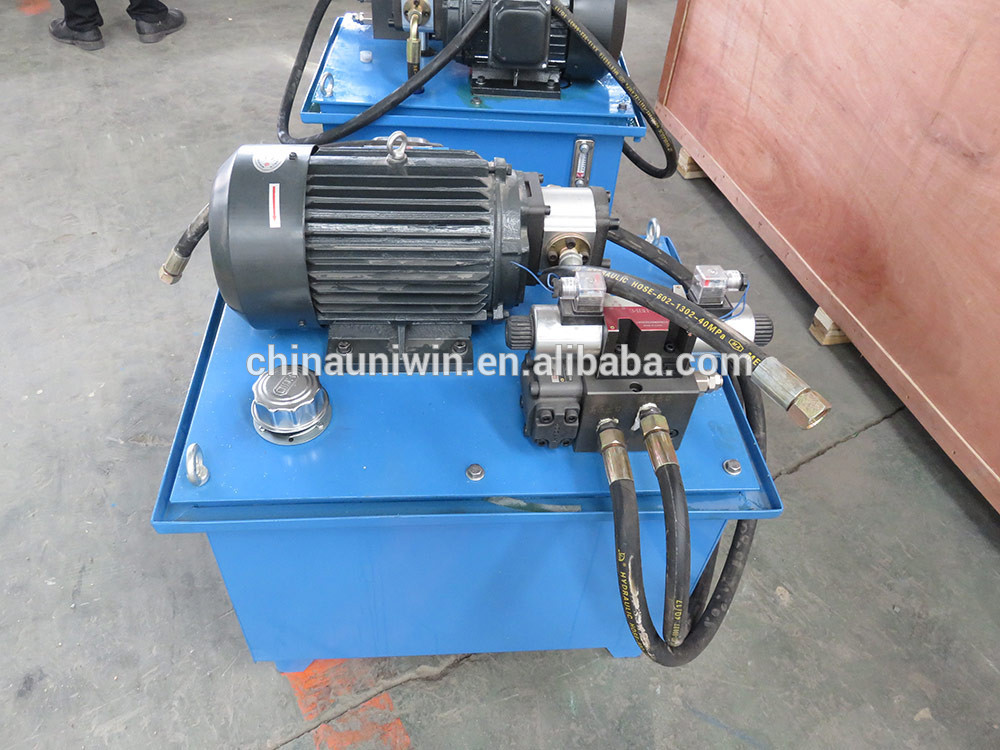

Name: hydraulic station

Motor: 2.2kw-7.5 kw

The hydraulic station offers the hydralic press power to compress the filter plates at pressure 20 Mpa

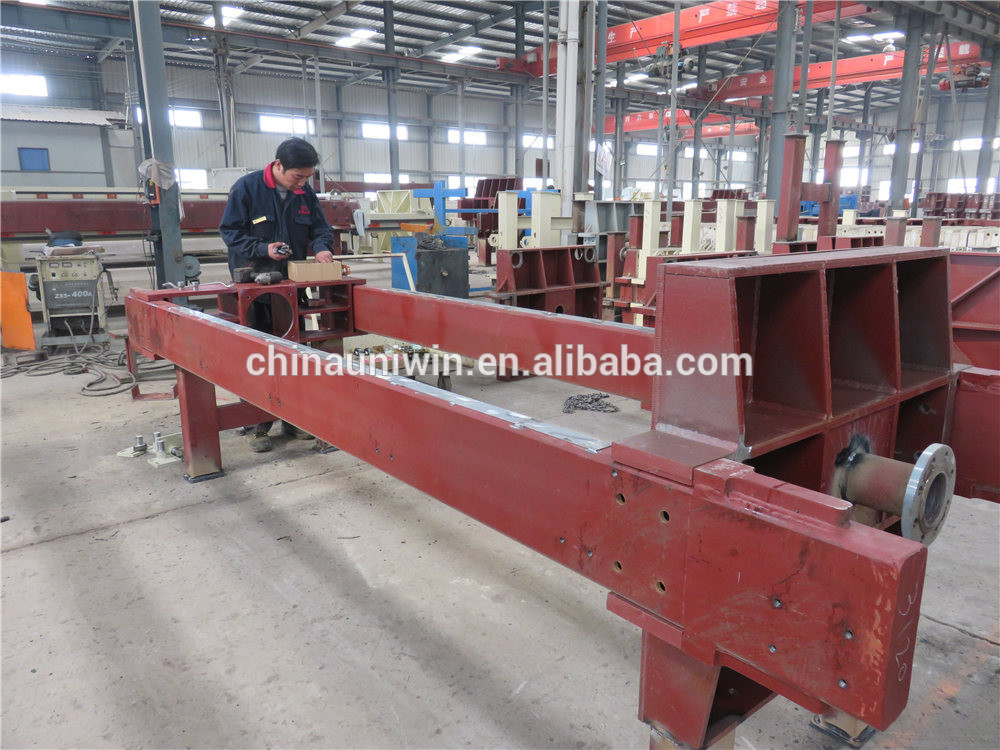

Filter press frame manufacturing:

This is the filter press parts to hold the end and head plate.

Clean workshop

Skilled workers

Uniwin brand , famous brand

Assembling workshop of the filter press:

Uniwin filter prss has the capability of manufacturing 200 sets filter press per month, this is the assembling workshop which is around 10000 m2.

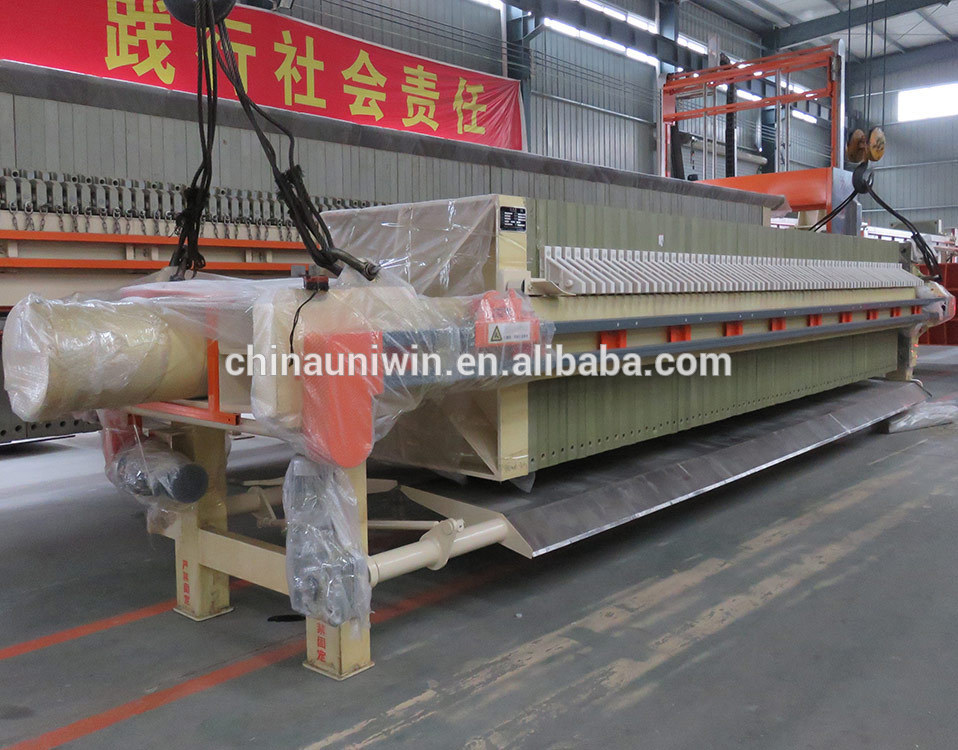

Filter press testing:

For every filter press, we will test its perfermance before finishing production to ensure every products from us is 100% good quality.

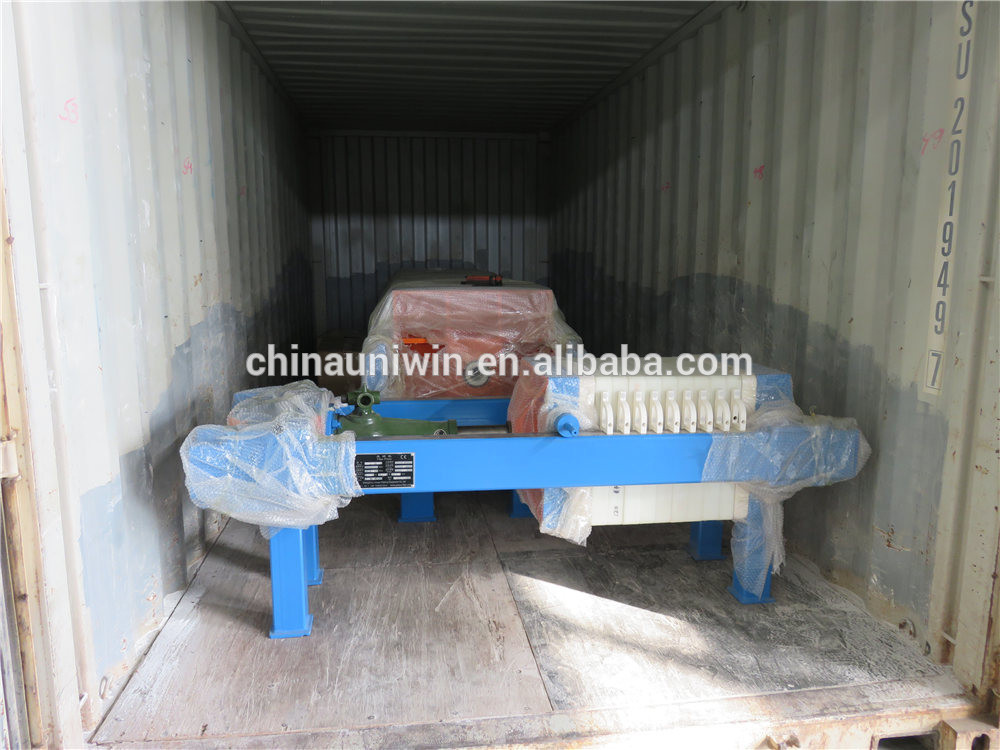

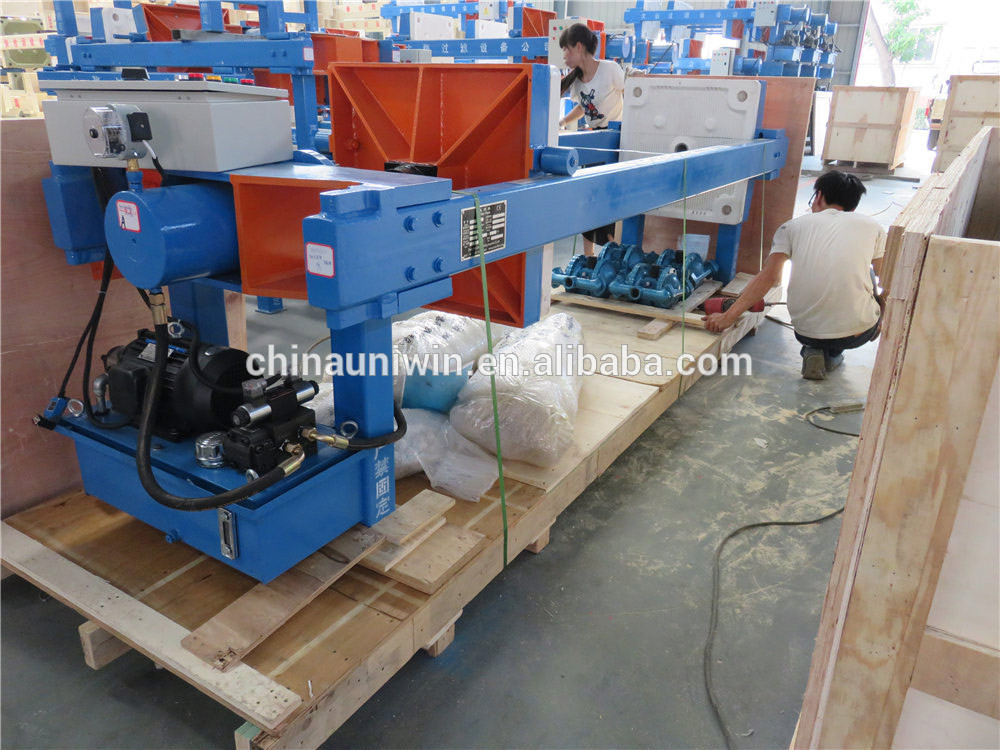

Packaging photos:

Careful packaging with pre-connected filter press parts, when the customer received the filter press, only connect the PLC to electricity and connect the pump then the filter press can work.

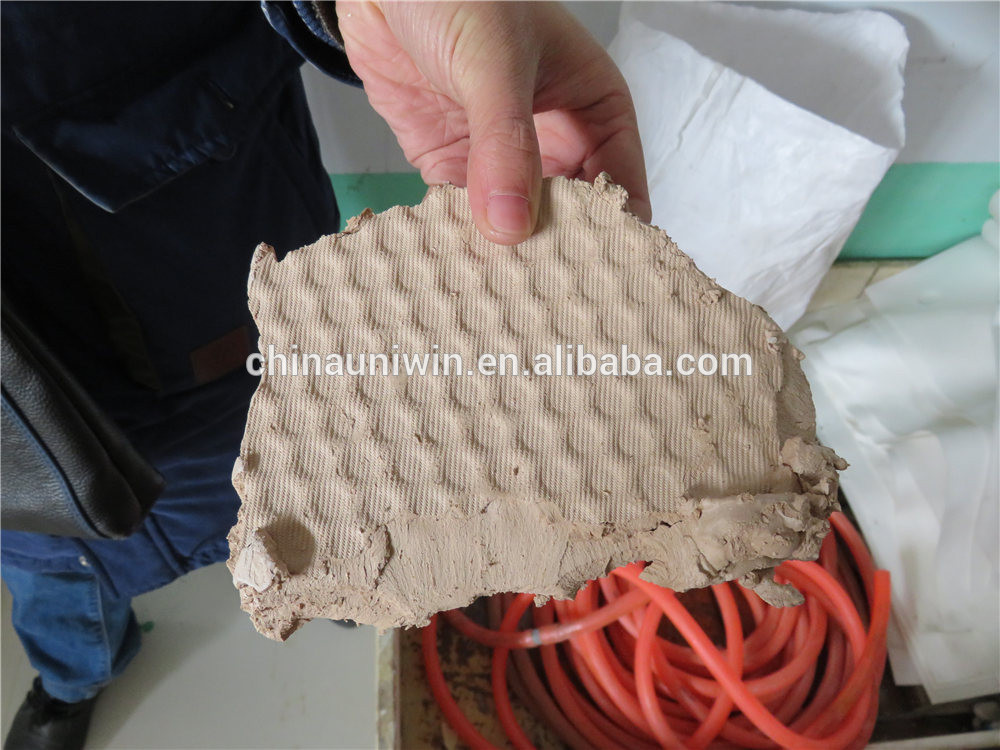

Filter Cake Pictures
Packing & Delivery
Our Customers
