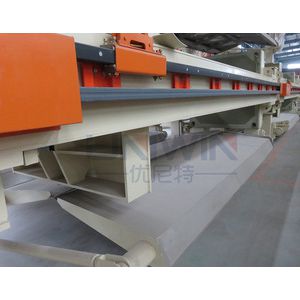

Full automatic new design cloth cleaning filter press

Filter press is an equipment that makes use of a kind of special filtering medium, put definite pressure on object for discharging liquid.

Technical Feature

  • New
  • Automatic
  • High Efficiency
  • Henan, China (Mainland)
  • Uinwin
  • XMZ Series
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$10~2

PRIMARY PARAMETERS

Condition
New
Automatic Grade
Automatic
Production Capacity
High Efficiency
Place of Origin
Henan, China (Mainland)
Brand Name
Uinwin
Model Number
XMZ Series
Voltage
Customer Requirement
Power(W)
2.2KW-7.5KW
Weight
3-38Tons
Dimension(L*W*H)
Decided on model required
Certification
ISO9001 CE
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Filtration Pressure
0.6 MPa
Name
Full automatic new design cloth cleaning filter press

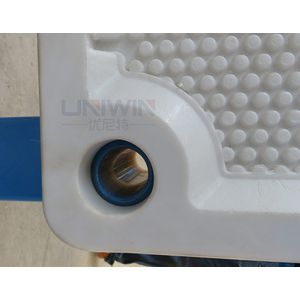

Material of Filter Plate
PP
Squeezing Pressure Plates
16-18 MPa
Temperature of the Filtered Medium
0-70u2103
Filter Area
30-500 M2
Plate Size
870-1500 MM
Cake Thickness
30-35 MM
Filter Chamber Volume
460-7187 L
Plate NO
23-123 PCS

DETAIL DESCRIPTION

Full automatic new design cloth cleaning filter press



Product Description

 Filter press is an equipment that makes use of a kind of special filtering medium, put definite pressure on object for discharging liquid. It is an equipment to separate solid and liquid in the common and intermittent way. Our company produces various models of chamber filter plate and plate-frame mechanical filter-press, hydraulic filter press, membrane filter press and full-automatic filter press and filter press spare parts.



The features
1. Models include: 320,450,630,800,1000,1250,1500,2000,etc.
2. Filtration area up to 2000m2
3. Filter plate materials: cast iron, rubber, reinforced polypropylene(PP), glass fiber polypropylene, etc.
4. Streamforms :seen flow, hidden flow, washable, non-washable, middle feeding and corner feeding, etc.
5.Filter plate pressing modes: manual screw pressing , electric mechanic pressing and hydraulic cylinder pressing. Special filter press can be made on request.



Work Principle

In the process of operation, press system(piston of the oil cylinder or lead screw drive ) push the head plate, compress the filter plate and filter cloth between head plate and end plate, then the filter chamber is formed between the compressed filter plate and filter cloth. Materials that are pushed by the feeding pump enter into each filter room through feeding hole of end plate. In this way, solid particles will be intercepted in the filter room and formed filter cake. And liquid will discharge from the liquid hole through filter cake and filter cloth. If it needs to wash the filter cake, we can use scouring water by washing hole of the tail-board. If it needs to dry the filter cake, feed into compresses air through washing hole.









Technical Data



Model

Filter area

(M2)

Plate size

(MM)

Filter

chamber volume

(L)

Plate NO.

(PCS)

Filtration Pressure

(MPA)

Weight

(KG)

Dimensions

L*W*H

(MM)

Foundation size

(MM)

XMY100/1250

100

1250*1250

1468

36

≥0.6

6728

5020*1770*1600

3970

XMY120/1250

120

1746

43

7512

5470*1770*1600

4430

XMY140/1250

140

2063

51

8641

5990*1770*1600

4950

XMY160/1250

160

2341

58

9205

6450*1770*1600

5400

XMY180/1250

180

2619

65

10044

6905*1770*1600

5860

XMY200/1250

200

2896

72

10851

7360*1770*1600

6300

XMY220/1250

220

3214

80

11765

7880*1770*1600

6830

XMY250/1250

250

3650

91

12834

8600*1770*1600

7550

Medicine industry

Medical equipments such as injector, bandage, degreasing cotton, all kinds of medical feculences and wastes such as work drum, glove , gauze, blood transfusion tube, etc.

Chemical industry

Coating, paint, silica, caustic soda, soda ash, alkali, salt mud, new, water purification machines (aluminum, aluminum polymerization acetylacetonate, gypsum, insurance, phosphor, lithopone)

Metallurgy industry,

Coal, gold, silver, copper, zinc ore mineral powder, etc

Printing and dyeing industry
All kinds of dye particles in dyeing industry.

Foods industry,

Vegetable oil, monosodium glutamate, glucose, starch sugar, plant sweet, maltose, starch, maize, rice, Joan, seaweed, kara glue, milk, oral liquid,beer yeast, soy sauce, rice wine, white wine, fruit juice, beverage, plant protein, and spices

Brewing industry

Beer, vinegar, soy sauce, fruit wine, etc.

Wastewater Treatment

Printing and dyeing wastewater, sewage, smelting, leather, pharmacy sewage water brew, electroplating wastewater, sewage and waste, chemical electrolysis of water environment

 Petroleum industry
Diesel oil, sesame oil, shortening dewaxing , etc.

Textile industry

The residual activated sludge in the back row was treated by biochemical method, and the chemical coagulation sludge was treated by physicochemical method, and the sludge was condensed by electrolysis, and the sludge was dehydrated.



Production Workshop



Welding Workshop is for welding bulky frame



Machining Workshop is for fine processing of machine



Hydraulic Workshop is for assembling and testing on hydraulic pressure station of the filter press



Packed Workshop is for molding and assembly of filter press



Filter Plate Workshop is for producing filter press



Finished-parts Storage is for storing  finished filter press

Finished Filter Press

Packaging & Shipping





 Plastic film wrap with wooden case packaging.



Our Services



Guarantee and After-sale Service

One year guarantee for the machine after installation

24 hours technical support by Whatsapp /E-mail

Use friendly English user manual and videos.

Professional after sales department available for abroad installations.



FAQ



Q:which country have your products been exported?

A:Many country, such as Kenya, America, Australia, Canada, South Africa, Mozambique, Turkey and so on.

Q:What's the costs of installation and commissioning?

A:No, our machine is easy to operate. Before delivery, our machines are installed. And we will send customers related productions' manual and detailed training video. In this way, customers can operate machines very well by themselves.

Q:What's the payment terms?

A: 30% T/T deposit, 70% T/T before delivery.
