Automatic Washing High Pressure PP Plate Membrane Filter Press

Membrane filter press is one kind filter press that using the membrane filter plates.

Technical Feature

  • New
  • Automatic
  • High Efficiency
  • Henan, China (Mainland)
  • China Uinwin
  • XMGY
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$1~70

PRIMARY PARAMETERS

Condition
New
Automatic Grade
Automatic
Production Capacity
High Efficiency
Place of Origin
Henan, China (Mainland)
Brand Name
China Uinwin
Model Number
XMGY
Voltage
Customer Requirement
Power(W)
2.2-15
Weight
3-70Tons
Dimension(L*W*H)
Decided on model required
Certification
ISO9001 CE
Warranty
1 Year
After-sales Service Provided
Engineers available to service machinery overseas
Name
Automatic Washing High Pressure PP Plate Membrane Filter Press
Application
Chemical Pharmaceutical Mine Sludge dewatering
Filter area
30-1000 M2
Plate Size
870-2000 MM
Plate NO
23-141 PCS
Filtration Pressure
0.8 MPa
Filtrering Method
Water/Air
Type
Automatice Filter Press
Material of Filter Plate
PP
Color
Customer's requirement

DETAIL DESCRIPTION

Automatic Washing High Pressure PP Plate Membrane Filter Press

Product Description





Product Introduction

Membrane filter press is one kind filter press that using the membrane filter plates. In the process of operation, in the end of feeding the material, high hydraulic liquid or gas(0.8-2.0mpa) medium can enter into membrane plate, then the whole membrane will expand to compress filter cake, and filter cake will be further dewatered, which is usually called membrane squeeze.



The features



* Shorten Filter Time

Compared to Plate and Frame Filter Press, Membrane Filter Press shorten filter time clearly, in the late period of filtering, Plate and Frame Filter Press takes a lot of time to compress water, its filtering efficiency is too low; however, filter with membrane , the cost of time is shorter, efficiency rises a lot.

* Save Electric Power

Save operation power, in the late period of filtering, small flow, high pressure, feeding pump consumes high power; however, filter with membrane, in the condition of high moisture, open air filter to finish this process in a shorter time and save electric power.

* Decrease Moisture Content of Filter Cake

Increasing filter cake dryness and decrease moisture content of filter cake, filter with membrane has a second time filtering on filter cake that was finished by static filtering. Restructuring filter cake and increasing density is for that substitutes a part of moisture content and increases filter cake dryness. According to former experience it can decrease 10%-40% moisture content. For different industries, the lowest moisture content can reach 12.5%.

* PH Valve can be Washed Thoroughly

In the process of working that needs wash acidity and alkaline chemicals of materials repeatedly, Membrane Filter Press can do it better.

* Improve Processing Capacity of Filter Press

Increasing operation elasticity of filter press, especially the operation of washing mud cake.

The advantages

* Shorten Filtering Time

* Decreasing moisture content of filter cake,

* Washing chemicals in the filter cake thoroughly

* Save Electric Power

* High Filtering Pressure

* Good Quality of Anti-corrosion

* Convenient in Fixing

Work Principle
In the process of operation,press system(piston of the oil cylinder or lead screw drive ) push the head plate, compress the filter plate and filter cloth between head plate and end plate, then the filter chamber is formed between the compressed filter plate and filter cloth. Materials that are pushed by the feeding pump enter into each filter room through feeding hole of end plate. In this way, solid particles will be intercepted in the filter room and formed filter cake. And liquid will discharge from the liquid hole through filter cake and filter cloth. After ending of feeding materials, convey air or water into filter plate  through distribution tube to expand membrane plate, in this way, filter plate compress materials again in order to decrease moisture content of the filter cake and at the same time increase the dryness of the filter cake.
The diagram of cakeformation of membrane filter press.

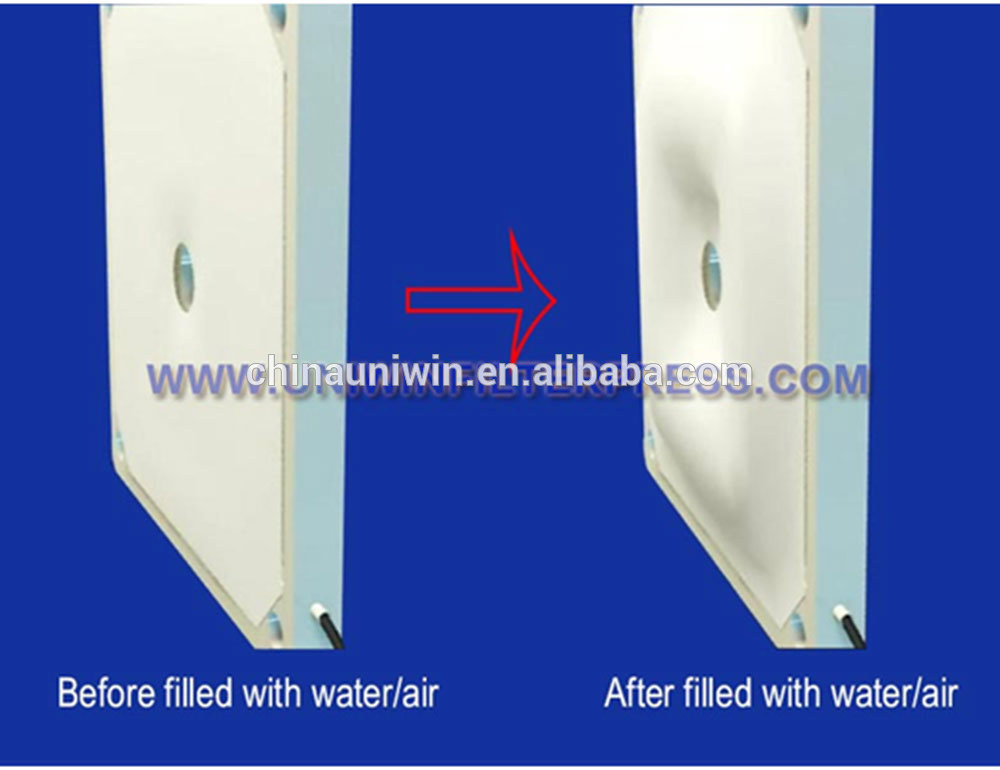

The previous and present change while feeding water or air.
Technical Data

 Technical data of the membrane filter press:



Model

Filter
area
 (M2)

Filter
chamber
volume (L)

Plate
NO.  (PCS)

Filtration
pressure  (Mpa)

Weight
 (Kg)

Dimensions (MM)

Foundation
Size (MM)




XG30/870

30

498

23

0.8

3046

3880*1250*1300

2920



XG40/870

40

623

29

3593

4270*1250*1300

3300



XG50/870

50

789

37

4057

4790*1250*1300

3820



XG60/870

60

955

45

4597

5310*1250*1300

4340



XG70/870

70

1121

53

5136

5830*1250*1300

4860



XG80/870

80

1287

61

5636

6350*1250*1300

5380



XG50/1000

50

776

27

4352

4270*1500*1400

3350



XG60/1000

60

943

33

4480

4770*1500*1400

3780



XG70/1000

70

1109

39

5263

5130*1500*1400

4210



XG80/870

80

1275

45

5719

5560*1500*1400

4640



XG100/1000

100

1608

57

6555

6410*1500*1400

5490



XG120/1000

120

1941

69

7466

7260*1500*1400

6340


Applicable field



Pharmacy Industry

Strain, HuangLianSu, aureomycin and McGrady enzymes enzyme, Wells, inositol guangzhoumetro, phytic acid, calcium, Chinese traditional medicine, saccharification, growth hormone, organophosphate, pig’s blood.

Fine Chemical Industry

Coating, paint, silica, caustic soda, soda ash, alkali, salt mud, new, water purification machines (aluminum, aluminum polymerization acetylacetonate, gypsum, insurance, phosphor, lithopone)

Wastewater Industry

Printing and dyeing wastewater, sewage, smelting, leather, pharmacy sewage water brew, electroplating wastewater, sewage and waste, chemical electrolysis of water environment.

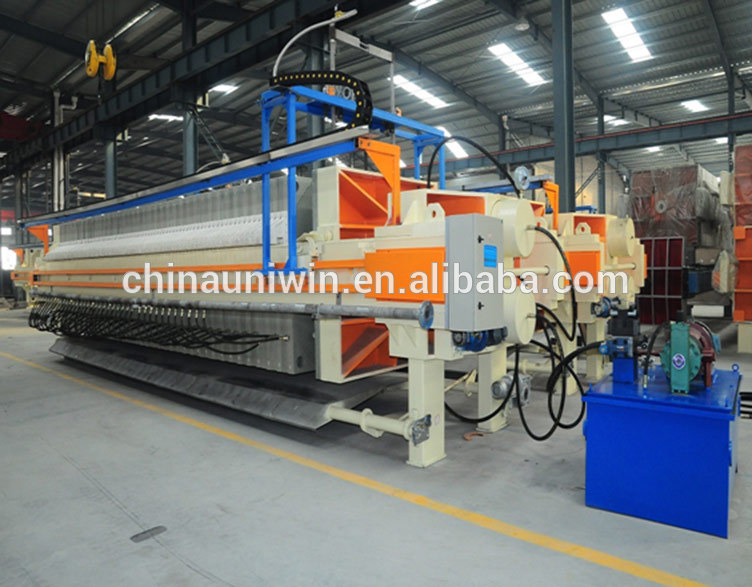

Production Workshop

Related accessories
