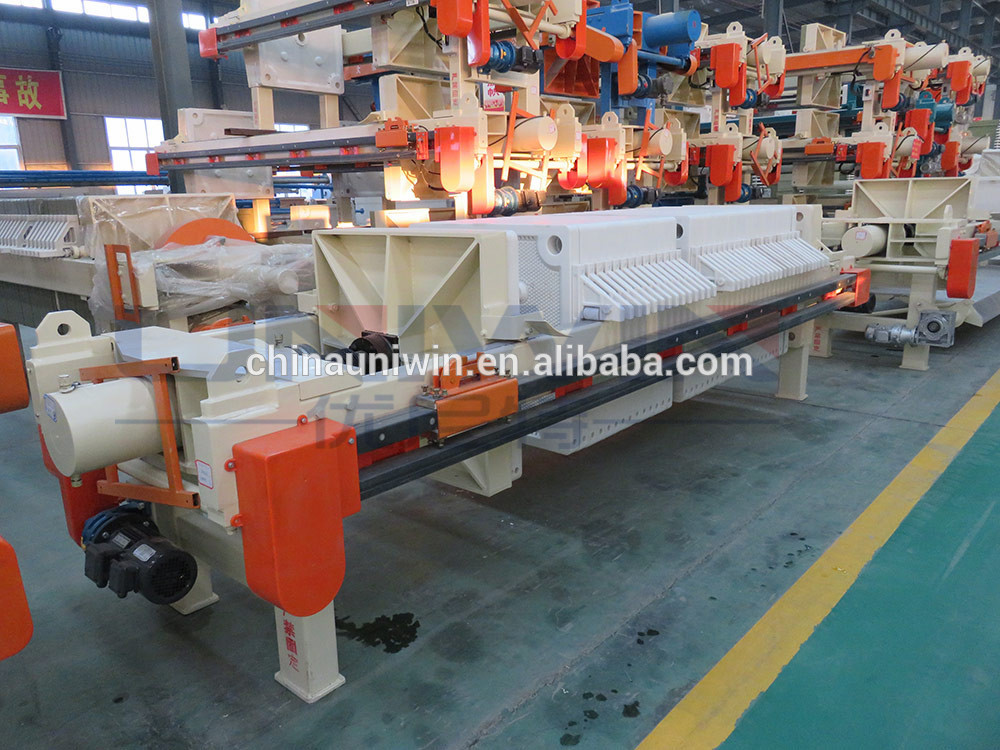

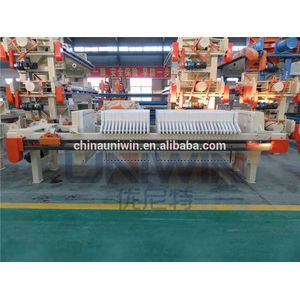

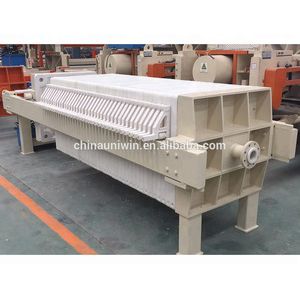

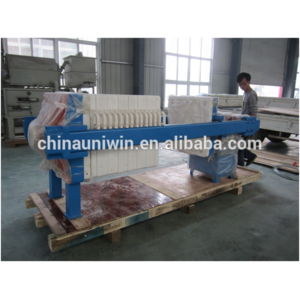

Philippine coconut oil industry horizontal filter press machine
filter press is one kind effective filtration equipment for solid-liquids separation. compared with other solid-liquid separation equipment, the filter cake has higher solidity rate and good separation effect. Filter press structure is simple, it has the characteristics of large filtering capacity and have the filtering area from small to big (filtering area from 1 m2 to 1000 m2), high operating pressure, low filter cake moisture , applicable to a variety of materials, suitable for intermittent operation.
Working principle:

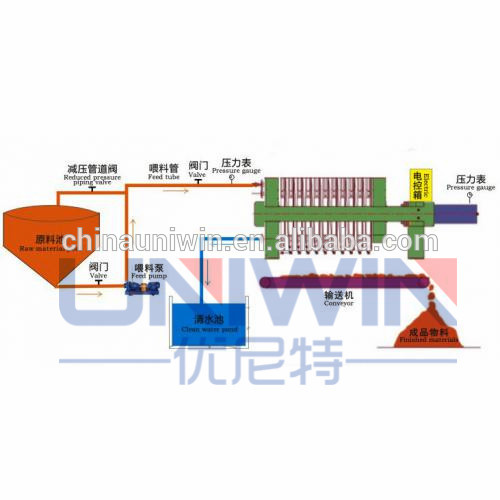

The mixture slurry is pumped through the mediating medium(filter cloth) ,the solid will stay in the filter chamber formed by two filter plates and gradually pile up on the filter cloth to form a filter cake. and the liquid part is permeable to filter cloth, then the clear liquid that contains no solid flow out of the filter press.
The filtration chamber of the chamber filter press is composed of two adjacent filter plate. The mainly advantage of this type is less wear during feeding, fast filtration, high temperature and high pressure resistance, good seal performance, uniform filter cake washing , moisture content is low, and the filter chamber pressure are evenly not easy to damage filter plate, It is suitable for all solid-liquid separation industries.
filter cake:

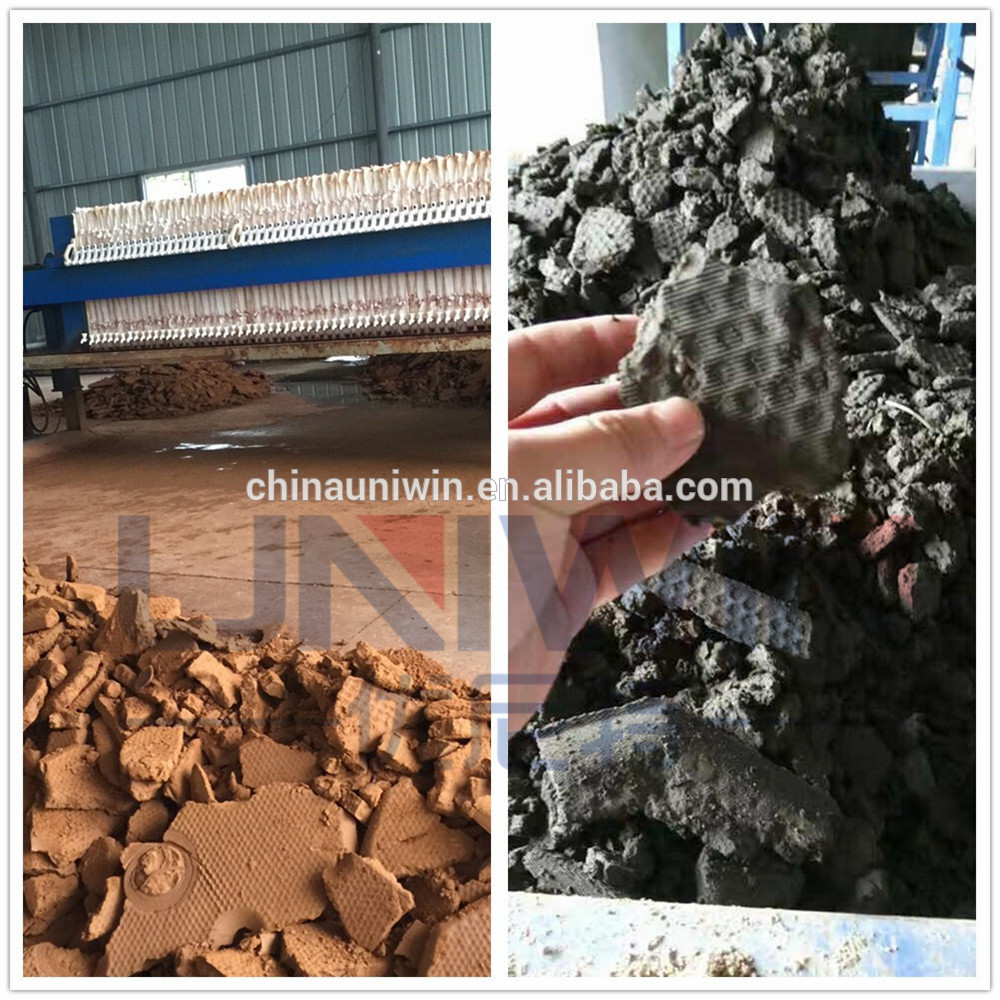

a solid concentrate obtained by pressing the suspension in the press process.

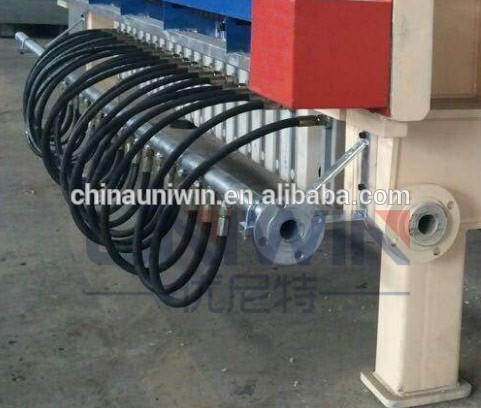

Filtering form: it can be divided into two filtering forms, seen flow and unseen flow.

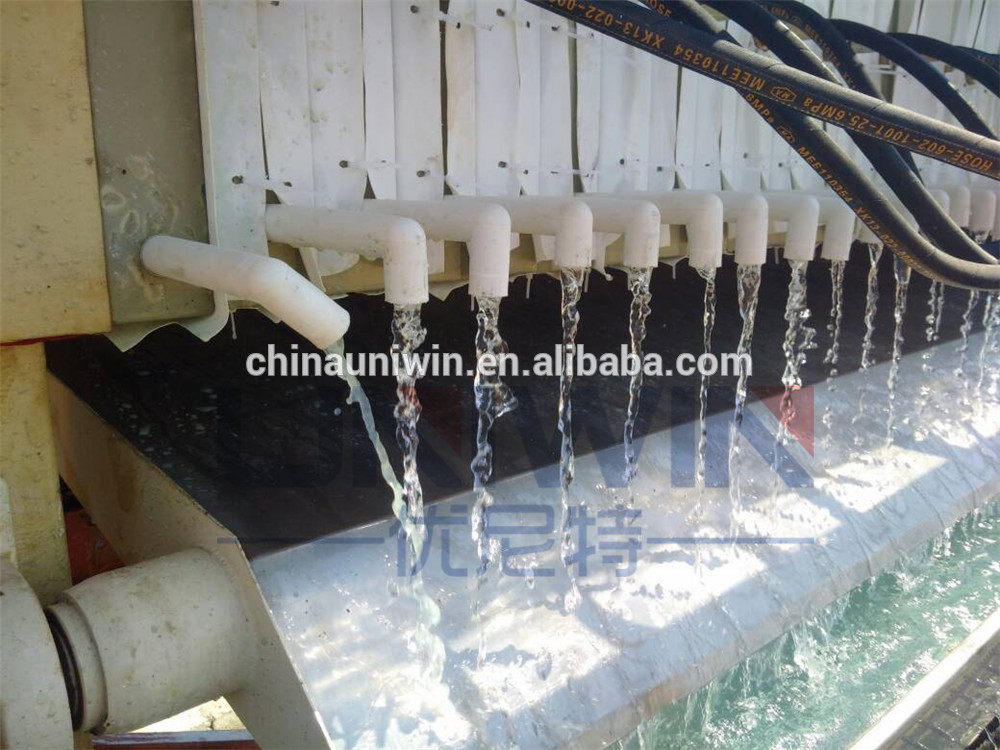

for the seen flow: there are outflow pipe installed at each side of filter plate, the filtrate directly flow out from the filter plate.
For the Hide flow form: The filter liquid of each filter plate get together then flow out from one pipe.
TECHNICAL PARAMETER:
Model | Filter area(m2) | Plate size(mm) | cake thickness (mm) | Filter chamber volum(L) | Plate NO. (pcs) | Filtration pressure (Mpa) | Motor Power (kw) | Wight (kg) |
XMZ30/870-30U | 30 | 870*870 OR 800*800 | 30 | 460 | 23 | ≥0.6 | 2.2 | 2680 |
XMZ40/870-30U | 40 | 595 | 30 | 3050 | ||||
XMZ50/870-30U | 50 | 748 | 38 | 3456 | ||||
XMZ60/870-30U | 60 | 902 | 46 | 4003 | ||||
XMZ70/870-30U | 70 | 1056 | 54 | 4584 | ||||
XMZ80/870-30U | 80 | 1210 | 62 | 5082 | ||||
XMZ50/1000-30U | 50 | 1000*1000 | 736 | 28 | ≥0.6 | 4.0 | 4128 | |
XMZ60/1000-30U | 60 | 889 | 34 | 4636 | ||||
XMZ70/1000-30U | 70 | 1041 | 40 | 5143 | ||||
XMZ80/1000-30U | 80 | 1193 | 46 | 5651 | ||||
XMZ100/1000-30U | 100 | 1475 | 57 | 6628 |
Filter area:80m2
Plate size: 870*870mm/800*800mm
Cake thickness:30mm
Filter chamber volume:1210L
Plate No.: 62
Filtration pressure:0.6Mpa
Motor power: 2.2KW
Weight:5082KG
Dimensions(L*W*H):5430*1400*1230mm

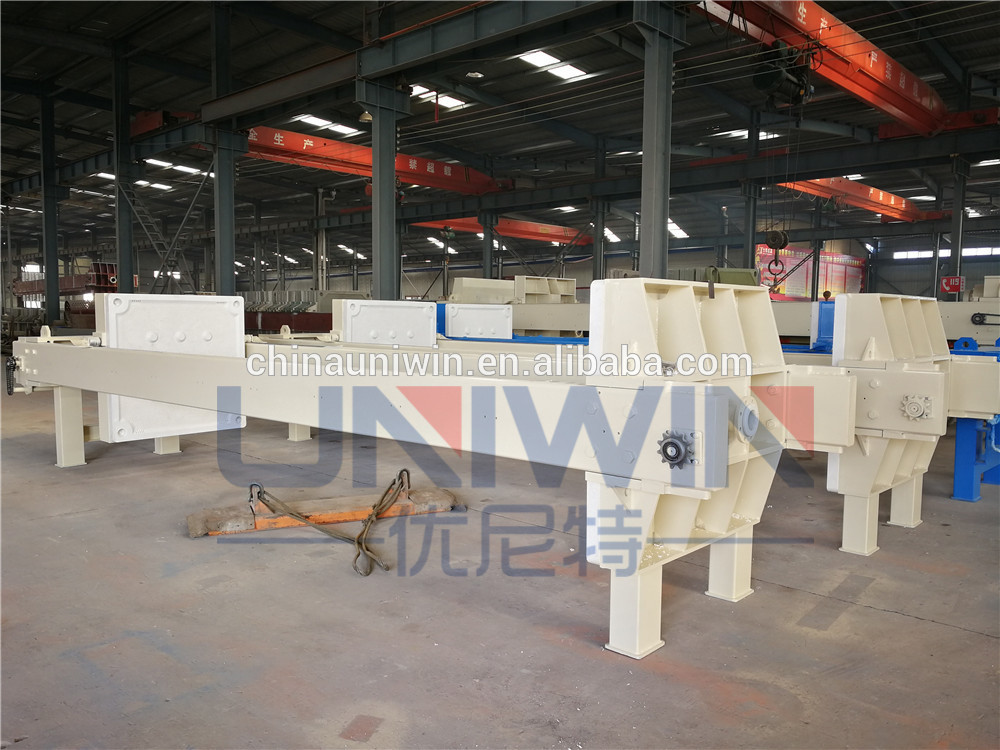

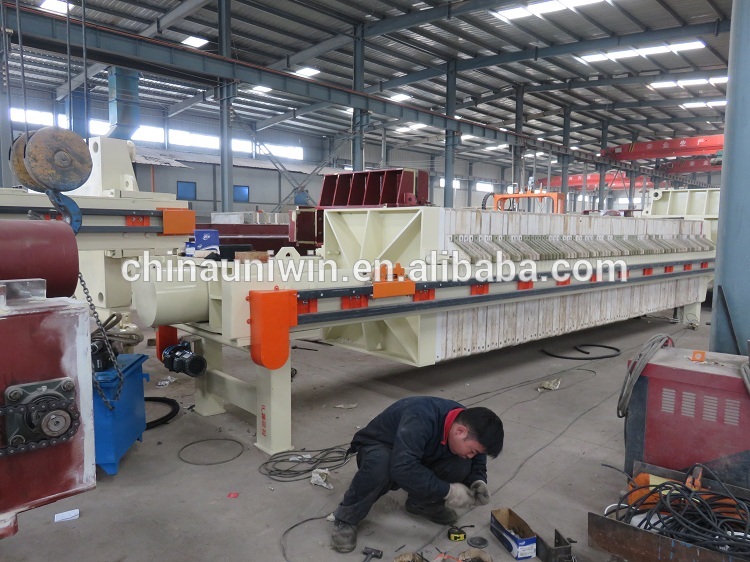

Workshop: the filter press frame is welded by high quality solid steel Q235 and Q345.the frame is the basic part of the filter press, both top are the thrust plate and pressed plate. the two part are connected by the both side crossbeam. the crossbeam is used to support the filter plate, filter frame and press plate.

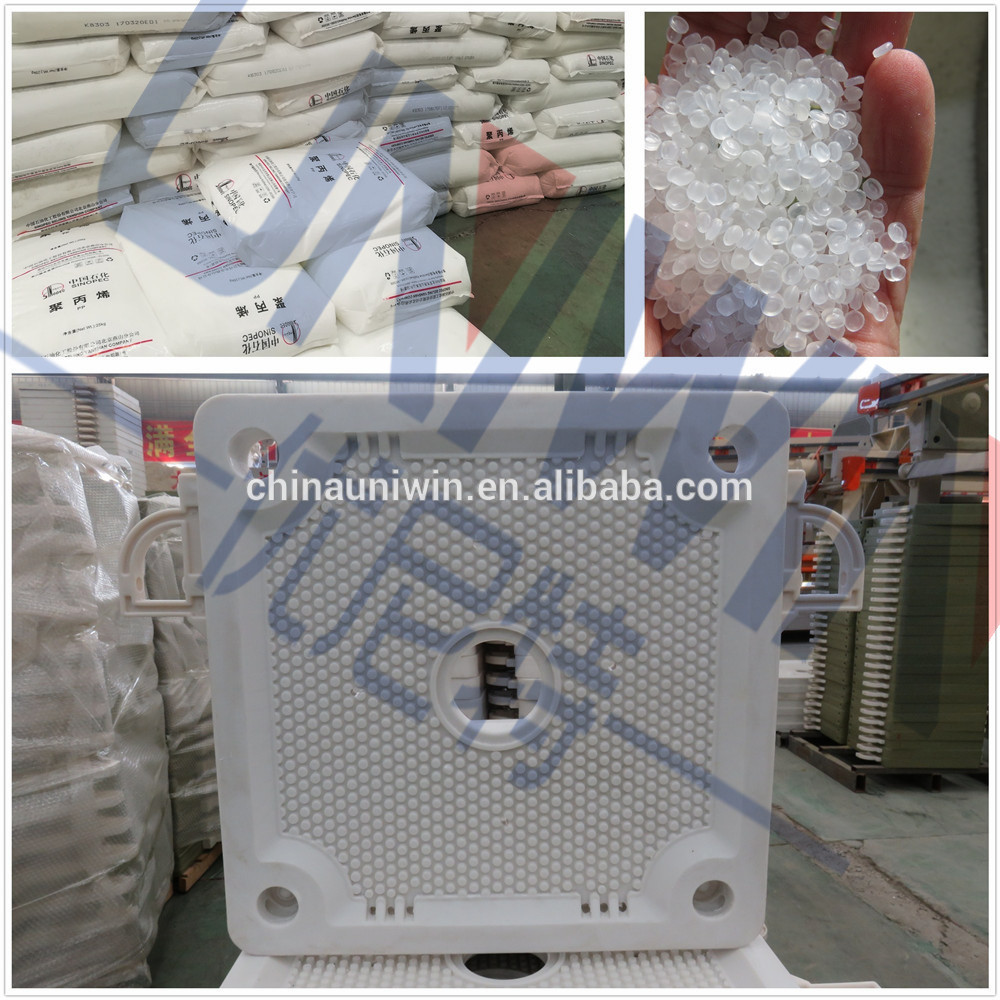

Filter plate: all of the filter plate made by high quality PP material. it can be used around 50000-80000 times.

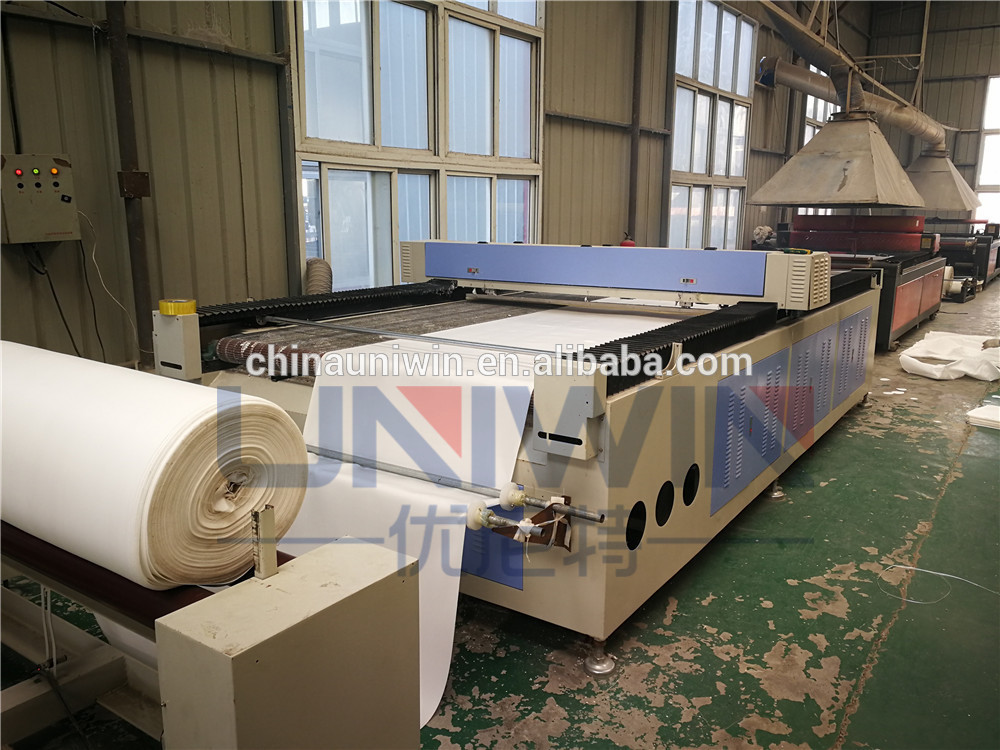

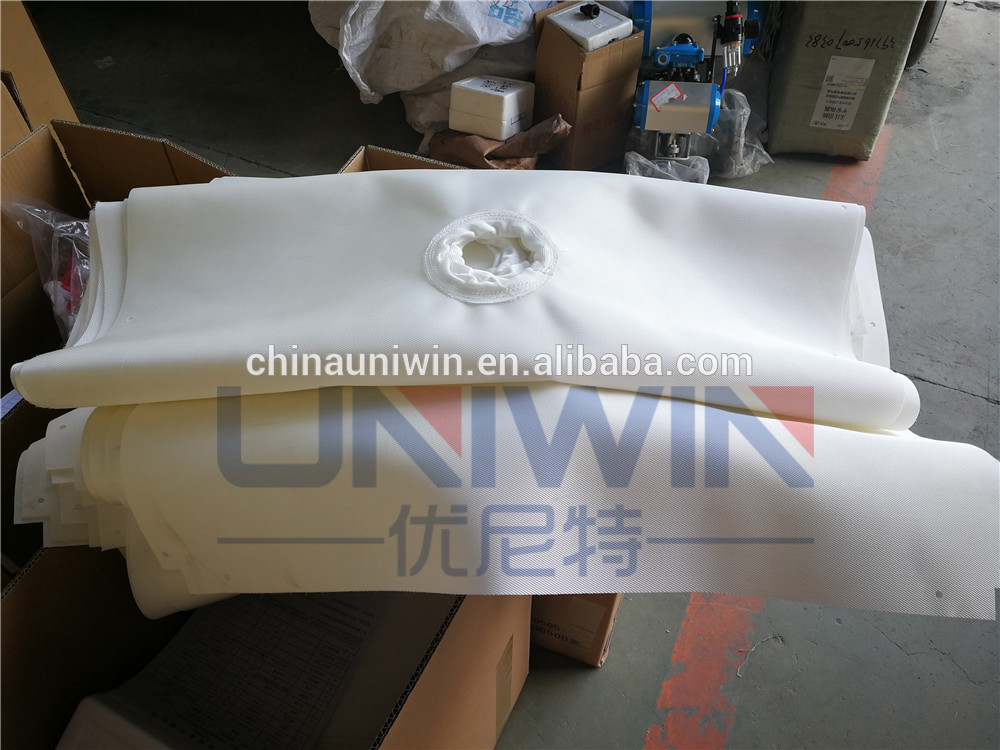

filter cloth: Filter cloth is the filtration media in the filter equipment, and also is the main accessories of the filter press. in general, the mesh density of the filter cloth can decide the filter precision. According to your slurry's temperature, viscosity and particle size, to select the suitable filter cloth.

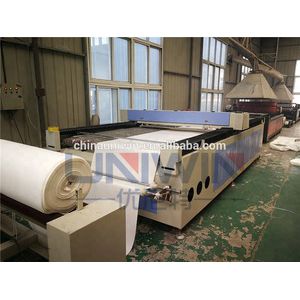

according to your special slurry, we can customize the filter cloth. you just need provide the size, material and breathability that you want.
Product feature:
1.working cycle is short, high efficiency
2.High pressure extrusion can greatly reduce the water content of the filter cake in a very short time.
3.Full automatic PLC control
4.Low noise, saving labor
Application of chamber filter press:
Pharmaceutical, chemical, standard parts, metallurgy, non-standard screws, dyes, food, brewing, ceramics, oil refining, sewage treatment and other environment protection industries.
Shippment

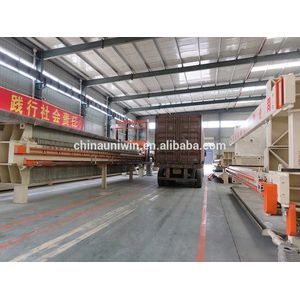

Our filter press packaged by export standard wooden box or whole container, also can according to client's requirement.
After sales-service:
1. Provide the installation manual .
2. One year warranty.
3. Still provide the best quality and service spare parts in the future for clients.
