Full automatic operation filter cloth washing filter press
Filter press is an equipment that makes use of a kind of special filtering medium, put definite pressure on object for discharging liquid. It is an equipment to separate solid and liquid in the common and intermittent way. Our company produces various models of chamber filter plate and plate-frame mechanical filter-press, hydraulic filter press, membrane filter press and full-automatic filter press and filter press spare parts.
2. Filtration area up to 2000m2

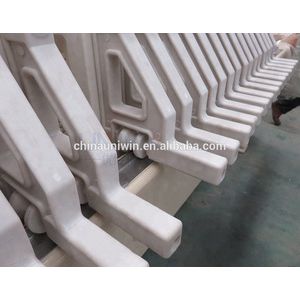

3. Filter plate materials: cast iron, rubber, reinforced polypropylene(PP), glass fiber polypropylene, etc.
4. Streamforms :seen flow, hidden flow, washable, non-washable, middle feeding and corner feeding, etc.
5.Filter plate pressing modes: manual screw pressing , electric mechanic pressing and hydraulic cylinder pressing. Special filter press can be made on request.

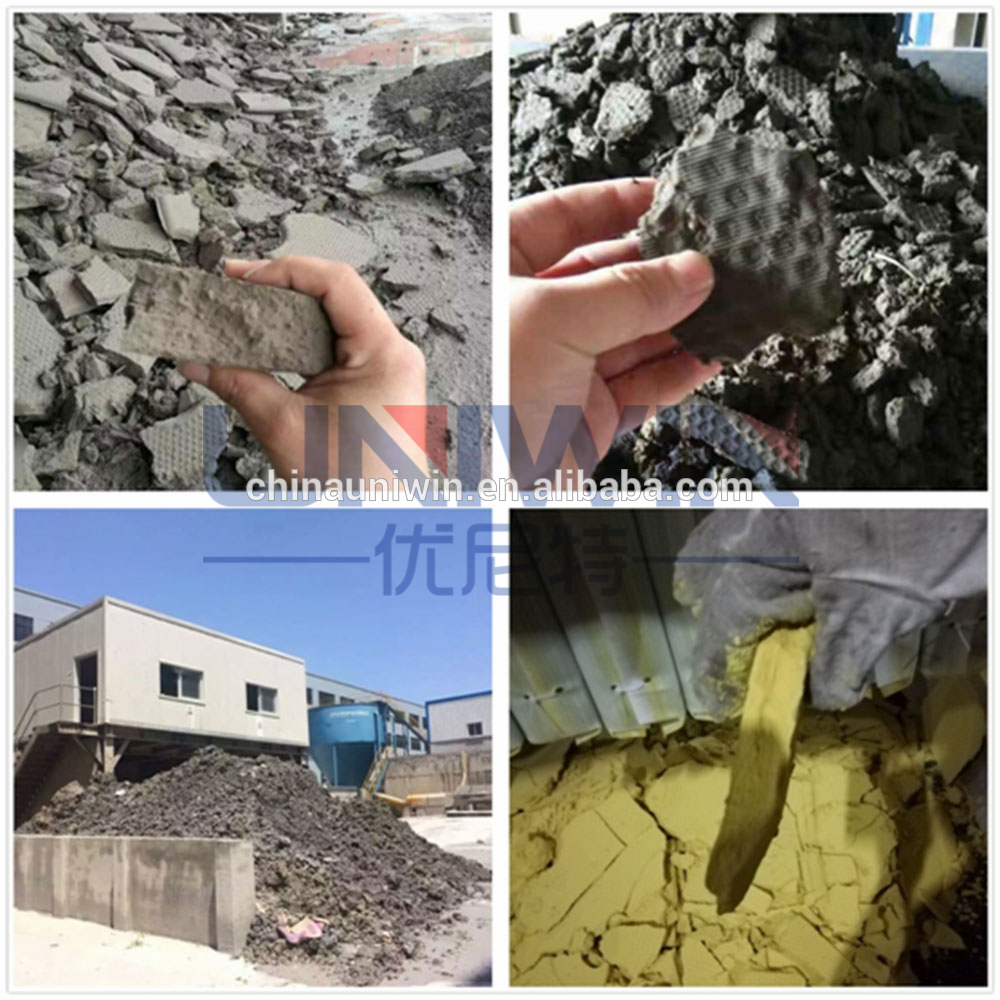

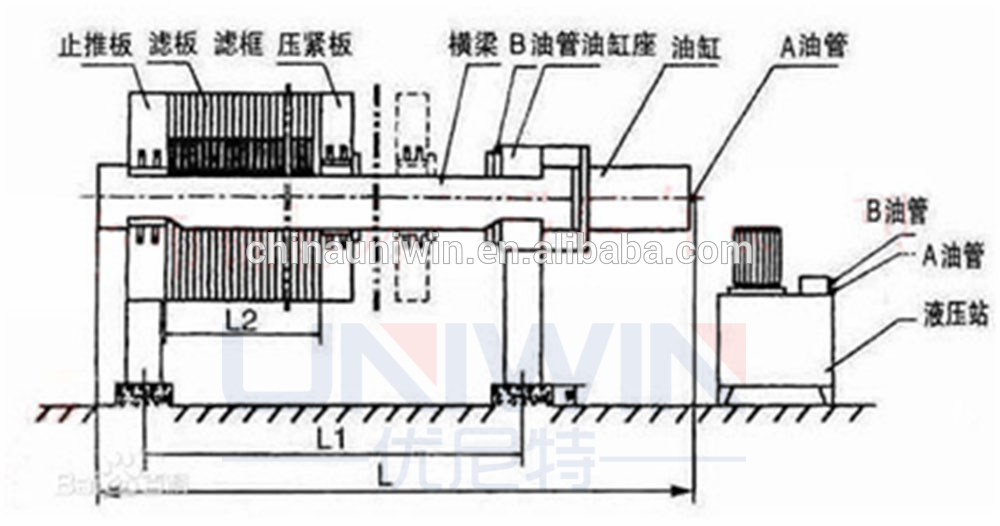

In the process of operation, press system(piston of the oil cylinder or lead screw drive ) push the head plate, compress the filter plate and filter cloth between head plate and end plate, then the filter chamber is formed between the compressed filter plate and filter cloth. Materials that are pushed by the feeding pump enter into each filter room through feeding hole of end plate. In this way, solid particles will be intercepted in the filter room and formed filter cake. And liquid will discharge from the liquid hole through filter cake and filter cloth. If it needs to wash the filter cake, we can use scouring water by washing hole of the tail-board. If it needs to dry the filter cake, feed into compresses air through washing hole.
Model | Filter area (M2) | Plate size (MM) | Filter chamber volume (L) | Plate NO. (PCS) | Filtration Pressure (MPA) | Weight (KG) | Dimensions L*W*H (MM) | Foundation size (MM) |
XMY100/1250 | 100 | 1250*1250 | 1468 | 36 | ≥0.6 | 6728 | 5020*1770*1600 | 3970 |
XMY120/1250 | 120 | 1746 | 43 | 7512 | 5470*1770*1600 | 4430 | ||
XMY140/1250 | 140 | 2063 | 51 | 8641 | 5990*1770*1600 | 4950 | ||
XMY160/1250 | 160 | 2341 | 58 | 9205 | 6450*1770*1600 | 5400 | ||
XMY180/1250 | 180 | 2619 | 65 | 10044 | 6905*1770*1600 | 5860 | ||
XMY200/1250 | 200 | 2896 | 72 | 10851 | 7360*1770*1600 | 6300 | ||
XMY220/1250 | 220 | 3214 | 80 | 11765 | 7880*1770*1600 | 6830 | ||
XMY250/1250 | 250 | 3650 | 91 | 12834 | 8600*1770*1600 | 7550 |
Medicine industry
Medical equipments such as injector, bandage, degreasing cotton, all kinds of medical feculences and wastes such as work drum, glove , gauze, blood transfusion tube, etc.
Chemical industry
Coating, paint, silica, caustic soda, soda ash, alkali, salt mud, new, water purification machines (aluminum, aluminum polymerization acetylacetonate, gypsum, insurance, phosphor, lithopone)
Metallurgy industry,
Coal, gold, silver, copper, zinc ore mineral powder, etc
Printing and dyeing industry
All kinds of dye particles in dyeing industry.
Foods industry,
Vegetable oil, monosodium glutamate, glucose, starch sugar, plant sweet, maltose, starch, maize, rice, Joan, seaweed, kara glue, milk, oral liquid,beer yeast, soy sauce, rice wine, white wine, fruit juice, beverage, plant protein, and spices
Brewing industry
Beer, vinegar, soy sauce, fruit wine, etc.
Wastewater Treatment
Printing and dyeing wastewater, sewage, smelting, leather, pharmacy sewage water brew, electroplating wastewater, sewage and waste, chemical electrolysis of water environment
Petroleum industry
Diesel oil, sesame oil, shortening dewaxing , etc.
Textile industry
The residual activated sludge in the back row was treated by biochemical method, and the chemical coagulation sludge was treated by physicochemical method, and the sludge was condensed by electrolysis, and the sludge was dehydrated.

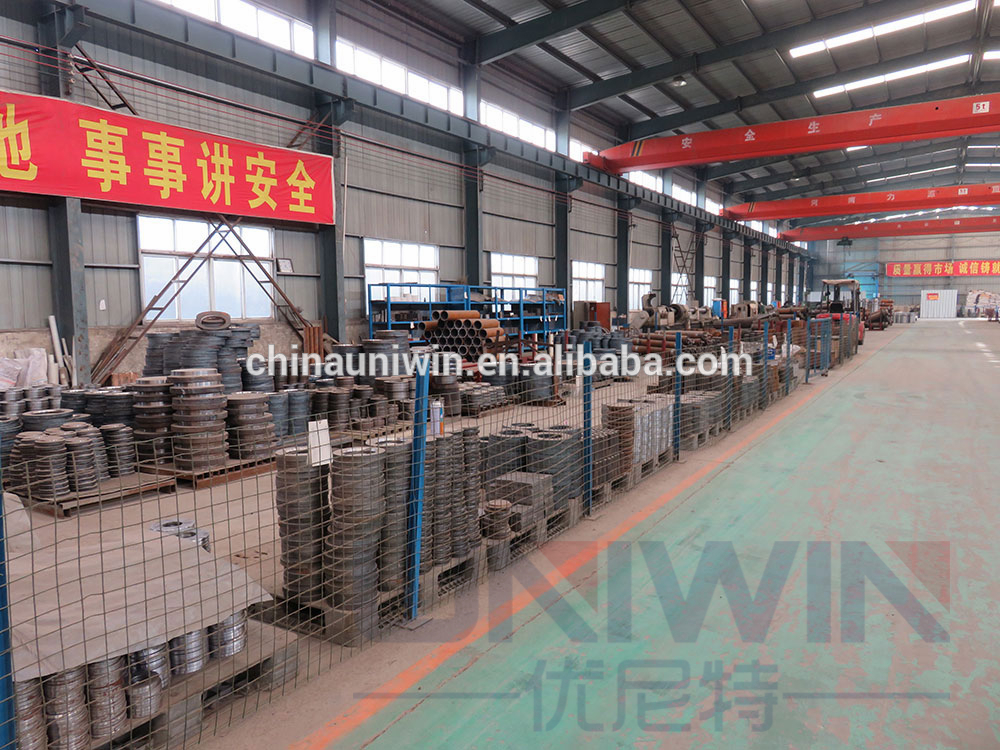

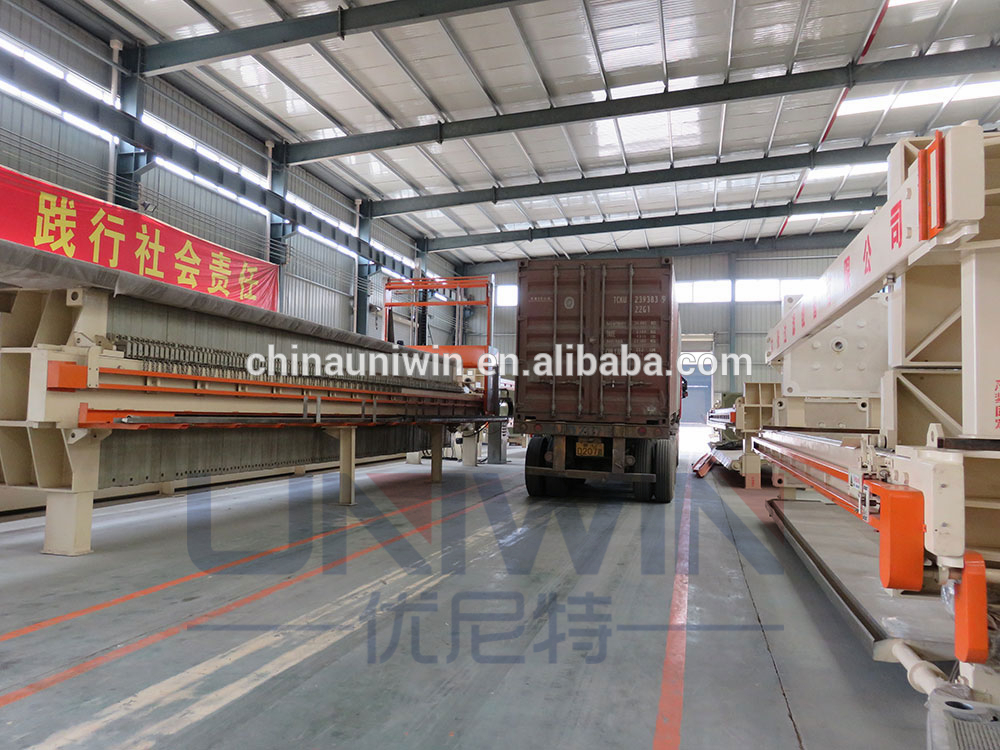

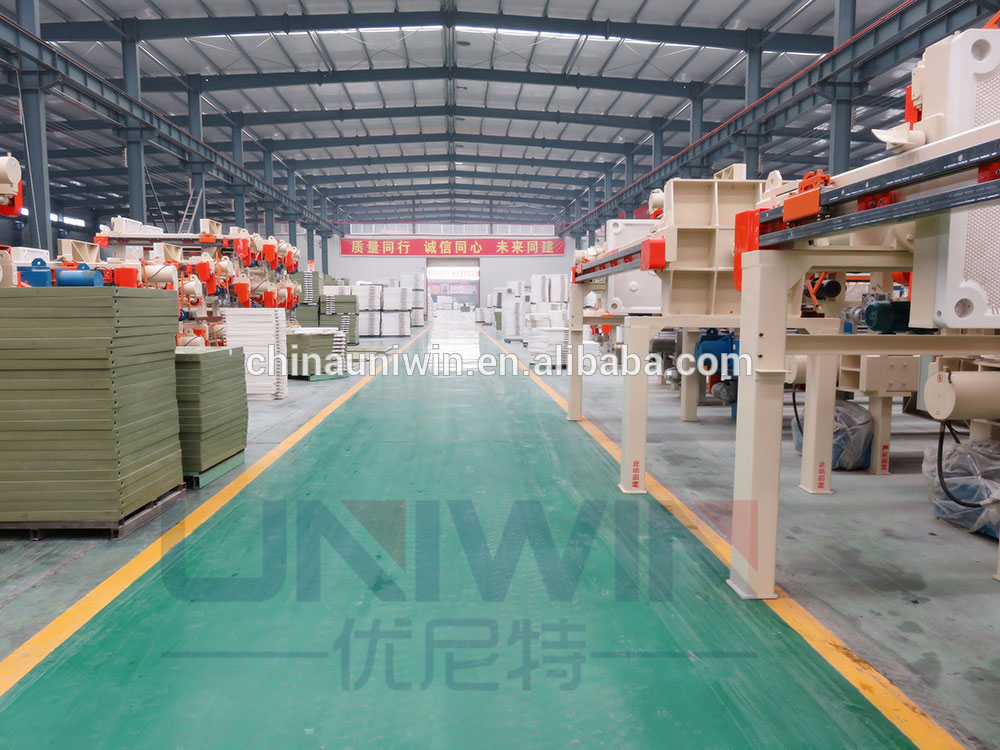

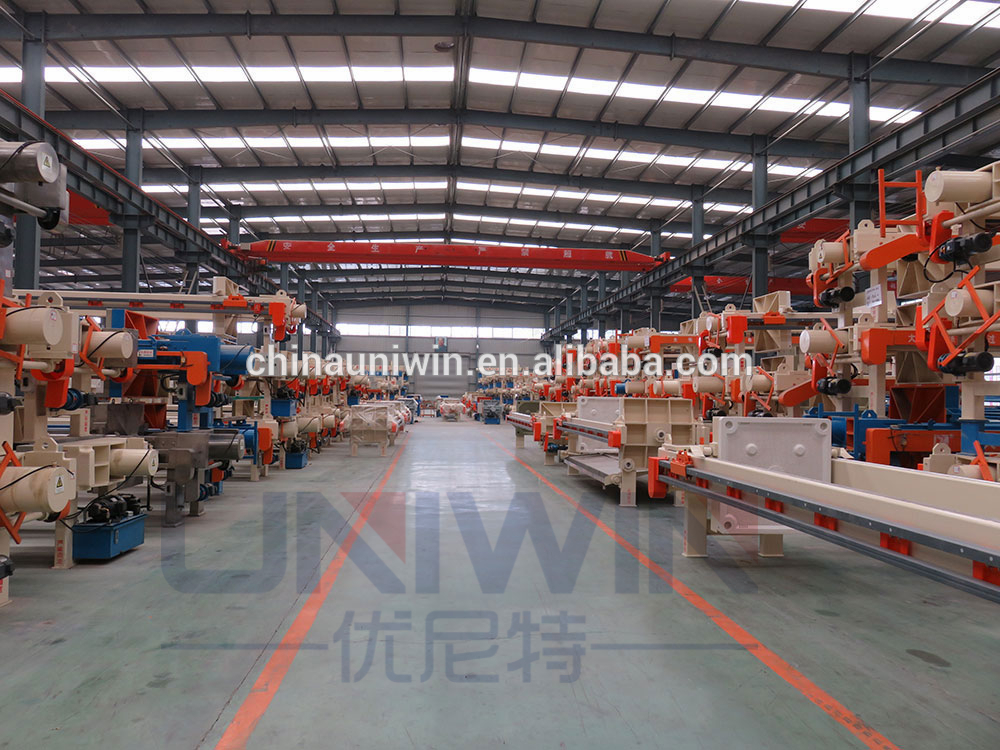

Production Workshop
Welding Workshop is for welding bulky frame
Machining Workshop is for fine processing of machine

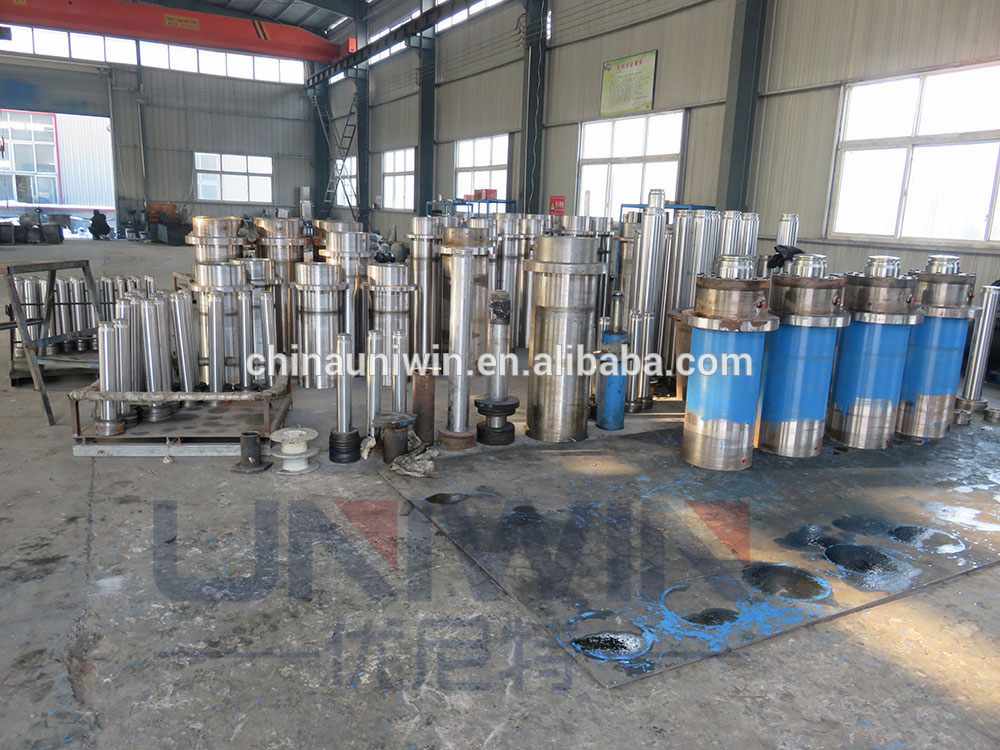

Hydraulic Workshop is for assembling and testing on hydraulic pressure station of the filter press
Packed Workshop is for molding and assembly of filter press
Filter Plate Workshop is for producing filter press
Finished-parts Storage is for storing finished filter press

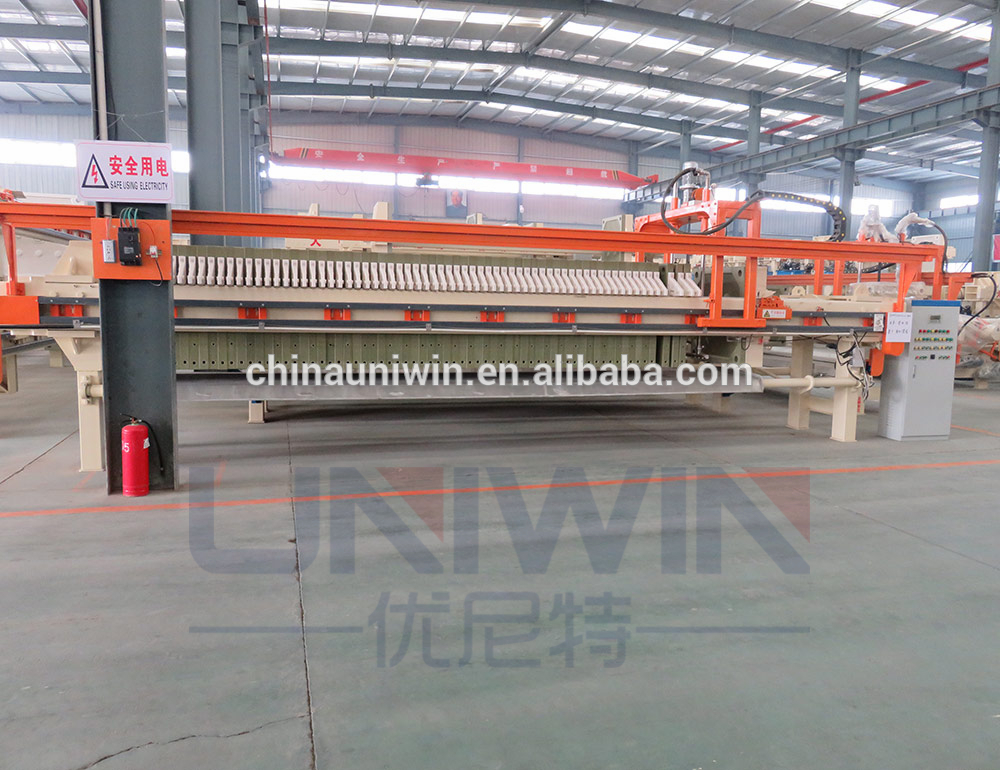

Finished Filter Press

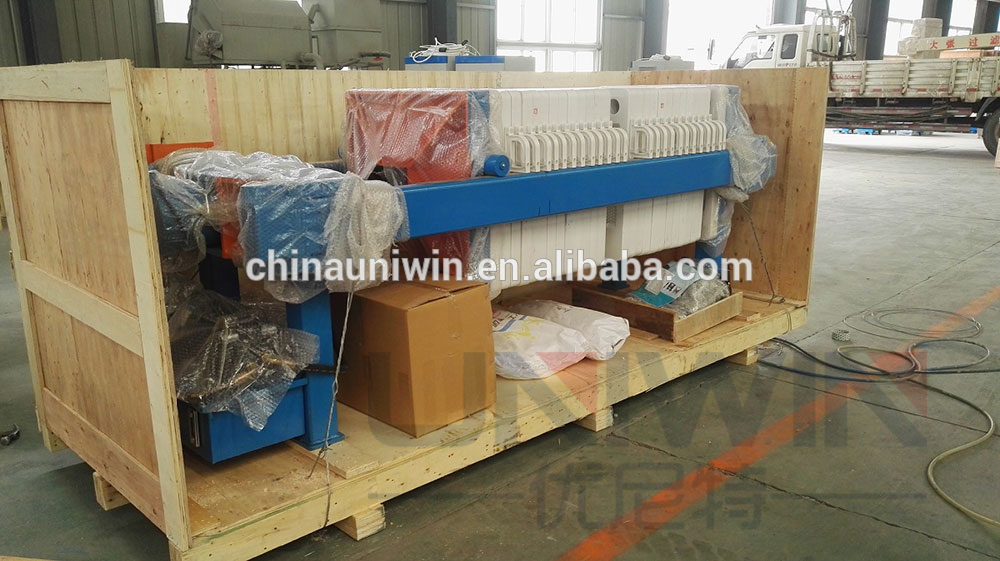

Plastic film wrap with wooden case packaging.
Guarantee and After-sale Service
One year guarantee for the machine after installation
24 hours technical support by Whatsapp /E-mail
Use friendly English user manual and videos.
Professional after sales department available for abroad installations.
Q:which country have your products been exported?
A:Many country, such as Kenya, America, Australia, Canada, South Africa, Mozambique, Turkey and so on.
Q:What's the costs of installation and commissioning?
A:No, our machine is easy to operate. Before delivery, our machines are installed. And we will send customers related productions' manual and detailed training video. In this way, customers can operate machines very well by themselves.
Q:What's the payment terms?
A: 30% T/T deposit, 70% T/T before delivery.
