New design machine grade vacuum spray freeze drying equipment

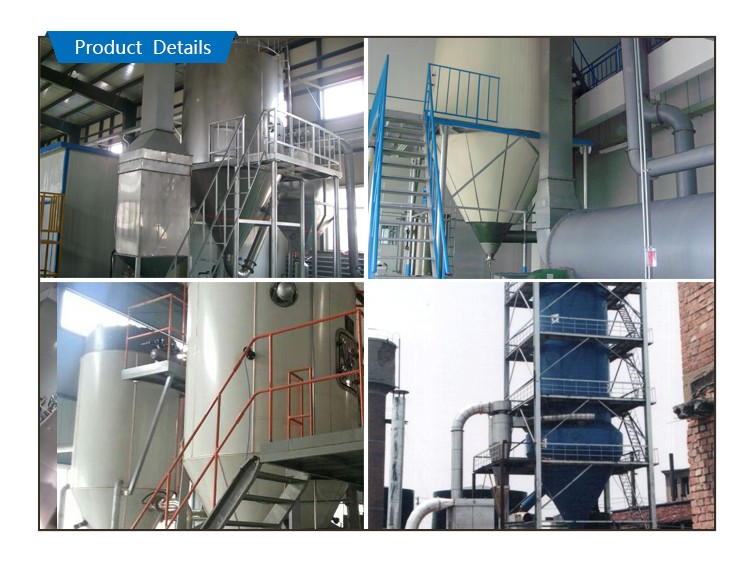

Product details
| Evaporation capacity(kg/h) | 80-108 |
| Process amount of material liquid (kg/h) | 80-108 |
| Output of finished product(kg/h) | 14.8-22.4 |
| solid content of material liquid (%) | 18-25 |
| Moisture content of finished product (%) | 2-5 |
| electrical power (kw) | 132 |
| heat source | steam plus electricity |
| automatic control meters instruments | indictor of not air and exhaust air temp. |
| temperature of air inlet (c) | 150-200 |
| temperature of air outlet (C) | 80-100 |
| Product Keywords | spray freeze drying equipment |
Features:
1.Tower body has air cooled jacket.
2.Tower body is equipped with automatic vibration device.
3.Tower body and pipe line have cleaning hole and sewage discharge hole that can open quickly.
4.Thermostat feeding tank on request.
5.Mannal high pressure washing machine on request.
6.The parts that can contact raw material are made of stainless steel (all entirely stainless steel).
7.The collecting of raw material adopts two grades cyclone or one-grade cyclone and one-grade wet-method-deduster.
8.The temperature of inlet air can be controlled automatically and continuously.
9.Equipped with air sweeping device on request.

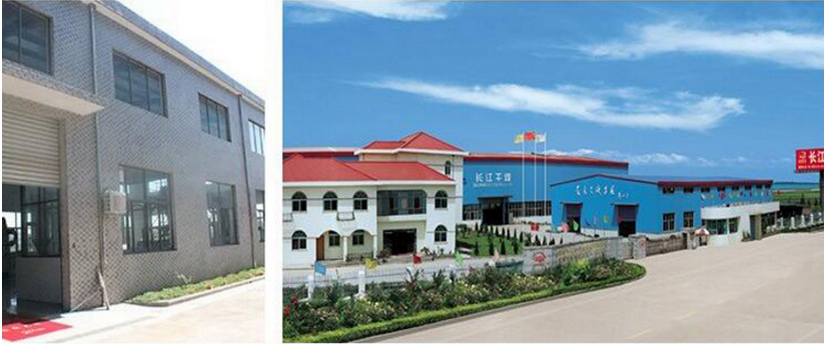

Changzhou Changjiang Drying Equipment Co. Ltd. is a fixed national drying equipment manufacturing enterprise, it is located at Jiaoxi industrial park, Zhenglu town, Changzhou city, China, and near Hengshanqiao exit of Shanghai –Nanjing Express way, only 8 km away from the downtown east ring road. Our company is engaged in designing,manufacturing and selling of large-scale drying engineering and equipment, and is very skillful at the drying of high sugar concentration and hygroscopic pasty materials such as polysaccharide food, Chinese medicine extracts, biological products, chemical raw materials, food additives etc., yearly capacity of manufacturing of all kinds of drying equipment is over 300 sets.
PACKAGE:
seaworthy packing
DELIVERY TIME:
30- 60days after confirming order,The main mode of transport is by sea
