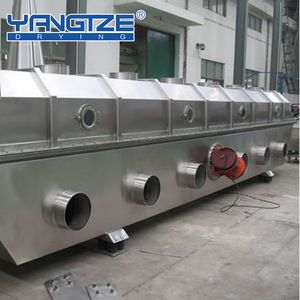

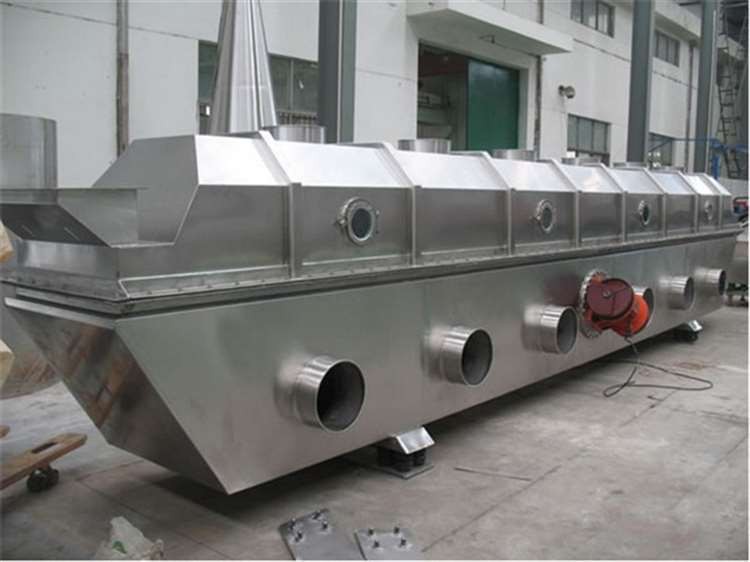

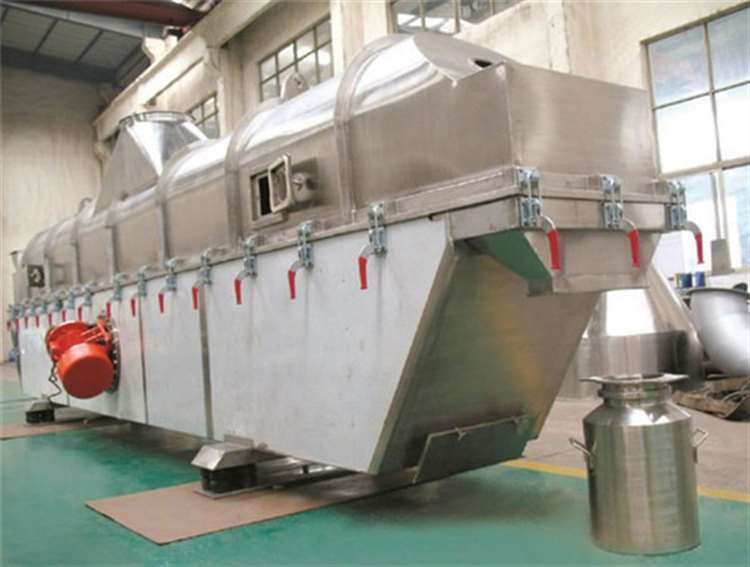

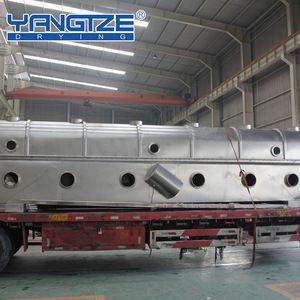

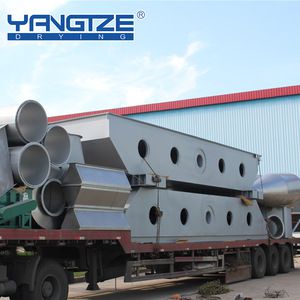

High quality machine grade citric acid fluid bed dryer

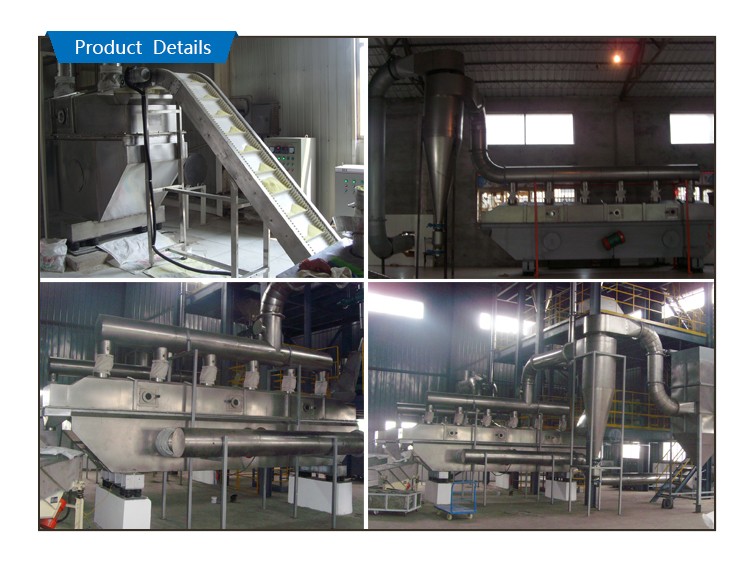

Product details
| Area of fluidized -bed (m2) | 0.9 |
| Temperature of inlet air (C) | 70-140 |
| Temperature of outlet air | 40-70 |
| Capacity to vapor moisture(kg/h) | 20-35 |
| Power (kw) | 0.8x2 |
| MODEL | GZQ8-6 |
| weight(kg) | 1250 |
| Size | 3x0.3 |
| type | Fluid Bed Drying Equipment |
| Material Contact Area | SUS304, SUS316 |
| Product Keywords | fluid bed dryer |
Features:

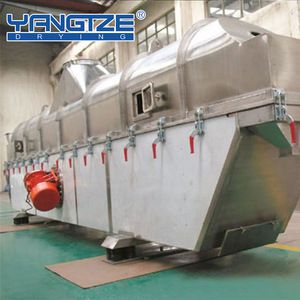

1. Adopt vibration motor, it is smooth in running and convenient in maintenance. The noise is low and the service life is long.
2.The state of fluidization is uniform and no dead gaps or broken phenomenon so to have dry ,cool product.
3.It is good in adjustment and wide in the field of application. The thickness of raw material and the speed of raw material to be moved inside the machine and the change of vibration range can be steeples.
4.The damage the surface of raw material is small. So it can be used for raw materials that are easily to be broken. 5.If the granule is not normal, the effect of process can not be effected.
6.The structure is fully seal, it is effective to prevent from cross pollution of raw materials and the working environment is clean.
7.The mechanical and heat are high and its effective of energy saving. Compared to ordinal dryer, 30-60% of energy is saved.
Material to be dried
It is applicable for drying, cooling of powder or granule state materials, such as citric acid, monosodium glutamate, borax, ammonium sulphur, compound fertilizer, piece of radish, bean, lees, seed, mine reside and sugar, in chemical, pharmaceutical, foodstuff, grain, mine and so on industries.
Working Principle
Raw material is feed into the machine from equipment inlet and move forward continuously along with the horizontal direction under vibratory power. The hot air passes through fluidized-bed and exchange with raw materials’damp, then the wet air is dusted by cyclone separator and exhausted from air outlet, the dried material is discharged through finished material outlet.

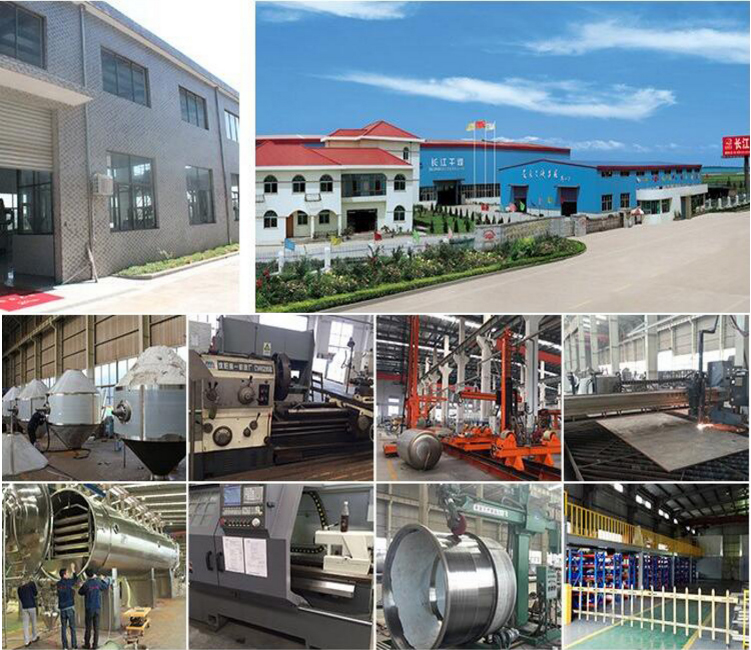

Changzhou Changjiang Drying Equipment Co. Ltd. is a fixed national drying equipment manufacturing enterprise, it is located at Jiaoxi industrial park, Zhenglu town, Changzhou city, China,Our company is engaged in designing,manufacturing and selling of large-scale drying engineering and equipment, and is very skillful at the drying of high sugar concentration and hygroscopic pasty materials such as polysaccharide food, Chinese medicine extracts, biological products, chemical raw materials, food additives etc., yearly capacity of manufacturing of all kinds of drying equipment is over 300 sets.
