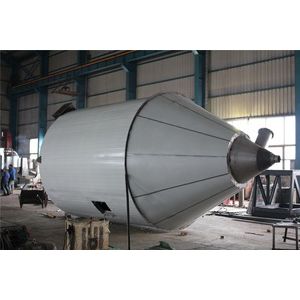

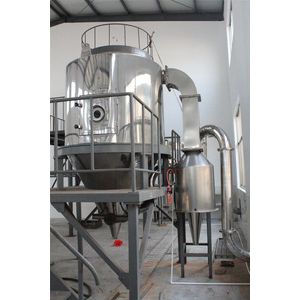

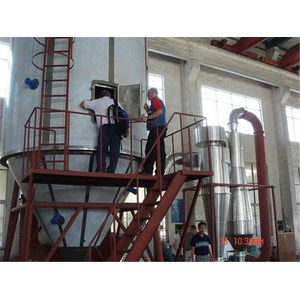

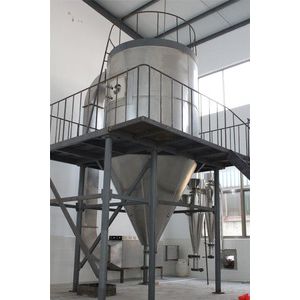

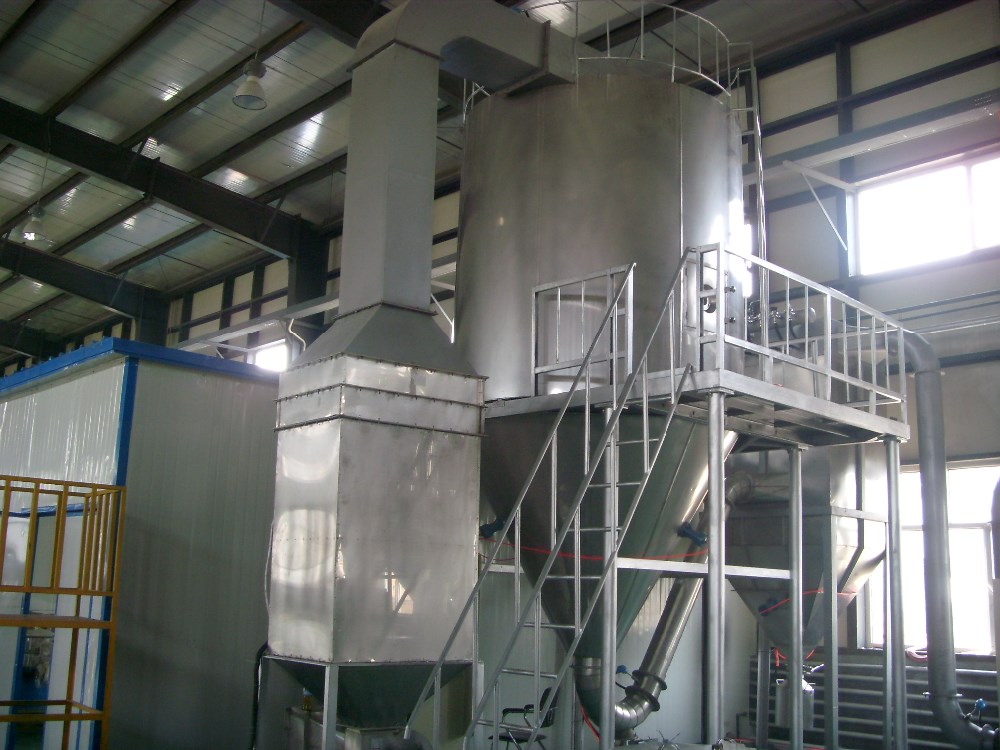

ZLPG Chinese Herbal Medicine Extract Spray Dryer Pharmaceutical Extractor Machine adopts full seal from.All parts are made of stainless steel.It is equipped with three grades of filter.The filtered air is one hundred thousand grades.The cooling device of wall is installed at the cylinder body.It makes the wall temperature less than 80℃.Air sweeping device is installed inside the drying tower. The product will not be burnt or deteriorated even stays on the way.The collection rate of powder is raised greatly.Moreover will not cause medicine mixed or wall stick.
Basic Principle:high-speed centrifuge atomizing for the extract of traditional Chinese medicine is an application of centrifuge atomizing technique.It is an high-speed atomizing dryer.The following problems are solved.
packaged
or used by the following process.
1).Adopted three-grade air filter,the inlet air is one hundred thousand grade.
(2).Adopted wall cooling device,the temperature of inner wall will be on more than 80℃.Even if raw material is stayed on the wall,it will not be burnt.
(3).Its whole volume is 3.5 times of standard LPG high-speed atomizing dryer.
(4).Adopted quick washing device,it is can meet the requirements of production for varieties if products.
(5).Adopted wet-dedusting,there is no powder dust out.It is in conformity with the requirements of GMP.
(6).Adopted air sweeping device ,the clean effect is satisified.
(7).Equipped with two sets of atomizer and adopted frequency inverter control.
(8).Adopted PLC control and display,and adapted frequency control.
(9).Equipped with washing device on request.
(10).Adopted the seal transport by dry air on request.
| Spec |
ZLPG-25
| ZLPG-50 | ZLPG-80 | ZLPG-100 | ZLPG-150 | ZLPG-200 | ZLPG-300 | |
evaporated amount of moisture(kg/h)
| 25 | 50 | 80 | 100 | 150 | 200 | 300 | |
output of finished procuct(kg/h)
| 4.8-7.2 | 9.2-14 | 14.8-22.4 | 18.4-28 | 24-42 | 36.8-56.4 | 55-85 | |
Process amount of material liguid(kg/h)
| 25-34 | 50-68 | 80-108 | 100-135 | 150-203 | 200-270 | 300-406 | |
solid content of damp raw material(%
| 18-25 | |||||||
Moisture content of finished product (%) | 2-5 | |||||||
Electric power(kw)
| 63 | 99 | 132 | 153 | 204 | 246 | 330 | |
Heat Source
| steam plus electricity | |||||||
colleting way of product and its efficiency | two-grade cyclone duster of one-grade cyclone duster and one-grade damp duster ≥95% | |||||||
automatic control meters and instrument
| indicator of temperature of hot air and humidity of air exhaust | |||||||
Temperature of air inlet (C)
| 150-200 | |||||||
Temperature of air oulet( C)
| 80-100 | |||||||
Overall dimension(mm)
| 7000 | 8000 | 9800 | 11000 | 12200 | 14100 | 15000 | |
| 4000 | 5000 | 5700 | 6200 | 7000 | 7800 | 9000 | ||
| 5200 | 6500 | 7600 | 8100 | 9000 | 9850 | 11100 |
Characteristics
1.Tower body has air cooled jacket.
2.Tower body is equipped with automatic vibration device.
3.Tower body and pipe line have cleaning hole and sewage discharge hole that can open quickly.
4.Thermostat feeding tank on request.
5.Mannal high pressure washing machine on request.
6.The parts that can contact raw material are made of stainless steel (all entirely stainless steel).
7.The collecting of raw material adopts two grades cyclone or one-grade cyclone and one-grade wet-method-deduster.
8.The temperature of inlet air can be controlled automatically and continuously.
9.Equipped with air sweeping device on request.
Changzhou Changjiang Drying Equipment Co. Ltd. is a fixed national drying equipment manufacturing enterprise, it is located at Jiaoxi industrial park, Zhenglu town, Changzhou city, China, and near Hengshanqiao exit of Shanghai –Nanjing Express way, only 8 km away from the downtown east ring road. Our company is engaged in designing,manufacturing and selling of large-scale drying engineering and equipment, and is very skillful at the drying of high sugar concentration and hygroscopic pasty materials such as polysaccharide food, Chinese medicine extracts, biological products, chemical raw materials, food additives etc., yearly capacity of manufacturing of all kinds of drying equipment is over 300 sets.
