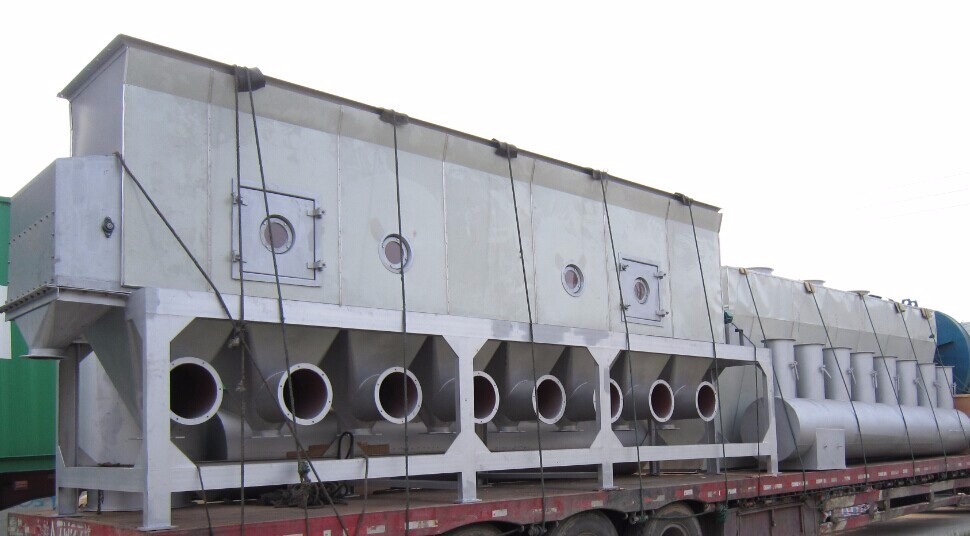

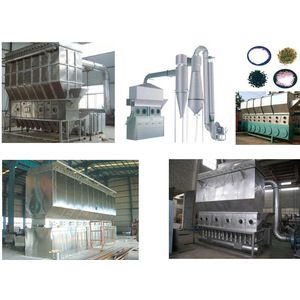

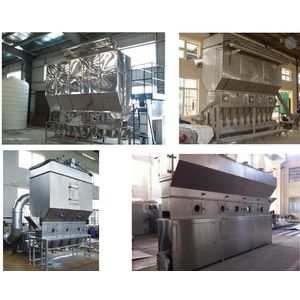

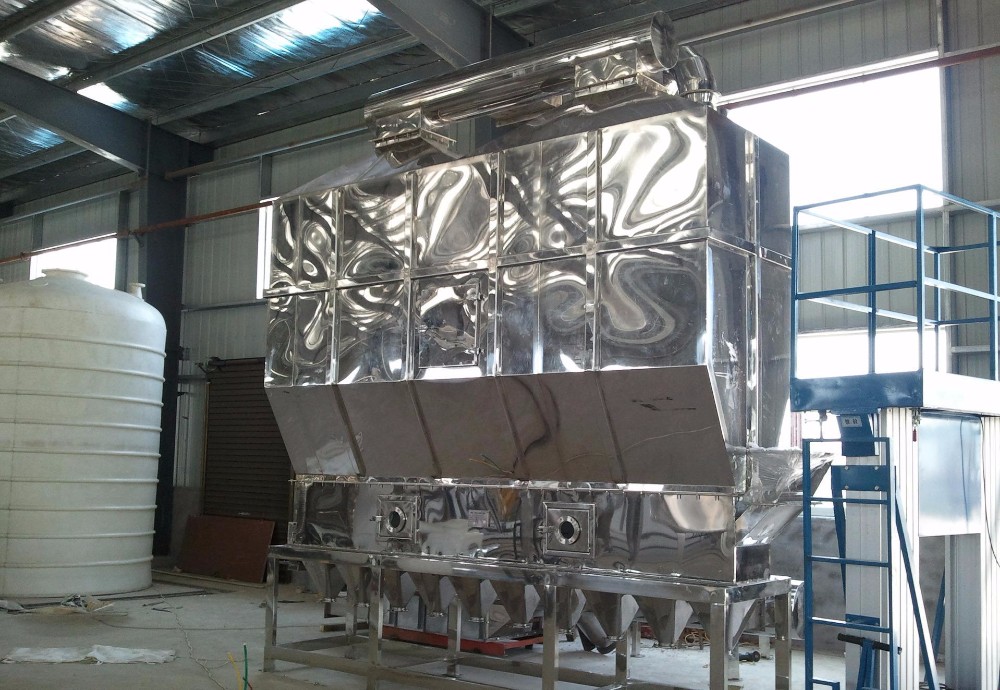

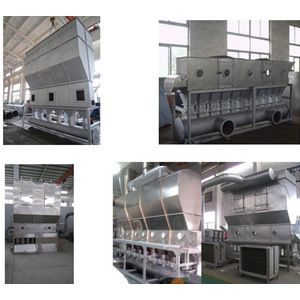

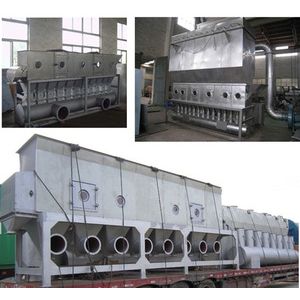

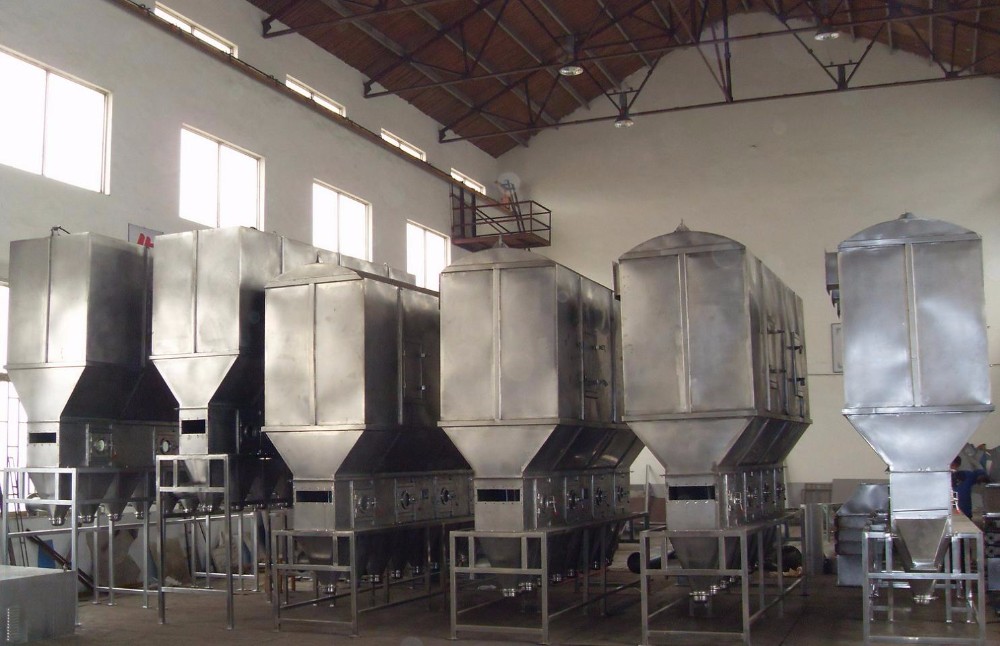

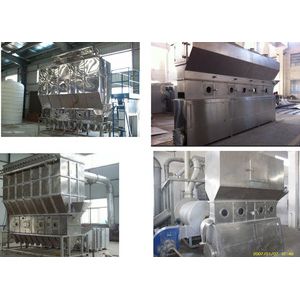

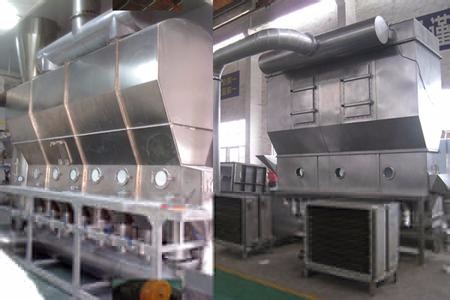

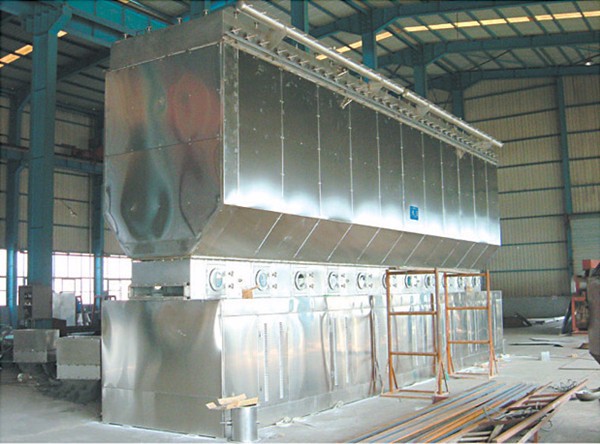

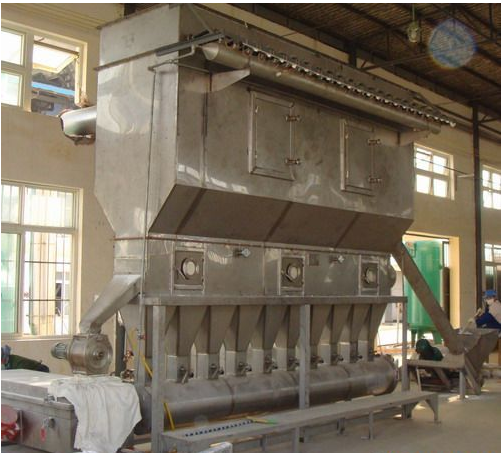

monosodium glutamate Fluidizing Dryer is also called fluid bed. Through operation and improvement over 30 years, it has play an active part in the fields of pharmaceutical, chemical, foodstuff, gain and so on industries. It consists of air filter, fluid bed, cyclone separator, dust collector, high-speed centrifugal fan, and control cabinet and so on. Because of the difference of property from raw material, it is necessary to equip dust remover in accordance with practical needs. It may select cyclone separator and dust collector both or one of them. In general, cyclone separator can be selected if the raw material is larger and the dust collector may be selected if the raw material is light. Moreover, there is pneumatic feeding device for your selection.
Automatic production can be realized. It is continous drying equipment. Its features are quick in drying speed ,Iow in drying tempment ,It can guarantee the quality of produtcts and is in conformity with the requirements of GMP
Granule or pellet solid materials are fed into the fluidized bed dryer through the feeder. Filtrated clean air is heated and charged onto the bottom of the fluidized bed to contact with the solid materials on the distributing plate, where fluidization can be reached and the heat exchange between solid and air can be achieved. After being dried, the products are discharged from the outlet. Waste gas is discharged from the top of the fluidized bed, and powder materials are recovered by the cyclone separator or bag dust remover.
APPLICATION
:This fluidized bed dryer is suitable for drying pellet or granule materials such as raw materials for medicine, pellets, traditional Chinese medicine drink granules in pharmaceutical industry, plastic resin, citric acid and other powder or granule materials in chemical industry. It also can dry grain, corn embryo, feed etc. The most suitable diameter of the material is 0.5-3mm.
INSTRUCTIONS FOR INSTALLATION
:Fluidized bed, cyclone separator and cloth bag dust extractor should be placed on flat concrete groud without any screws on foundation. The air blower may be installed indoors or outdoors with foundation and screws. The plane design can be pantly adjusted in accordance with the building conditions.No air should leak from the air pipe system so as not influence the drying efficiency.
Type
| Bed area m2 | Drying capacity (water kg/h) | Air blower | Air intake temp(°C) | Material discharge temp (°C) | Heating energy consumption | |||
| Power (kw) | Air pressure (Pa) | Air volume (m3/h) | Steam(kg/h) | Elec power(kw) | |||||
XF-10A
| 0.25 | 10-15 | 5.5 | 4900 | 2300 | 60-140 | 40-80 | 50 | 30 |
XF-10B | 0.25 | 4 | 3800 | 2300 | |||||
XF-20A | 0.5 | 20-25 | 7.5 | 5000 | 3100 | 100 | 60 | ||
XF-20B | 0.5 | 5.5 | 3500 | 3100 | |||||
XF-30A | 1.0 | 30-45 | 15 | 6000 | 4200 | 150 | 90 | ||
XF-30B | 1.0 | 11 | 4700 | 4200 | |||||
XF-50A | 2.0 | 50-80 | 22 | 7400 | 6000 | 250 | 150 | ||
| XF-50B | 2.0 | 18.5 | 5900 | 6000 |
Fluidized bed ,cyclone separator and cloth bag dust extractor should be placed on flat concrete ground without any screws on foundation. The air blower may be installed indoors or outdoors with foundation and screws. The plabe design can be pantly adjusted in accordace with the building conditions , No air should leak from the air pipe system so as to influence the drying efficiency.
