LPG High-speed wheat gluten spray dryer CE newest type Application
LPG High-speed wheat gluten spray dryer CE newest type is the technology most widely used in the liquid technology shaping and in the drying industry. The drying technology is most suitable for producing solid powder or particle products from liquid materials, such as: Solution, emulsion, suspension and pumpable paste states, For this reason, when the particle size and distribution of the final products, residual water contents, mass density and the particle shape must meet the precise standard, spray drying is one of the most desired technologies.
LPG High-speed wheat gluten spray dryer CE newest type Principle:
After been filtered and heated the air enters into the air distributor on the top of the dryer. The hot air enters into the drying room in the spiral form and uniformly. Passing through the high-speed centrifugal sprayer on the top of the tower, the material liquid will rotate and be sprayed into the extremely fine mist liquid beads. Through the very short time of contacting the heat air, the materials can be dried into the final products. The final products will be discharged continuously from the bottom of the drying tower and from the cyclones. The waste gas will be discharged from blower.
model item parameter | 5 | 25 | 50 | 100 | 150 | 200 | 300 | 500 | 800-5000 |
inlet temperature | 300-350 automatic control | ||||||||
outlet temperature | 80-100 | ||||||||
way of atomizing | air transmission | high speed centrifugal atomizer | |||||||
water Evaporate capacity (kg/h) | 5 | 25 | 50 | 100 | 150 | 200 | 300 | 500 | 800-5000 |
speed of atomizer(rpm) | 25000 | 18300 | 18300 | 15500 | 11000-12000 | ||||
Dia of atomizer(mm) | 50 | 110 | 120 | 120 | 150-180 | 180-210 | in accordance with the request | ||
Dried powder recovery rate % | 95%-99.9% | ||||||||
Length of covered area m | 1.8 | 4 | 4.5 | 5.2 | 7 | 7.5 | in accordance with the flow chart , condition of field and requirements of customers | ||
Width of covered area m | 1.0 | 2.7 | 2.8 | 3.5 | 5.5 | 8 | |||
heigh of tower body m | 2.31 | 4.5 | 5.5 | 6.7 | 7.2 | 8 | |||
hoisting height of nozzle (m) | 1.6 | 1.8 | 2 | 2 | 2.5 |

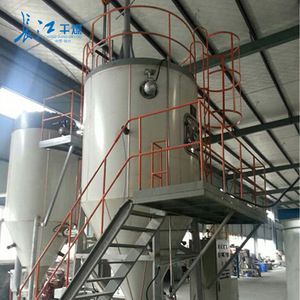

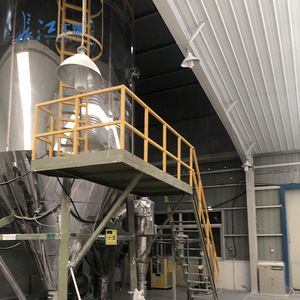

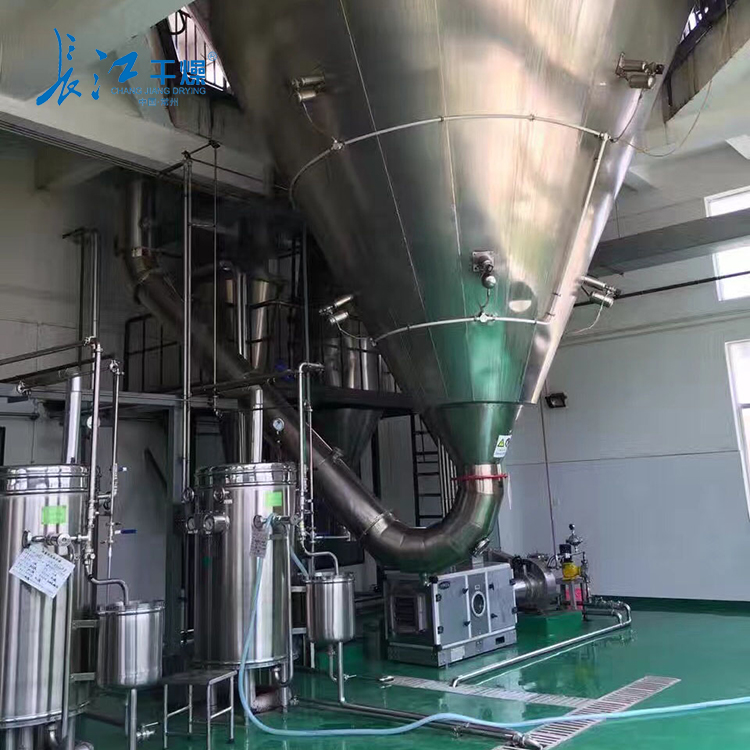

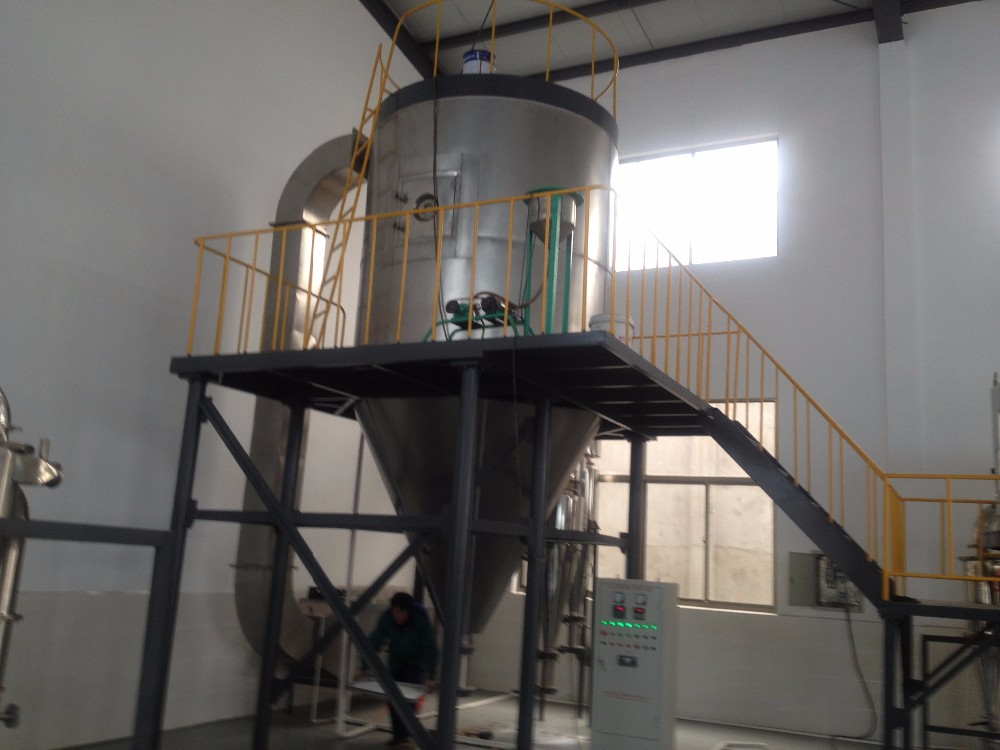

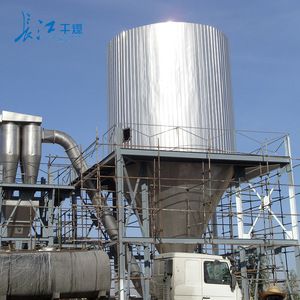

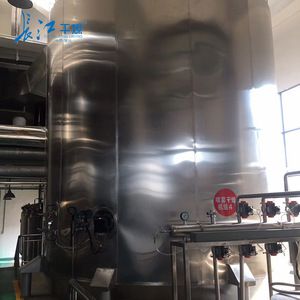

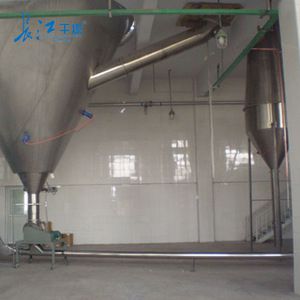

Detail Pictures
Main Features
The drying speed is high when the egg powder liquid is atomized,the surface area of the egg powder will increase greatly.In the hot-air flow,95%-98% of water can be evaporated at a moment.The time of completing the drying is only several seconds. This is especially suitable for drying the heat sensitive materials.
Its final products own the good uniformity, flow ability & solubility. And the final products are high in purity and good in quality.
