LH76-770 oil sludge or lightweight concrete use industrial peristaltic squeeze hose pump
Please tell us your required output and pressure, then suitable model with different speed will be offered accordingly.
Description:
LH series industrial hose pump (peristaltic pump) consists mainly of pump house, rotor, roller, idle roller, squeeze tube and driving unit. The squeeze hose is U-shape in pump house, when rotor drives roller to rotate, hose is deformed. After the roller rotate, the deformed hose recover by its elasticity. Thus the negative pressure in this hose is generated, sucking slurries, and discharging through outlet under roller's push, finally forms pressure conveying of slurries.
LH series industrial hose pump are mainly applied in distant conveying, grouting and dosing of viscous slurries in construction, mining, food, papermaking, ceramic, etc.
Application
LEC industrial peristaltic pumps can be used in following field: Construction, pharmacy, textile mill, dye making, water treatment, paper making, mining, ceramic, brewery and beverage, underground engineering, etc. It's perfect to pump corrosive, abrasives, shear sensitive fluids, high viscosity fluids, high density fluids, large solids, metering(±1%), high pressure(3Mpa).
Features:
No seals
No valves
Self -priming
Only tube to replace
Dry running without damage
Reversible
No contact between product and mechanical parts
Able to pump products with solid parts inside
Easy maintenance, low-cost, short down time
Please tell us your required output and pressure, then suitable model with different speed will be offered accordingly.
Description:
LH series industrial hose pump (peristaltic pump) consists mainly of pump house, rotor, roller, idle roller, squeeze tube and driving unit. The squeeze hose is U-shape in pump house, when rotor drives roller to rotate, hose is deformed. After the roller rotate, the deformed hose recover by its elasticity. Thus the negative pressure in this hose is generated, sucking slurries, and discharging through outlet under roller's push, finally forms pressure conveying of slurries.
LH series industrial hose pump are mainly applied in distant conveying, grouting and dosing of viscous slurries in construction, mining, food, papermaking, ceramic, etc.
Application
LEC industrial peristaltic pumps can be used in following field: Construction, pharmacy, textile mill, dye making, water treatment, paper making, mining, ceramic, brewery and beverage, underground engineering, etc. It's perfect to pump corrosive, abrasives, shear sensitive fluids, high viscosity fluids, high density fluids, large solids, metering(±1%), high pressure(3Mpa).
Features:
No seals
No valves
Self -priming
Only tube to replace
Dry running without damage
Reversible
No contact between product and mechanical parts
Able to pump products with solid parts inside
Easy maintenance, low-cost, short down time
| Pump mode | Output 1/h | Pressure MPa | Rev. r/mm | Max. Particle Dia mm | Max. Suct. Left m | Motor Power kw |
| LH10 | 60 | 0.6 | 45 | 2 | 2 | 0.37 |
| LH10B | 100 | 0.6 | 80 | 2 | 2 | 0.37 |
| LH15 | 210 | 0.6 | 45 | 2 | 2 | 0.55 |
| LH15B | 300 | 0.6 | 75 | 2 | 2 | 0.55 |
| LH25 | 800 | 1.5 | 50 | 3 | 3 | 1.1 |
| LH25B | 1300 | 1.5 | 80 | 3 | 3 | 1.5 |
| LH32 | 1300 | 1.5 | 50 | 3 | 4 | 2.2 |
| LH32B | 1800 | 1.5 | 75 | 3 | 4 | 2.2 |
| LH38 | 2000 | 1.5 | 40 | 5 | 4 | 2.2 |
| LH38B | 2700 | 1.5 | 55 | 5 | 4 | 3.0 |
| LH38C | 3500 | 1.5 | 70 | 5 | 4 | 4.0 |
| LH50-558 | 4200 | 1.5 | 35 | 6 | 5 | 4.0 |
| LH50-558B | 5400 | 1.5 | 45 | 6 | 5 | 5.5 |
| LH50-680 | 6300 | 1.5 | 35 | 6 | 5 | 7.5 |
| LH50-680B | 8000 | 1.5 | 45 | 6 | 5 | 7.5 |
| LH65-680 | 9200 | 1.2 | 40 | 8 | 5 | 7.5 |
| LH65-680B | 12000 | 1.5 | 45 | 8 | 5 | 11.0 |
| LH65-770 | 13500 | 1.2 | 45 | 8 | 5 | 11.0 |
| LH65-770B | 16500 | 1.0 | 55 | 8 | 5 | 11.0 |

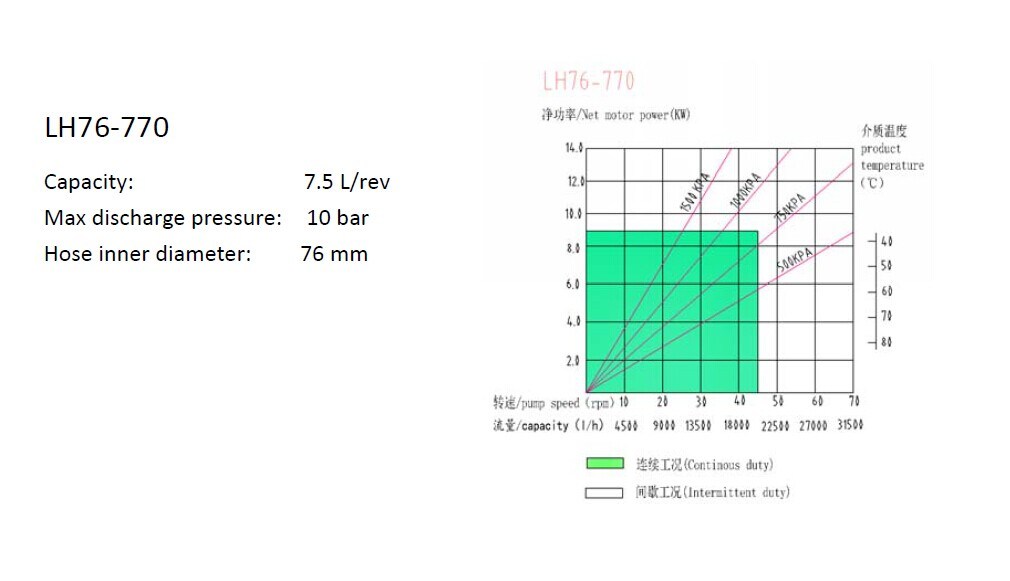

| LH76-770 | 18000 | 1.0 | 45 | 10 | 5 | 11.0 |
| LH76-770B | 22000 | 1.0 | 55 | 10 | 5 | 15.0 |
| LH76-915 | 24000 | 1.0 | 50 | 10 | 5 | 15.0 |
| LH76-915B | 28000 | 1.0 | 40 | 10 | 5 | 18.0 |
| LH100 | 33500 | 1.0 | 35 | 15 | 5 | 18.0 |
| LH100B | 42000 | 0.75 | 45 | 15 | 5 | 18.0 |
