Characteristic:

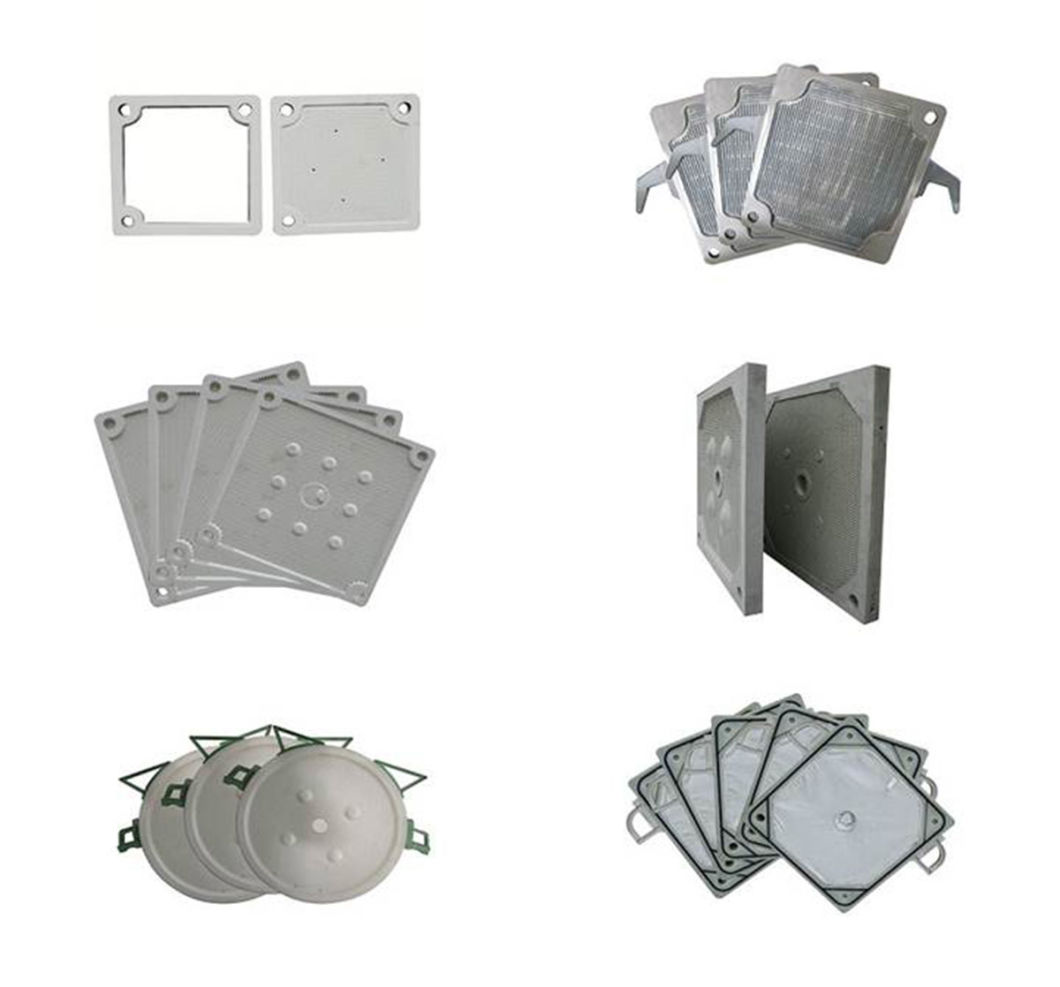

The reinforced PP filter plate featured in high strength, light weight, anti-corrosive, acid and alkaline resistant, non-toxic and odorless is molding pressed with patent technology.
It is easy operation and maintenance as the machine is compressed by hydraulic jack and mechanical locking.
The maximum filtering (squeezing) pressure is 2.0Mpa (20Bar)
The frame is welded steel structure with stable mechanical performance, small type and beautiful appearance.
The reinforced PP filter plate featured in high strength, light weight, anti-corrosive, acid and alkaline resistant, non-toxic and odorless is molding pressed with patent technology.
It is easy operation and maintenance as the machine is compressed by hydraulic jack and mechanical locking.
The maximum filtering (squeezing) pressure is 2.0Mpa (20Bar)
The frame is welded steel structure with stable mechanical performance, small type and beautiful appearance.
| Filter area m^2 | 1 | 2 | 3 | 4 | 5 | ||
| Quanity of filter plate | 5 | 11 | 15 | 21 | 27 | ||
| Chamber uolume m^3 | 15 | 30 | 45 | 60 | 75 | ||
| Quanity of filter plate/membrane plate | 2/3 | 5/6 | 7/8 | 10/11 | 13/14 | ||
| Dimension | X | L | 1390 | 1690 | 1890 | 2190 | 2490 |
| W | 630 | ||||||
| H | 850 | ||||||
| XG | L | 1405 | 1720 | 1930 | 2245 | 2560 | |
| H | 630 | ||||||
| W | 850 |
