High Pressure Low Moisture Kaoline Circular Filter Press Machine

Features1. Automatic hydraulic maintaining pressure.2. Main beam is made of high quality carbon steel with sand blasting processing and it is of high intensity and corrosion resisting.3. Pure reinforced PP filter plate resistes to stronger corrosion

Technical Feature

  • Shanghai, China
  • 1000 Sets/Year
  • L/C, T/T
  • 22 MPa
  • Activated Carbon
  • Pressure
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$0~25

PRIMARY PARAMETERS

Model NO.
XM/XA
Machine Type
High Pressure Filter Press Machine
Weight
3346 - 6860 Kg
Plate Size
800 mm
Plate Qty
20 - 80 PCS
Chamber Vol.
255 - 1200 L
Cake Thickness
25, 30 mm
Trademark
Leadcrete
Transport Package
in Wooden Case or in Standard Container
Specification
ISO9001-2008&CE
Origin
Henan China
HS Code
84131900

DETAIL DESCRIPTION

High Pressure Low Moisture Kaoline Circular Filter Press Machine

Features
1. Automatic hydraulic maintaining pressure.
2. Main beam is made of high quality carbon steel with sand blasting processing and it is of high intensity and corrosion resisting.
3. Pure reinforced PP filter plate resistes to stronger corrosion and endure high pressure and service longer.
4. Every plates is tested under high pressure 27 MPa.
5. The flatness of the filter plate is lower than 25μ M.
6. Hydraulic pistons are made by steel 45 after surface processing with feature of high hardness, anti-wearing, long life-span.

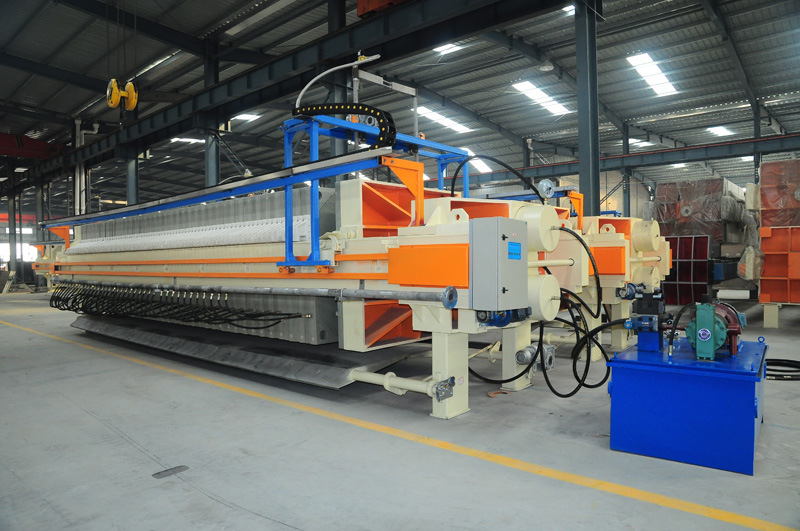

High Pressure Low Moisture Kaoline Circular Filter Press Machine
Optional choice
1. Plate Shifting System
2. Bomb Door.
3. Water Channels.

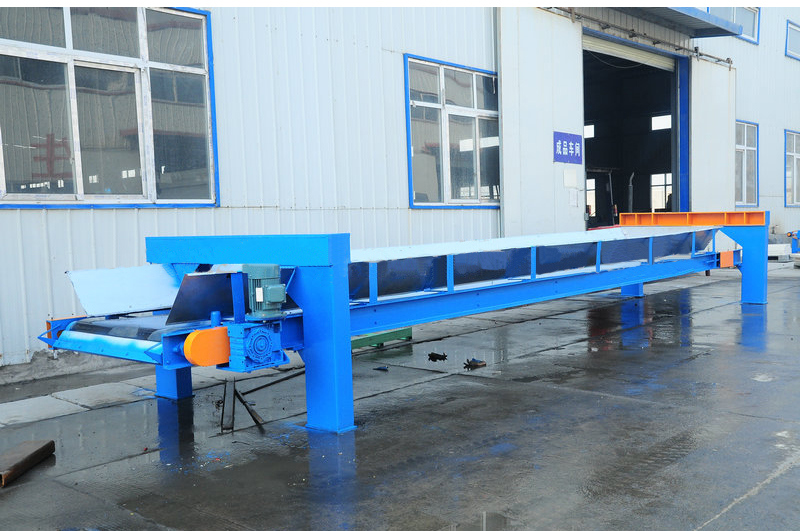

4. Guiding Conveyor.
5. Cake Collector.
Model No.(Standard Version)XMY30/630-30UXMY20/630-30UXMY10/450-30U
FrameQ235 Carbon Steel
Output8 cu.m./h5.3 cu.m./h2.7 cu.m./h
Filter Area30 sq.m20 sq.m10 sq.m
Plate Size630*630 sq.mm630*630 sq.mm450*450 sq.mm
Cake Thickness30 mm30 mm30 mm
Chamber Volume452 L297 L151 L
Plate Number37 pcs24 pcs24 pcs
Filtration Pressure0.6 Mpa0.6 Mpa0.6 Mpa
Motor Power2.2 kW2.2 kW2.2 kW
Plate MaterialPPPPPP
Weight2360 kg2272 kg2200 kg
Dimensions3590*900*1100 cu.mm2940*900*1100 cu.mm2700*700*900 cu.mm
Discharging MethodManualManualManual

High Pressure Low Moisture Kaoline Circular Filter Press Machine

High Pressure Low Moisture Kaoline Circular Filter Press Machine
