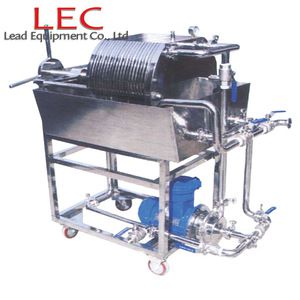

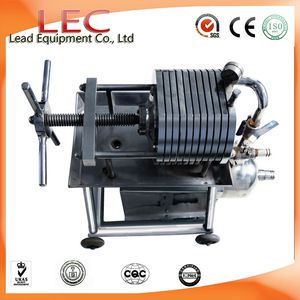

wine filter press
Advantages of stainless steel plate filter press :
1. full stainless steel
2. corrosion-resistant durability
3. Flexible application
4. high temperature, non-toxic, no leakage, good sealing performance
Application of stainless steel plate filter press :
Used for solid-liquid separation of a variety of suspension. Applied widely in pharmacy industry, food and beverage industry, wine and beer making, chemical industry, water processing, textile industry, environment protection, and so on.
Working principle of stainless steel plate filter press :
Suspension is pumped into every closed press filter room, under pressure, filtrate go through filter layers, discharge from outlet, leaving residue in the frames to form into filter cakes.
Feature of stainless steel plate filter press :
* Made of SUS304, SUS316L high quality stainless steel. Corrosion-resisting
* Thread-like filter plate, user could adopt different filter mediums according to different needs
* User could change the number of layers according to filtration yield
* Filtering under pressure sealing, no loss of material liquid, high liquid clarity
* Multi-level filtering system is optional for customize
* All sealing parts adopt silicone rubber seals, nice sealing performance with heat-resisting, non-toxic, non-leakage
* Reflux system is optional for customize
Technical Data:
Item | Description |
Layer | 10 |
Filtering area | 0.34 m² |
Filter size | 200 mm |
Filter media | 0.8 um |
Filter pressure | 0.15 Mpa |
Water flow | 2 t/h |
Motor power | 1.1 kw |
Weight | 25 kg |
Dimensions | 650x400x700 mm³ |

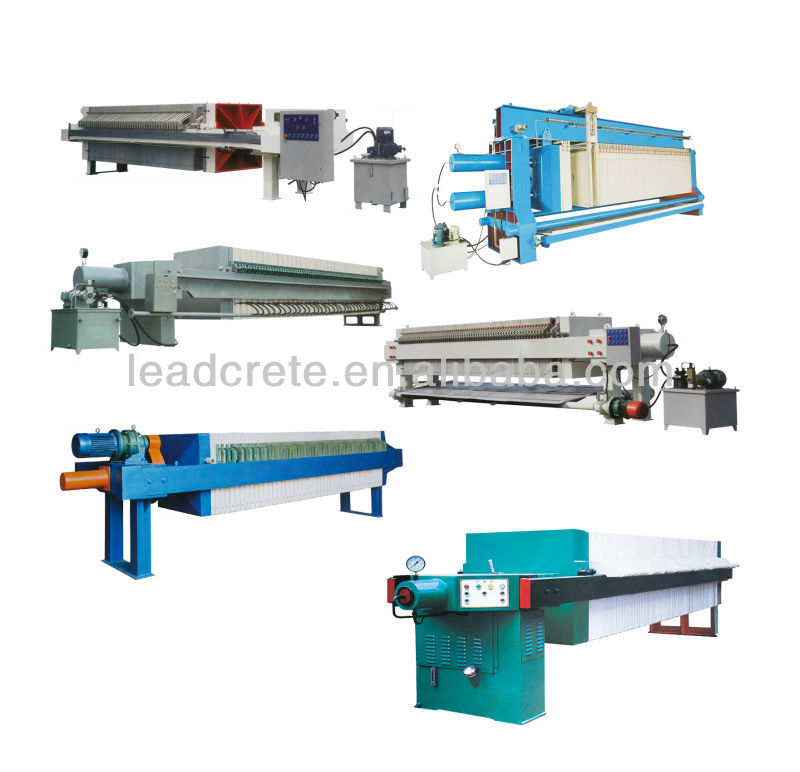

Our products:

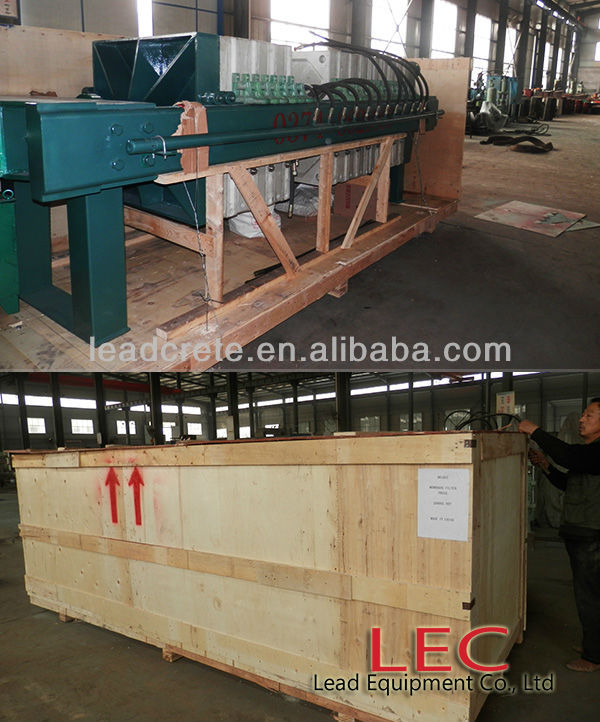

Export Packaging:

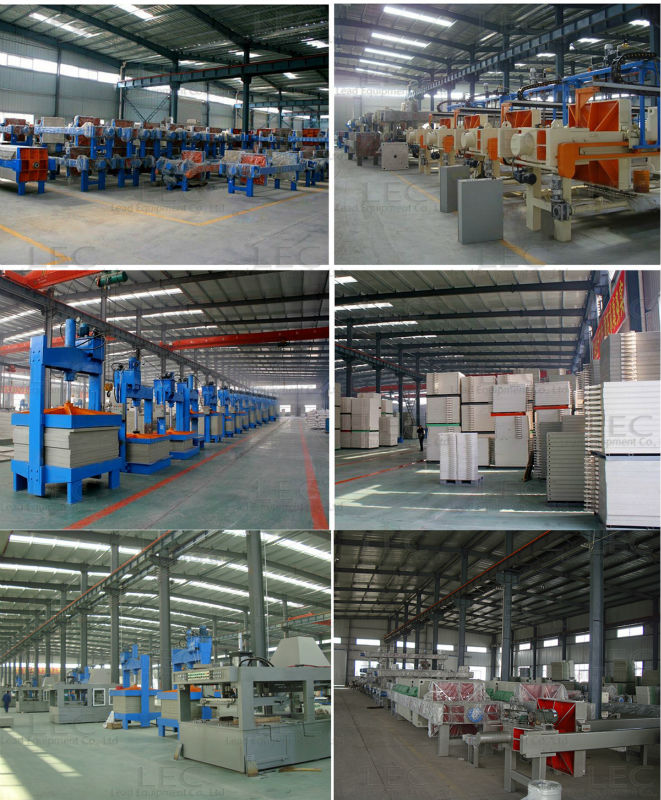

Our Factory
Our cirtification:
