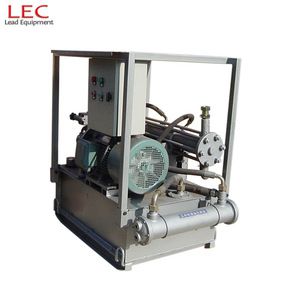

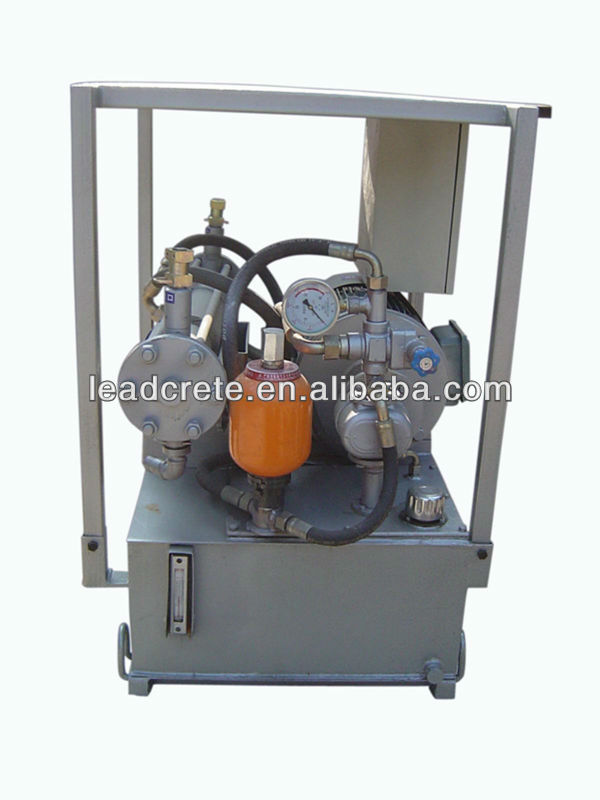

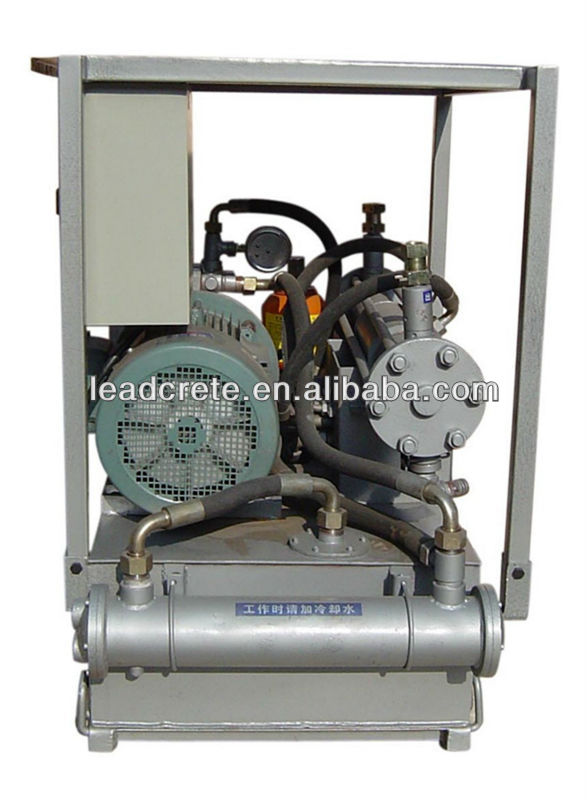

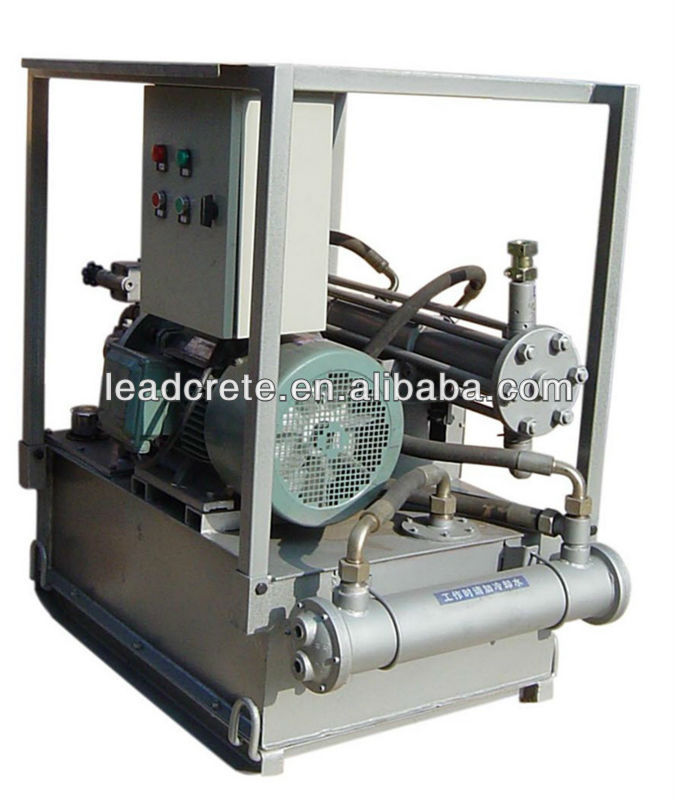

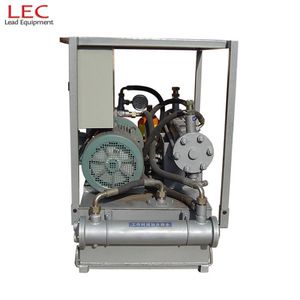

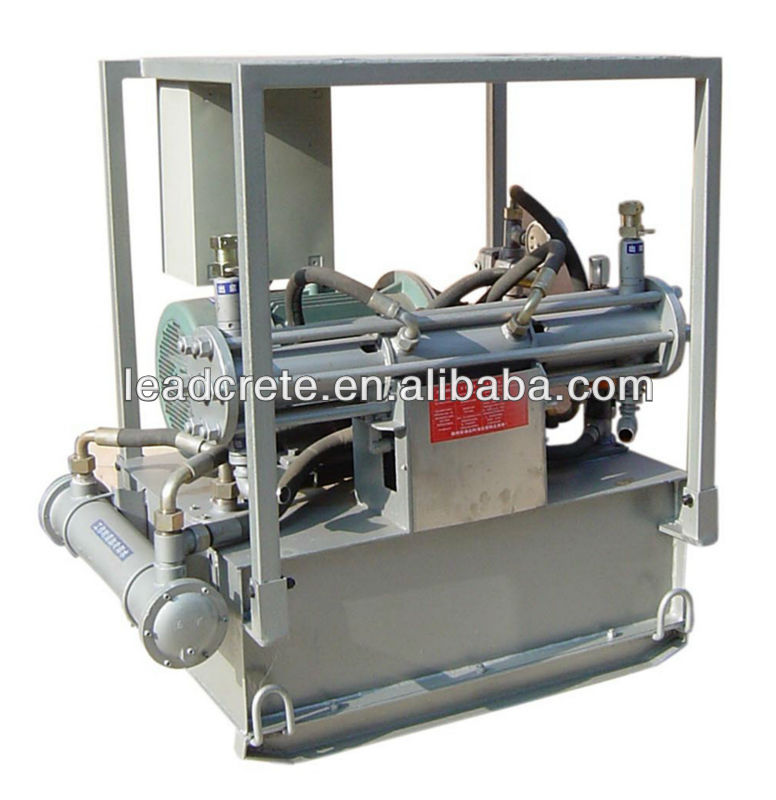

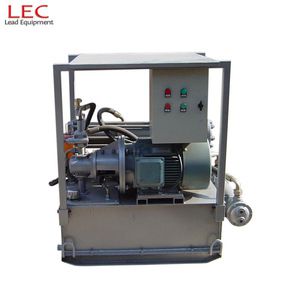

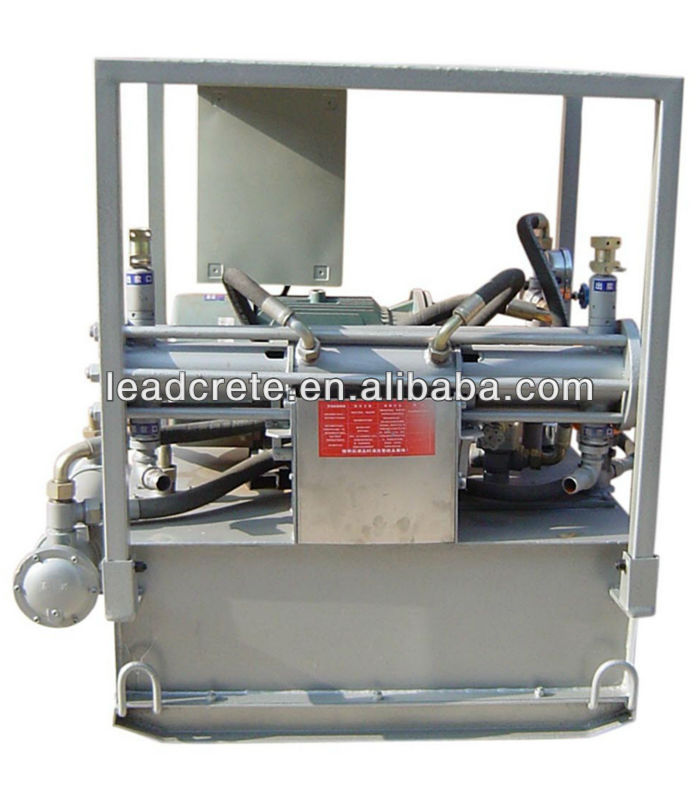

LGH-H high output flow and pressure cement grouting pump machine
LGH-H series hydraulic electric grout pump is suitable for grouting pulgging project of high pressure and large displacement.This hydraulic grout pump transmits pressure signals by working medium(slurry and hydraulic oil)to form closed-loop automatic control function, therefore the hydraulic grout pump is simple in structure, can regulate timely and accurately, and has no overpressure problem.This electric grout pump can adjust its output and working pressure by continuously variable adjustment, grout injection pump can grout simple-liquid and chemical grout.
Features of cement grouting pump machine:
1.ISO9001-2008&CE
2.Hydraulic grout injection pump
3.Dual cylinders and single action hydraulic grouting pump
4.Operation and maintenance are simple
Technical Sheet of cement grouting pump machine
Single slurry grout pump | |||||
Power(KW) | Overall Dimension | Weight | Aggregate | Pump Slurry Ratio | Hydraulic oil tank |
11, 15 | 1.0×1.0×0.98m | 420(kg) | ≤Φ3mm | 0.5:1~1:1(W/C) | 100L |
22, 30 | 1.2×1.2×1.1m | 480(kg) | ≤Φ3mm | 0.5:1~1:1(W/C) | 150L |
Power(KW) | Model | Output(L/Min) | Pressure(Mpa) | ||
11 | LGH110/4-11H | ≤110 | ≤4 | ||
| LGH80/6-11H | ≤80 | ≤6 | ||
| LGH50/7-11H | ≤50 | ≤7 | ||
15 | LGH120/6-15H | ≤120 | ≤6 | ||
| LGH80/8-15H | ≤80 | ≤8 | ||
| LGH60/10-15H | ≤60 | ≤10 | ||
| LGH50/15-15H | ≤50 | ≤15 | ||
22 | LGH110/10-22H | ≤110 | ≤10 | ||
| LGH80/13-22H | ≤80 | ≤13 | ||
| LGH60/18-22H | ≤60 | ≤18 | ||
| LGH50/23-22H | ≤50 | ≤23 | ||
| LGH25/40-22H | ≤25 | ≤40 | ||
30 | LGH120/12-30H | ≤120 | ≤12 | ||
| LGH60/20-30H | ≤60 | ≤25 | ||
| LGH35/45-30H | ≤35 | ≤45 | ||

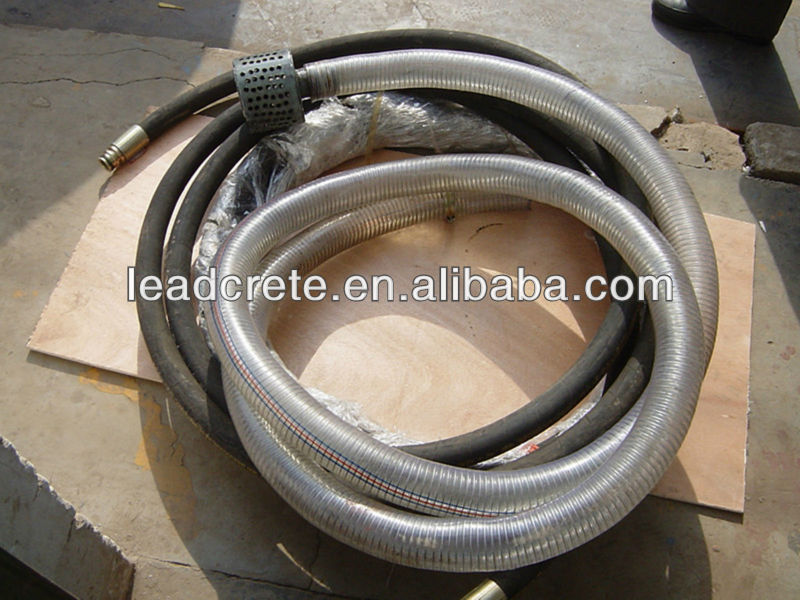

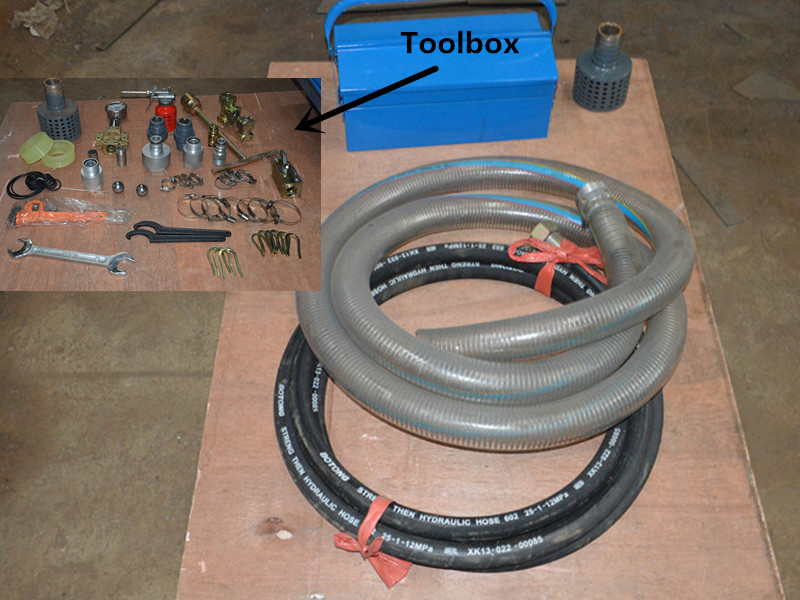

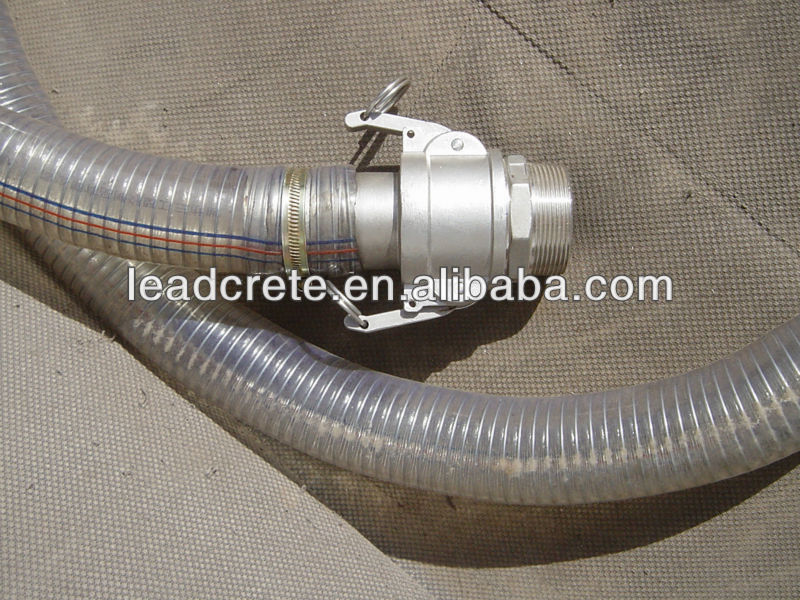

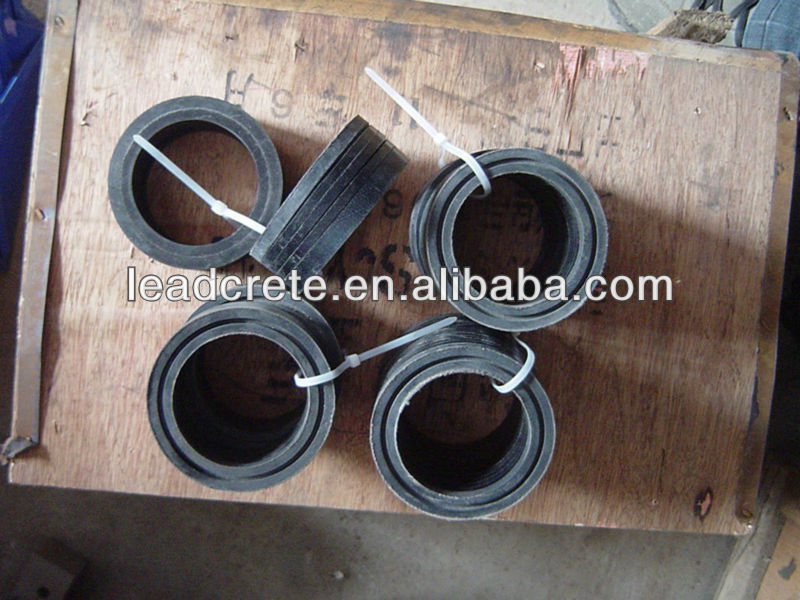

Accessories | Suction hose,filter,delivery hose,junction device,tools,sealing parts bit. Optional: thickness slurry hopper, hole plug, mixture ratio regulator, baume gauge. |

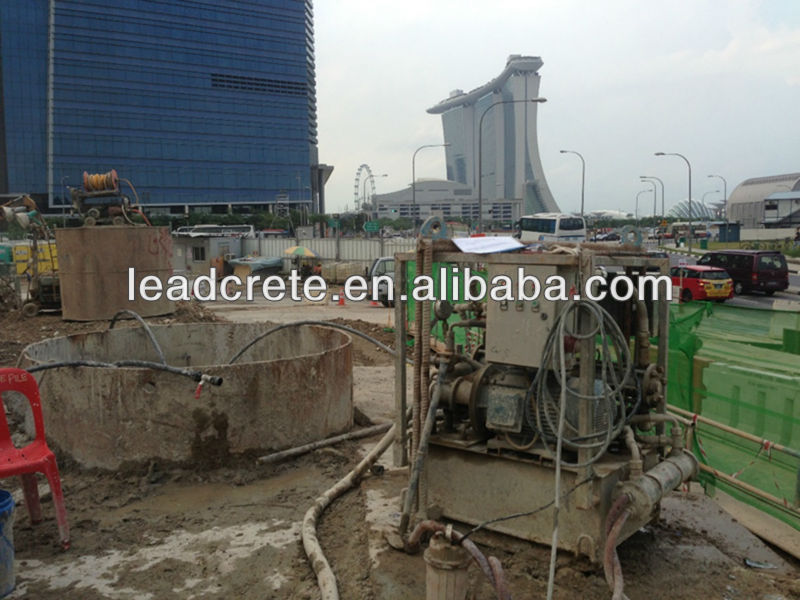

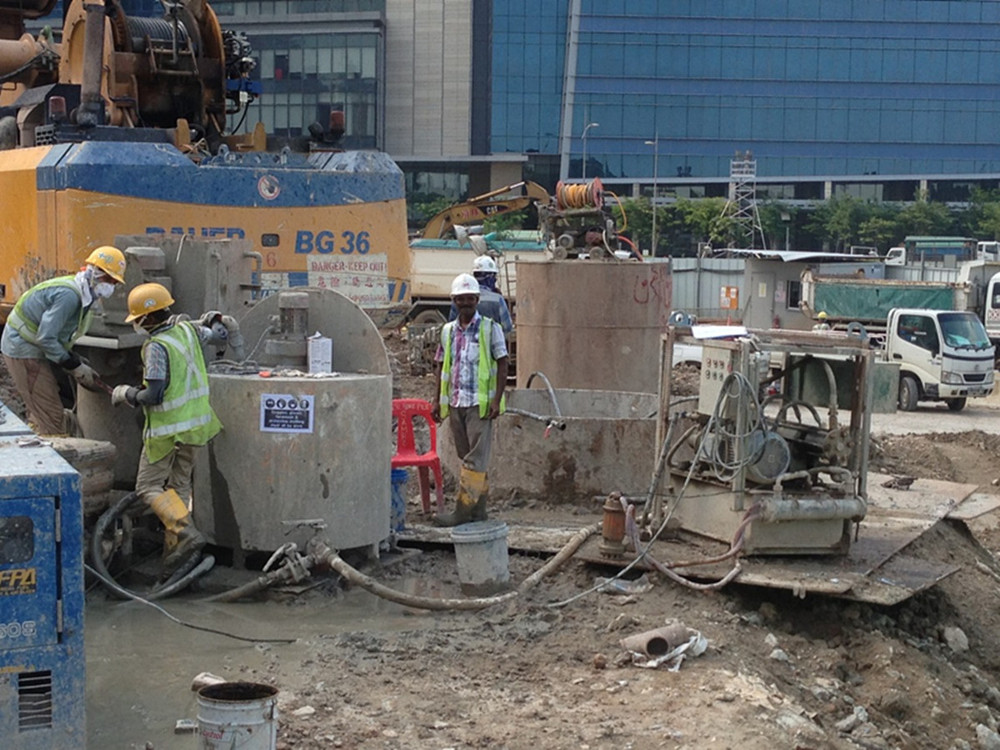

Application photo of cement grouting pump machine in Singapore:
We have many kinds of grouting equipment for your reference, in order to recommend you more suitable models grouting equipment, please let us know clearly about your requirements:
1. what project will you do with grouting equipment? for dam, foundation treatment or micropile, etc?
2. what is the output and pressure of pump?
3. what is water cement ratio?
4. which engine do you prefer? electric motor or diesel engine?
if you want to know more about our grouting equipment, please feel free to contact me.
