Yonjou Rotary Lobe Food Pump

Summarize:Stainless Steel Food Grade Rotary Lobe Pump (Chocolate Honey Ice Cream Cosmetic) are used in a variety of industries including, pulp and paper, chemical, food, beverage,         pharmaceutical, and biotechnology. They are popular in th

Technical Feature

  • Shanghai, China
  • 1000sets/Year
  • L/C, T/T, Western Union
  • Lq3a
  • Rotary Pump
  • 1 Set
Send Standard Inquiry Add Inquiry List

0 Add Favorite

$0~489

PRIMARY PARAMETERS

Model NO.
LQ3A
Place of Origin
China
Packing Standard
Export Plywood Case
Power
Electric
Code
8413110000
Trademark
YonJou
Transport Package
Standard Export Plywood Case
Specification
SGS
Origin
China
HS Code
8413110000

DETAIL DESCRIPTION

Yonjou Rotary Lobe Food Pump

Summarize:

  1. Stainless Steel Food Grade Rotary Lobe Pump (Chocolate Honey Ice Cream Cosmetic) are used in a variety of industries including, pulp and paper, chemical, food, beverage,         pharmaceutical, and biotechnology.
  2. They are popular in these diverse industries because they offer superb sanitary qualities, high efficiency, reliability, corrosion resistance, and good clean-in-place and sterilize-in-place (CIP/SIP) characteristics.
  3. These pumps offer a variety of lobe options including butterfly lobe, double lobe, triple lobe.
  4. Rotary lobe pumps are non-contacting and have large pumping chambers, allowing them to handle solids such as cherries or olives without damage.  They are also used to handle slurries, pastes, and a wide variety of other liquids.



Product details:

Working Principle:Double rotors
Main Applications:       Food applications, Polymers, Paper coatings, Soaps and surfactants, Paints and dyes Rubber and adhesives.
Driver:Variable Speed Motor, Geared Motor, Variable Frequency Motor
Power Specs:220V, 240V, 380V, 400V, 415V, 440V, 460V,  50hz/60hz
Max.permissible fluid temperature:150°C (302°F) / 250°C (482°F)-water cool type
Type of connection:Quick couple, Thread, Flange
Installation position:Horizontal
Casing/Inner parts material:Stainless Steel
Shaft seal type:  Mechanical seal
Maximum viscosity:1x106 C.S.T
Maximum drive rating: 22kW(30HP)
Maximum caliber:  125mm(5inch)
Maximum discharge-side pressure:5bar
Suction pressure:0.08Mpa(0.8bar)




Performance data:

Type

Size

(mm)

Discharge

Capacity

per 100r (L)

Speed Range

 (rpm)

Flow

(L/H)

Motor Power

 (kW)

LQ3A-6256200-500650-16000.75
LQ3A-8328200-500850-21601.5
LQ3A-123812200-5001300-32002.2
LQ3A-203820200-5002100-54003
LQ3A-304230200-4003200-64004
LQ3A-364236200-4003800-76005.5
LQ3A-525052200-4005600-110005.5
LQ3A-666266200-4007100-140007.5
LQ3A-787578200-4009000-180007.5
LQ3A-10075100200-40011000-2200011
LQ3A-135100135200-40015000-3000015
LQ3A-160100160200-40017000-3400018.5
LQ3A-200125200200-40021600-4300022

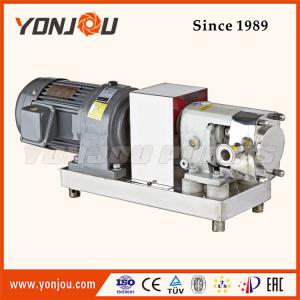

Yonjou Rotary Lobe Food Pump

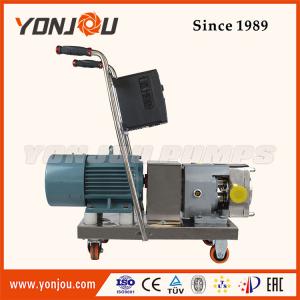

Yonjou Rotary Lobe Food Pump

Company information:
Zhejiang Yonjou Technology Co., Ltd is one of the leading manufacturers and exporters in the field of industry pumps with manufacturing facilities in mainland China. We are specialized in oil pump, diaphragm pump, diesel engine pump, centrifugal pump, screw pump, chemical pump etc.

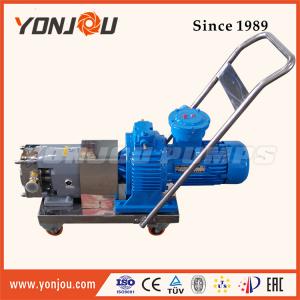

Yonjou Rotary Lobe Food Pump

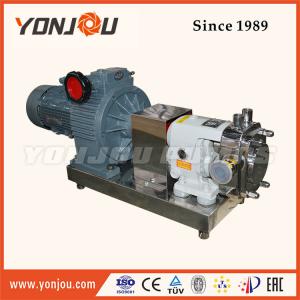

Yonjou Rotary Lobe Food Pump
